Concrete Flooring Options
Keep Water Out of the Building
What can be done to keep water out of your building

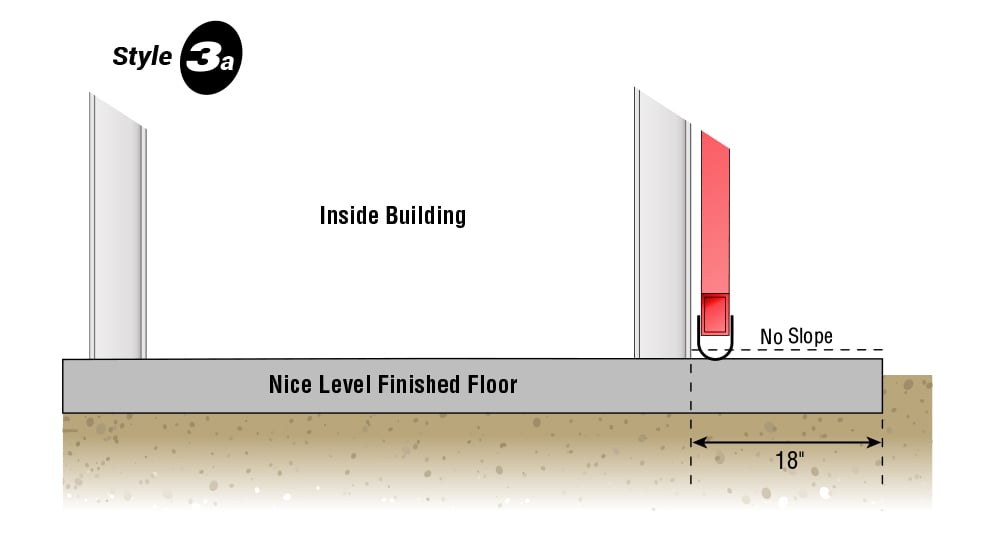

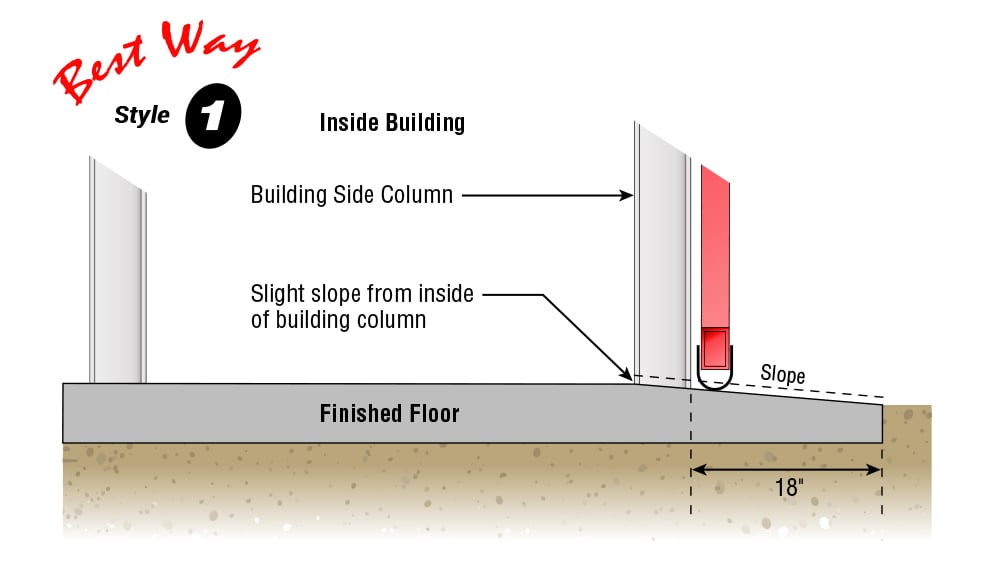

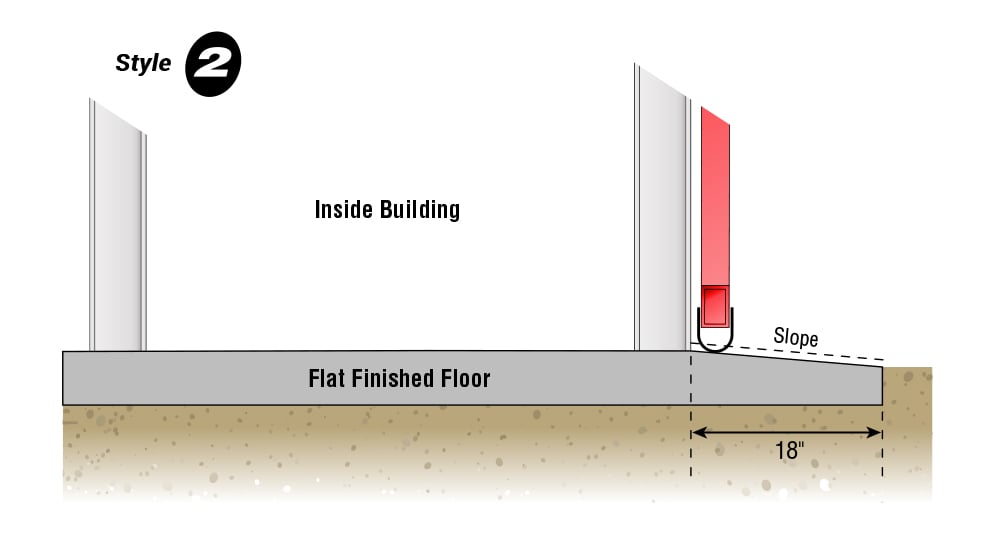

Ideal floor slope for proper drainage are examples 1 and 2 below.

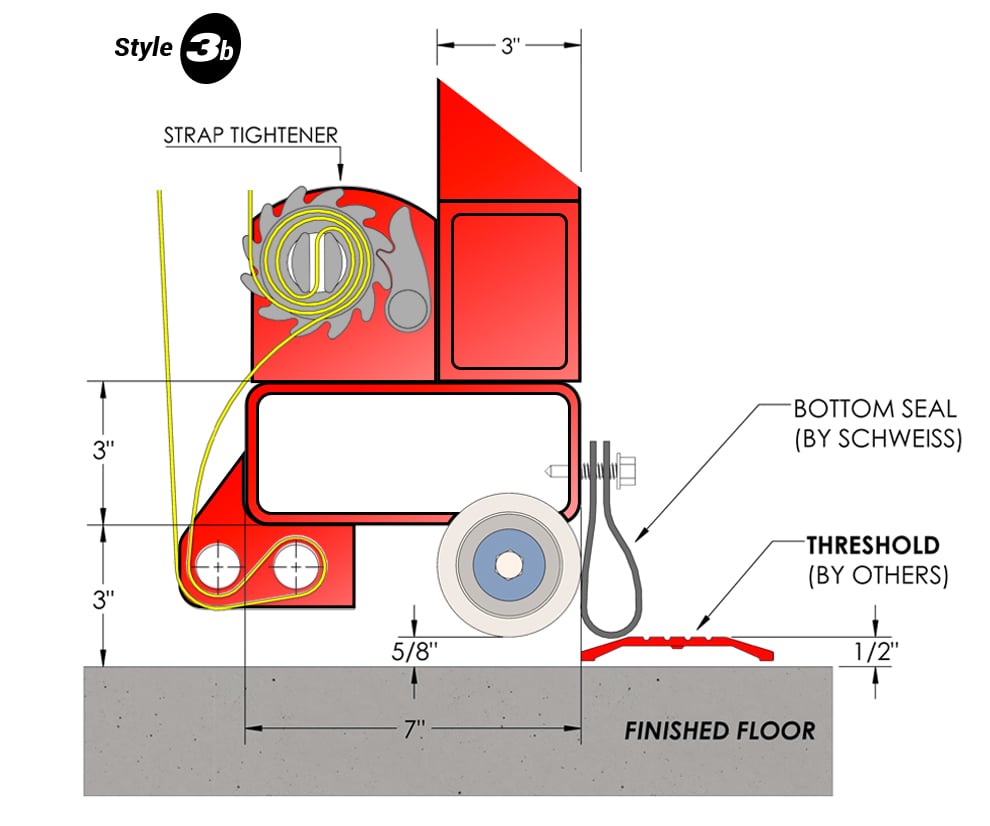

Designer door threshold - detail
(by Others)

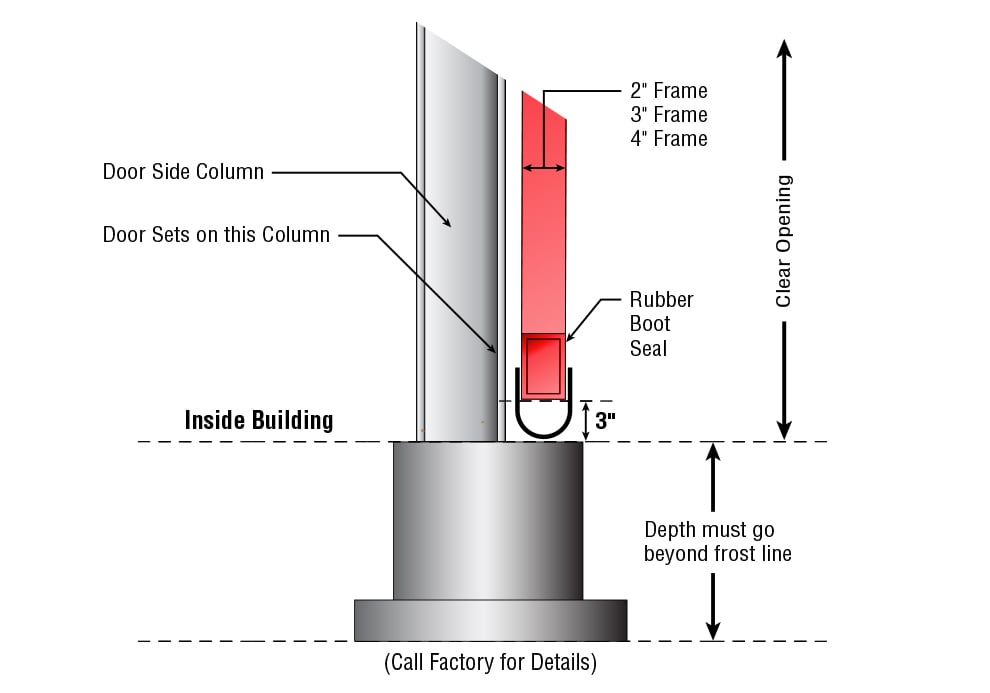

Side View / Footings
There must be a solid base or floor under the door fram to seal.
The door sets on the face of the side column or building line.

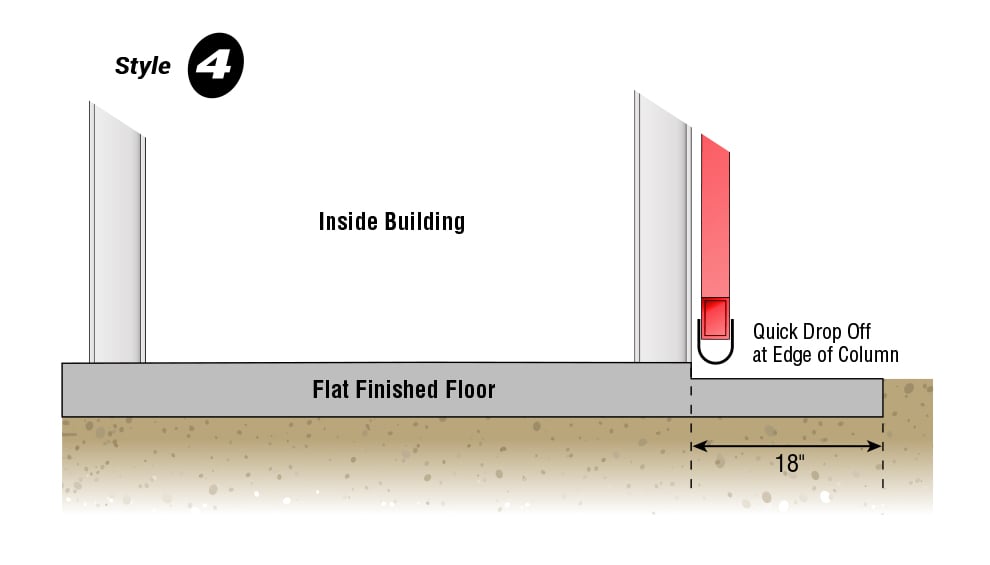

Concrete - Side View
Concrete must stick out beyond the door side column.
Concrete floor must be level
Each door will vary -call factory for details.

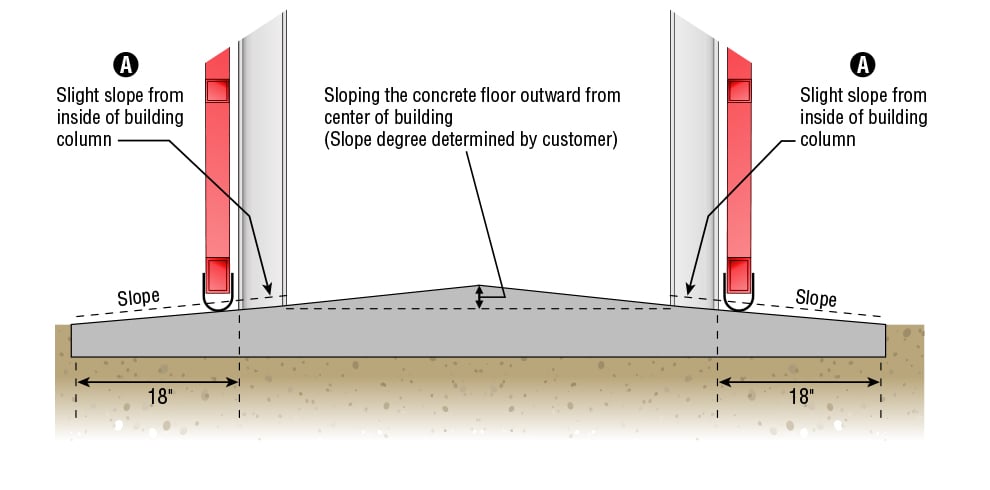

T-Hangar Buildings
T-Hangar Buildings with Doors on Both Sides of the Building
WHAT TO DO!
What can be done to keep water out of your building
Slope the apron in front away from the building
Slope the concrete inside of the building
How to keep water from seeping into your building

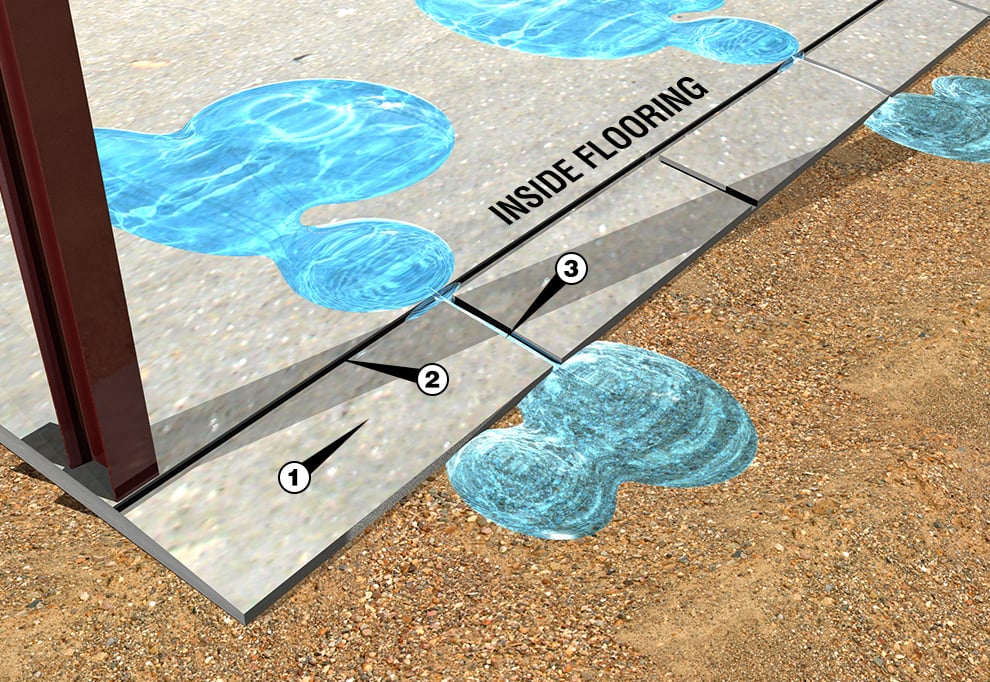

WHAT NOT TO DO!
1 -
No or minimal slope on apron
2 -

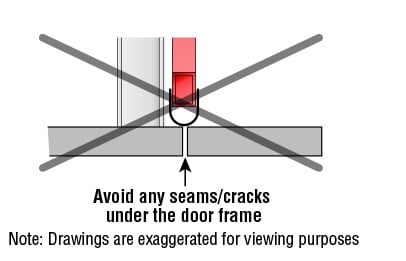

Locating the seam directly under the bottom rubber seal of the door.
3 -
Allowing water to flow back into the building through a seam / crack. (This is a result of failure to follow precautions 1 & 2 above).
Important to Remember
Saw cuts may cause water to flow back into the building.
The combination of saw cuts and no slope may cause water to flow into the inside of your building.
