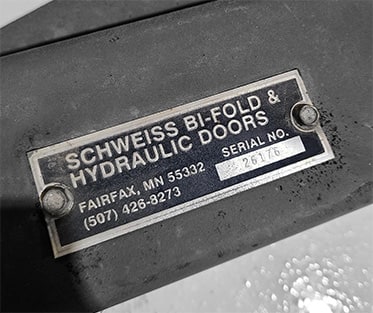

Behind both auto-latch arms On each end of the long autolatch cable Center autolatch assembly Center slide autolatch assembly

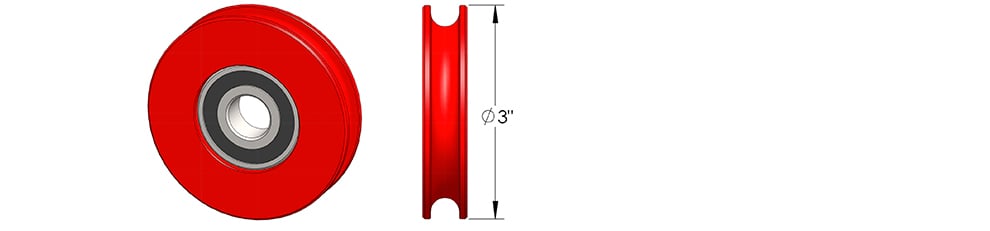

3" Pulleys
2

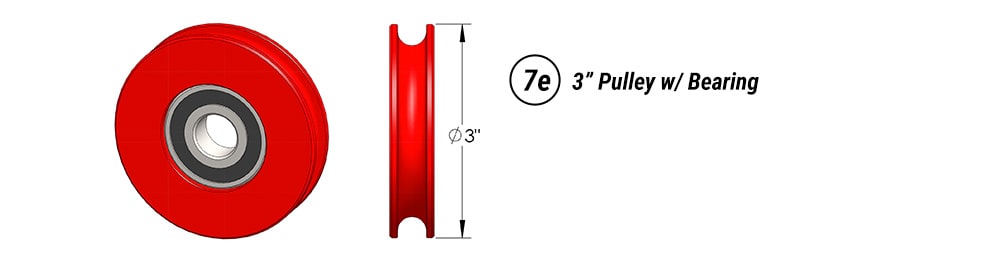

3 " Pulley with Bearing

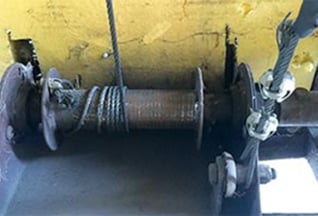

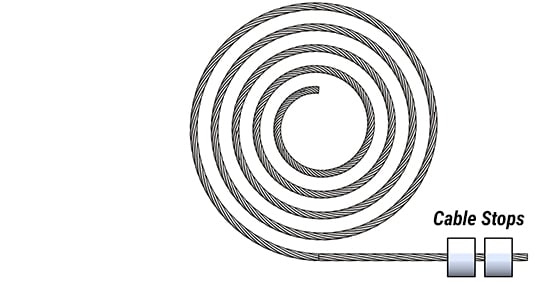

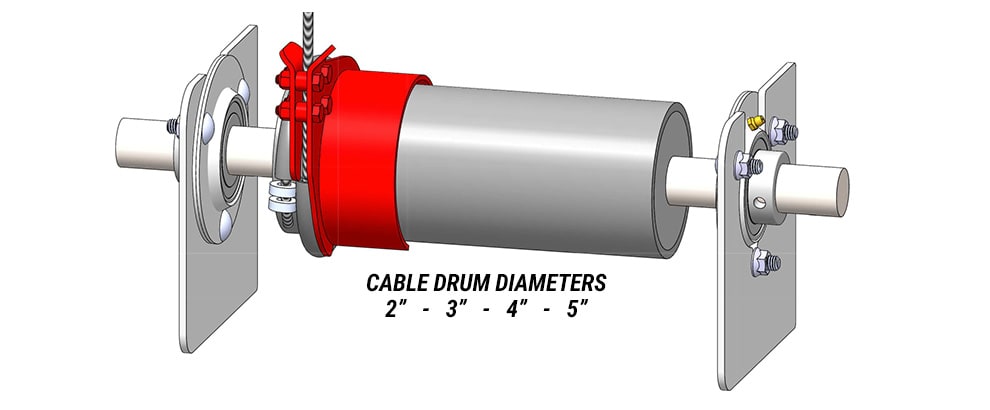

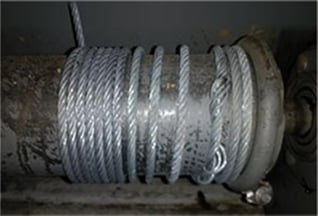

Steel Cables . . . For Lifting the Doors
3

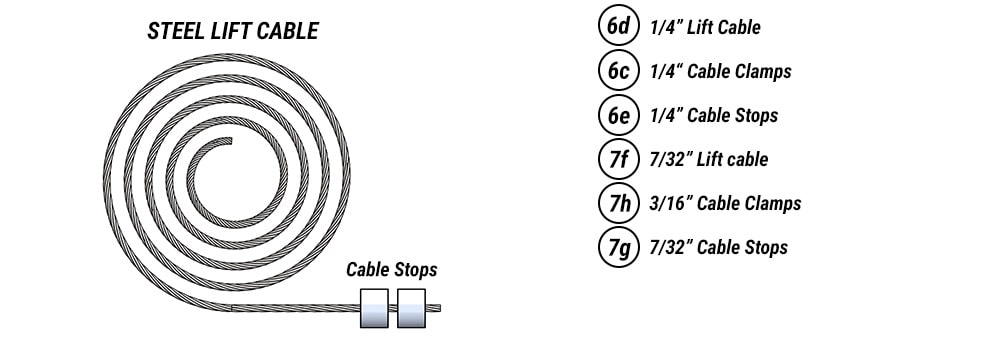

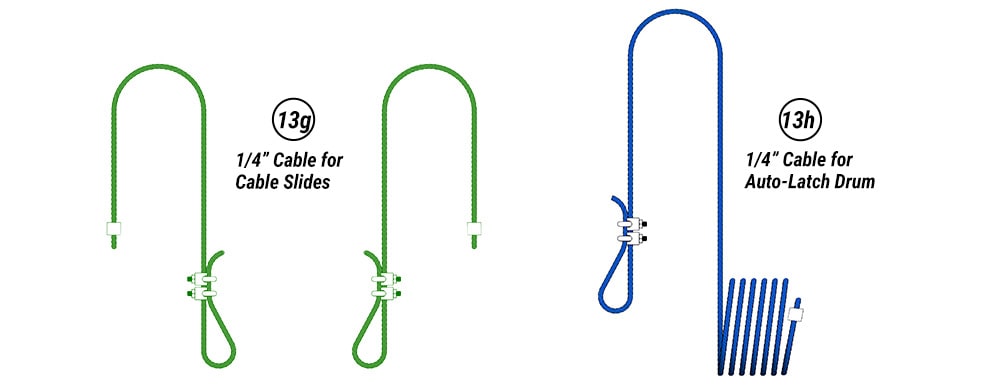

Steel Lift Cable
1/4" Lift cable used on each lift drum
6d
7/32" Lift cable used on each lift drum
7f

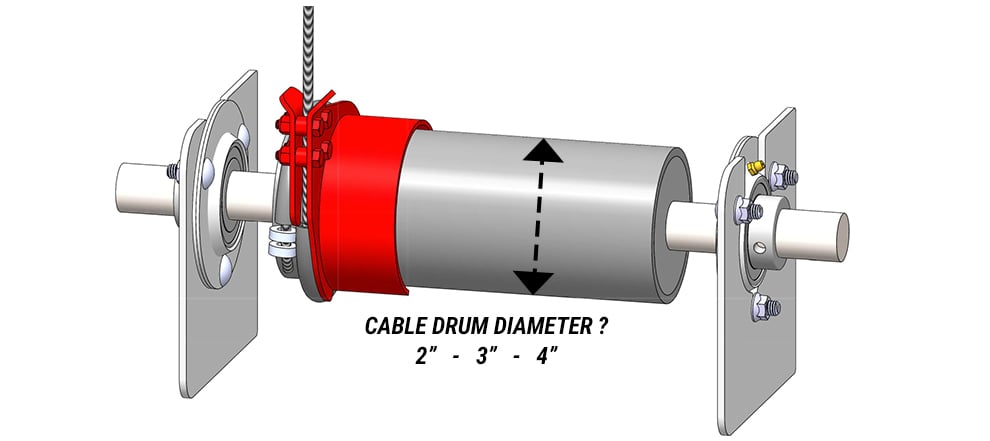

* Cable size required depends on your door style - Check with Schweiss

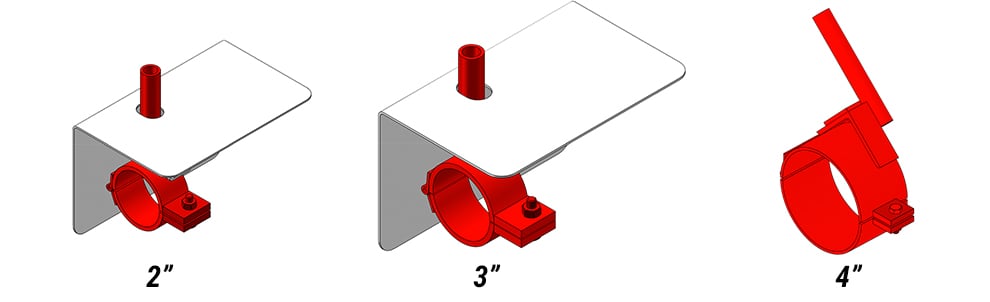

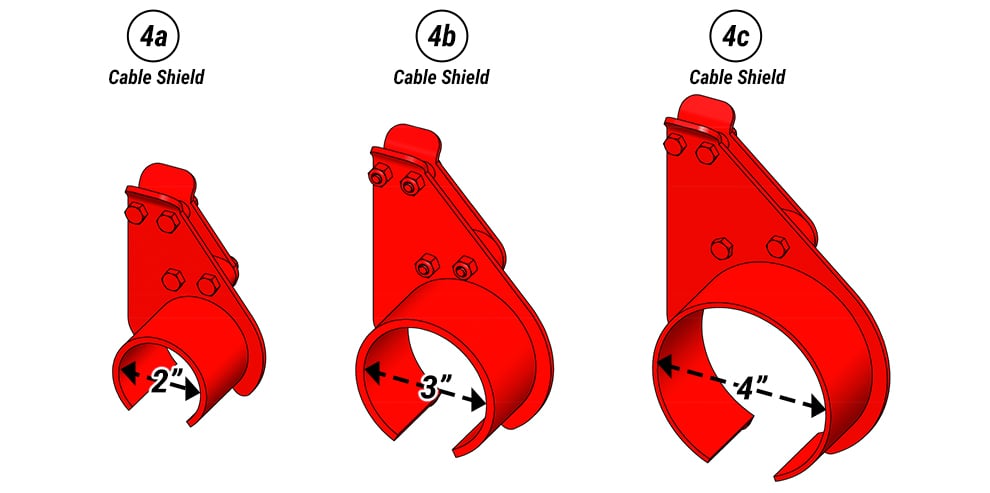

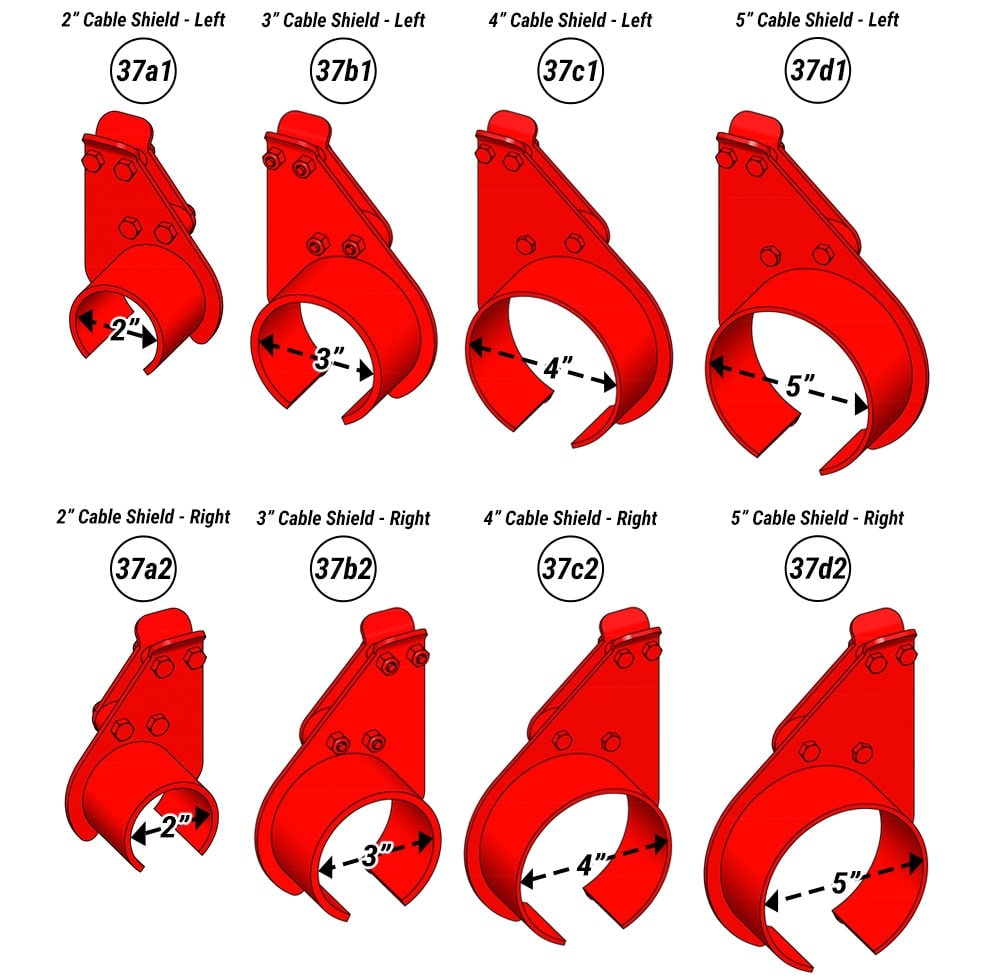

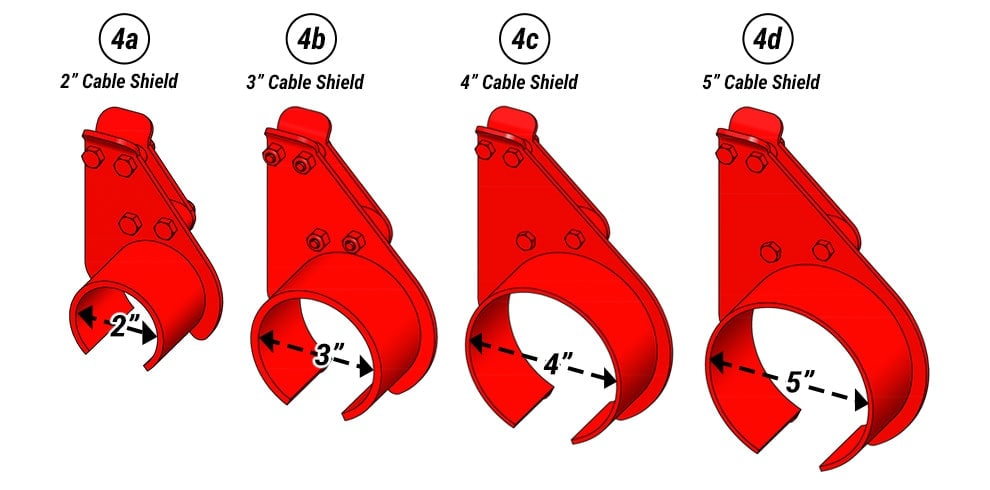

Standard Cable Shields
4
Style 1

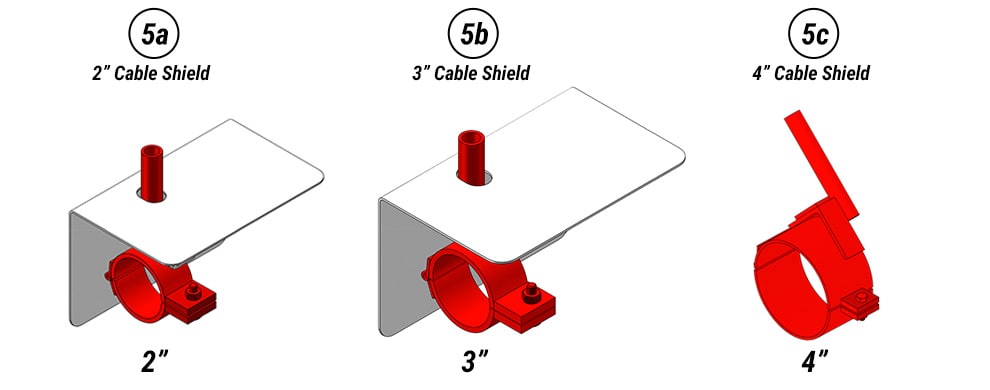

Older Style Cable Shields
5
Style 2
5a
Cable Shield
5b
Cable Shield
5c
Cable Shield

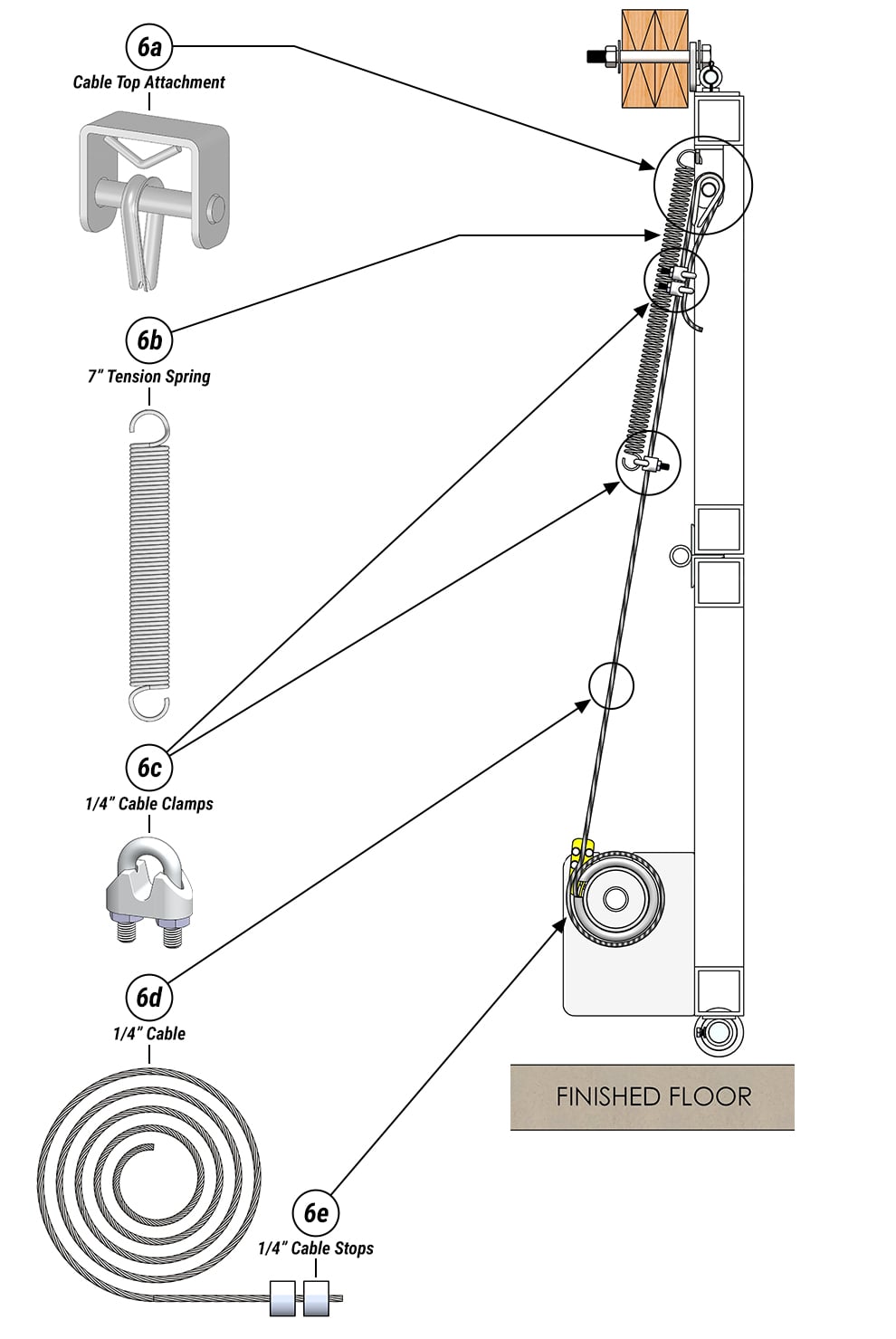

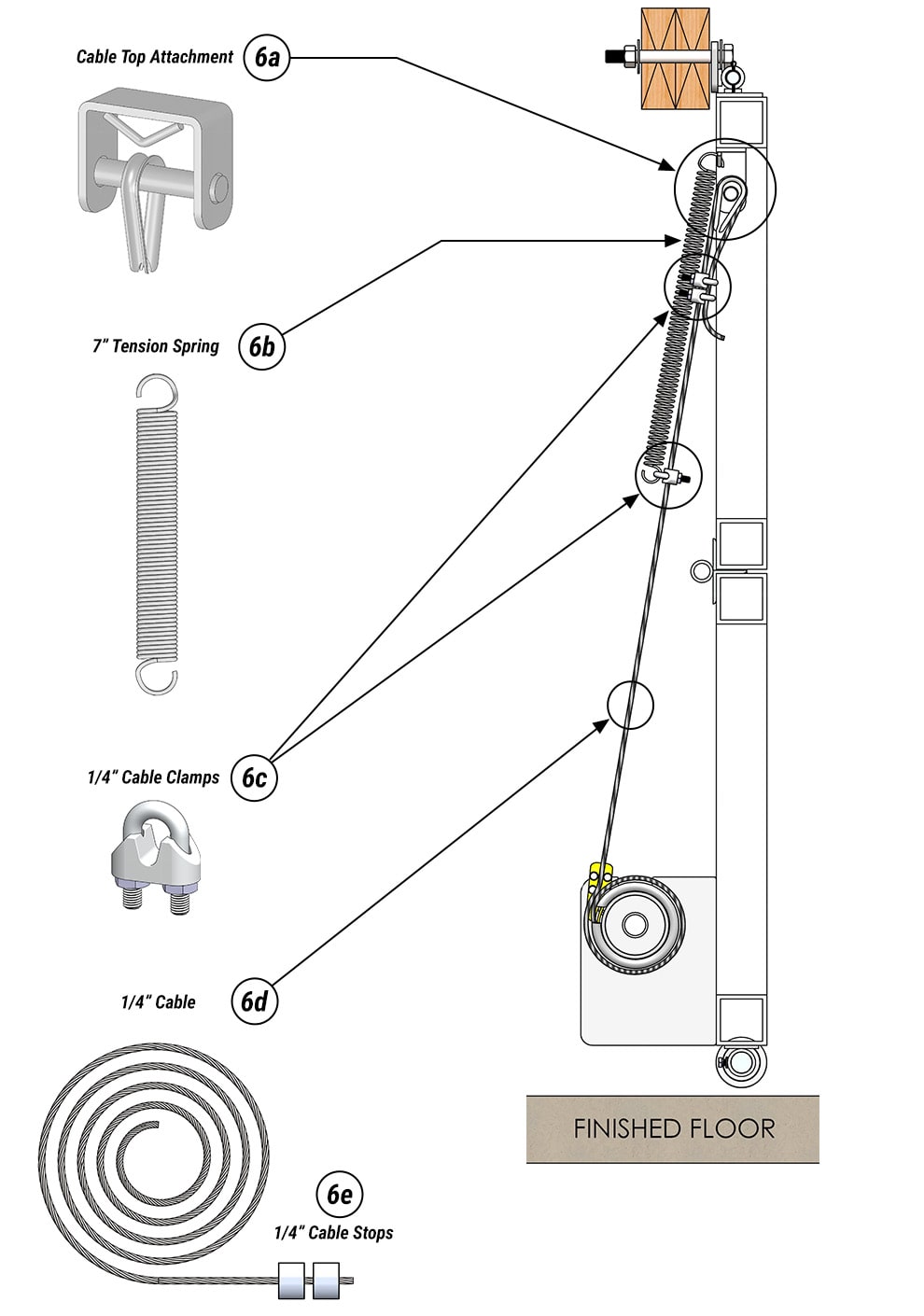

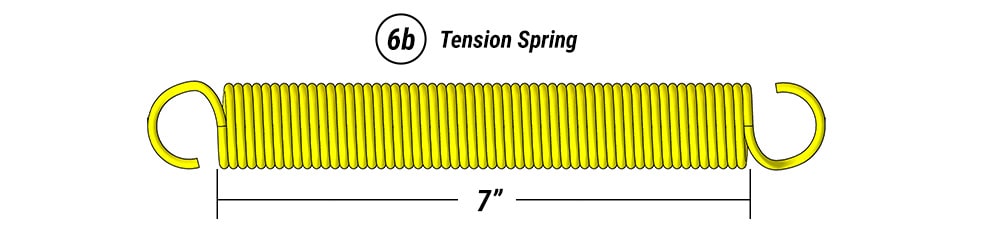

1/4" Cable Lift Doors - Full Assembly
6

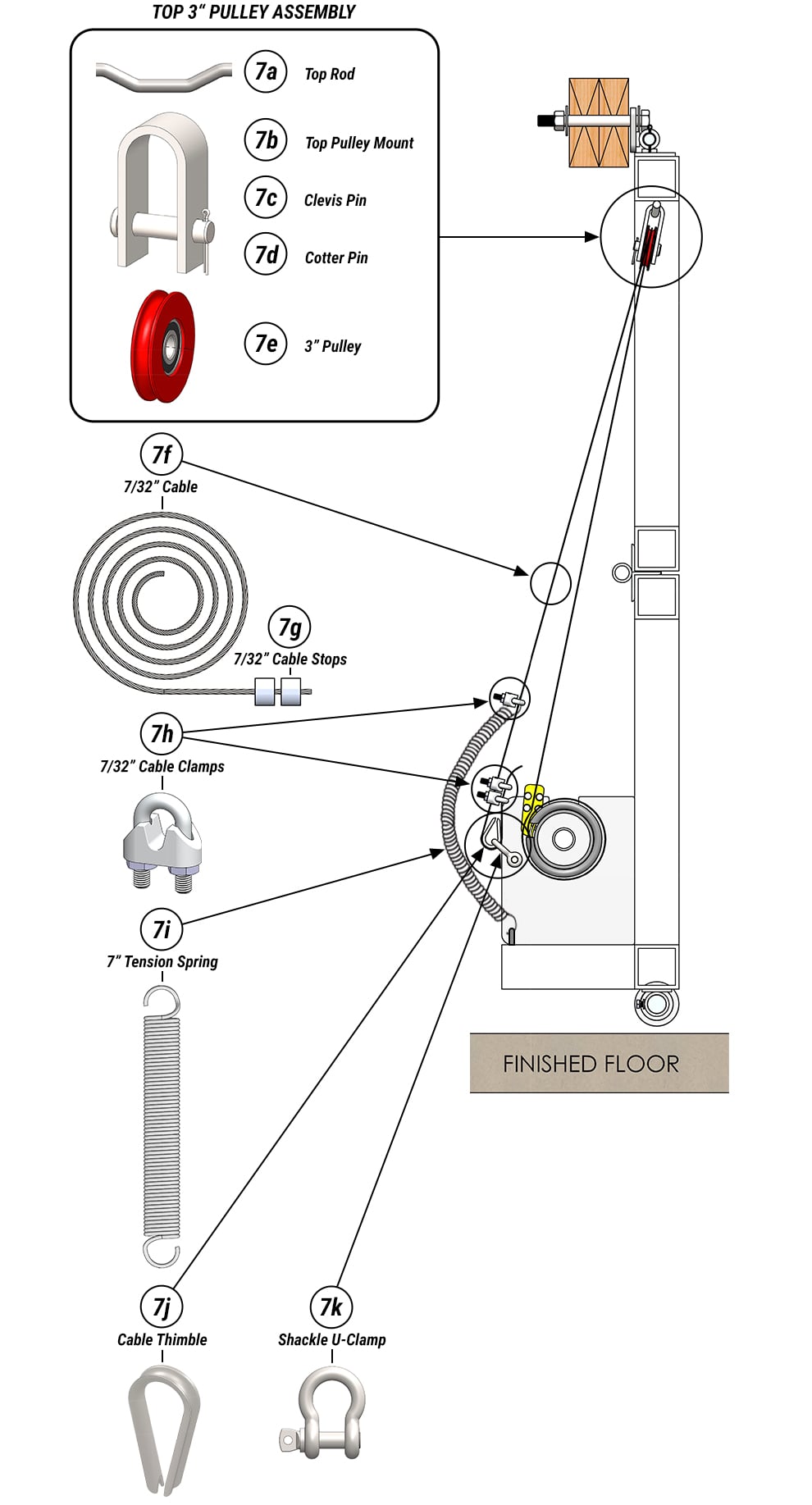

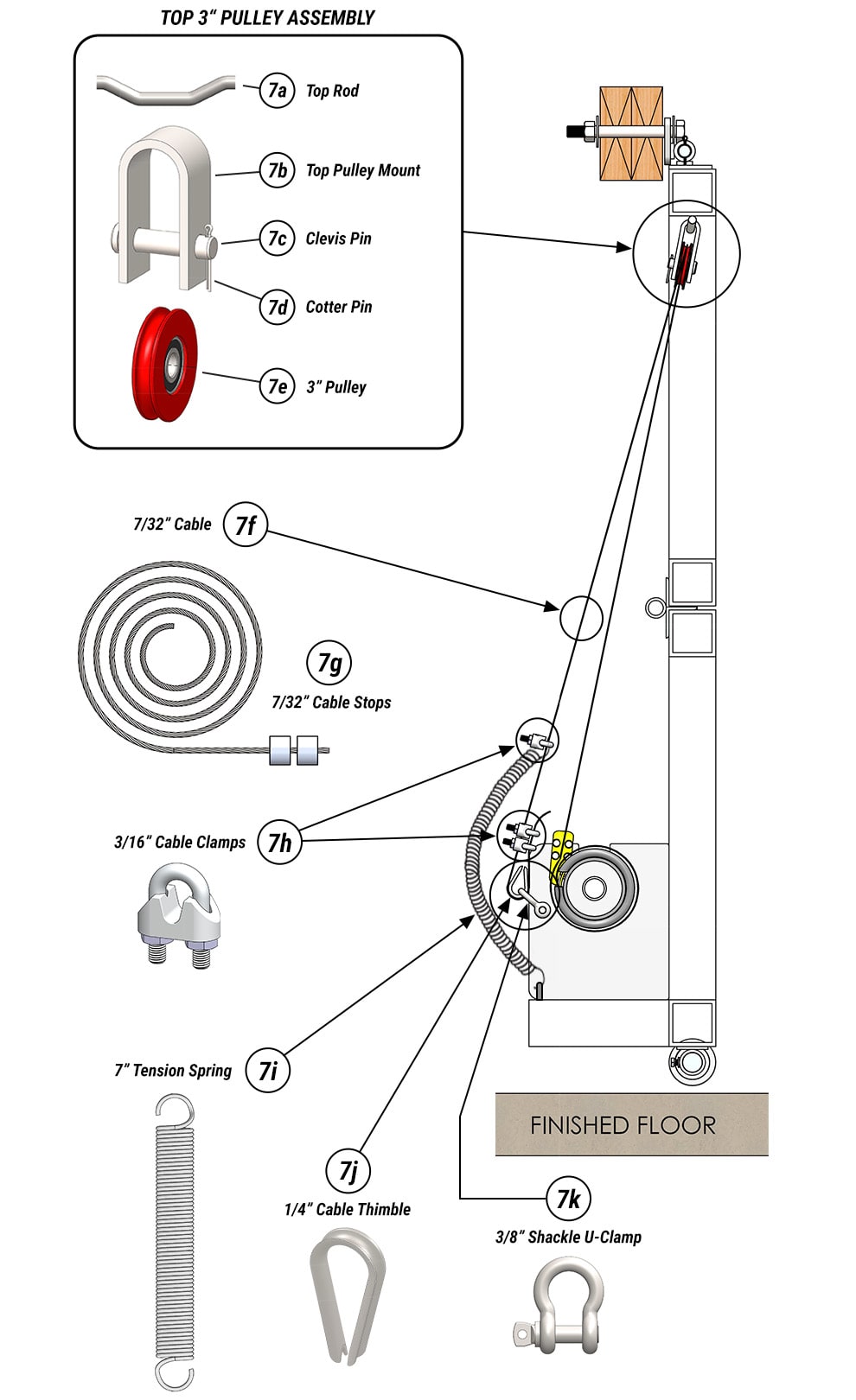

7/32" Cable Lift Doors - Full Assembly- up and around
7

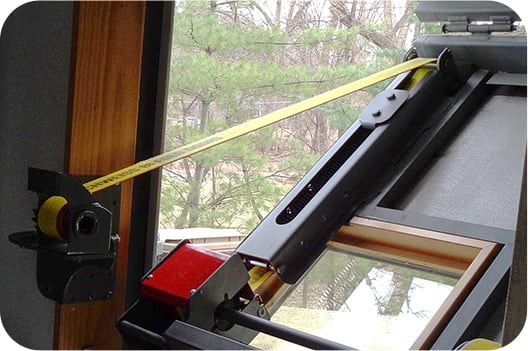

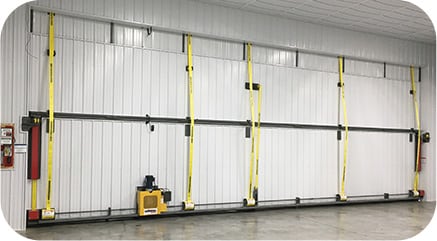

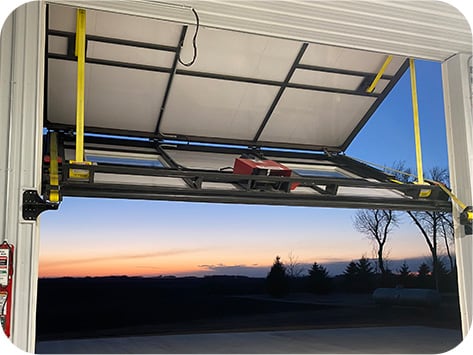

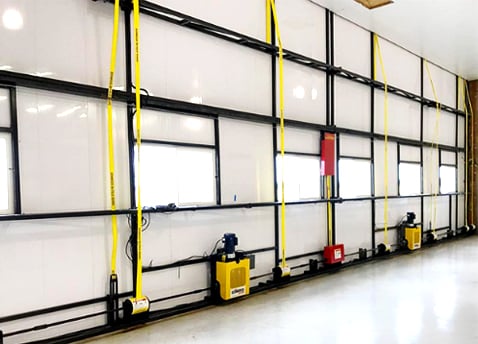

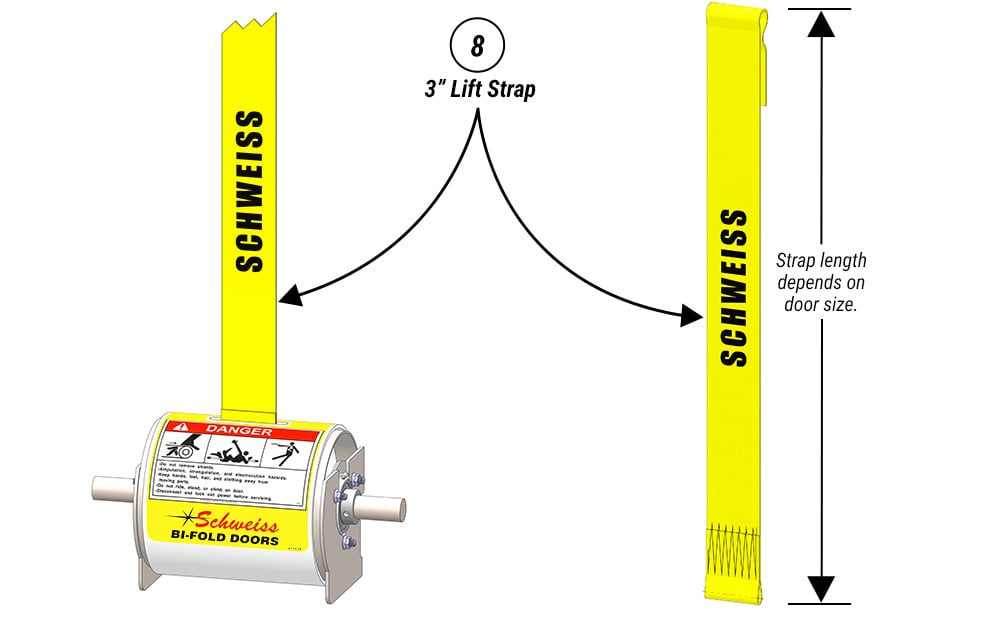

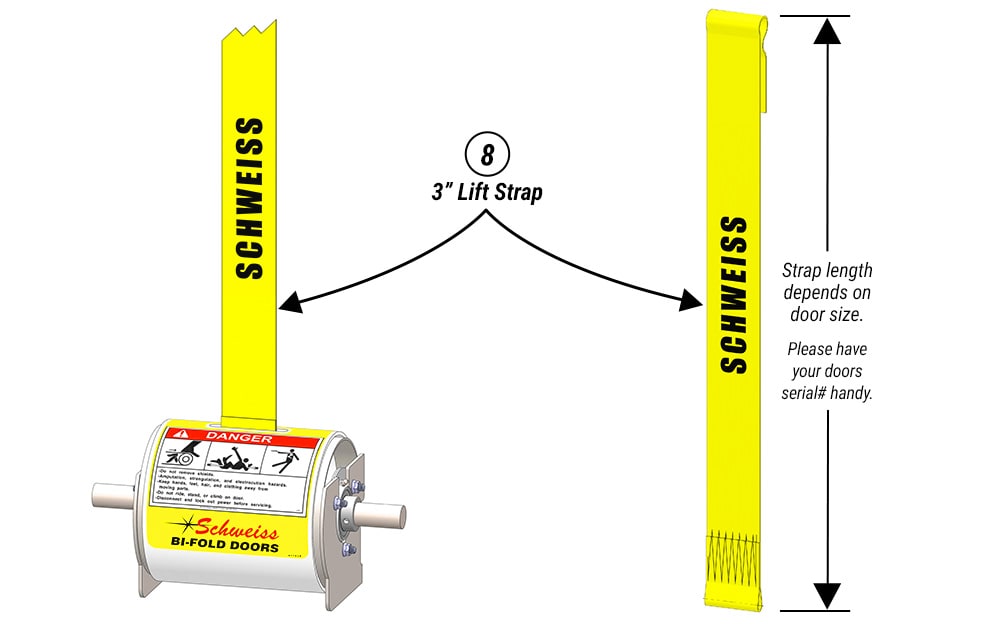

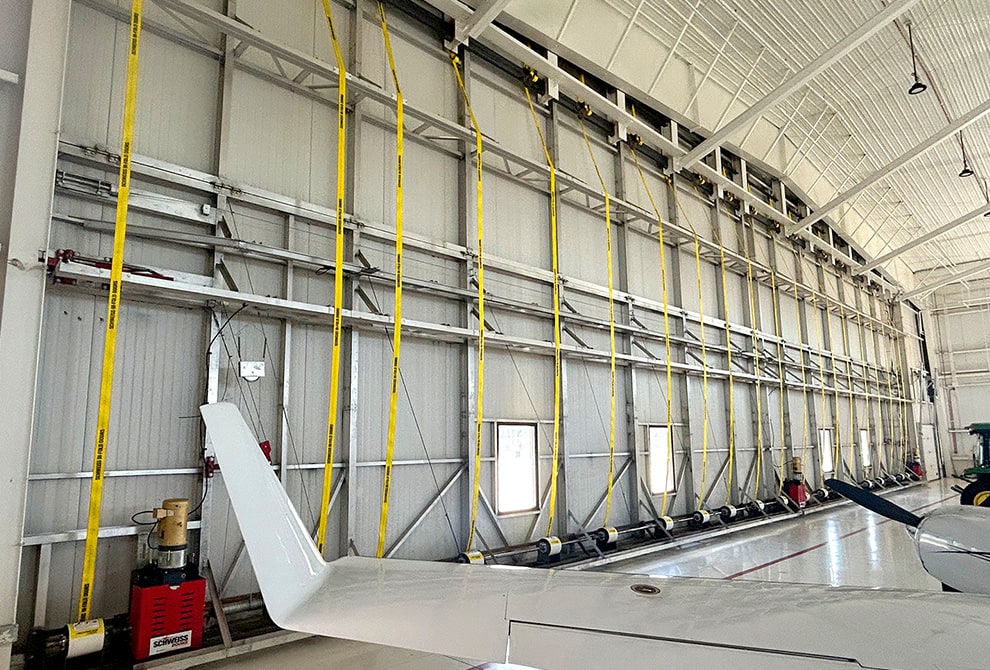

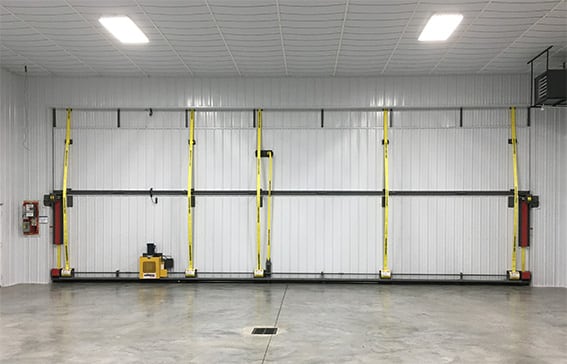

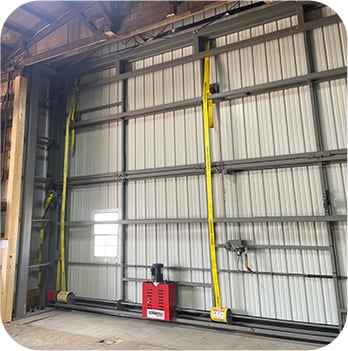

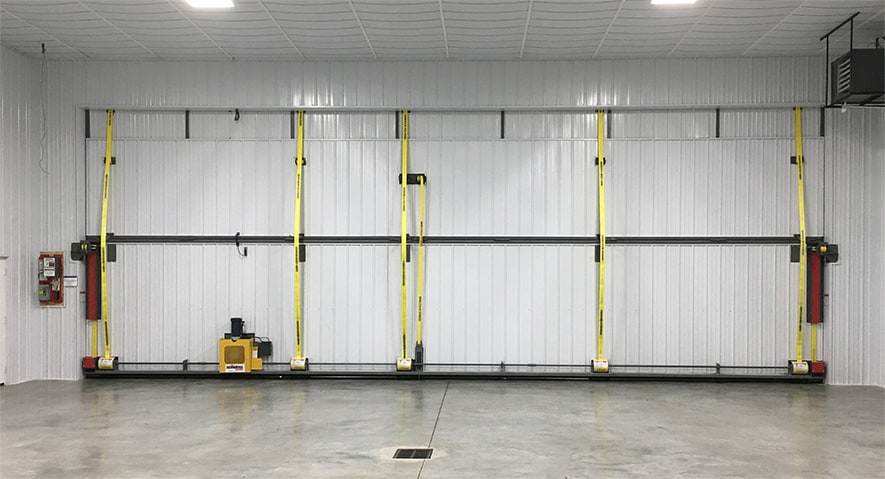

Lift Strap - 3" Colors Available • Yellow • Black • Grey • White - Your choice!
8
Colors Available • Yellow • Black • Grey • White - Your choice!

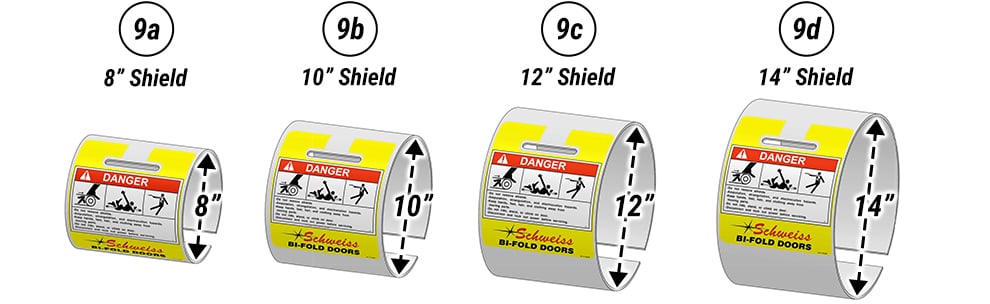

Lift Strap Shields - Multiple Sizes
9
Lift Strap Shields - Multiple Sizes - 8" to 14"
Auto-Latches . . . Four Styles

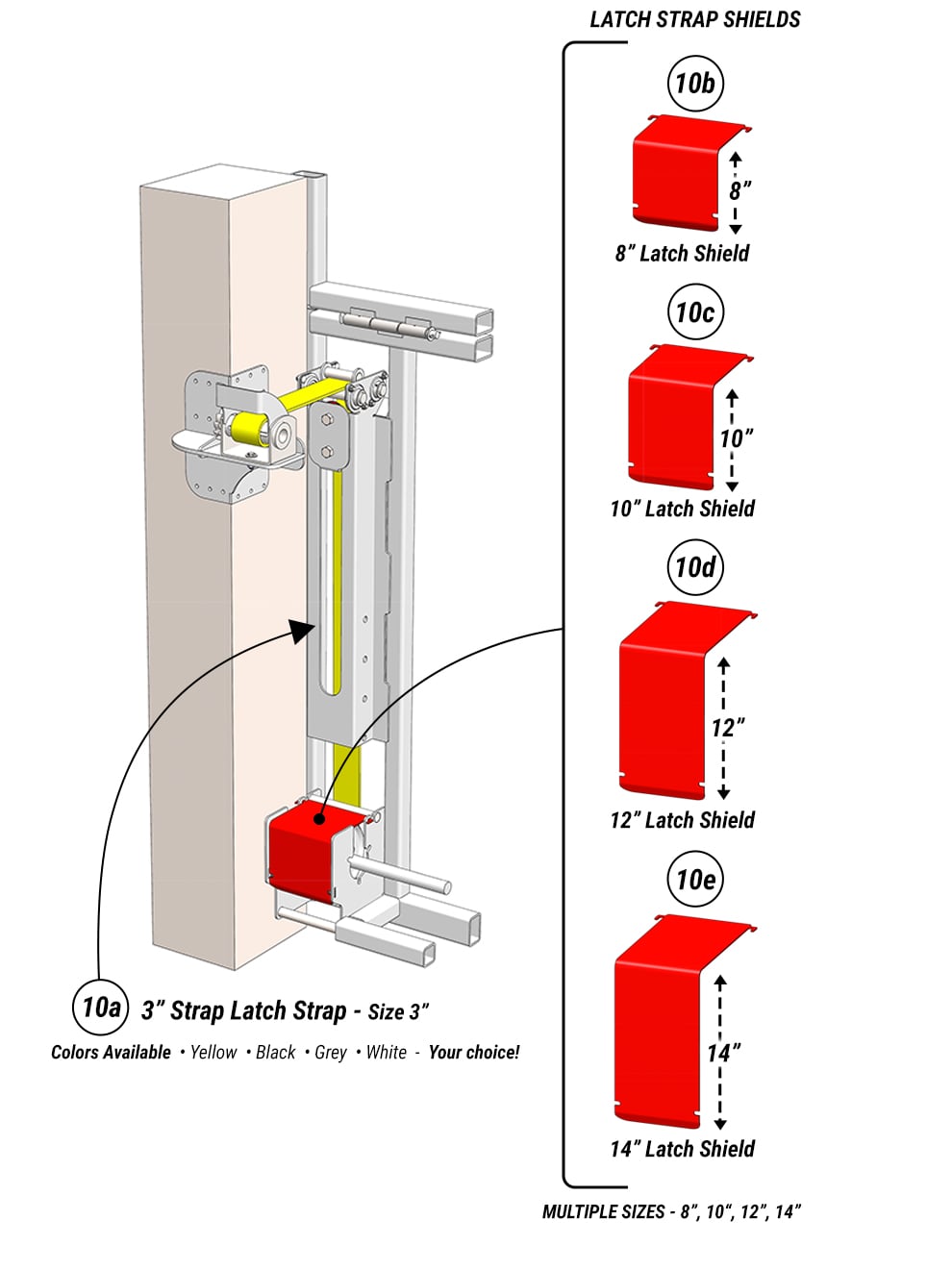

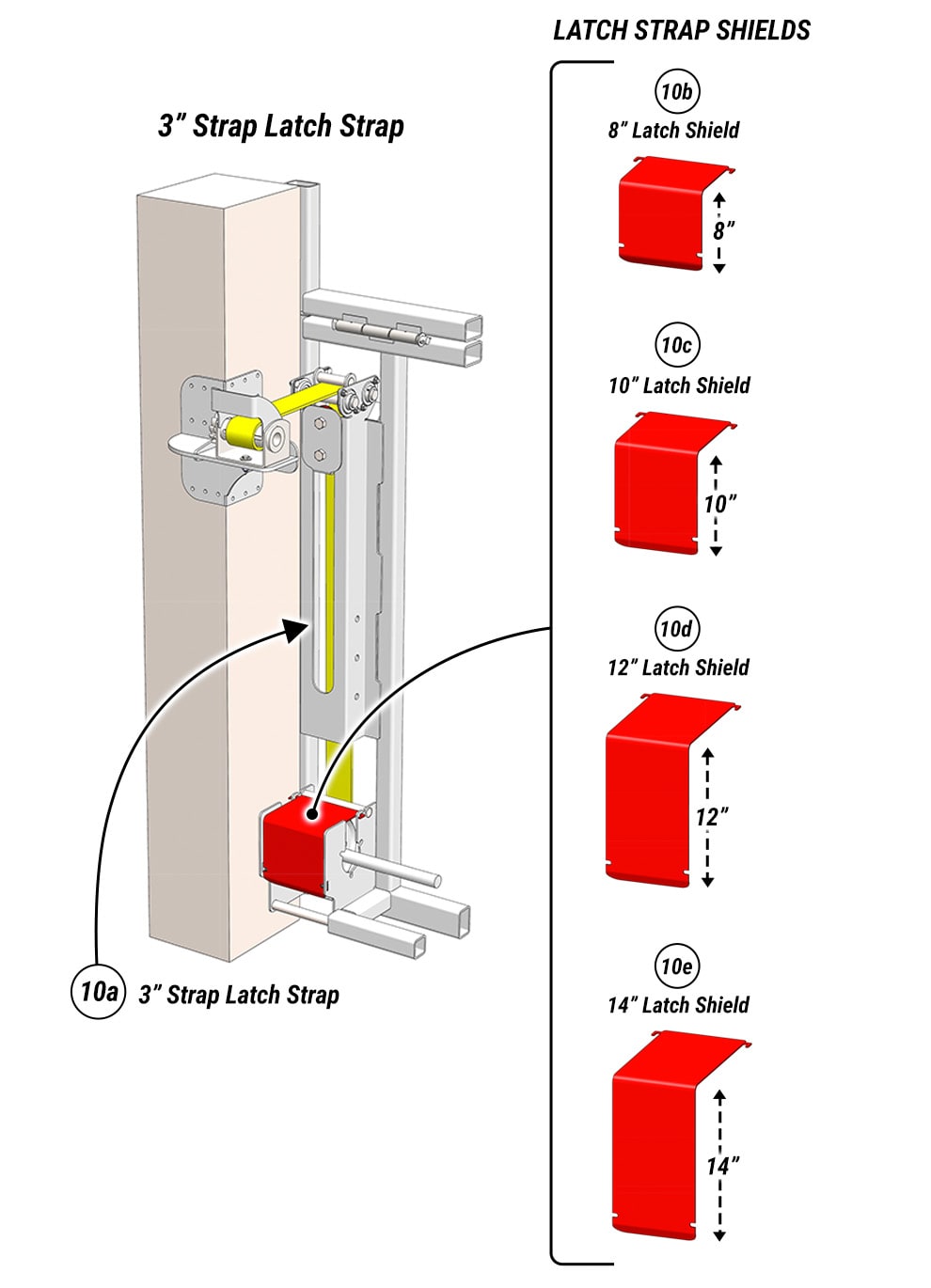

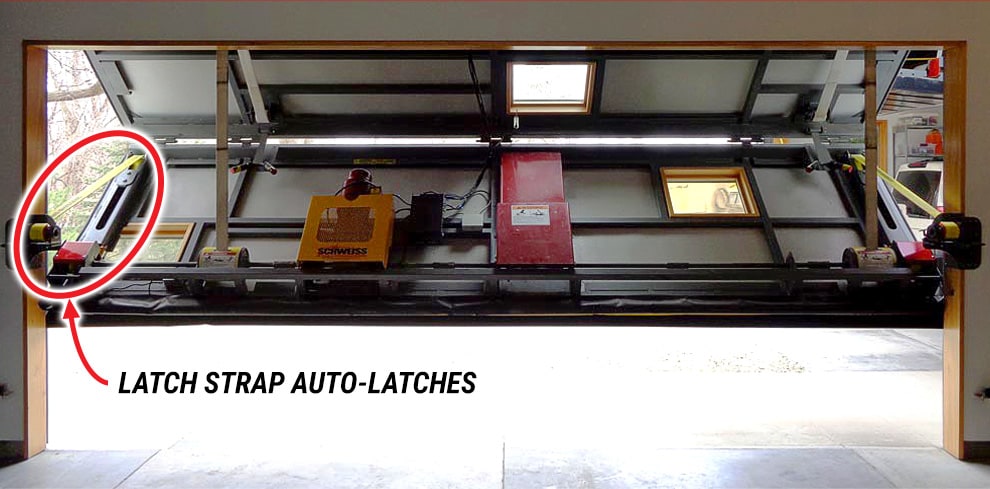

Latch Strap Auto-Latches - And Latch Shields
10
Style 1
3" Strap Latch Strap

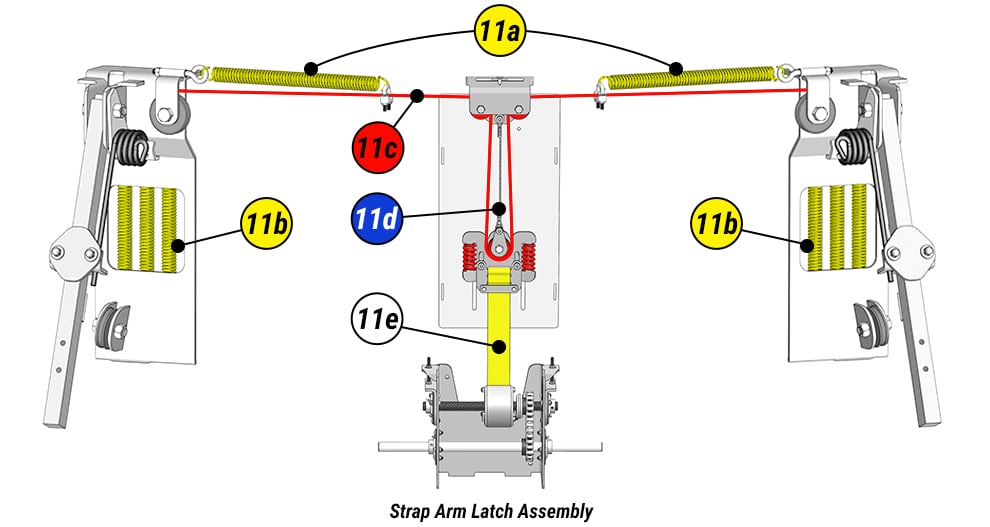

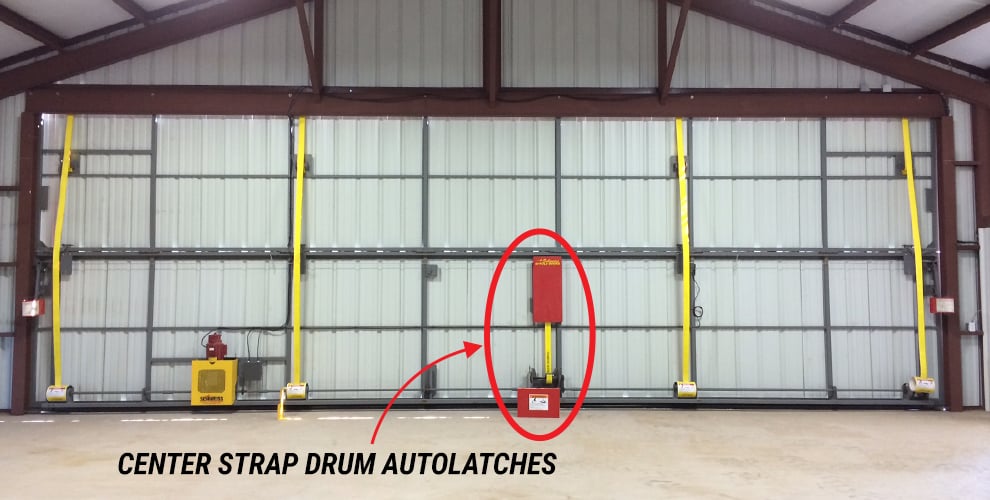

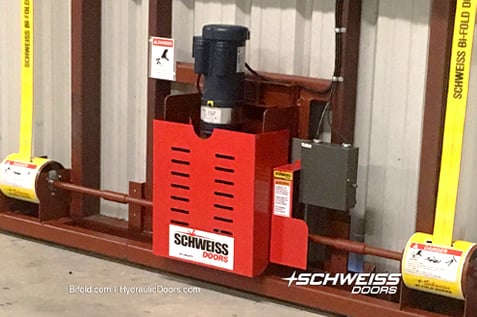

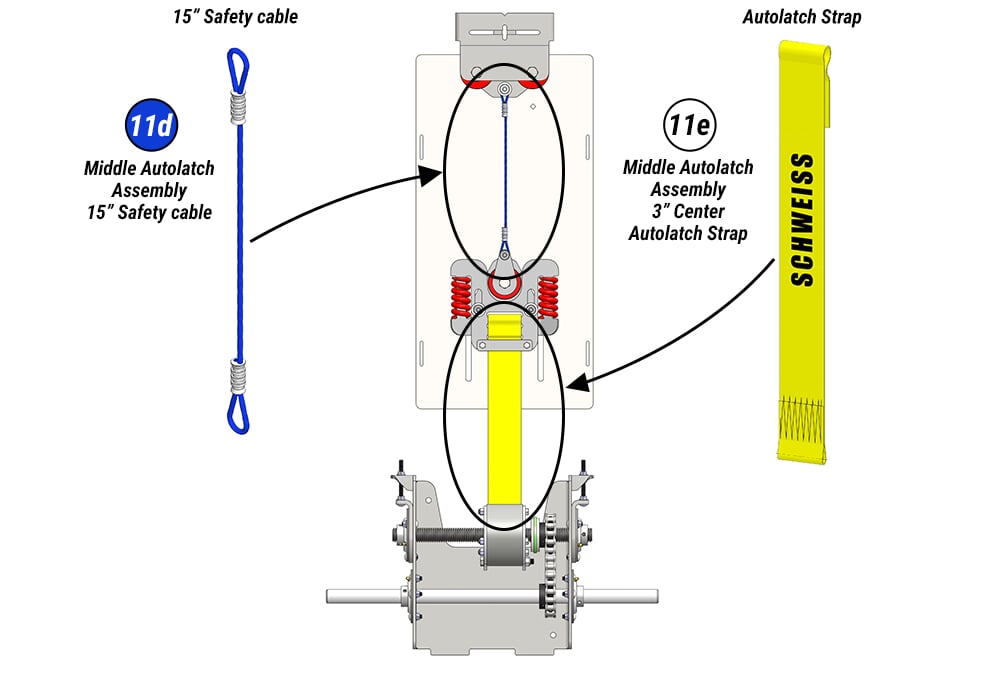

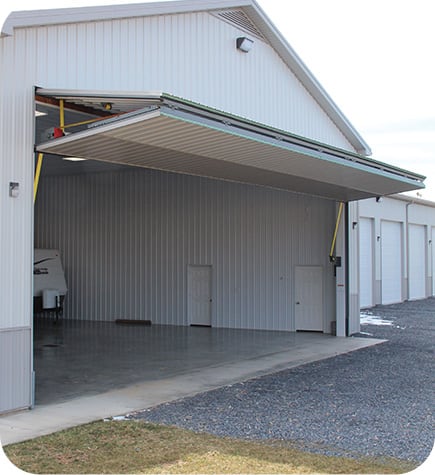

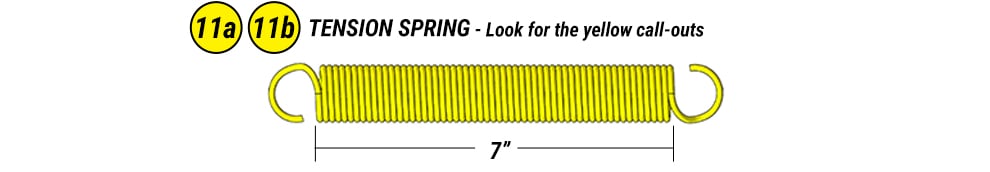

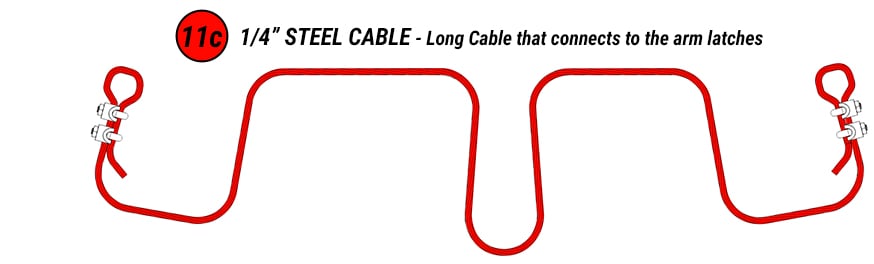

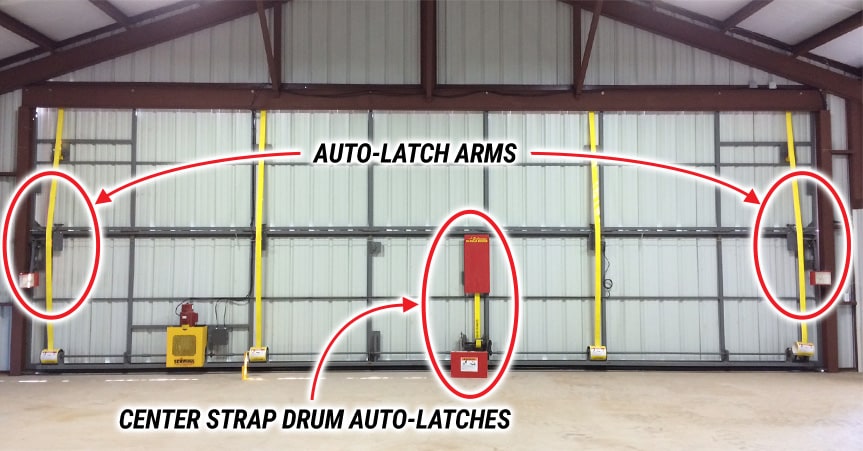

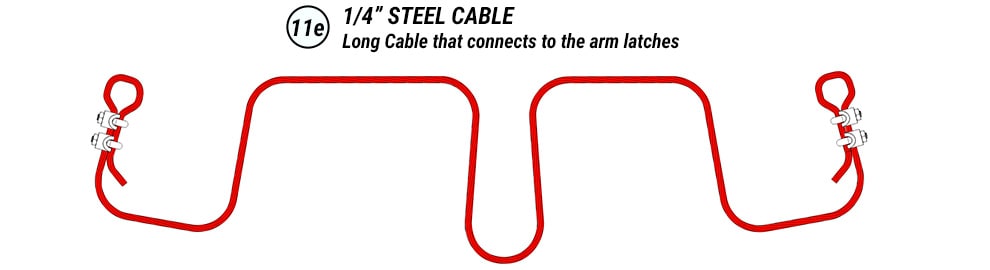

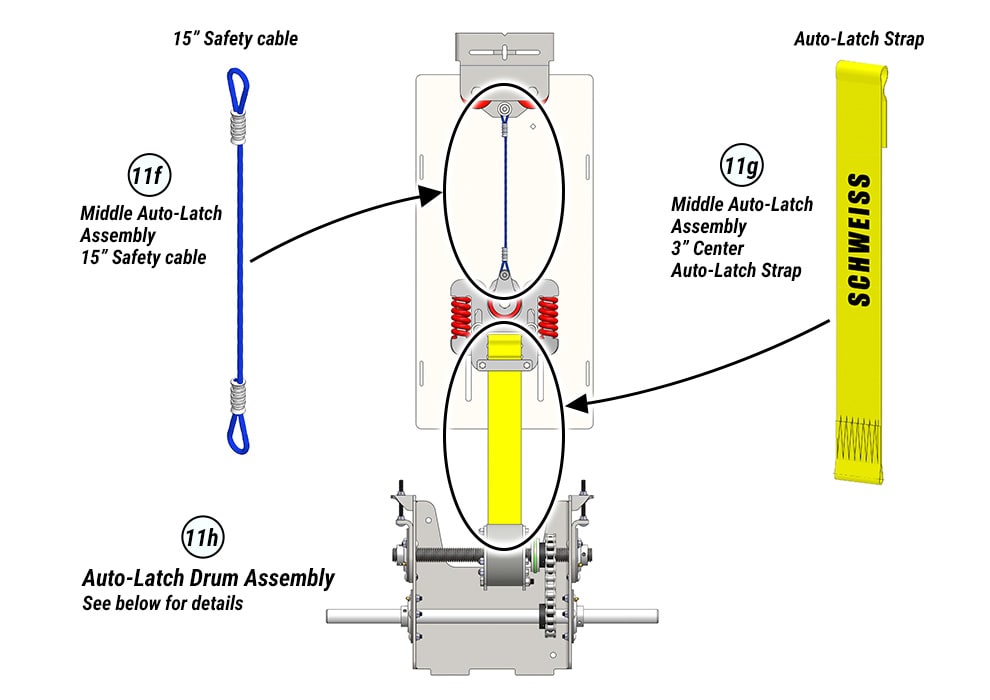

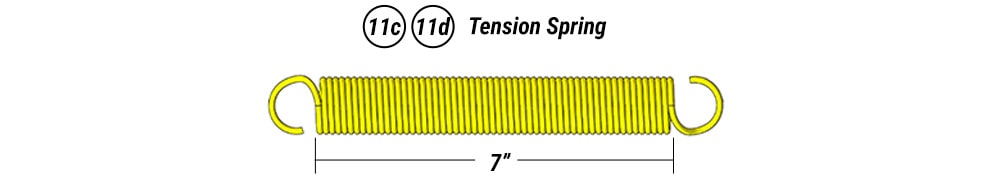

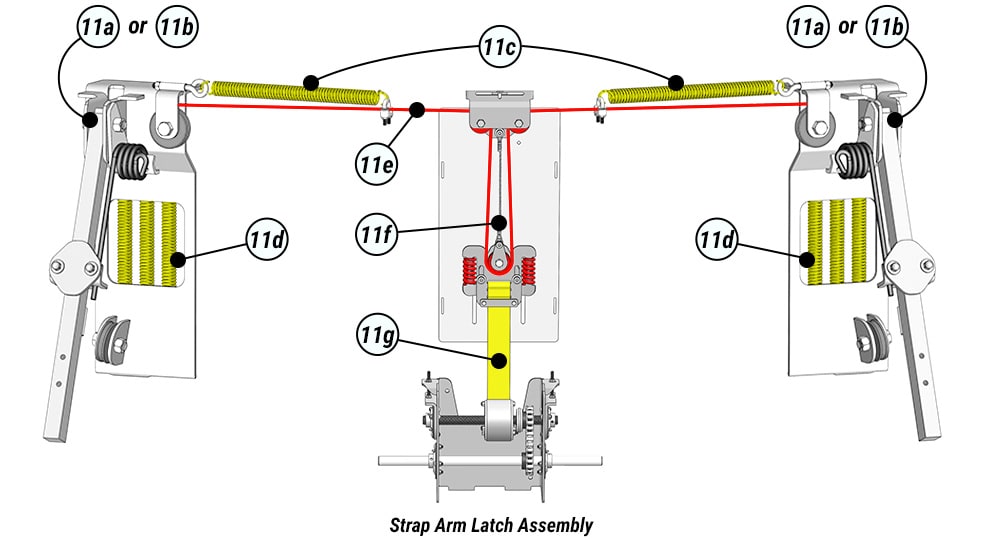

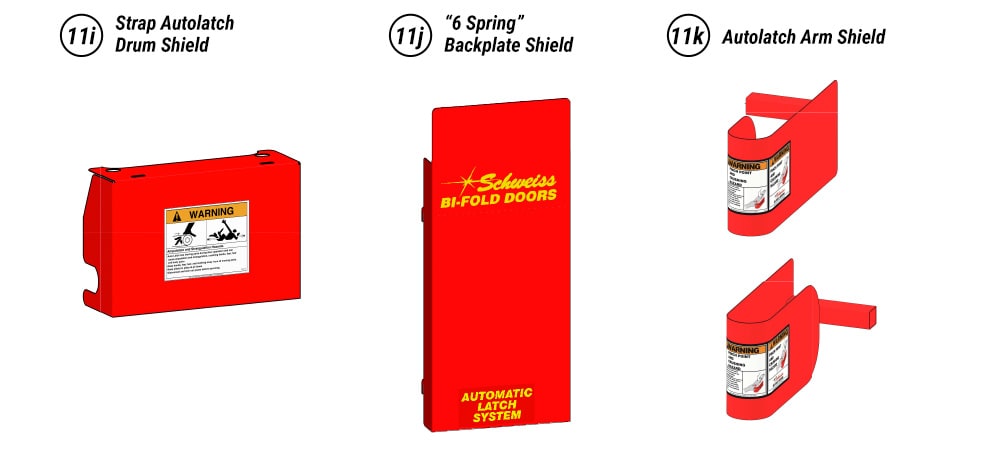

Center Strap Drum - Springs, Cables and Straps
11
Style 1

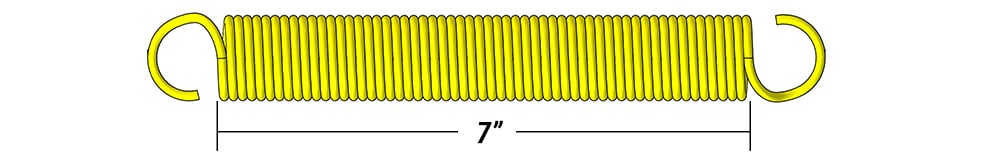

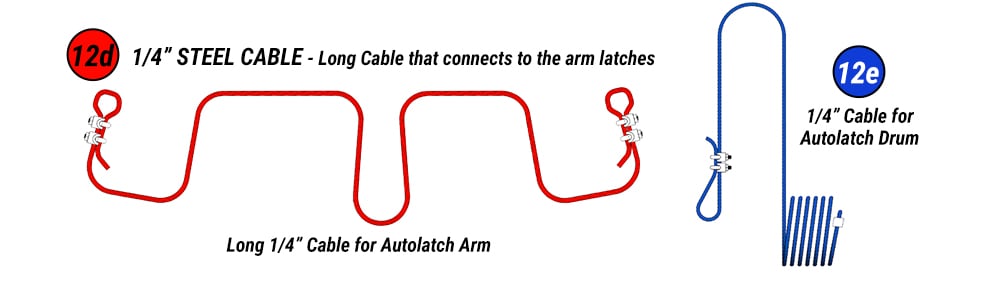

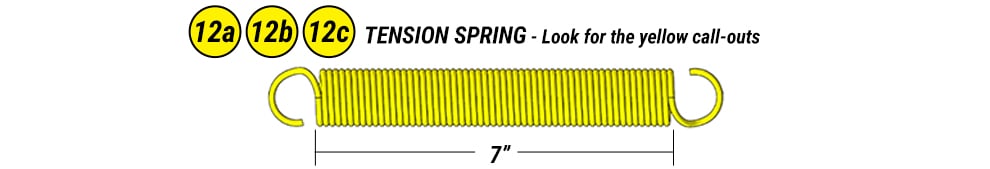

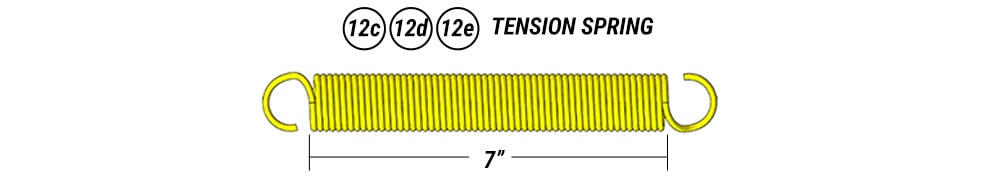

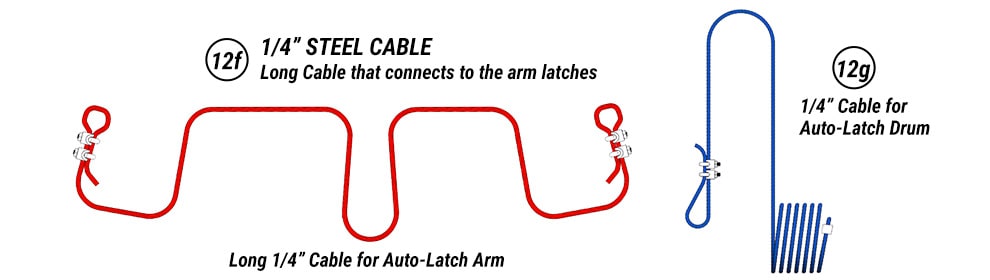

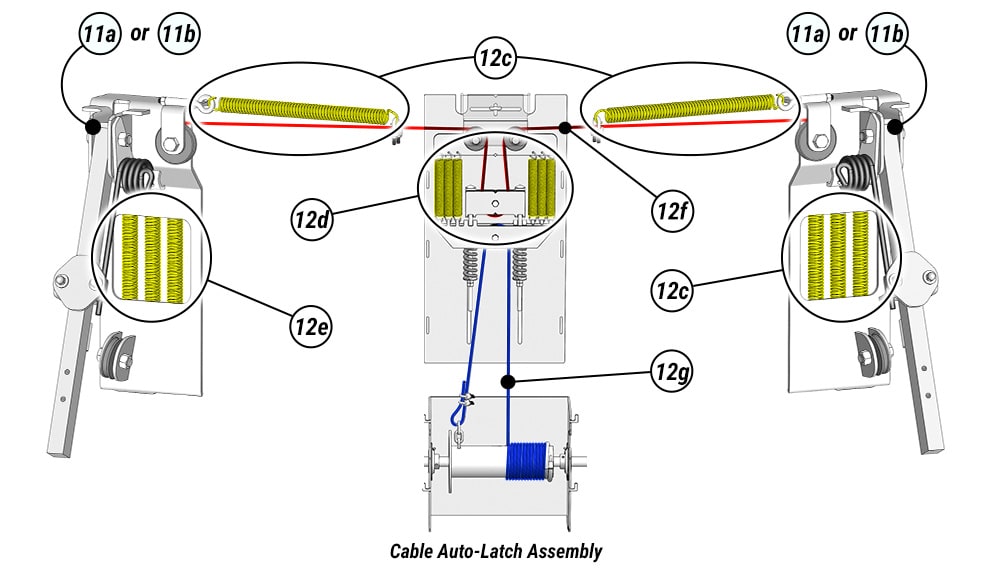

6 Spring Auto-Latches - Springs and Cables
12
Style 3

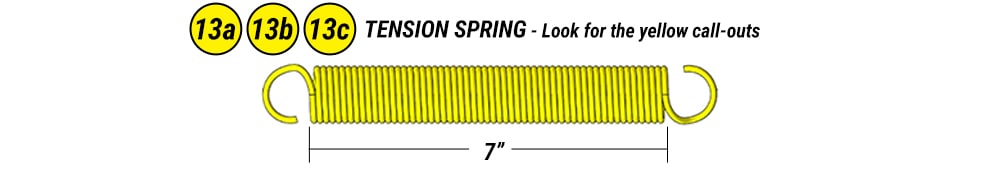

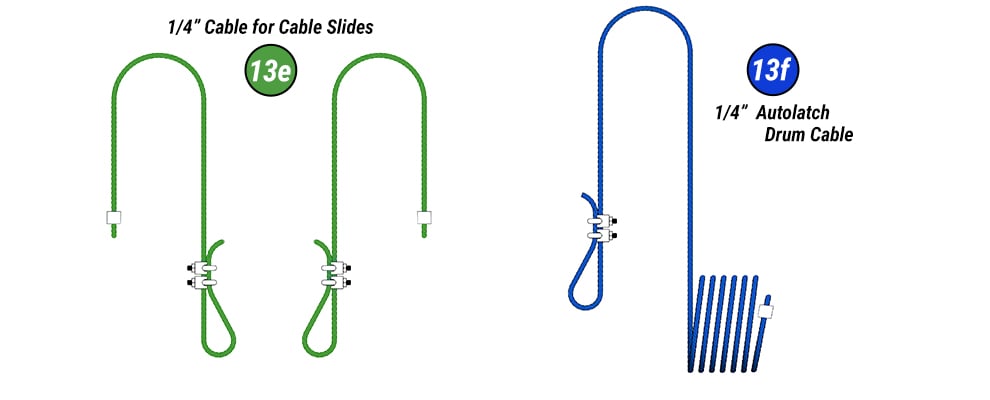

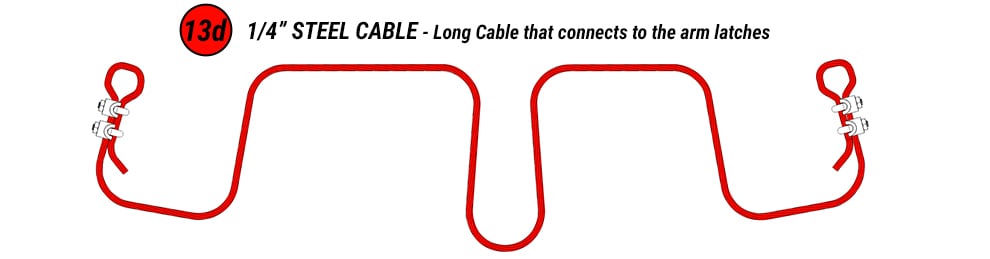

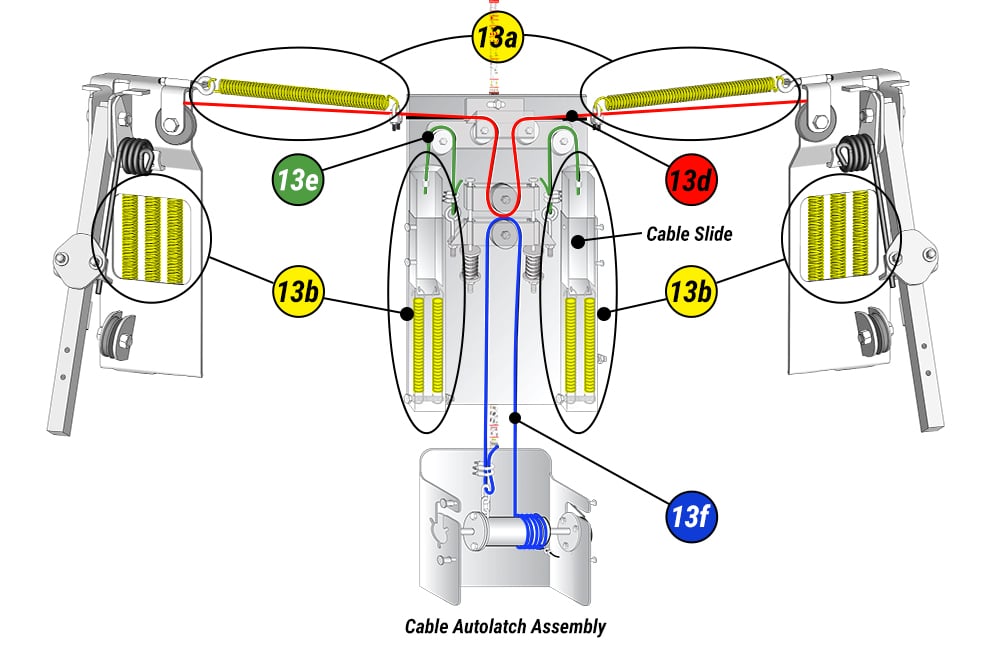

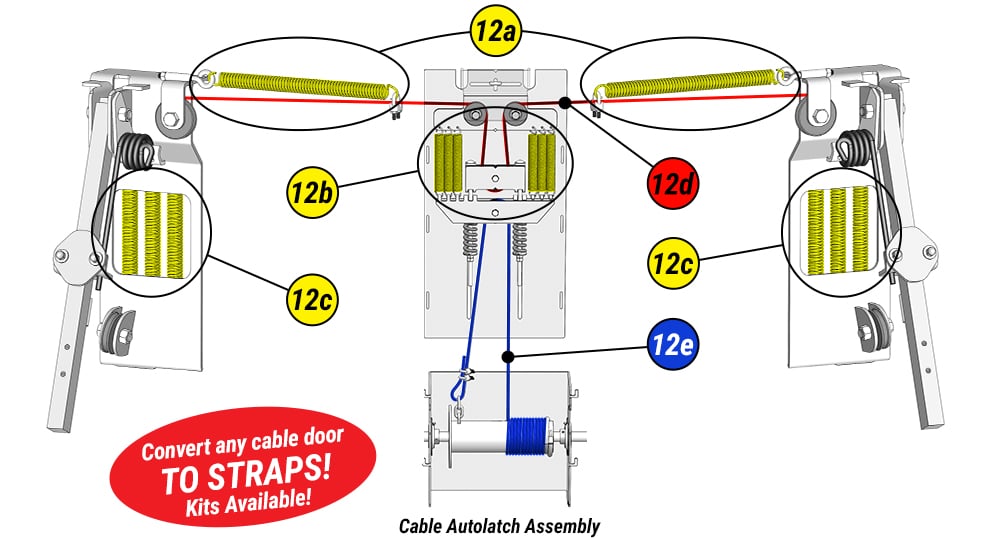

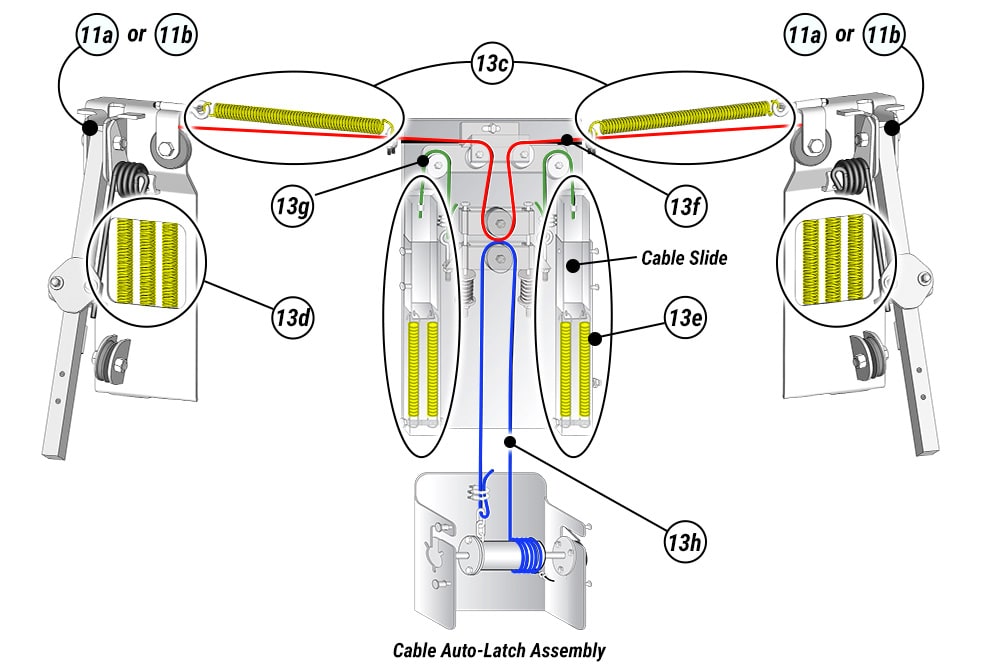

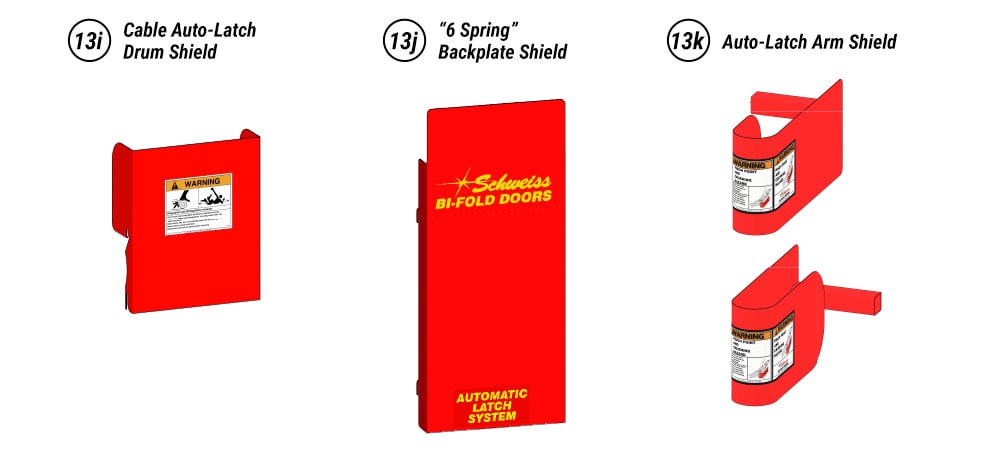

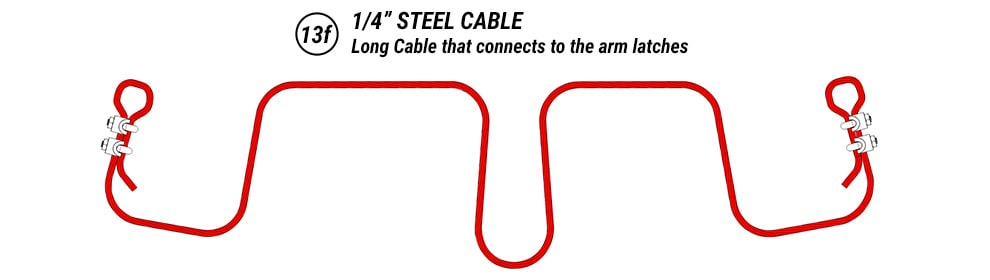

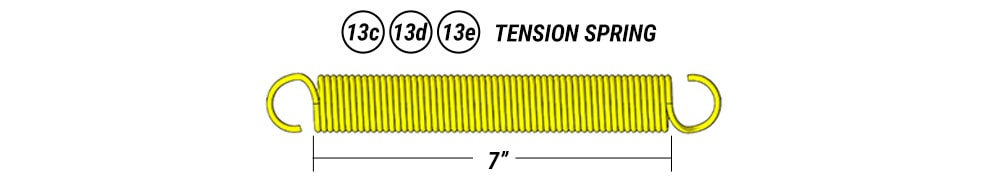

Cable Slide Auto-Latches - Springs and Cables
13
Style 4

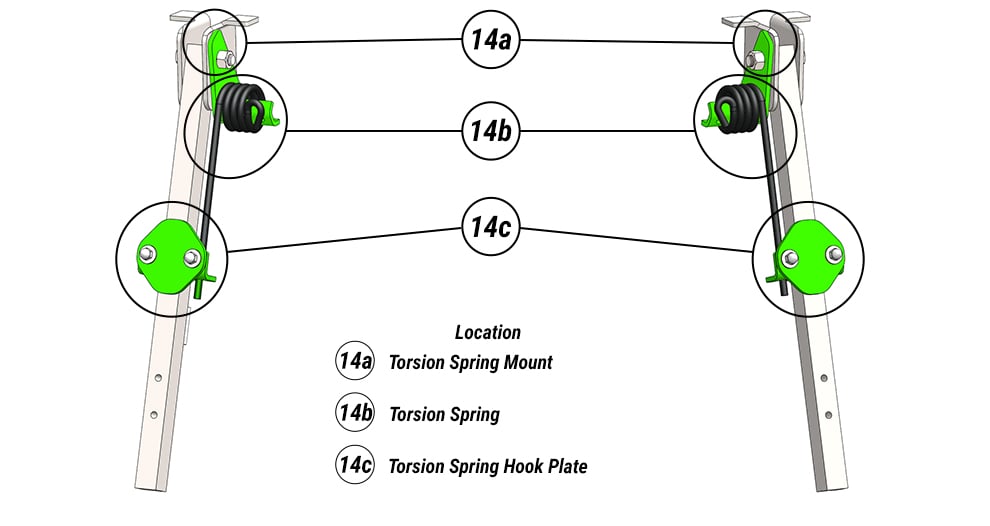

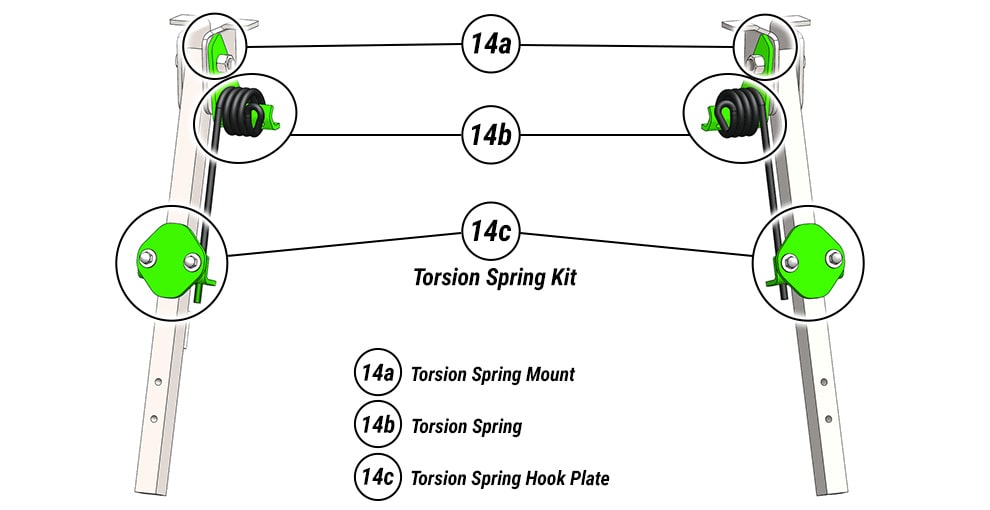

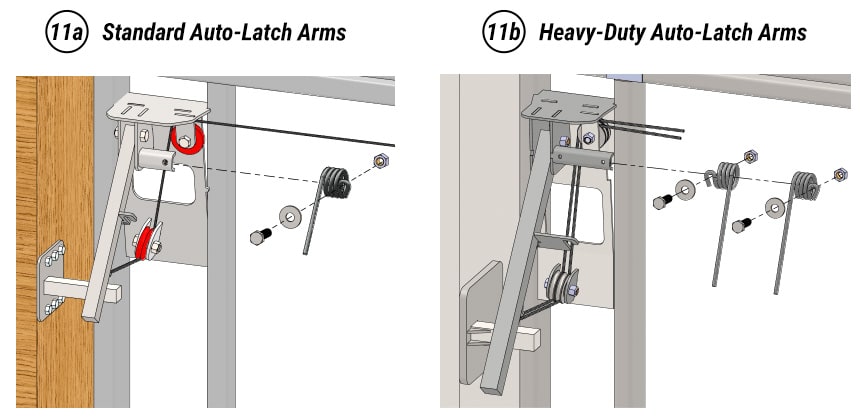

Torsion Springs Kit . . For Auto-Latch Arms
14
Torsion Spring Parts

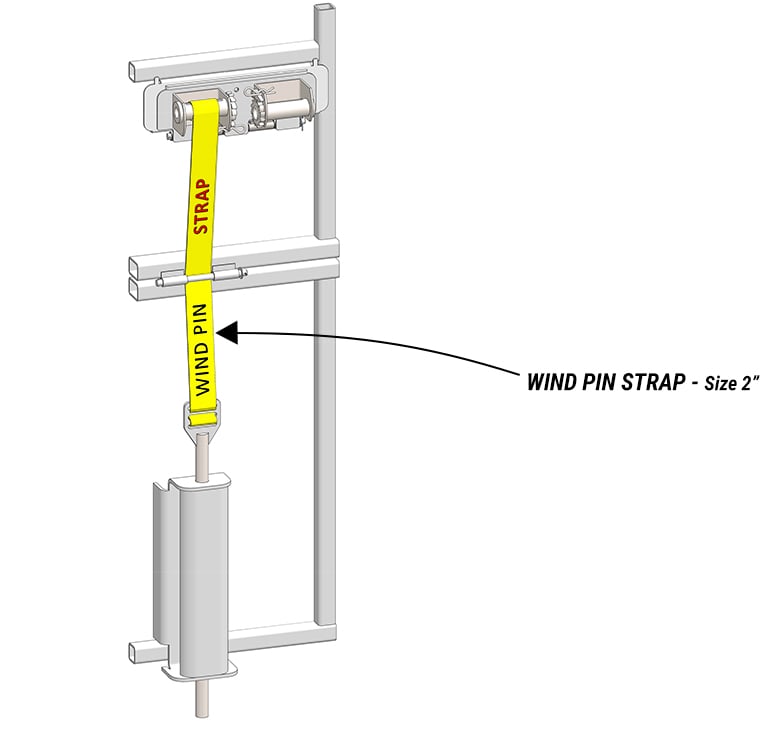

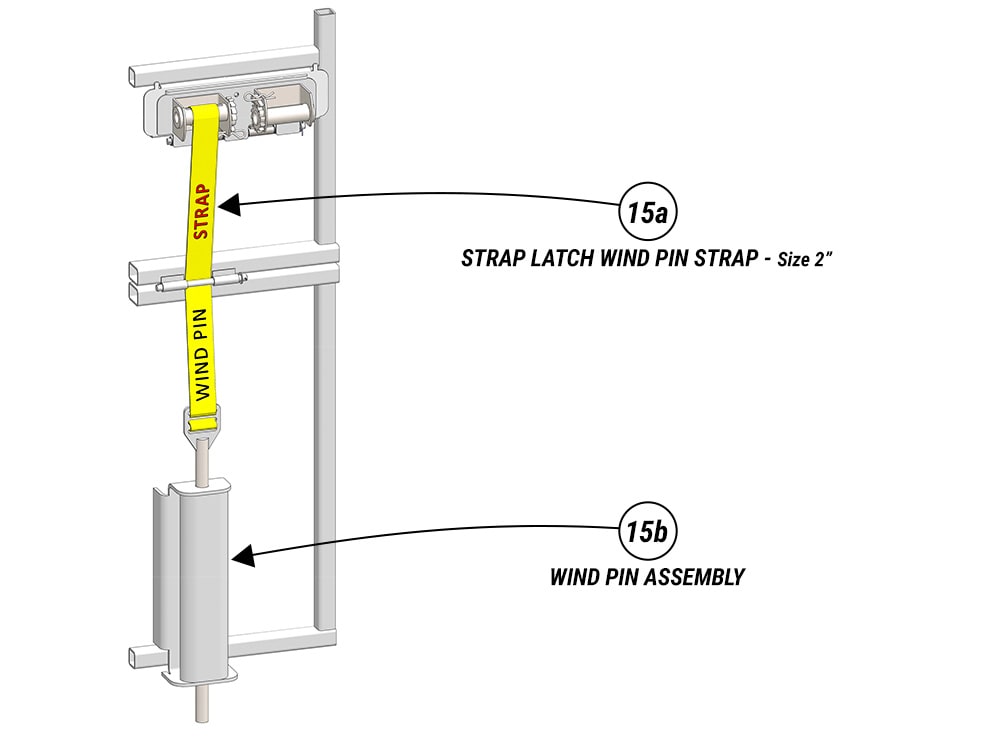

Wind Pin With Strap
15
Colors Available • Yellow • Black • Grey • White - Your choice!

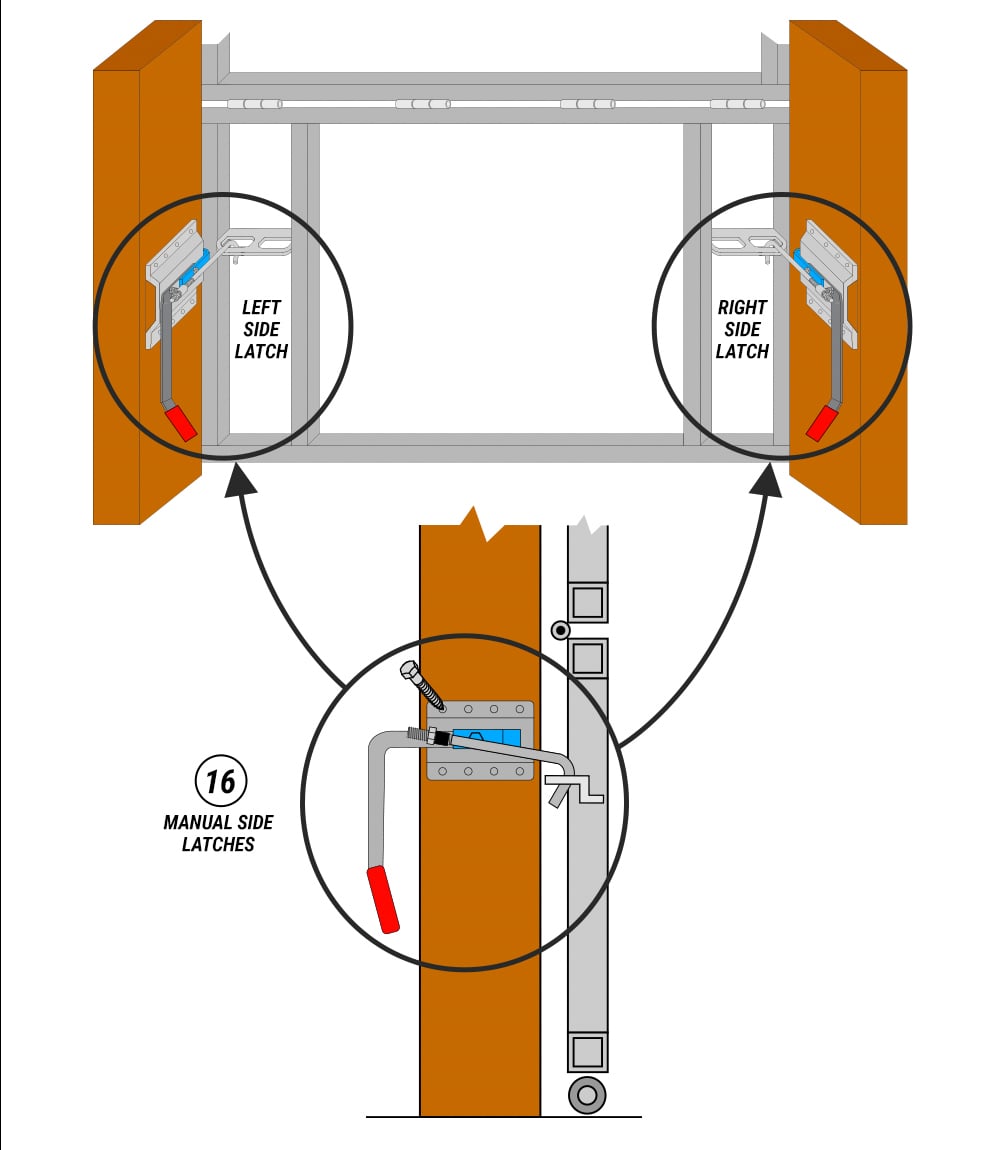

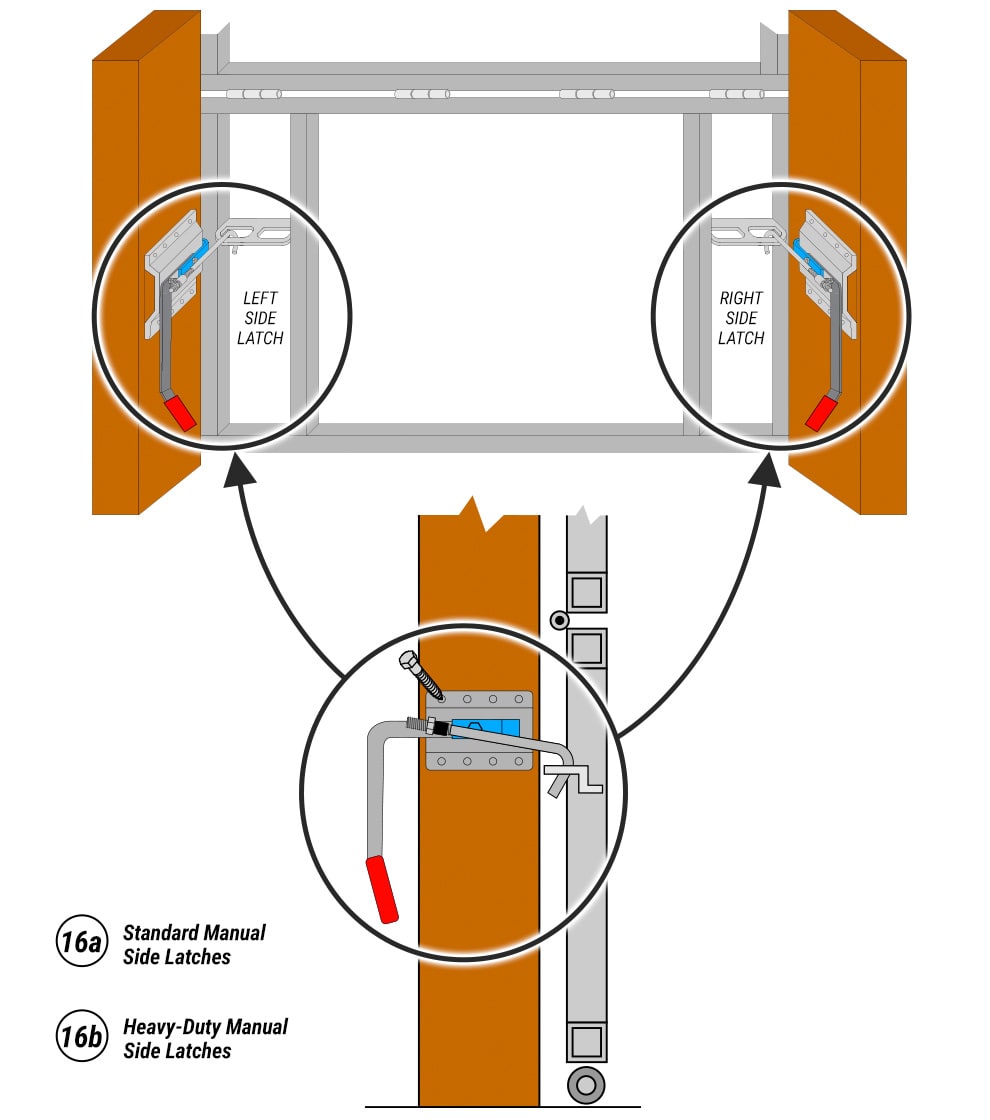

Manual Side Latches
16

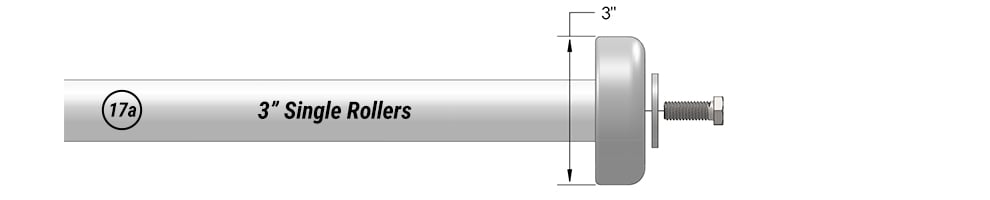

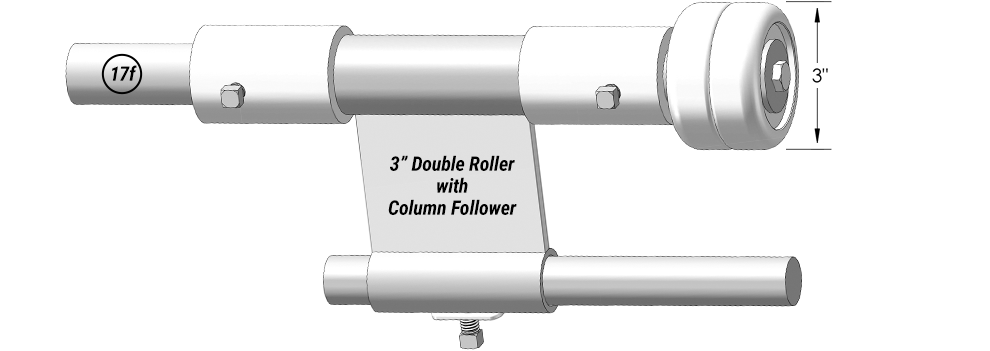

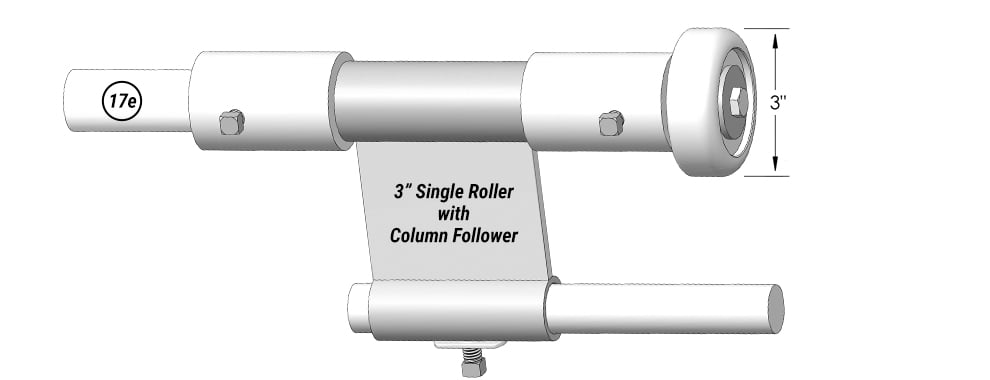

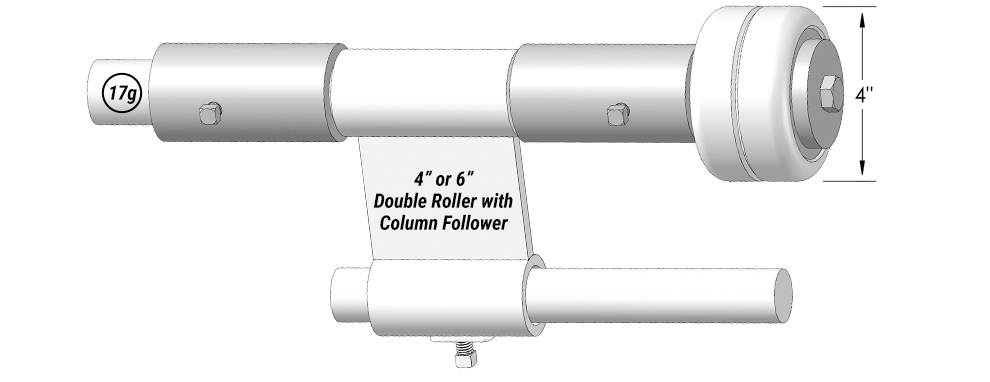

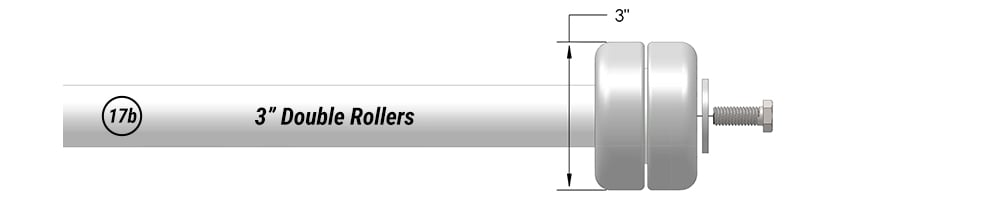

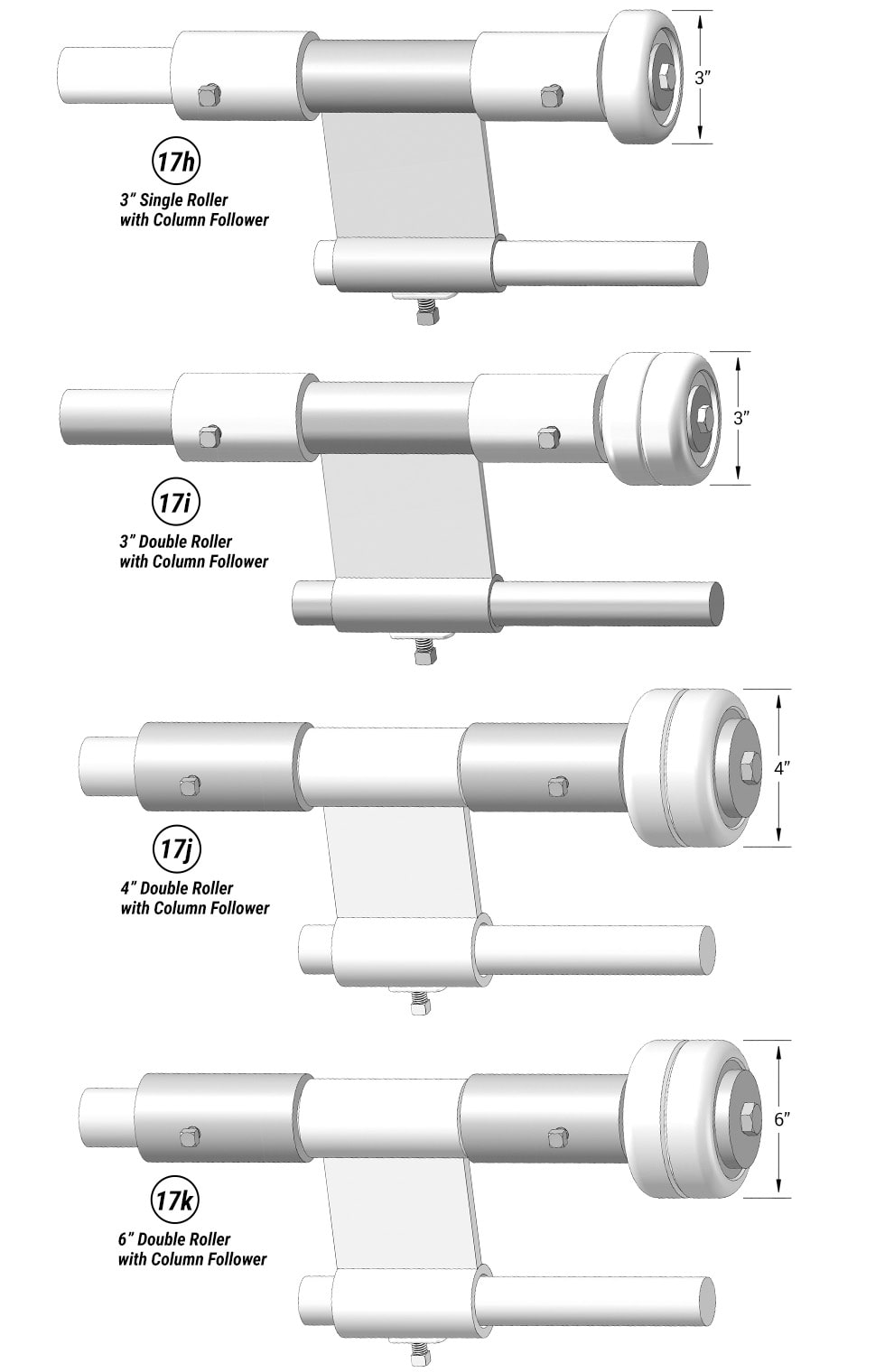

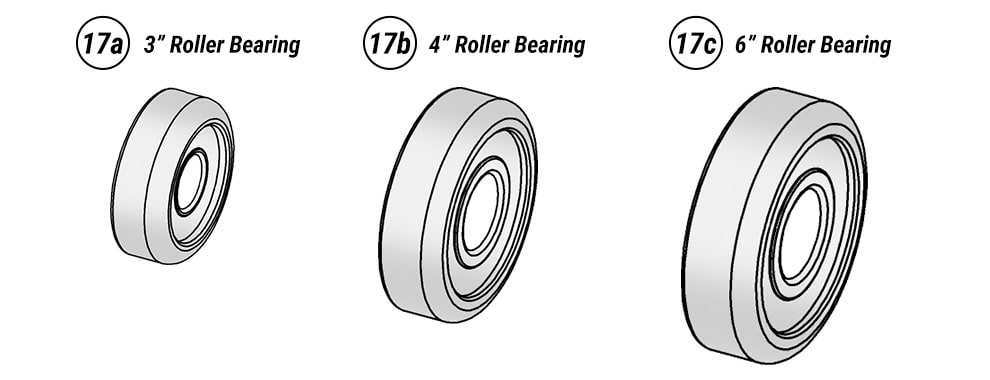

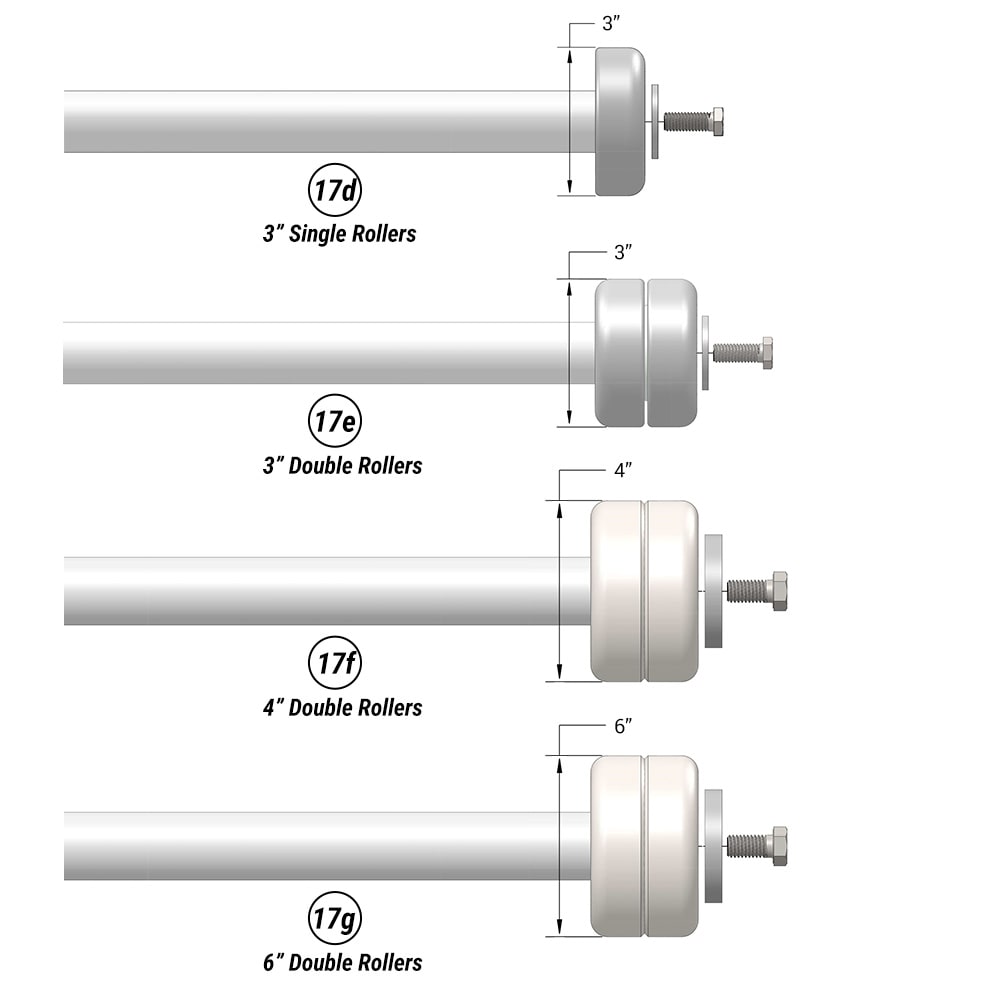

Bottom Door Rollers
17
Bottom Roller

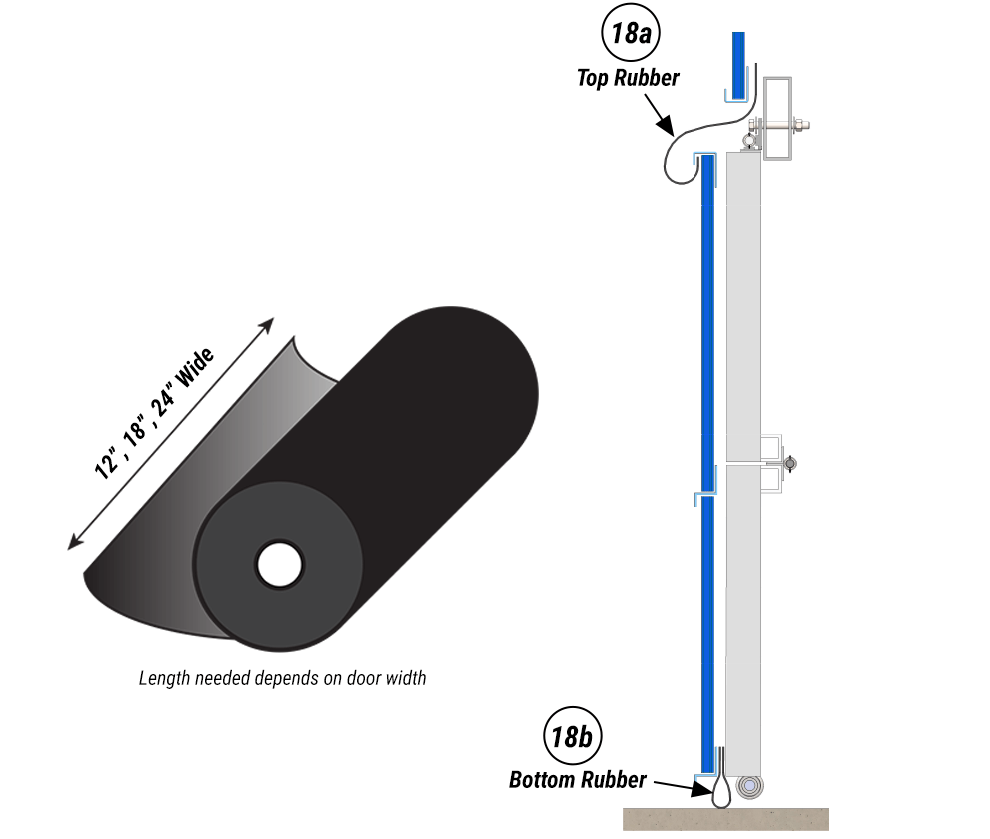

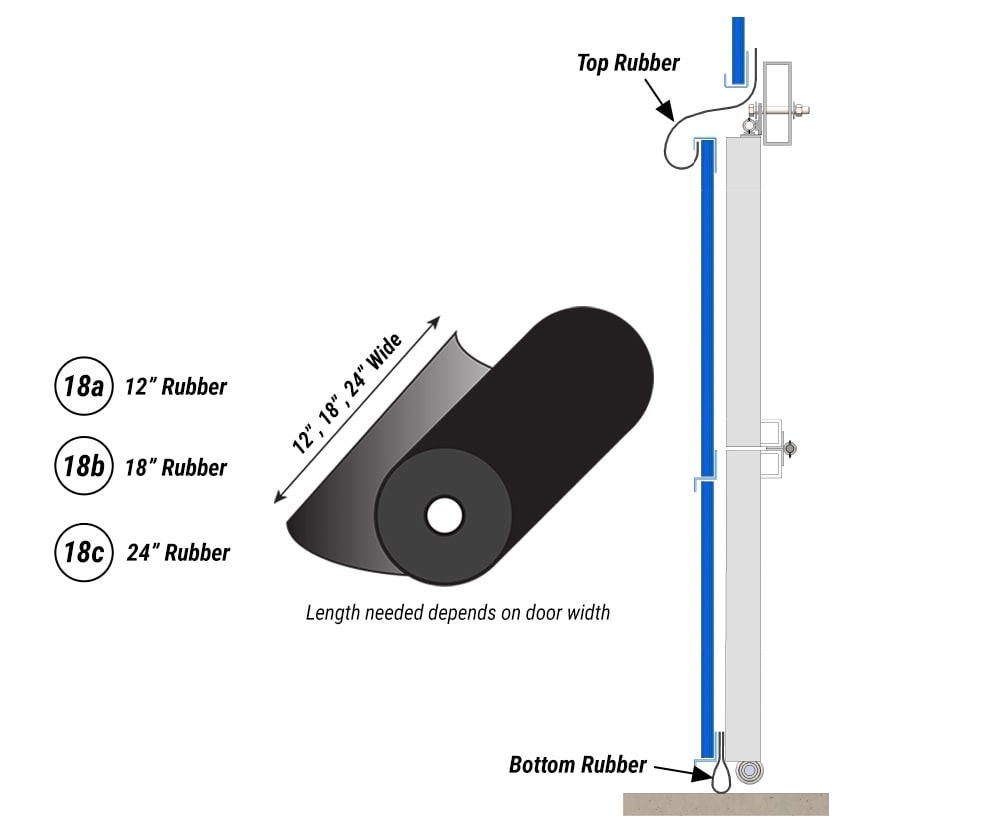

Rubber Door Seal - Top and Bottom
18
Material is 1/16" 1 Ply EPDM Rubber Belting with Cloth Insert

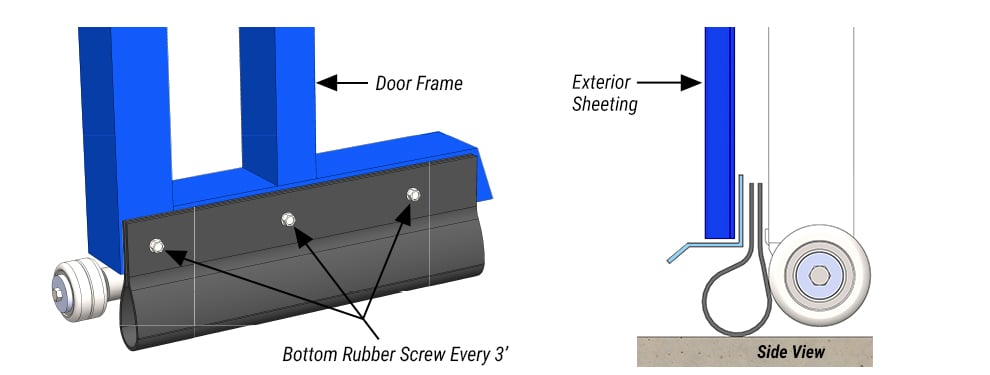

Bottom Rubber Seal
We furnish 12” or 18” rubber boot that seals the bottom of your Bifold Door. The heavy 1-ply, cloth-inserted rubber seal provides excellent weatherproffing. Note: Existing bituminous surface / concrete varies and seals should be placed accordingly.
Proper Bottom Seal Placement
Distance will vary depending on how high the door was installed above the floor
Material is 1/16” 1 Ply EPDM Rubber Belting with Cloth Insert

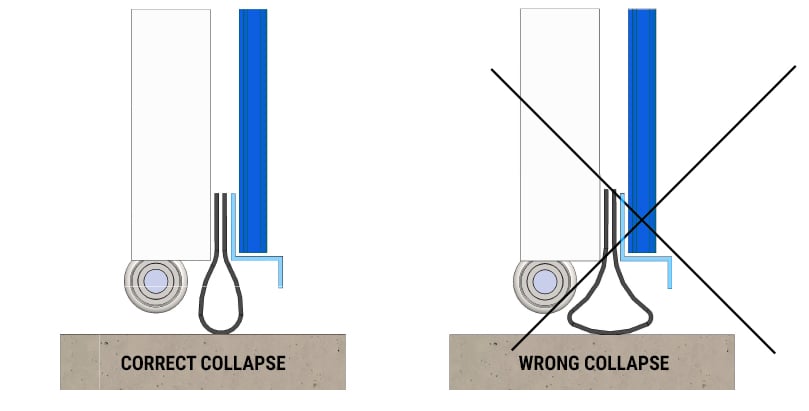

Proper Seal Collapse
- It is important to have correct collapse - Attention cold climates: Too much collapse could cause the seal to freeze to the ground and crack

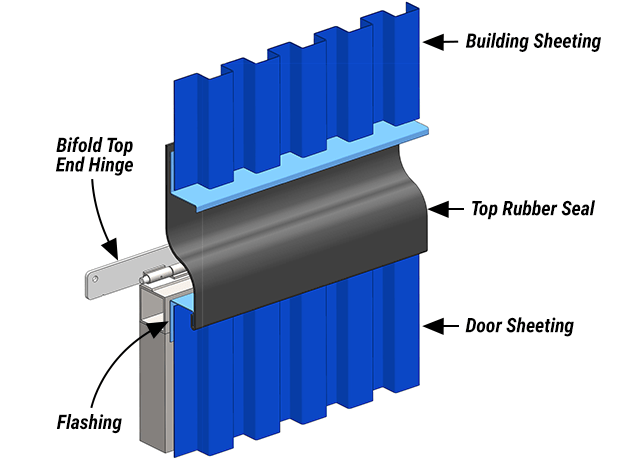

Top Rubber Seal
The continuous rubber seal can be used at the top of door hinges to prevent flow of moisture into the door or building. Length needed depends on door width ( Custom widths available)

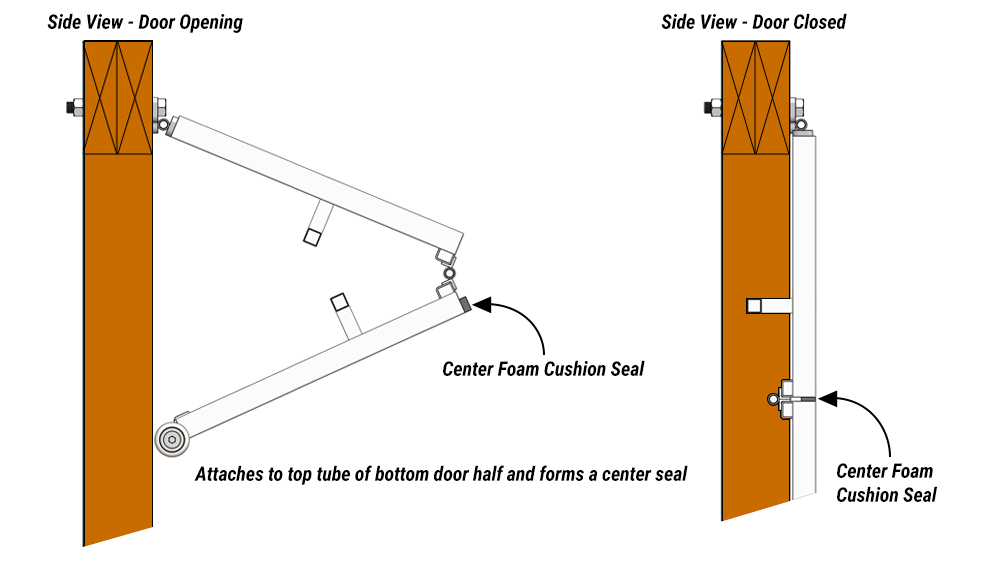

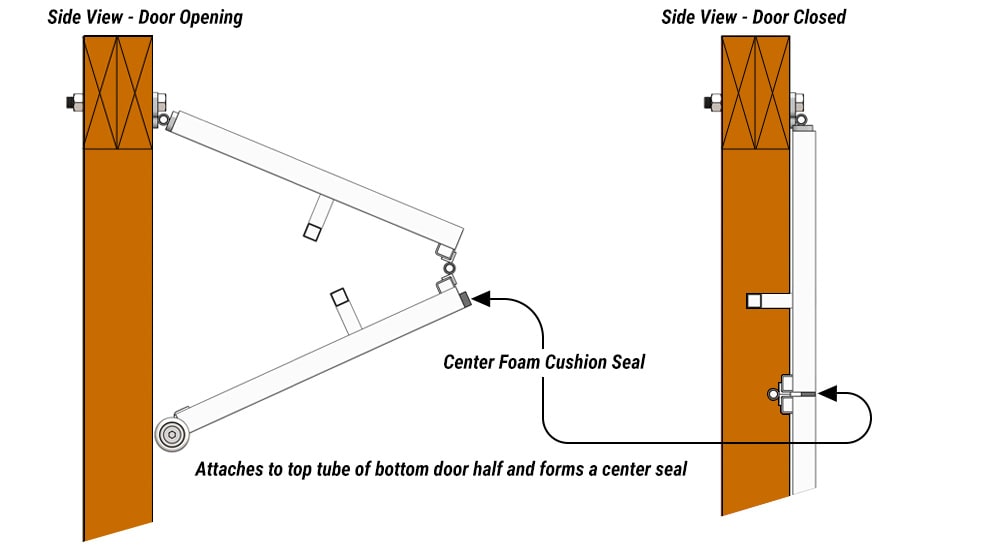

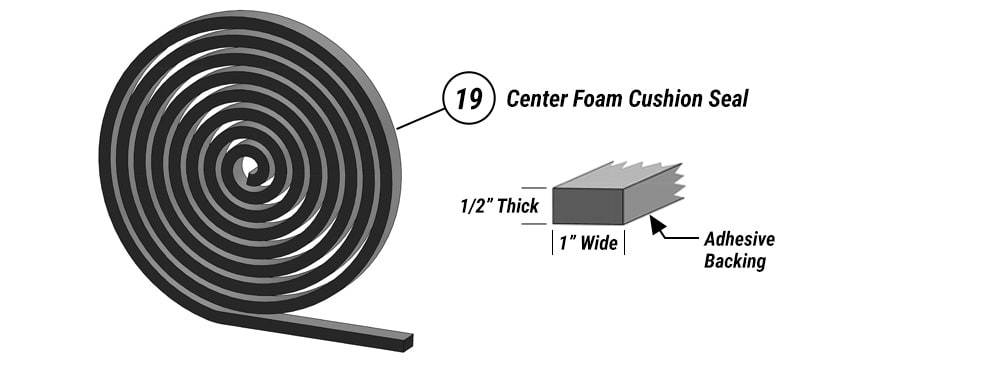

Center Foam Cushion Seal
19
• Width 1”
• Thickness 3/8”
• Length needed varies with door width

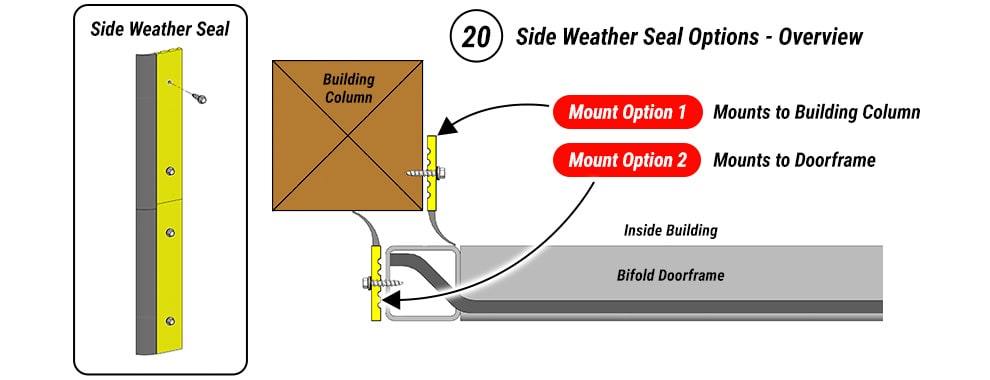

Side Weather Seal ( OPTIONAL )
20

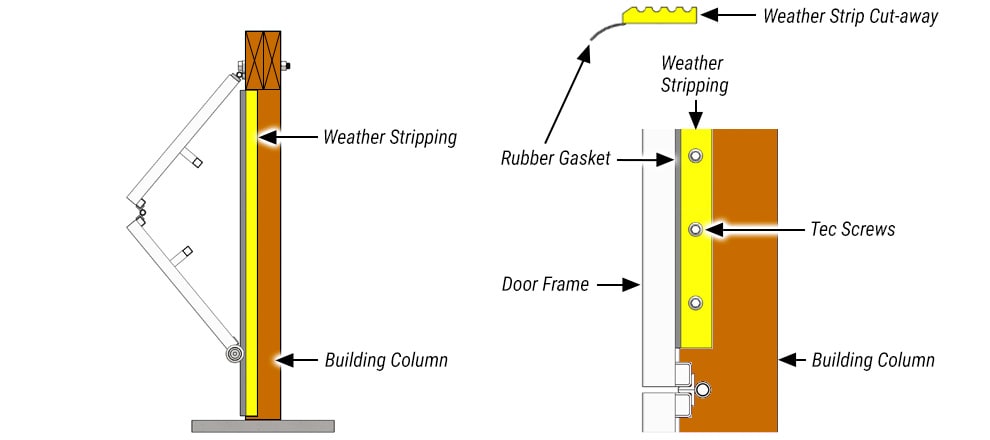

Style 1
Weather Stripping Mounted to Building Column
Doorframe seals against the building column weather strip

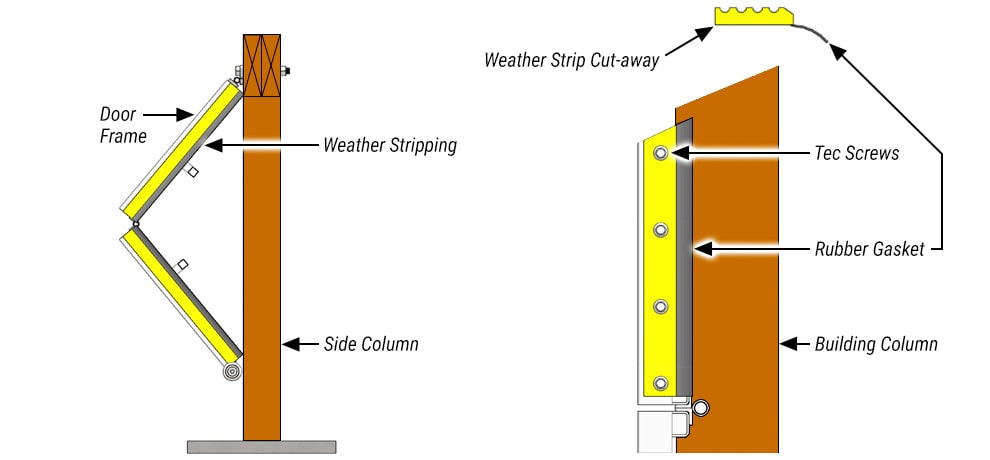

Style 2
Weather Stripping Mounted To Doorframe
Doorframe seals against the building column weather strip

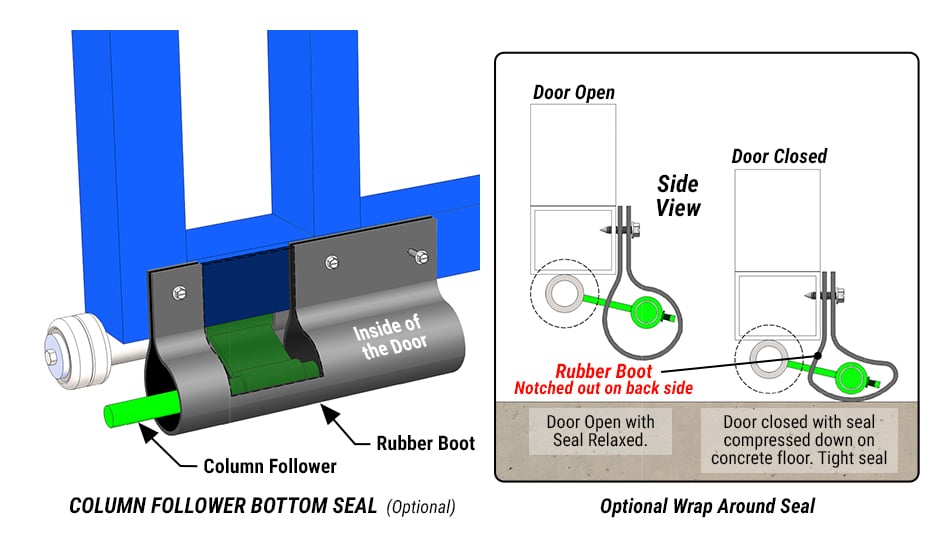

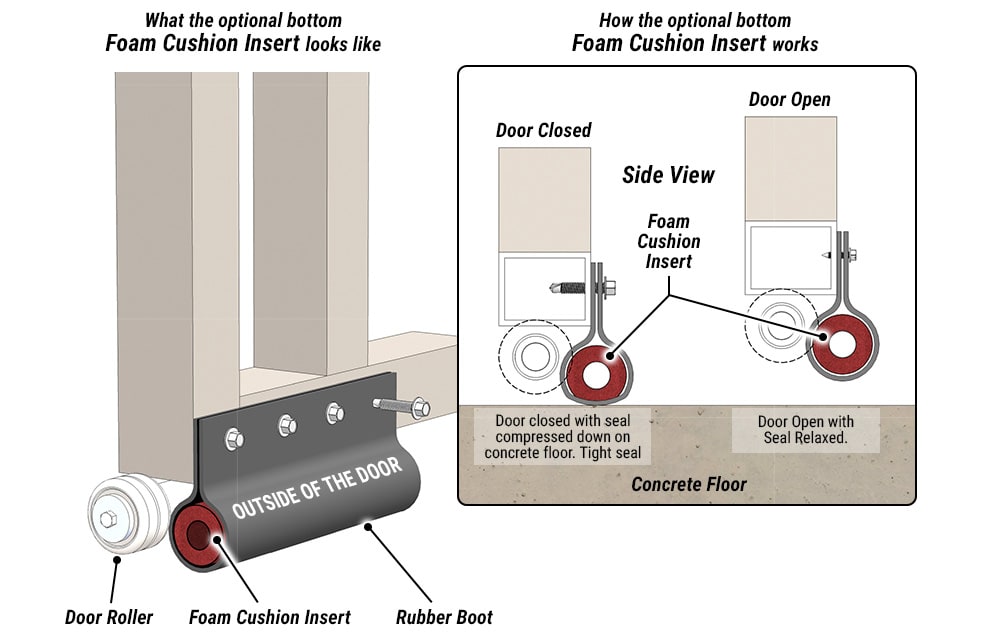

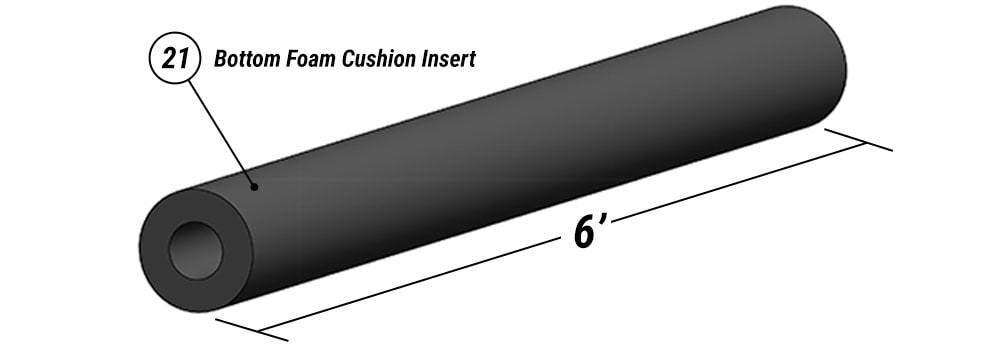

Bottom Foam Cushion Kit ( OPTIONAL )
21
Bottom Foam Cushion Insert Kit
Schweiss Doors is introducing a unique weather seal kit that can be retrofited to all styles of doors, being Bifold Doors or Hydraulic Doors. The new bottom seal has a special foam cushion that provides an extra weather tight seal on the bottom of any style door. The special designed foam cushion kit allows the door bottom rubber to conform to dips and bumps in the surface giving you a uniform \ seal to ensure a weather tight seal at the bottom of each door.

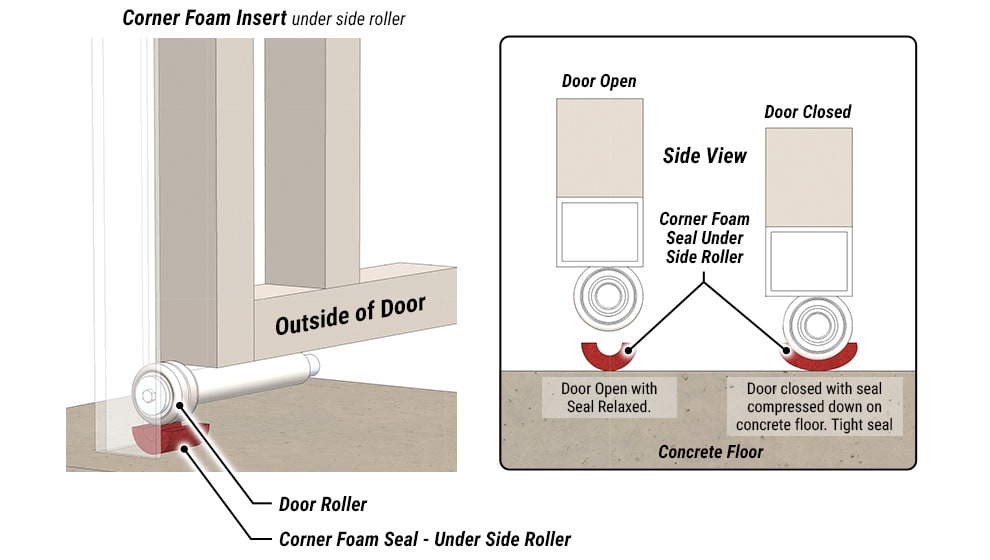

Corner Foam Seal -
( Optional )

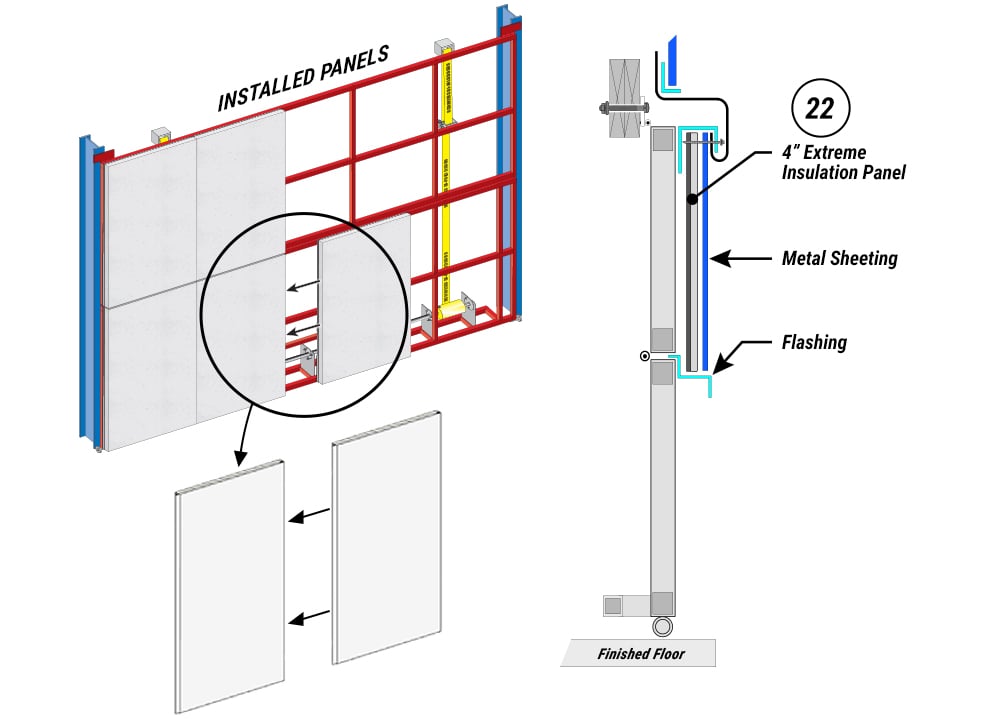

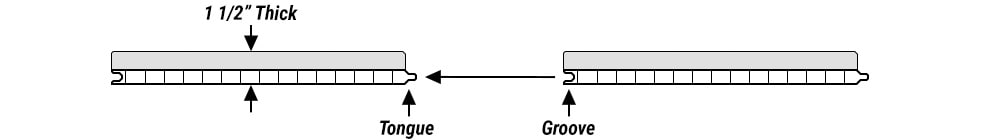

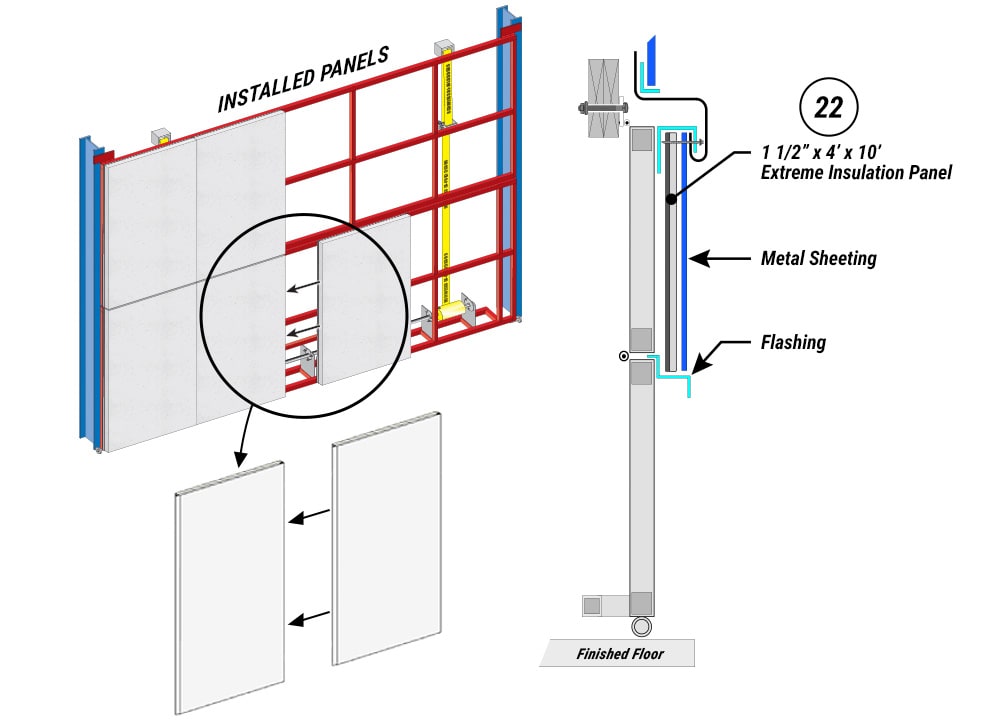

Extreme Insulation Panels - Insulation Package
22
22

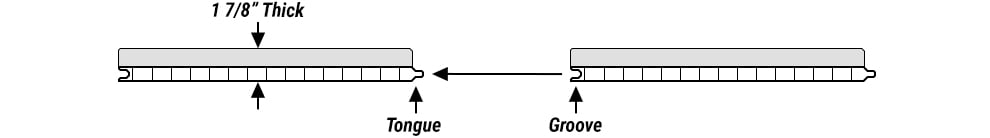

48"x120" Extreme Insulation Panel - 1 7/8" Thick - Qty. will vary with door size
All of our automatic Bifold Doors are easy to insulate with blanket, foil or hard board fitted between the door frame members. The thicker the door frames, the more insulation you can apply. You can also place the insulation between the door frame and the outside sheeting.

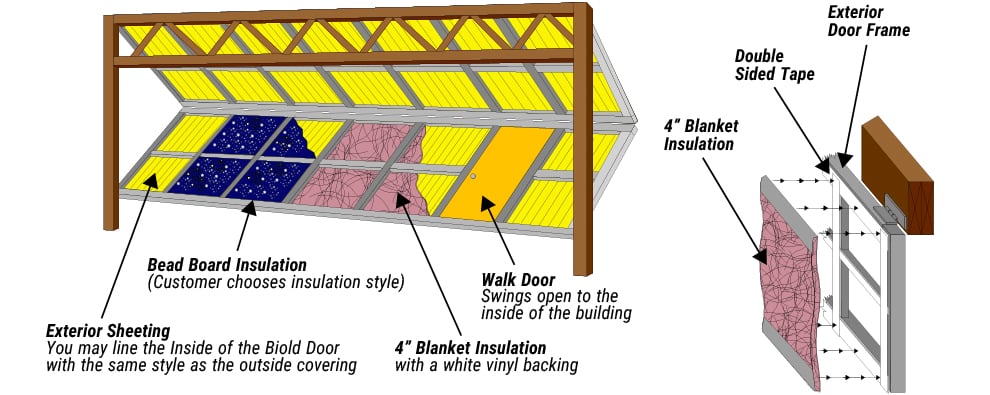

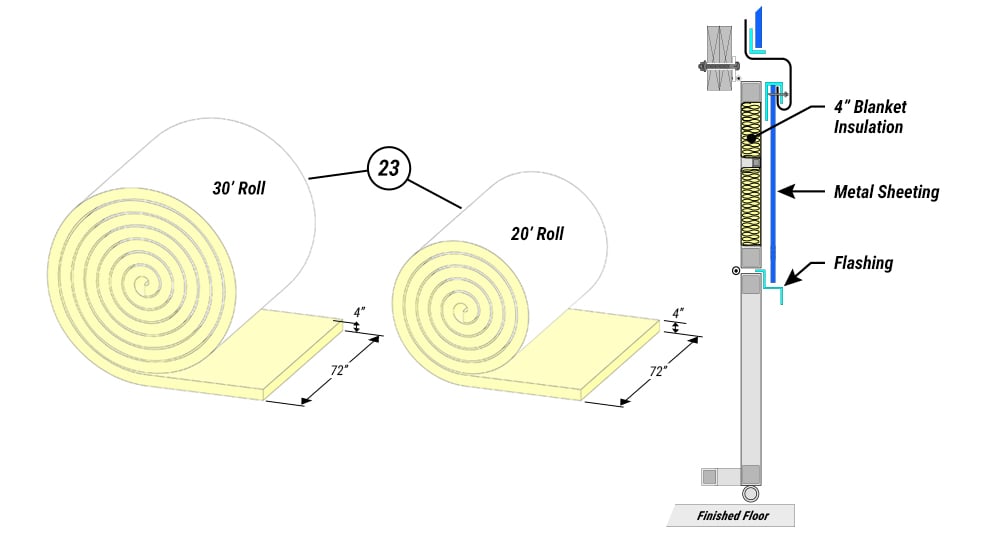

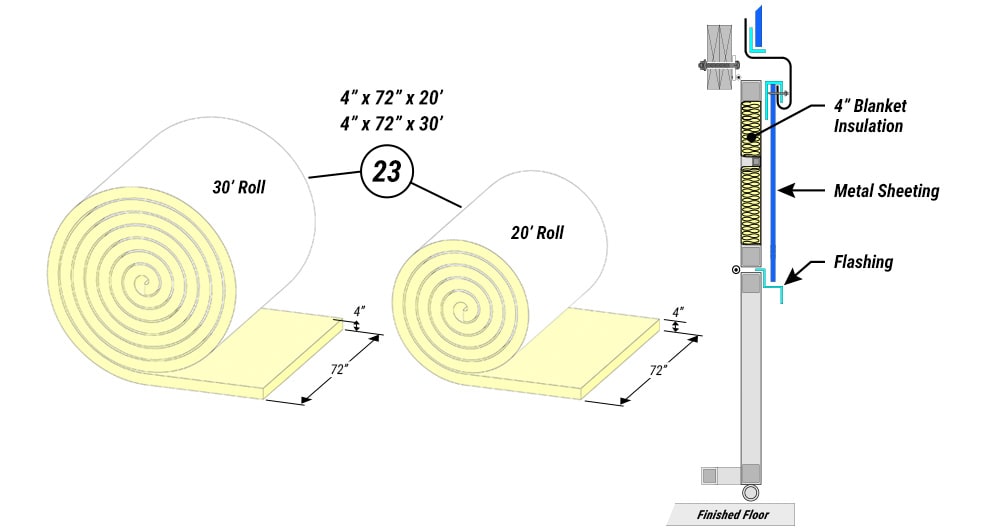

Blanket Insulation - Insulation Package
23
• You can place the insulation between the door frame and the outside sheeting. • You can place it between the door frame members. • The thicker the door frames, the more insulation you can apply, for a better R factor.
23
4"x72" Blanket Insulation with Vinyl Backing - 20' or 30' lengths - Qty. will vary with door size
Inside Liner Panel (OPTIONAL)
24
To give your door a finished look on the inside, we offer an inside liner kit for doing only the inside bottom half or the entire inside frame.
Fully Lined Bifold Door
Partially Lined Hydraulic Door

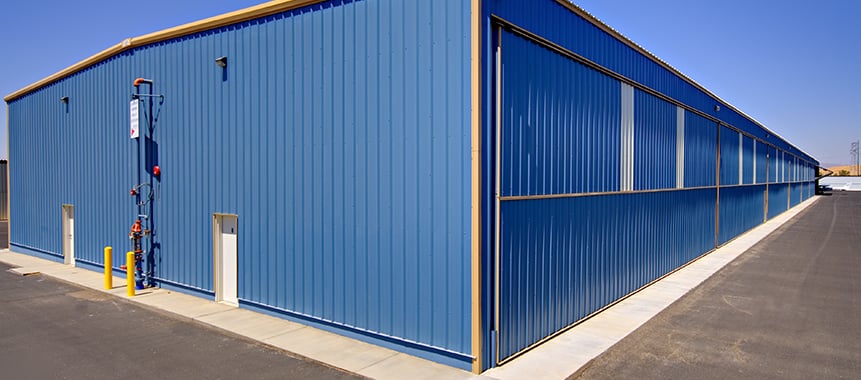

Exterior Sheeting And Flashing (OPTIONAL)
25
Metal siding For The Door's Exterior
(Not Included)
• When installing a door on an existing building, try to match the door sheeting with the building sheeting or substitute other materials. • The same sheeting used on the exterior of your building can be applied vertically to the bifold door. • We can provide a self-drilling tec screw with a neoprene washer to apply any type of sheeting to your doorframe. We offer special color screws to match your sheeting. • External Door Sheeting & Trims. • Color: Many Colors to Pick From... Your Choice. • Inside Liner Sheeting Doors may be finished off in the inside --Lined with sheeting. • Alternate Exterior Siding / Skins
Exterior Sheeting on Bifold Doors
Exterior Sheeting
Flashing
Custom Side Flashing
- Customers choice on side trim
Qty.
Length
Top Sheeting
ft.
Bottom Sheeting
ft.
Qty.
Length
J-Trim
ft.
Base Trim
ft.
Style Side Flashing
ft.
Windows in the Doorframe
26
We Offer A Single or Double Insulated Window, Fixed or Sliding
• Commercial grade.
• Sizes are 36” x 48”
• All windows have screens and slide open.
• Many other sizes available.
• Windows may be placed at any height or location.
• Allows plenty of natural light into your building.
• Specialty windows are catching on fast. They really sharpen the appearance of your door and building project. They can be made to mirror the rest of the building structure,
• Windows Any size, quantity and placement. Insulated / screens / sliders. Frames only.

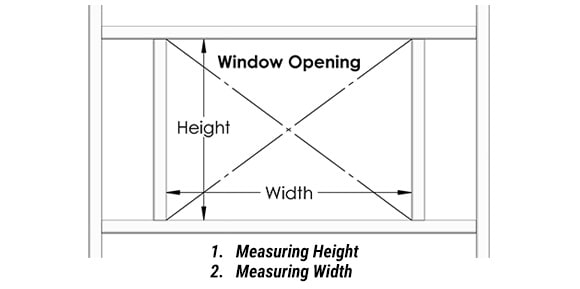

Measuring Window Openings

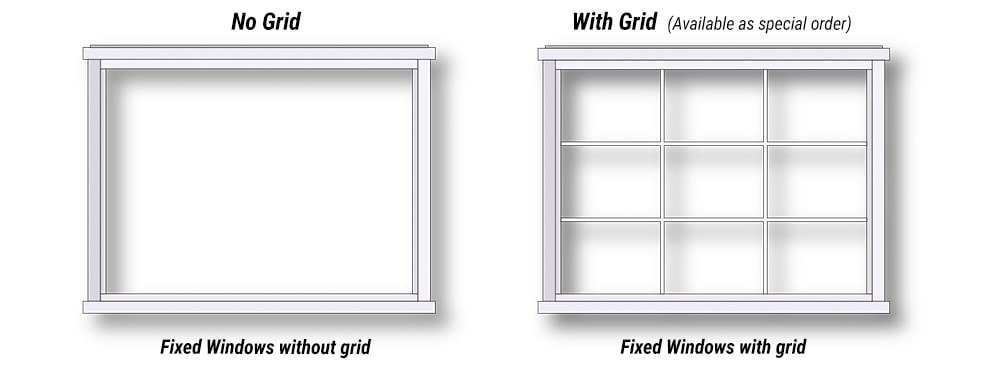

Fixed Windows
Fixed Windows without grid
Fixed Windows with grid

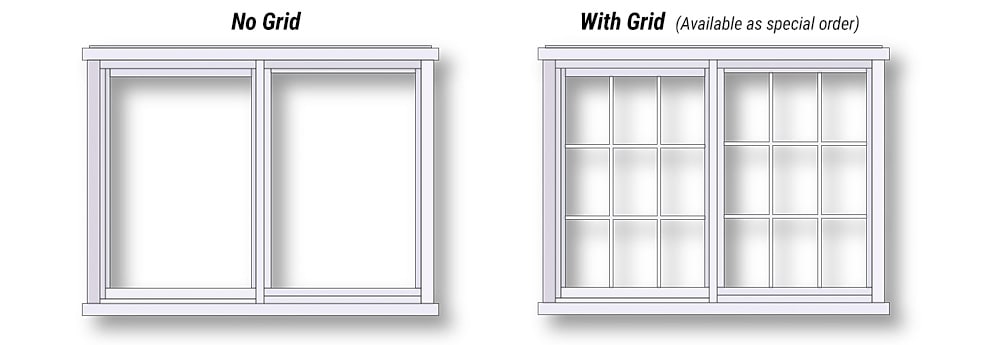

Sliding Window
Sliding Windows without grid
Sliding Windows with grid
Schweiss Stocks These Sizes: • 4' x 2' - ( Sliding or Fixed ) • 4' x 3' - ( Sliding or Fixed ) * Other window sizes are custom ordered

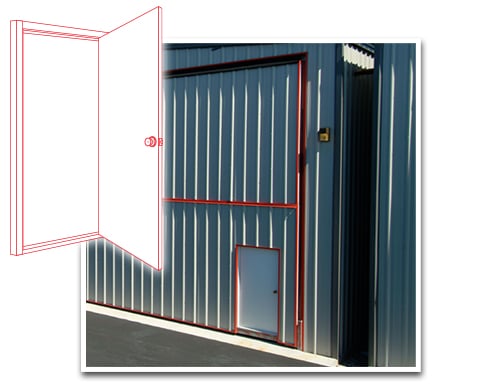

Walkdoors in the Doorframe
27
The Walk Door Feature Saves Indoor Building Space
We build the walkdoor framework into the Bifold or Hydraulic door. We use factory aluminum or steel walkdoors of your choice. All walkdoors have a keyed cylinder lock. Also available is keying multiple doors with a master key. We offer a 16" x 16" window within the walk door. Also we can paint the walkdoor to match the building.
• Walkdoor - quantity / placement - your choice • Walkdoor - insulated / with windows • Walkdoor - keyed lockset / master keyed • Walkdoor - frames only • Walkdoor - safety hinges
The walkdoors feature saves indoor building space and keeps all openings in one area. We build the walkdoor framework into the bifold door. We use factory aluminum or steel walkdoors of your choice. All walkdoors have a keyed cylinder lock. Also available is keying multiple doors with a master key. We offer a 16 x 16 window within the walkdoor. Also we can paint the walkdoor to match the building.
Options
• Master keyed lockset / keyed alike
• Door Closure
• Spring on walkdoor to prevent door from opening too far.
• Frame Only (Customer Provides Door ) need exact measurements
• Step for walkdoor / over truss

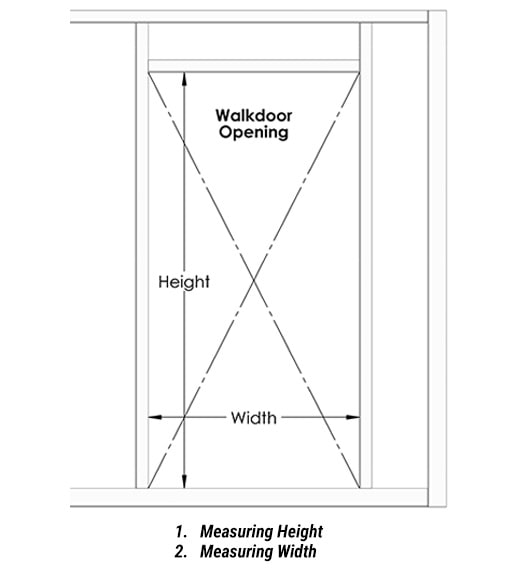

Measuring Walkdoor Openings
Schweiss Stocks These Sizes: • 38 9/16" x 60" • 38 9/16" x 65" • 38 9/16" x 68" • 38 9/16" x 71 3/4" • 38 9/16" x 80 29/32"

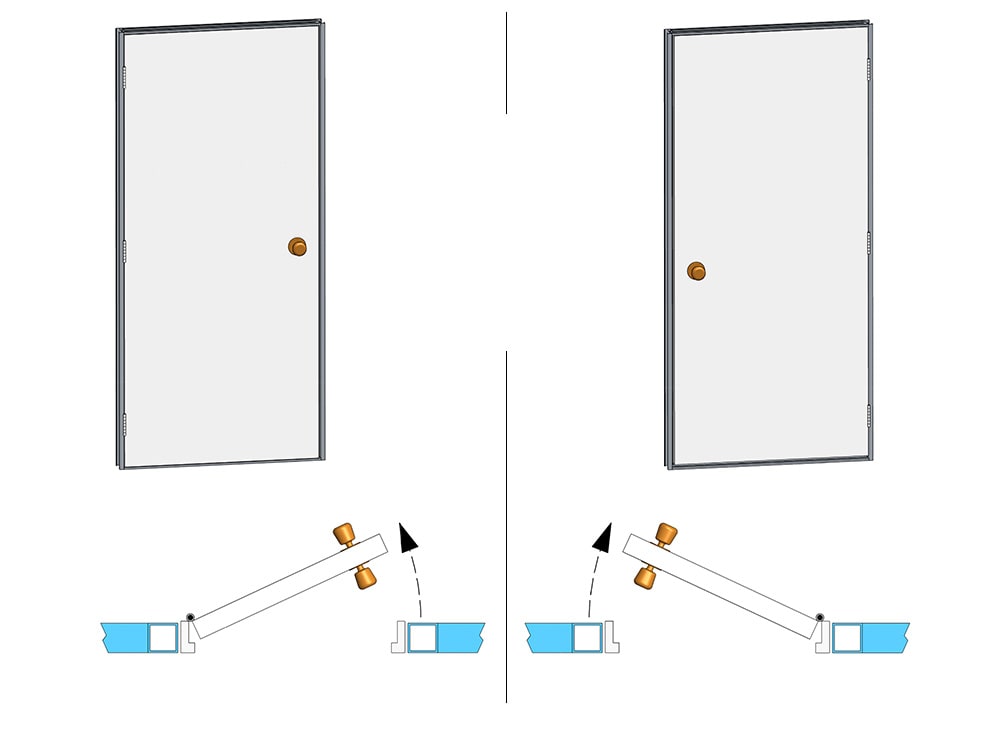

Walkthrough Door
Walkdoor (RHIS)
Walkdoor (LHIS)
Right Hand - In Swing (RHIS)
Left Hand - In Swing (LHIS)
*Notes:
• Verify quantity needed
• Walkdoors are universal and their swing can be changed as needed
• If you would like a deadbolt with your door, we need to know the correct swing of the walkdoor to avoid issues

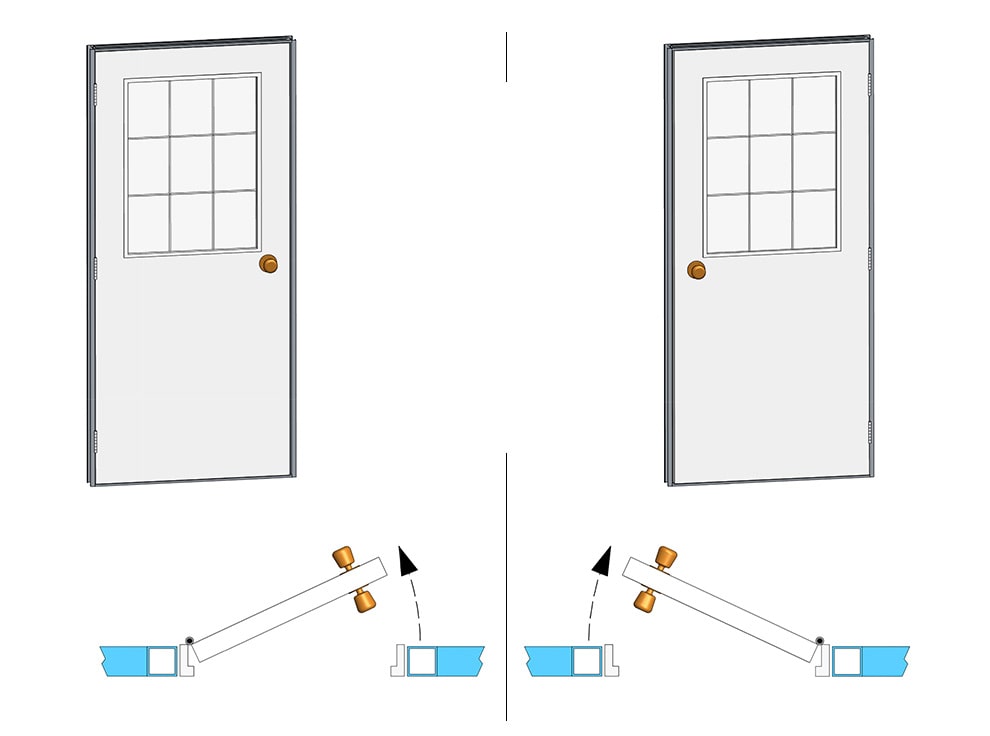

Walkthrough Door - Windowed
Walkdoor with Window (RHIS)
Walkdoor with Window (LHIS)
Right Hand - In Swing (RHIS)
Left Hand - In Swing (LHIS)
*Notes:
• Right Hand Inswing can also be used as Left Hand Outswing
• Left Hand Inswing can also be used as Right Hand Outswing
• Right Hand Inswing is always in stock and what we normally order.
If Left Hand Inswing is desired, with a window or deadbolt, we need to know the correct swing of the walkdoor to avoid any issues.
• Verify quantity needed.
Remote Control and Reciever Box
28
Style 1

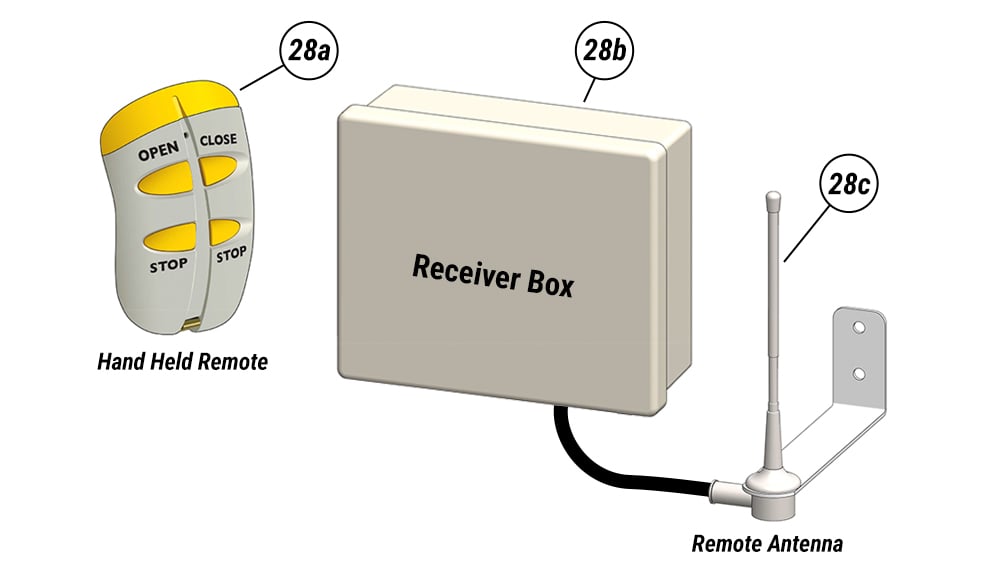

Transmitter Solutions - Remote System

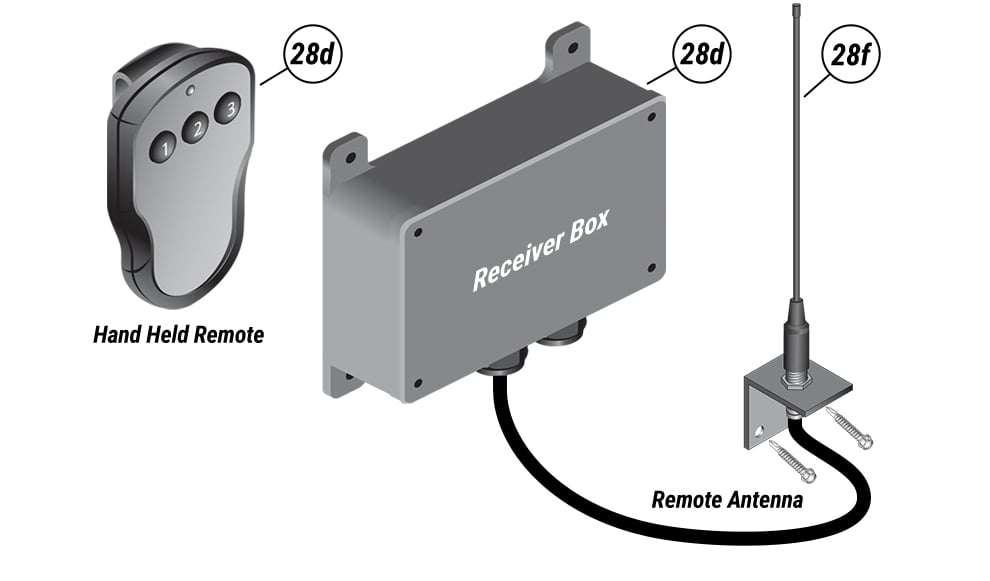

Style 2
Tele-Radio - Remote System

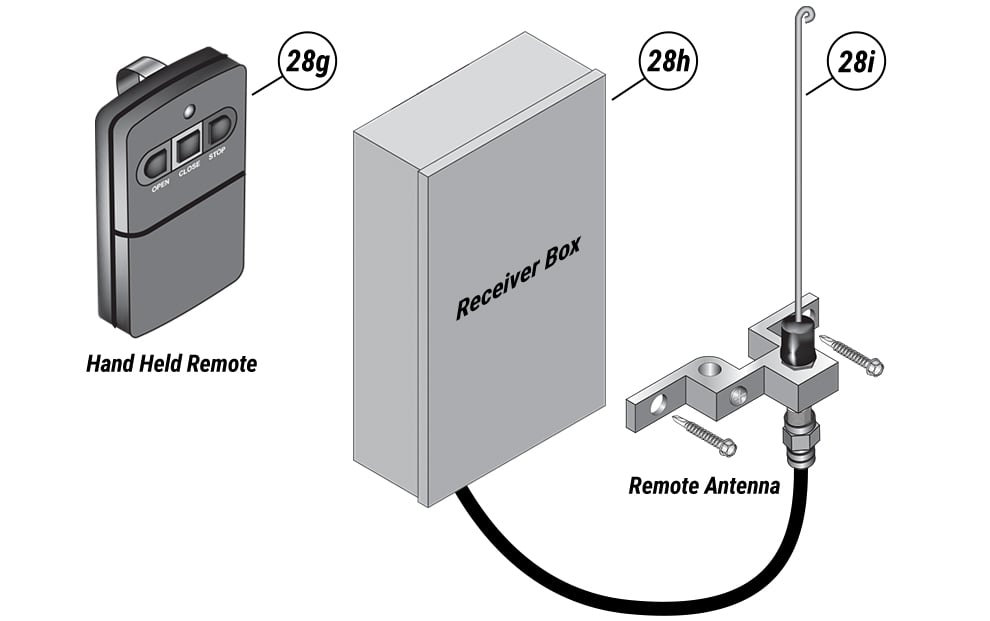

Style 3
Pulsar - Remote System

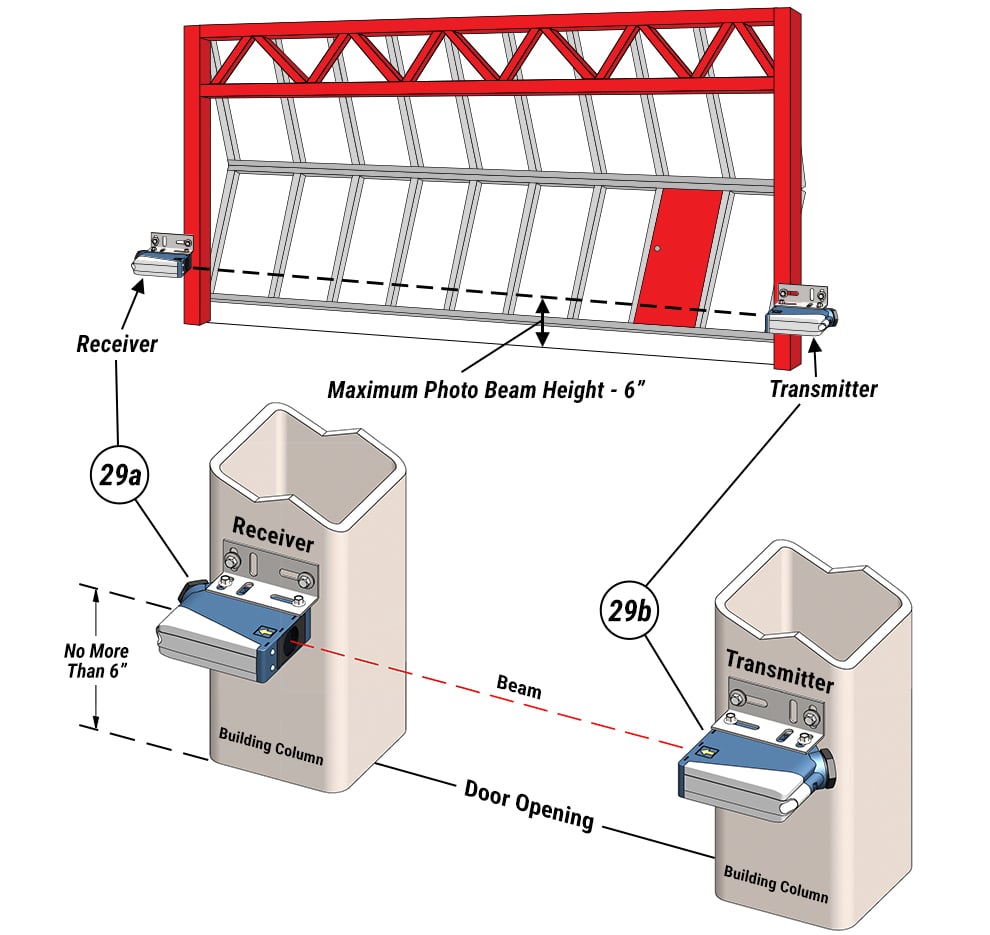

Photo Eyes
29
Electric Photo Eye Sensors
Stops door operation when an obstruction breaks the light beam. Electric photo eye sensors are mounted near floor level used to prevent or stop the door from closing when an obstruction breaks the detection beam. ALL doors installed on residential garages must be equipped with an electric photo eye!
Safety Edge
30

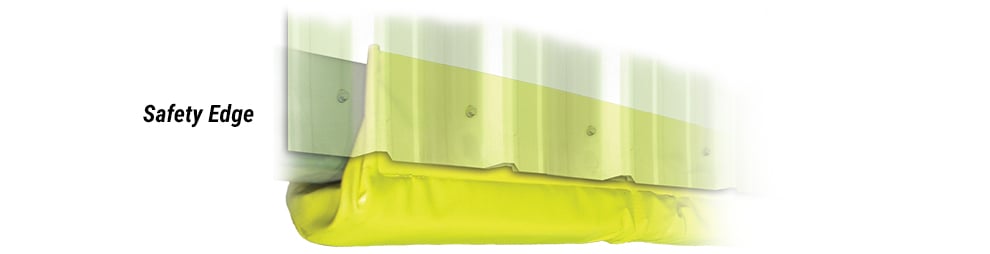

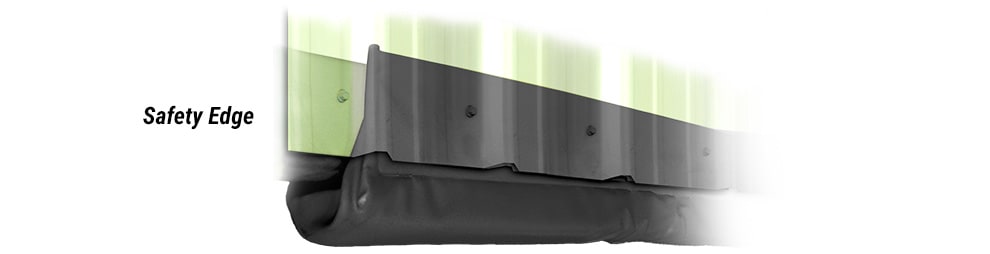

Door Base Safety Edge
Stops and reverses door travel upon contact. Electrical sensing switch along bottom of door to stop door if it comes in contact with an obstruction, door will then reverse to a fully open position. Safety edge must be capable of protecting the entire width of the door opening.

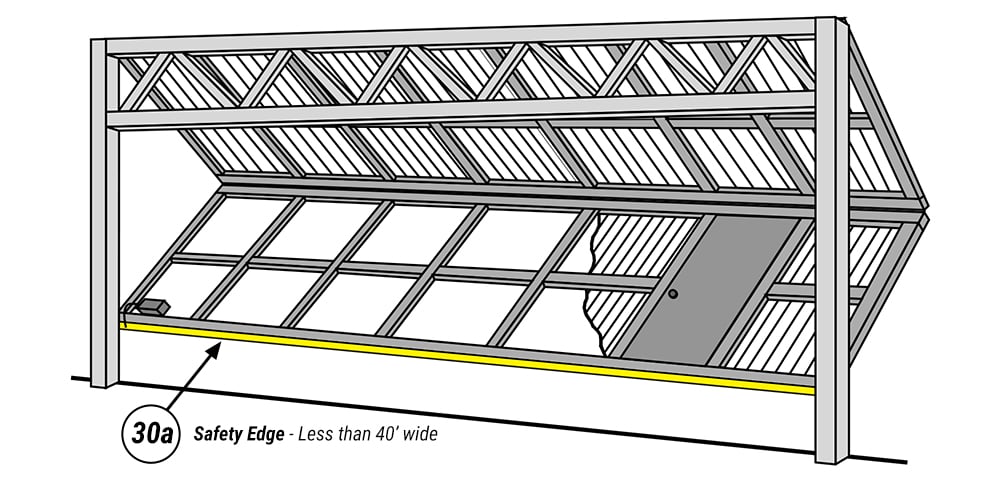

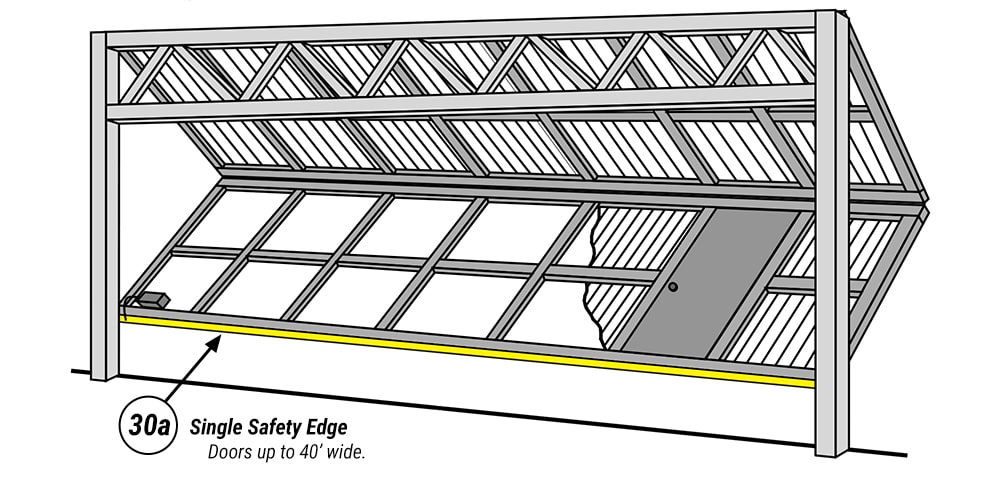

Style 1
Single Safety Edge -
Door Less Than 40' Wide - Width Needed

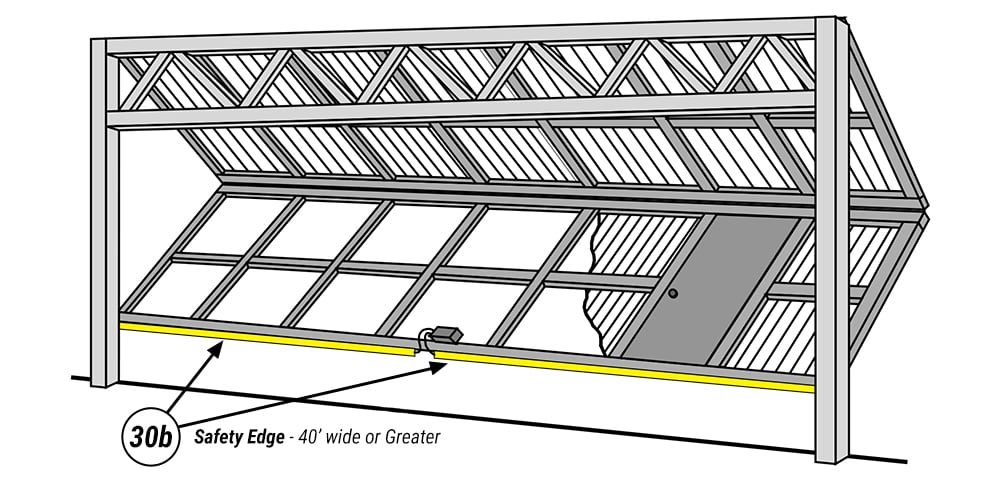

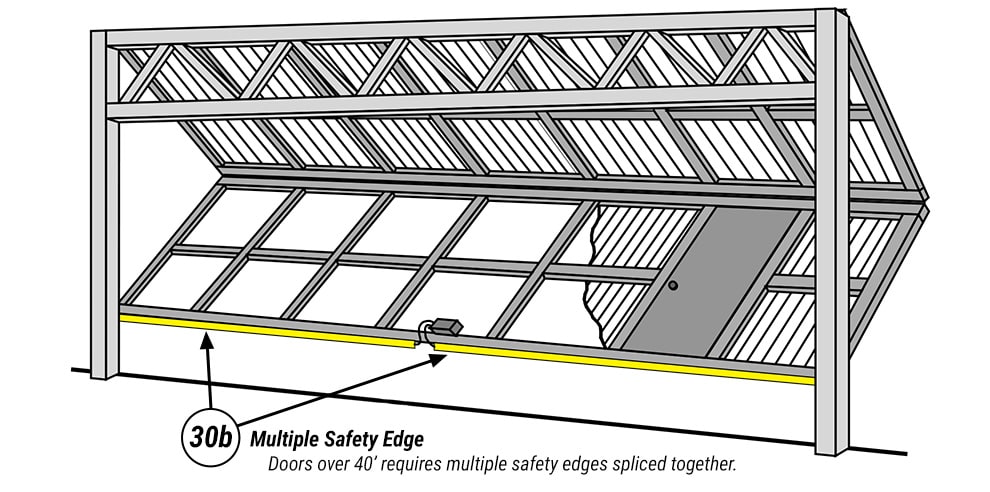

Style 2
Double Safety Edge -
Door 40' wide or greater - Width Needed
Safety Limit Switches
31

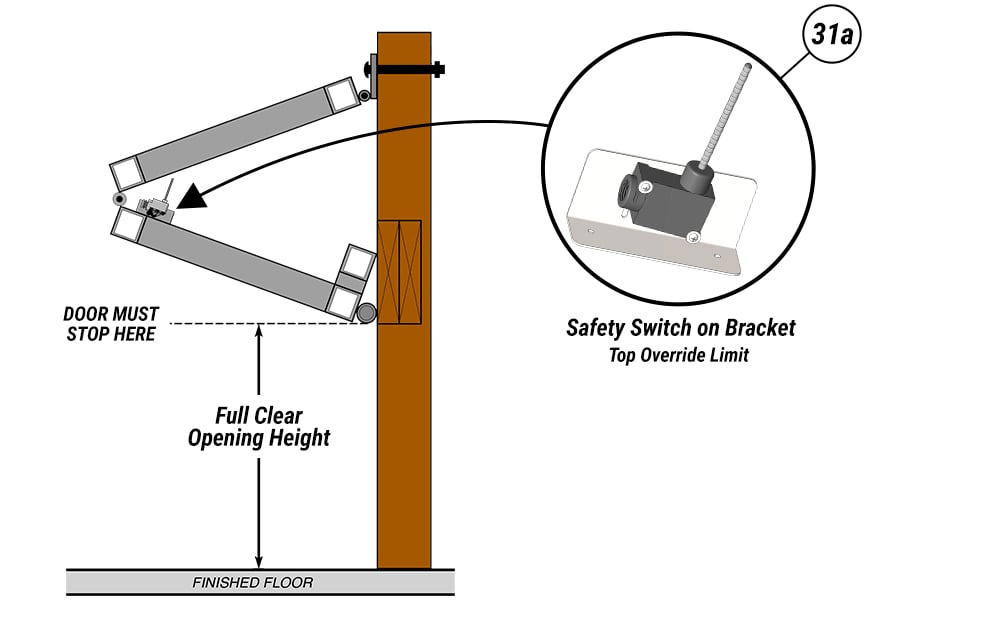

Top Override Safety Switches

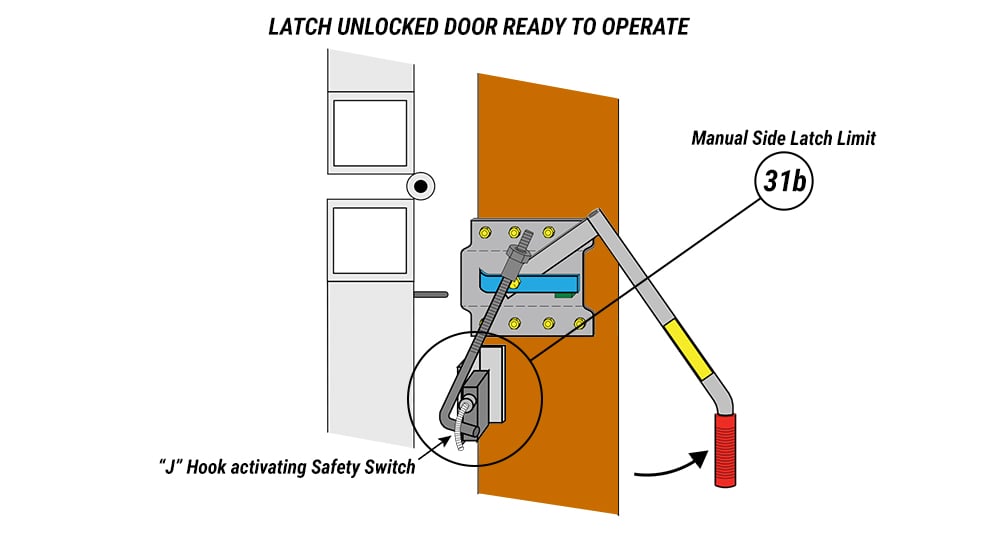

Manual Side Latch Safety Switches

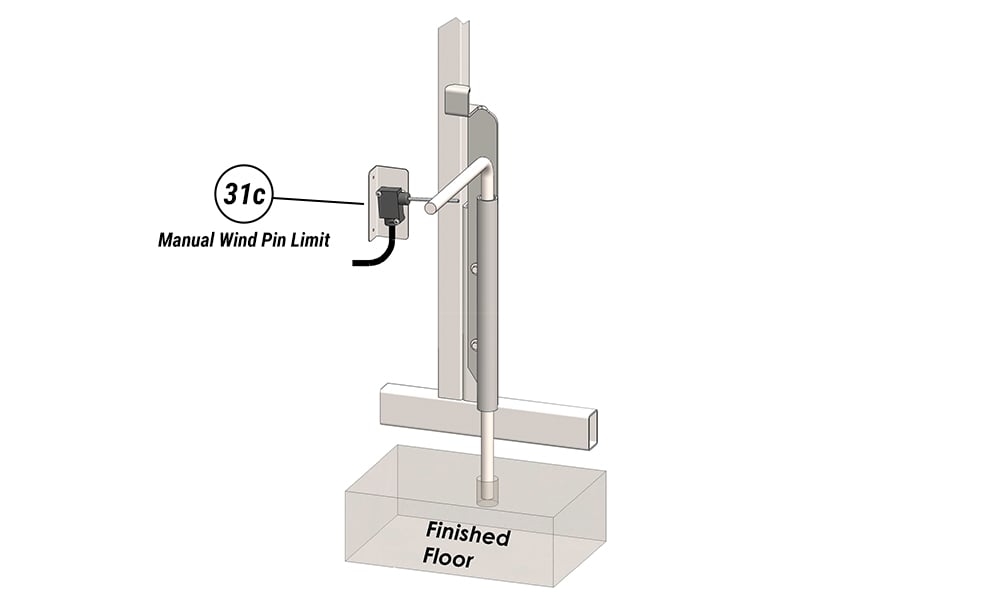

Manual Wind Pin Safety Switches
Safety Edge
32

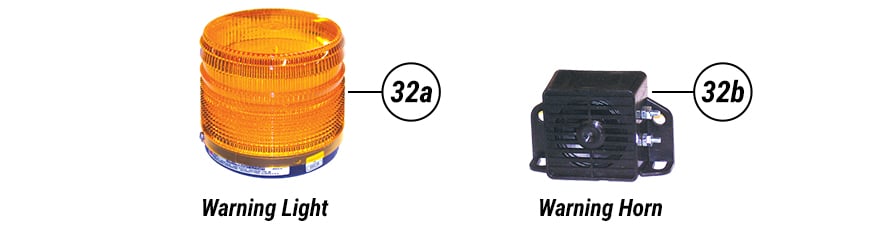

Alerts persons in the area during door operation. This feature is designed to alert persons in the area of the door that the door is operating. When the door operator activates the door, a warning light rotates and a horn sounds. This feature is especially recommended for doors that will be equipped with radio controls or other remote features.

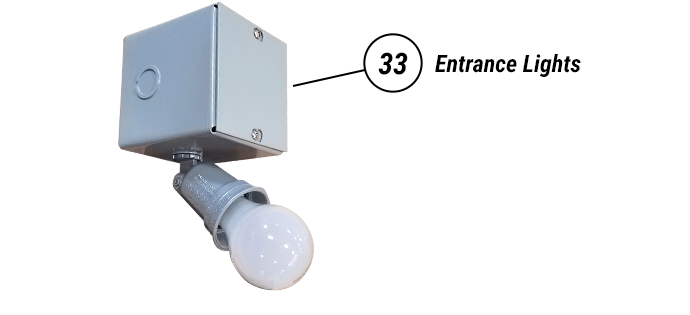

Entrance Lights
33
Lights up the doorway when entering the building. Lights up the doorway entrance when activating the door with a remote control system. (Very Nice Feature) Light can be positioned anywhere...
Example: On the inside of the door frame, the light will provide extra lighting directly under the door when door is in the wide open position. Custom feature that gives you more lighting.

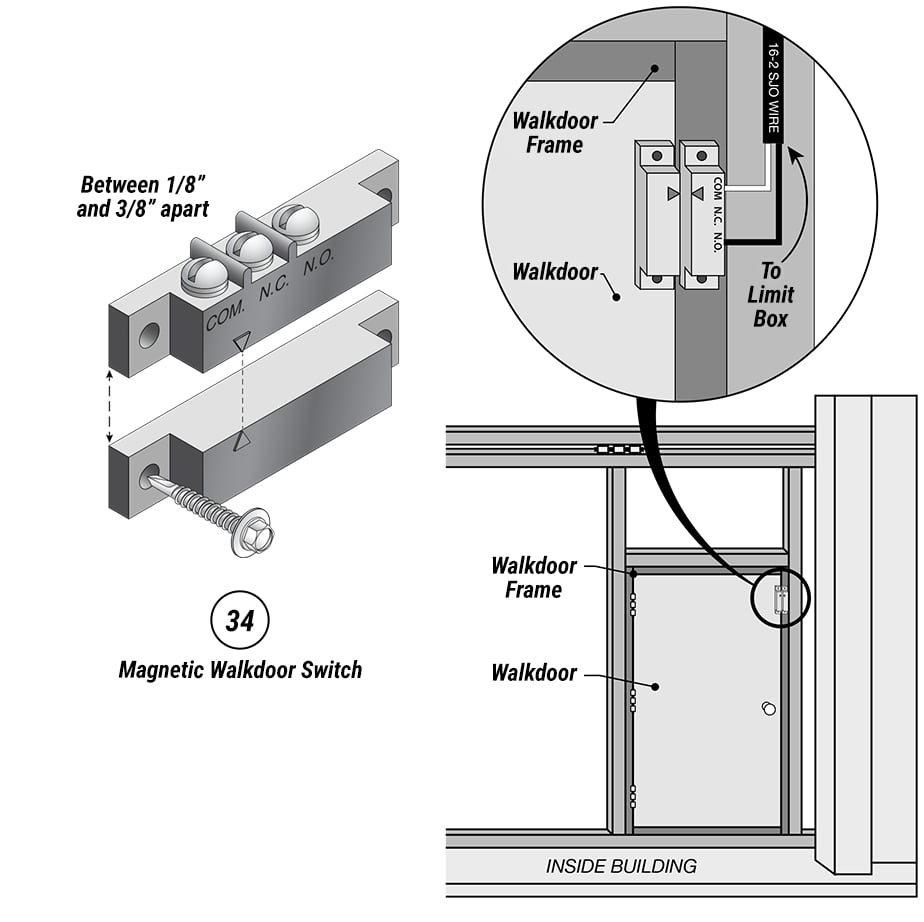

Magnetic Walkdoor Switch
34

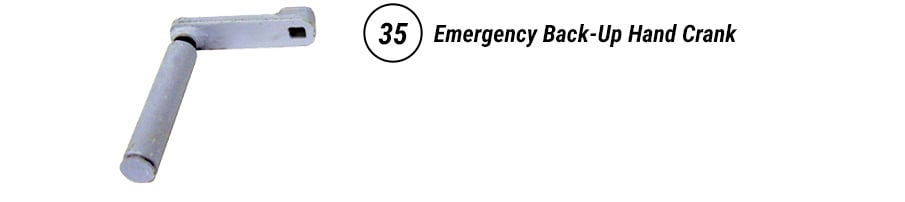

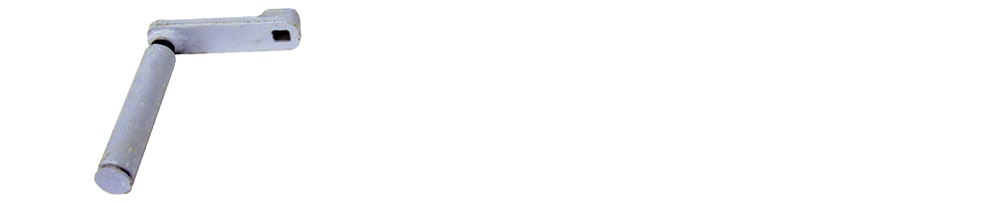

Emergency Back-Up Hand Crank
35
Door is capable of being manually operated in the event of a power outage. Included is a disconnect device to prevent motor from operating when manually operating door.

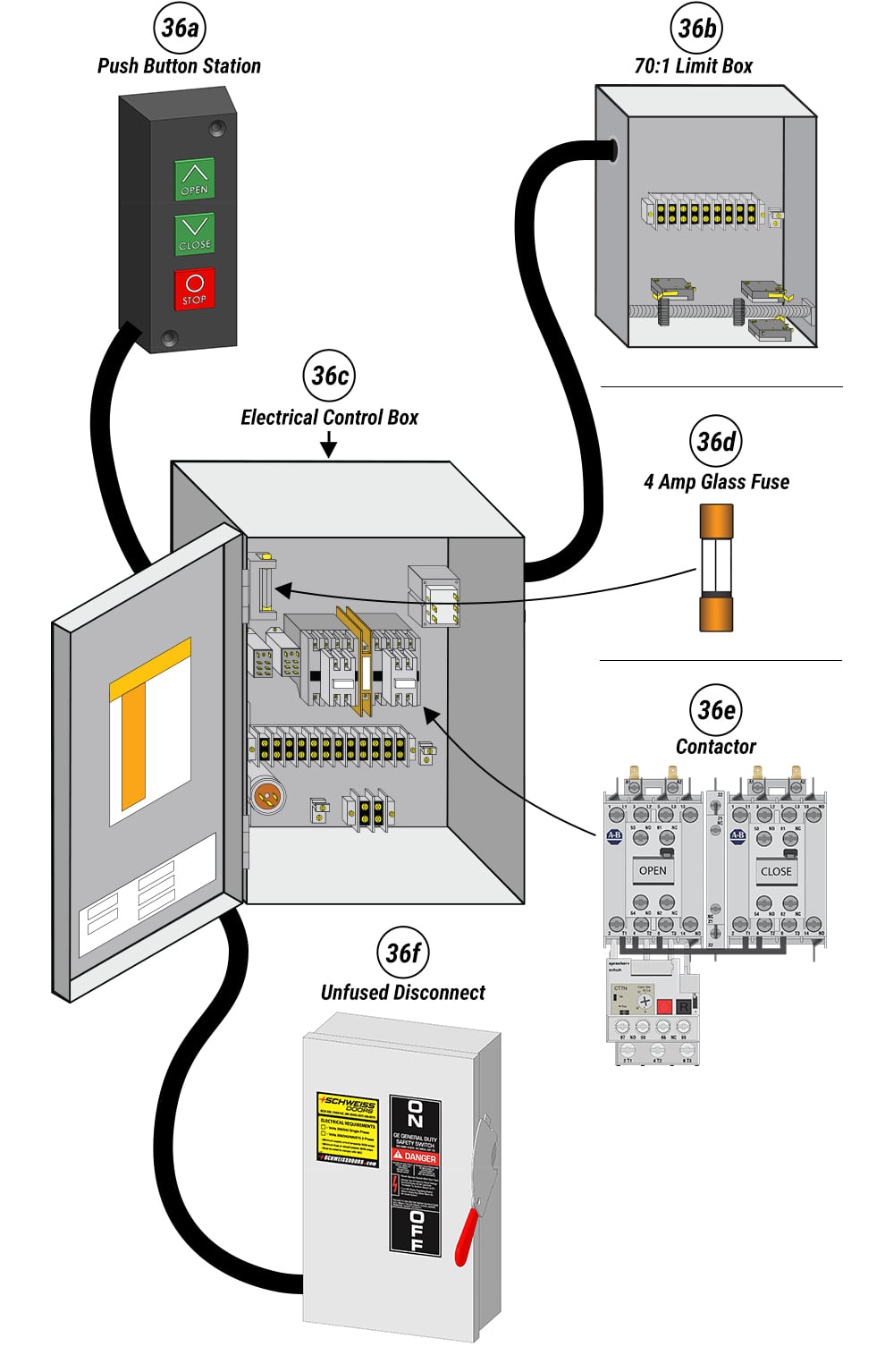

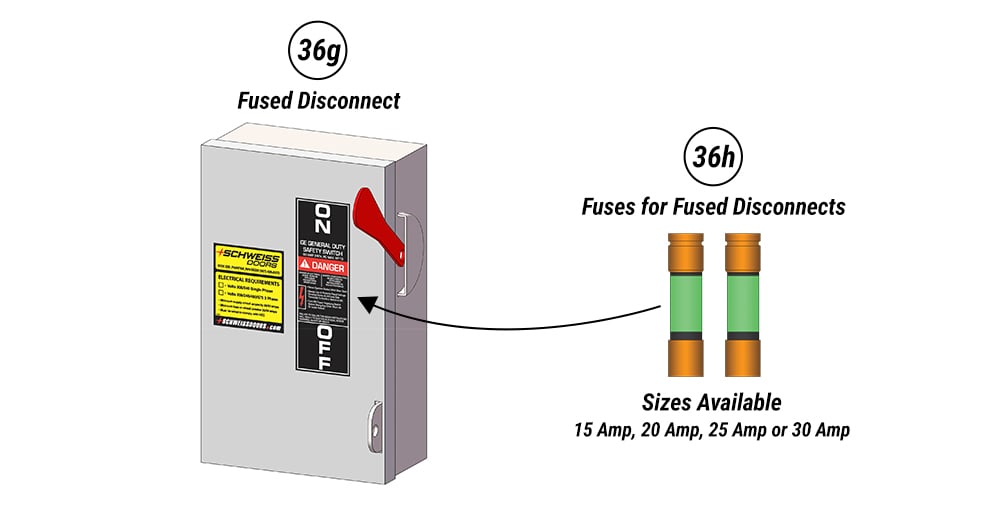

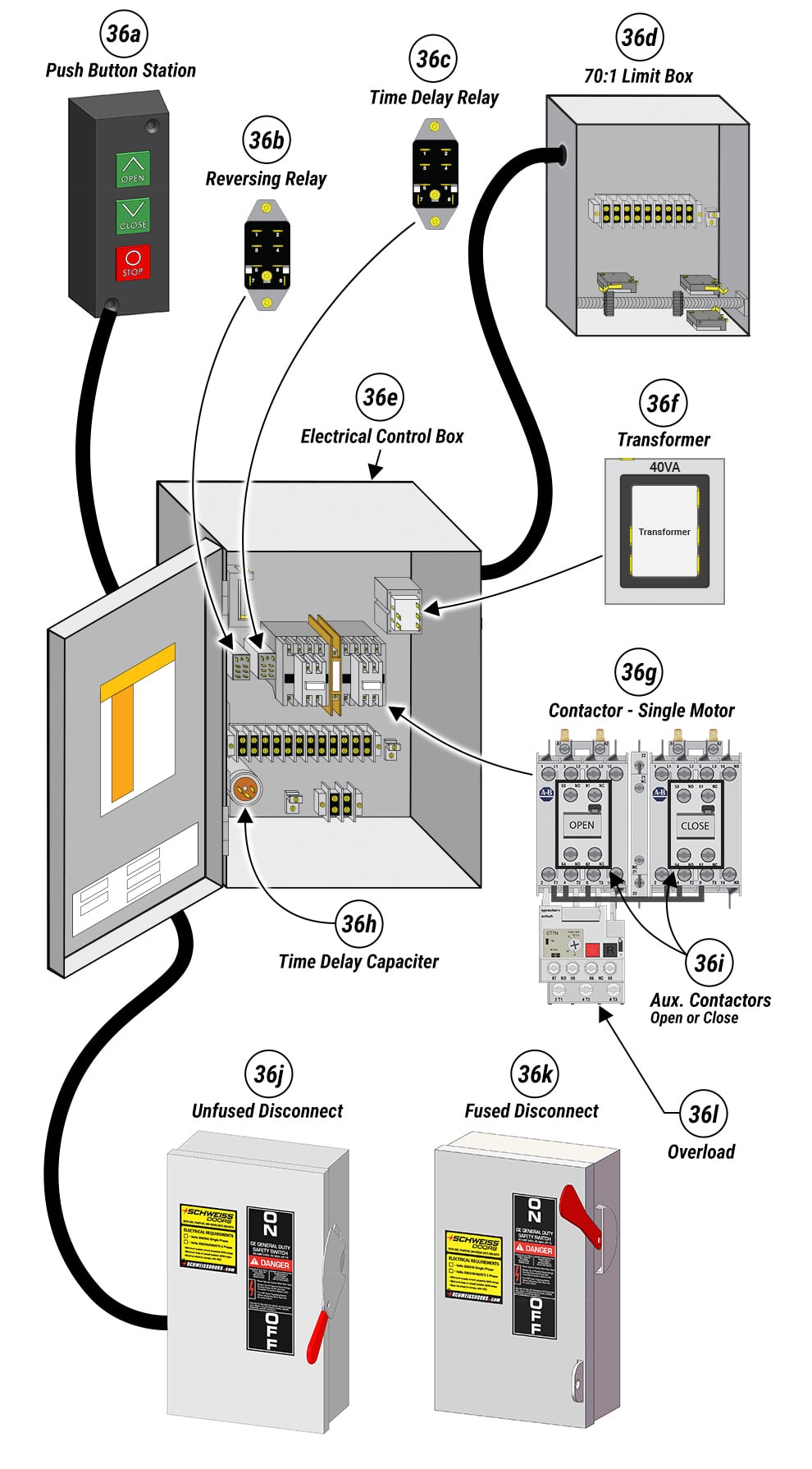

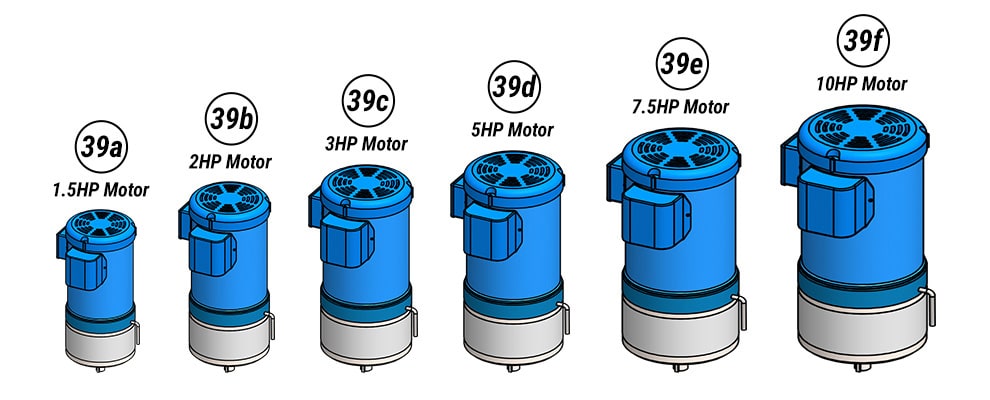

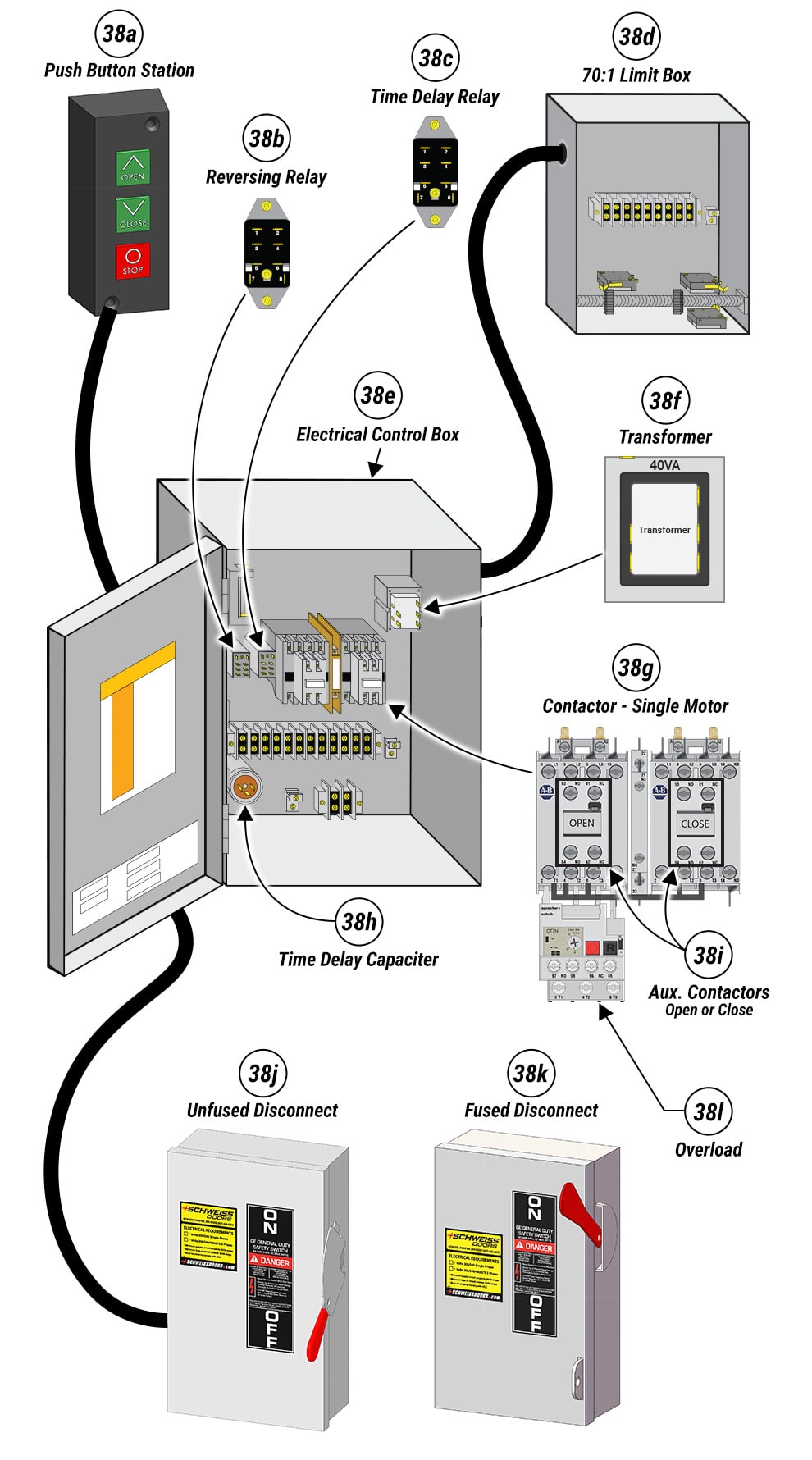

Electrical Components
36

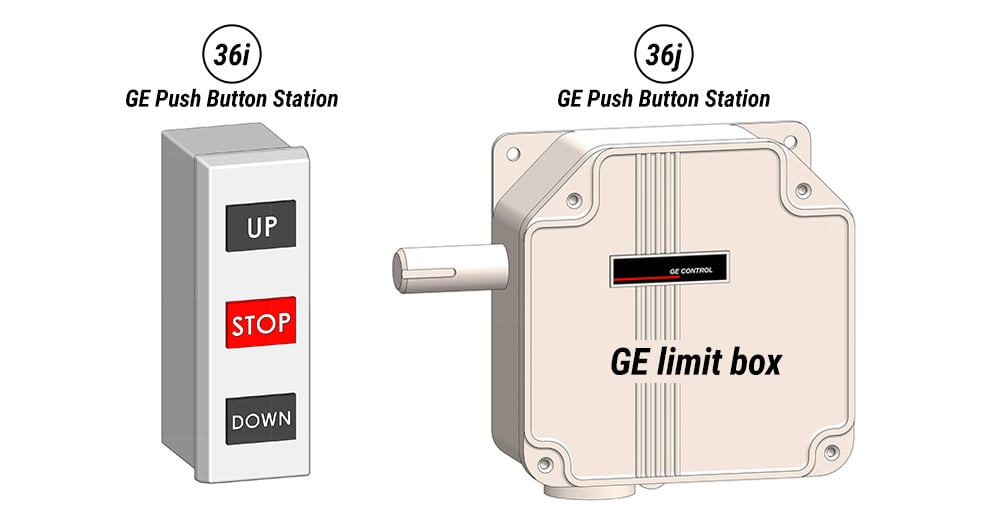

Three Button, Constant Hold Push Button Station
3-button constant contact dead man switch, which prevents operator from leaving control panel while door is in motion, either up or down. With this type of switch the door will not move in either direction unless the operator is pressing either the "Up" or "Down" button. When the operator takes his hand off the up /down button, it will stop the opening or closing of the door in any midpoint position. The motor will automatically stop when the door reaches either the full open or closed position.
