Note From the Owner About

Schweiss Hydraulic Doors

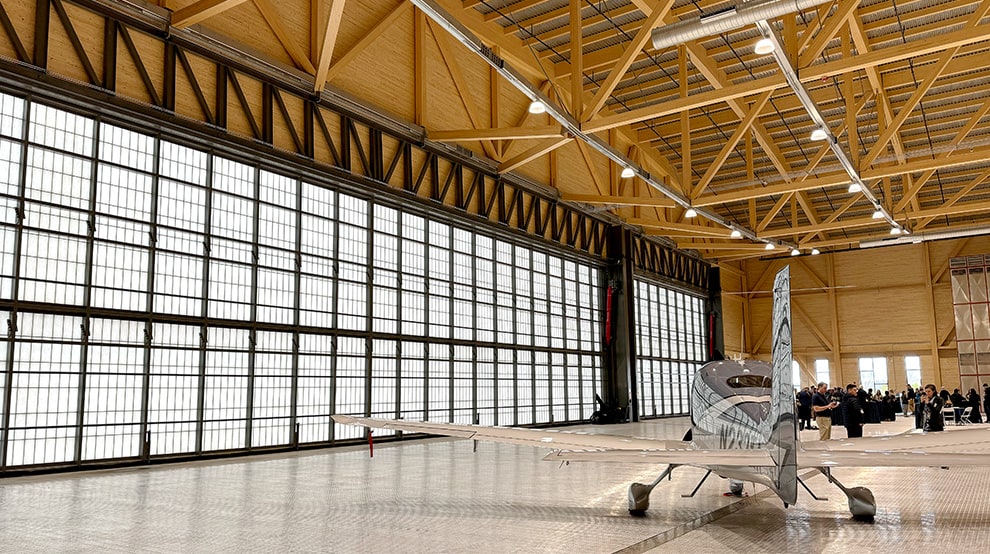

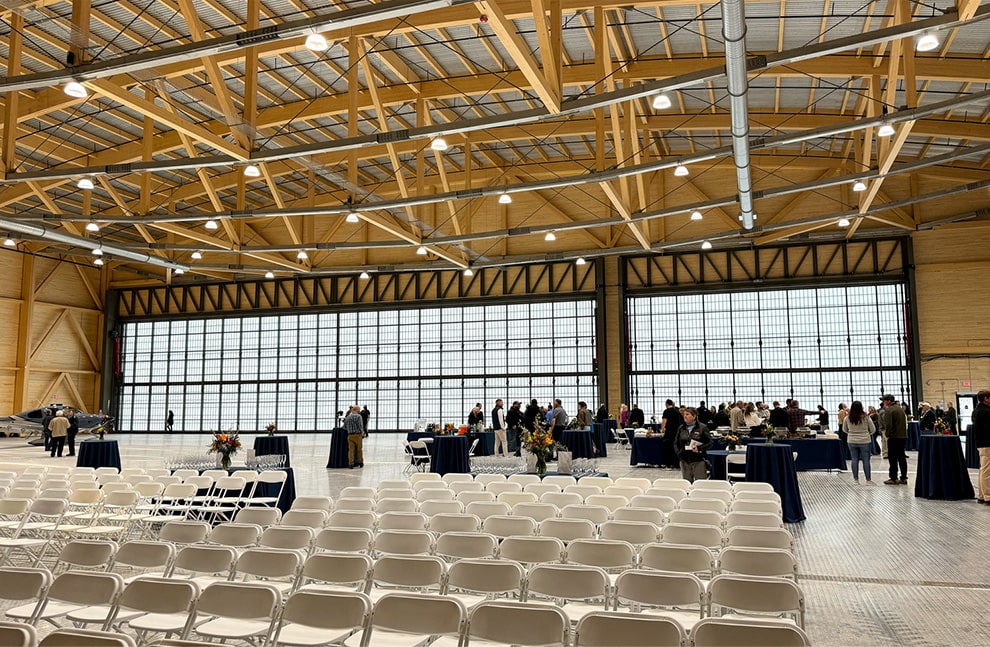

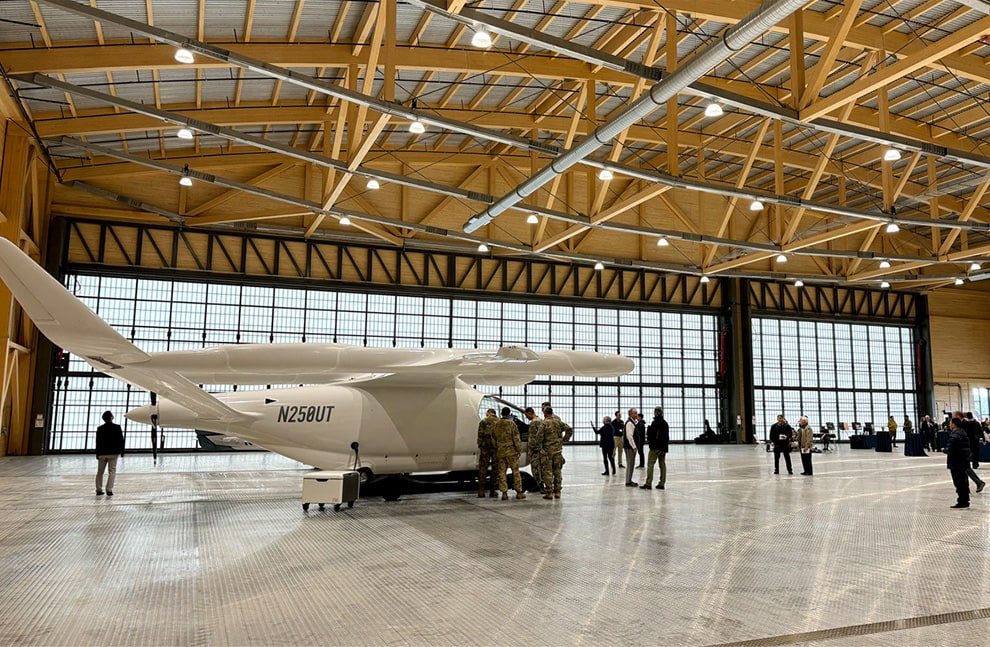

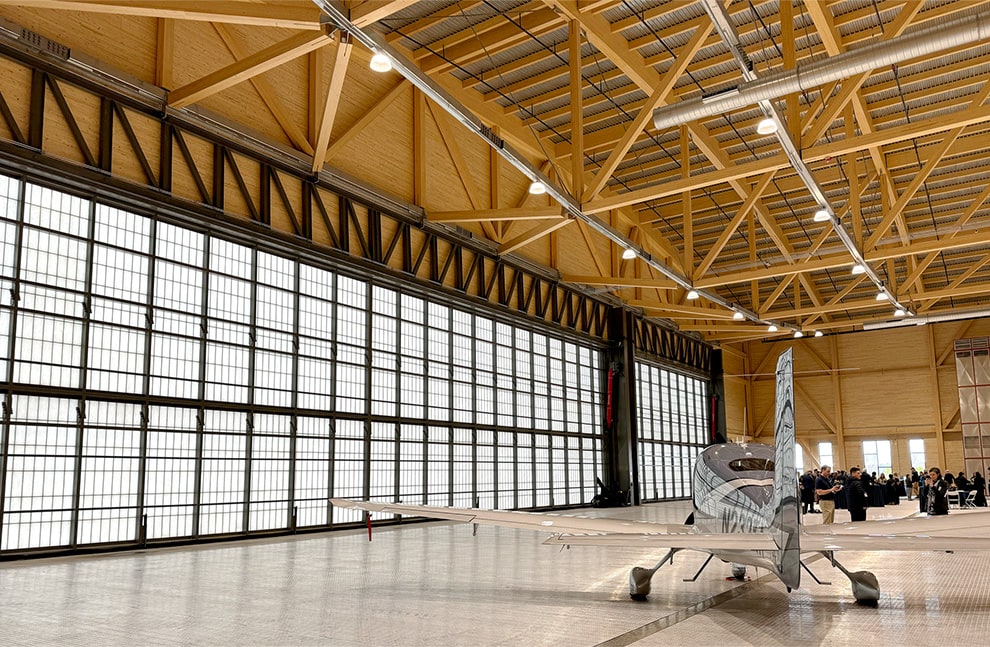

120ft Schweiss Hydraulic Door
120' Hydraulic Door

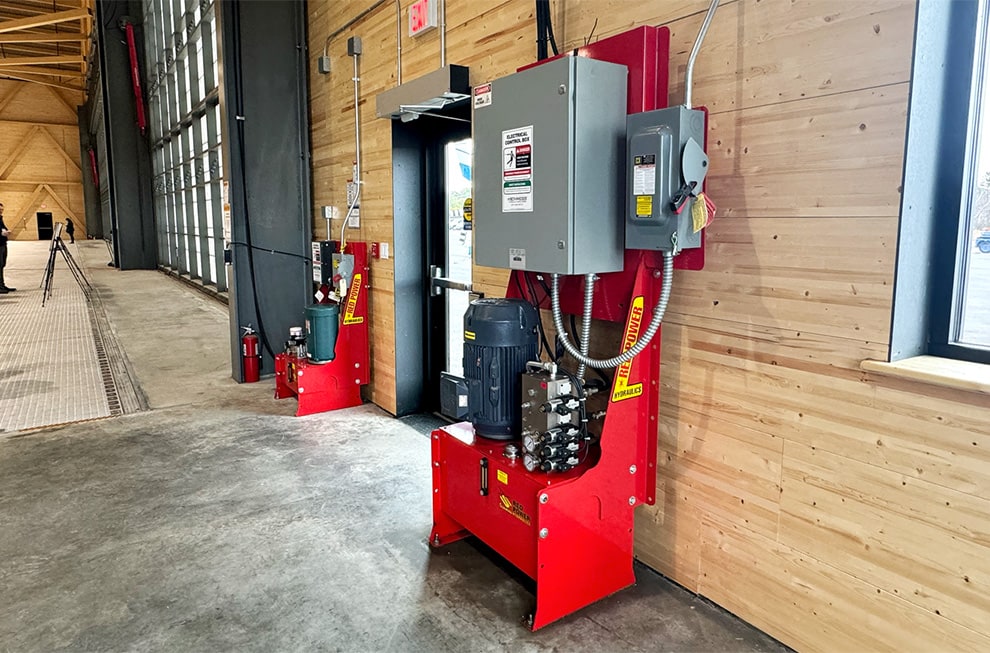

120ft Schweiss Hydraulic Door Pump
120' Hydraulic Door

Schweiss Hydraulic Pump Styles

Schweiss' electrical panels and hydraulic pumps have easy access features and save plenty of space, design features only from Schweiss

Electrical Panel

  1. Up/Down Switch
  2. Remote Receiver
  3. Remote Antenna
  4. Electrical Control Box
  5. Power Disconnect

Can Be Mounted Anywhere

Hydraulic Pump

Easy Access Features

  1. Oil Filter
  2. Tractor Fittings
  3. Oil Filter Gauge
  4. Oil Pressure Gauge
  5. Oil Level Sight Glass
  6. Drain Port

Space Saver

  • Wall Mount
  • Floor Mount
  • All Steel, No Plastic

Design Features
Only From Schweiss

“Look For Quality, Look For Price, You'll Buy Schweiss”

The Schweiss Red and Green Power manifold has a clean, crisp design. It features a polished finish, no exposed plumbing lines and a filter drainport that allows oil to drip back into the tank preventing messy oil puddles. Includes a filter clogging indicator showing when to change your filter element. 3000 PSI pressure gauge is standard and gives you the reading of the pump pressure used to open the door. Auxiliary screw-on oil filter is easy to change. Best quality filter that protects the hydraulic pump from impurities. Oil filter / breather cap / filler port has a rich looking polished finish. Clean looking! The easy screw-on cap has a built-in screen to keep debris out; important when adding oil. Sight glass displays the oil level and temperature in the oil reservoir tank. Red Power hydraulic oil reservoir has a heavy-duty, long-lasting powder-coated tank with a drain plug.

Schweiss Red and Green Power Hydraulic Pump Features:

Schweiss Doors has set new and higher standards in hydraulic pump development and safety features.

Schweiss Electrical System:

The Red and Green Power pump/motor system from Schweiss Doors offers superior electrical components that stand leagues above others. Why? Our Red or Green Power motors come equipped with a stand-alone electrical control box. The unique design of the Red and Green Power motor system is designed with safe UL listed components. Plus, it's composed of common components, standard in the electrical industry throughout the world. These electrical control boxes are also designed with ample space to safely house all required electrical components, such as contactors, transformers, relays, motor timers, rectifiers, and control fuses. Motor assemblies must be wired to National Electrical Code (NEC) standards.

Motors:

Schweiss Doors uses top-quality heavy-duty, brand name LEESON motors, totally enclosed, fan cooled, with a common 56C face mount standard shaft size, powering a single gear-driven pump. Plus, these quality continuous-duty motors are safety-backed with fuses and overload protection.

These Standard Features Come With Each Red
And Green Power Hydraulic Motor/Pump System:

  • Locks door up or down and holds the door safely in all positions.
  • Locks and holds the door in the closed position... Never creeps open.

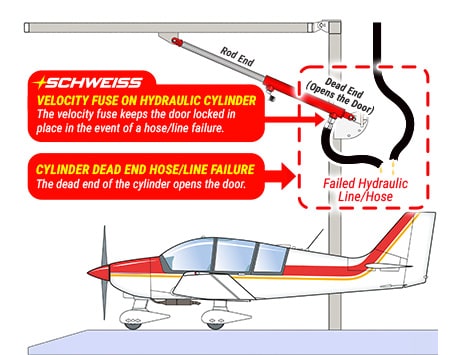

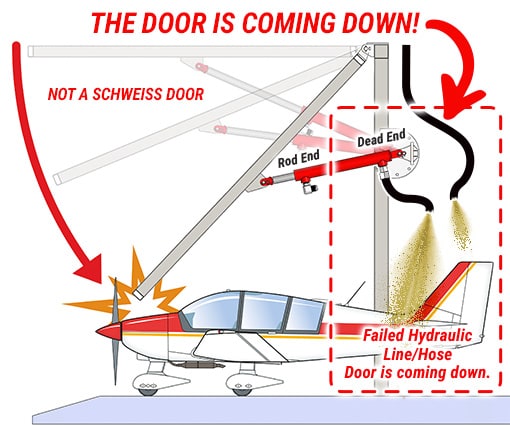

  • The doors will lock up and hold if a hydraulic line bursts or leaks.
  • Doors operate evenly in either direction.
  • Allows you to safely lower door in an emergency from the ground level.
  • Prevents thermal expansion in the cylinders. Releases excess pressure and oil back into the tank.
  • Hydraulic directional control valve has a built in manual override in case the coil burns out. You can push the override on the valves to manually get the door to move in either direction.
  • Low voltage control stations... only 24 volts DC, safer working with low voltage!
  • Low voltage coils... lighted 24 volt DC coil connectors are safer to work around.

Standard back-up Systems Are On All Schweiss Hydraulic Doors:

  • Tractor fittings to raise or lower the door are standard on all Red Power hydraulic units from Schweiss.

Standard Emergency Lowering:

  • Built in emergency lowering feature is standard on all Schweiss Doors. No tractor is needed in case of a power outage!

Optional DC Backup System:

  • DC backup - Includes battery operation and drill-driven back-up.
  • Has its own auxiliary self-contained pump and motor!

Multiple Mounting Styles

  • Complete stand-alone hydraulic unit can be placed anywhere in the building.
  • Hydraulic power unit can be placed under a workbench or anywhere in the room.
  • Wall mount - mount anywhere away from the door opening or even in another room.
  • With Schweiss you have options!

Remote Controls

  • Remote controls can be easily added at any time!

Emergency Backup Systems

3 Systems Neatly Packed Into One Unit

  1. Backup Tractor fittings - Standard
  2. DC Battery Back Up - 12 Volt
  3. Cordless Drill - Screw Gun

Your Door Will Always Open
“One Way Or Another”

The Choice Is Yours

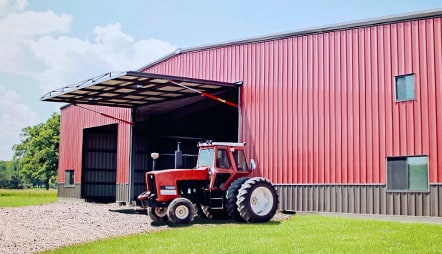

Schweiss hydraulic door installed on building behind parked tractor that could be used for backup power

1 Backup Tractor Fittings - Standard

Schweiss hydraulic door installed on building behind parked tractor that could be used for backup power

The Schweiss Red / Green Power Pump Has Many Backup Features Built-In

In Case of Power Loss

Backup - Tractor Fittings Standard on all Schweiss
Red / Green Power Pumps

2 DC Battery Backups - Optional

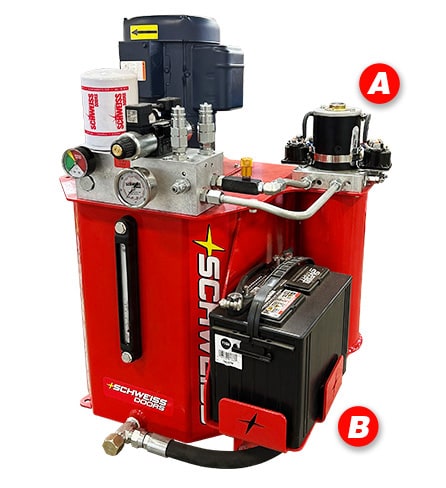

Schweiss 12v battery backup with labels A and B to show where the motor and battery are

12V Battery Backup

  1. 12V Backup Motor
  2. 12V Battery

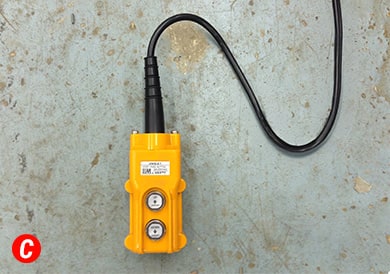

Control pendant for 12v Schweiss battery backup
Its Own Up/Down Control Pendant

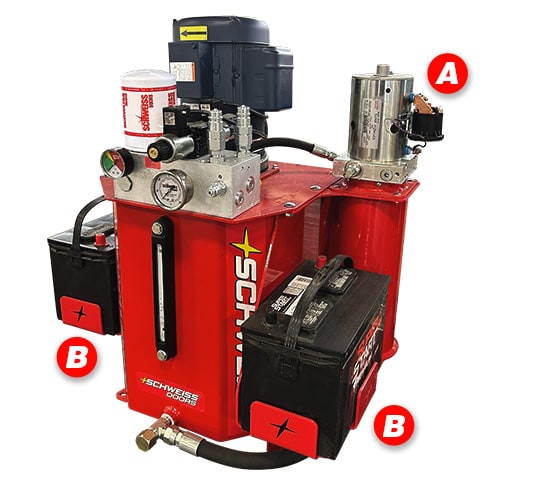

Schweiss 24v battery backup with labels A and B to show where the motor and batteries are

24V Battery Backup

  1. 24V Backup Motor
  2. Two 12V Batteries
Backup System Features
  1. DC motor used to raise and lower the door
  2. 12 volt battery powers the DC backup motor
  3. Handheld up/down control pendant - with 10 ft cord

3 Cordless Drill Backup - Optional

In Case of a Power Loss

There's a Backup Within A Backup

Guess what - There's another backup on stand by! Grab a cordless drill and run the door up!

Scenario - 1

Let's say you go to raise your door in an emergency with the battery backup only to find out the battery is dead... Now what?

Scenario - 2

Highly unlikely. But for some reason the hydraulic gear pump motor took a puke.

Auxiliary Backup Pump

The Auxiliary pump in the tank will raise and lower the door with a handheld drill. If you arrive at your door and the battery is dead, now you have the option to use a cordless drill to open or close the door!

How Does This Work?

The DC motor has it's own stand-alone auxiliary hydraulic pump. On the top of the DC motor is a hex-head nut, use a cordless drill to open your door!

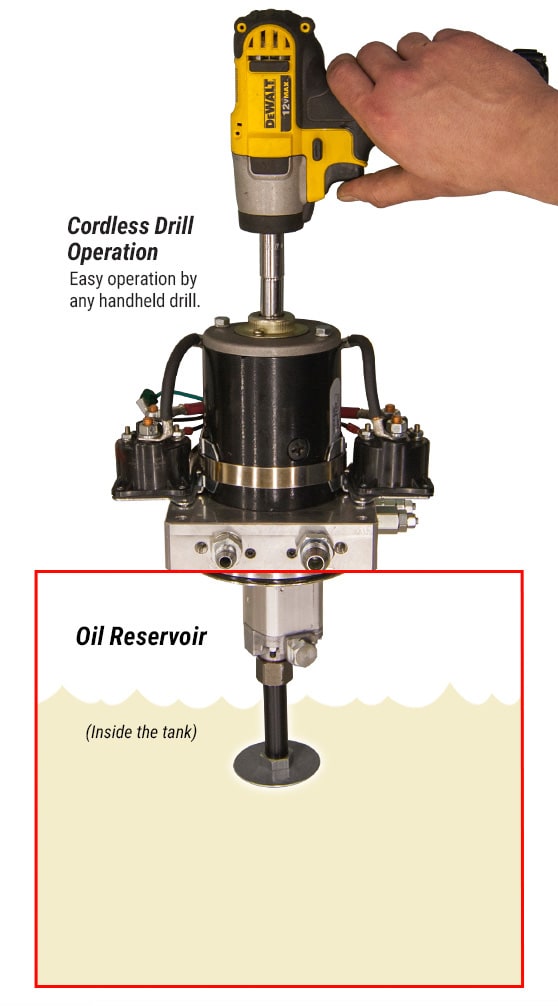

Diagram demonstrating the easy operation of the backup cordless drill option from Schweiss
Has Its Own Hydraulic Pump

When you order the Battery Backup System, it comes with it's own gear-driven auxiliary pump.

Schweiss Advantage Has You Covered

The Backup Systems ensure that you can get your door open or closed under most conditions.

Hydraulic Pump Placement

Mounting Styles:

Over the years, Schweiss factory engineers rolled together customer comments, combined with hi-tech design knowledge and experience to come out with perfection in a compact pump unit ready to be mounted anywhere you want it.

  • Wall Mount
  • Floor Mount
  • Under the Bench
  • Back Room

Mulitple Pump Mounting Options

  1. - Under Workbench - Hydraulic power unit can be placed under a workbench or anywhere in the room.
  2. - Wall Mount: Up or Down - mount anywhere away from the door opening or even in another room.
  3. - Stand Alone Unit - Complete stand-alone hydraulic unit can be placed anywhere in the building.
  4. - Up/Down/Stop Switch - Mounted near the door opening.
  5. - Electrical Control Panel - Can be mounted independently from the hydraulic pump.
Diagram with labels pointing out the multiple different mounting options with Schweiss hydraulic pumps
Schweiss vertical hydraulic pumps are one of the many Schweiss mounting styles

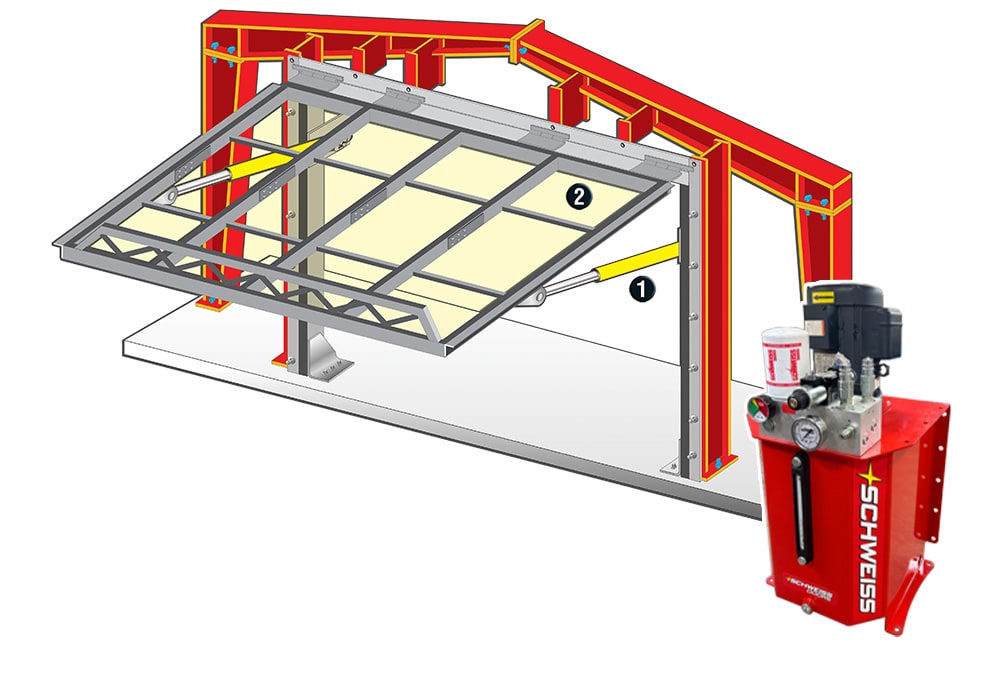

Hydraulic Doors By Schweiss

Schweiss hydraulic doors are custom made to fit any size opening for your building. Each door is built to fit your clear opening without using up existing headroom. There is no such thing as an odd size door or a job too small. You dream it, and we make your dreams come true.

Hydraulic Doors

Schweiss Doors is proud of its new hydraulic doors that swing outward. Already a leader in the bifold door industry, Schweiss Doors also now offers a better hydraulic door. The door design requires zero headroom, comes pre-hung, is watertight, easy to install, easy to operate with the push of a button, easy to insulate and swings out to provide a canopy when the door is in the open position.

Simple Unique Design

Powered by a powerful hydraulic pump, two heavy duty cylinders activate the hydraulic doorframe. Hinges across the top of the doorframe allow it to swing out and away from the building to the full open position. The hydraulic pump can be located away from the door opening to keep a clean look.

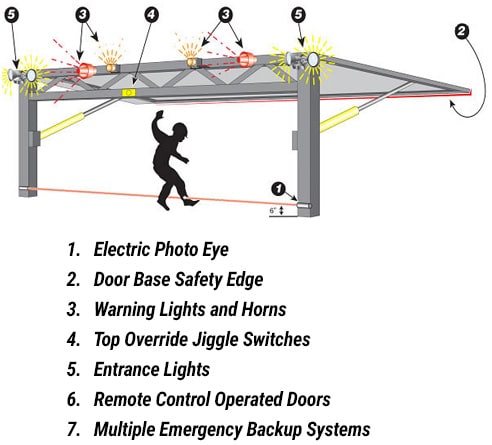

Safety Standards For Hydraulic Doors

Schweiss Takes Our Responsibility For The Customer's Safety Seriously.

As a door manufacturer, Schweiss has a responsibility to give the customer/users the safest hydraulic door possible... No Short-cuts!

Objectives

  • Ensure the safety and well-being of customers and users.
  • Minimize harm and reduce risks associated with hydraulic door failures.
  • Maintain regulatory compliance and manage safety risks.
  • Facilitate continuous improvement through incident analysis and corrective actions.

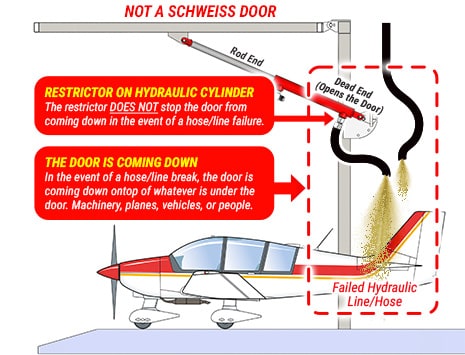

The repercussions of not having the proper safety features on your hydraulic door system are too great to be ignored.

Larger Cylinders With Spherical Bearings

“No one else in the industry offers this unique feature”
Only available on Schweiss Doors...

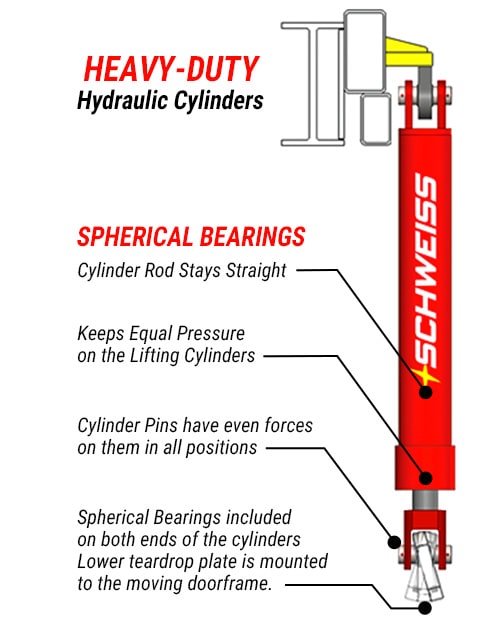

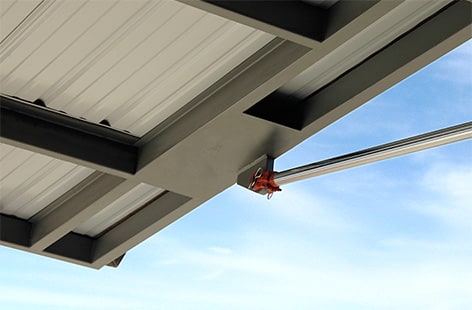

Schweiss heavy duty hydraulic cylinders have spherical bearings that keep equal pressure, stay straight, and have even forces in all positions

Doors Are Always Moving and Flexing

Spherical bearings reduce stress and wear on the cylinders, cylinders pins and clevishes during operation.

Hydraulic doors are large in size and just like an airplane wing, the doorframe flexes during operation. The hydraulic cylinders on each side of the doorway are connected to the doorframe and the building using spherical bearings. The spherical bearings accommodate the flexibility of the doorframe while at the same time allowing the cylinders to raise and lower the door without binding on the hydraulic cylinder pins and brackets. Spherical Bearings on both ends of the cylinder allow the cylinders to stay straight through the full range of motion.

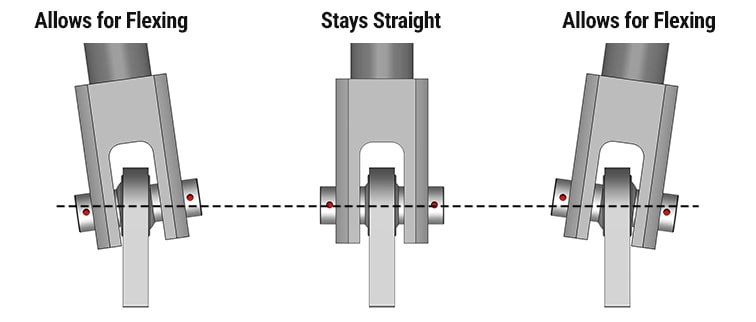

Schweiss hydraulic cylinders have spherical bearings, which stay straight while still allows for flexing

Strong Words From Our Customer

“Soon as I saw and understood the spherical bearings design, it was a no brainer. I was immediately SOLD on the Schweiss Hydraulic Door!”

ONLY FROMSchweiss Yellow Star Logo

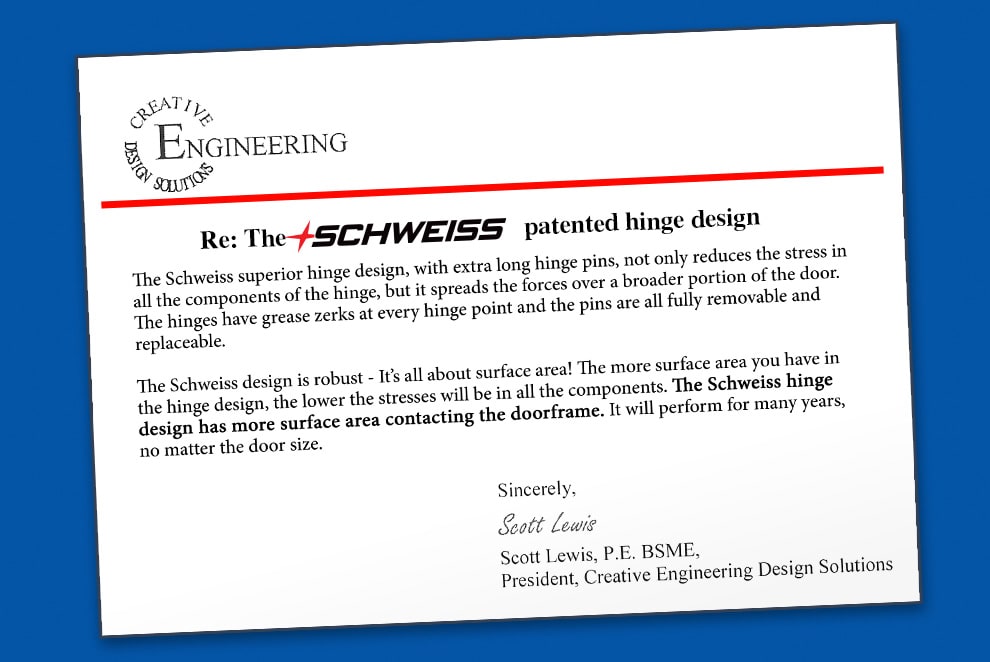

New Hinge Design...

"Our New Wrap-Around Hinge Design Sets The New Standard For Hydraulic Doors"

Schweiss doorframes are designed with double push tubes that are tied directly into the wrap-around hinges that connect both vertical push tubes directly to the header tube. The advantage of double push tubes is that forces of hydraulic cylinders are evenly distributed to the doorframe and the wrap-around hinges.

"There have been hydraulic doors with hinge welds that failed, literally tearing off the doorframe and destroying the door," Schweiss says. "Our design team provided a durable wrap-around hinge with grease zerks that are accessible without removing the top rubber seal."

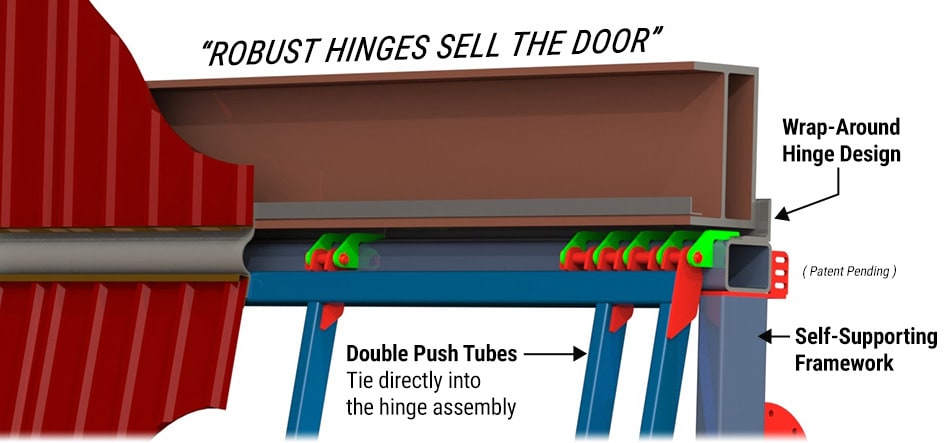

Robust wrap-around hinges from Schweiss sell the door

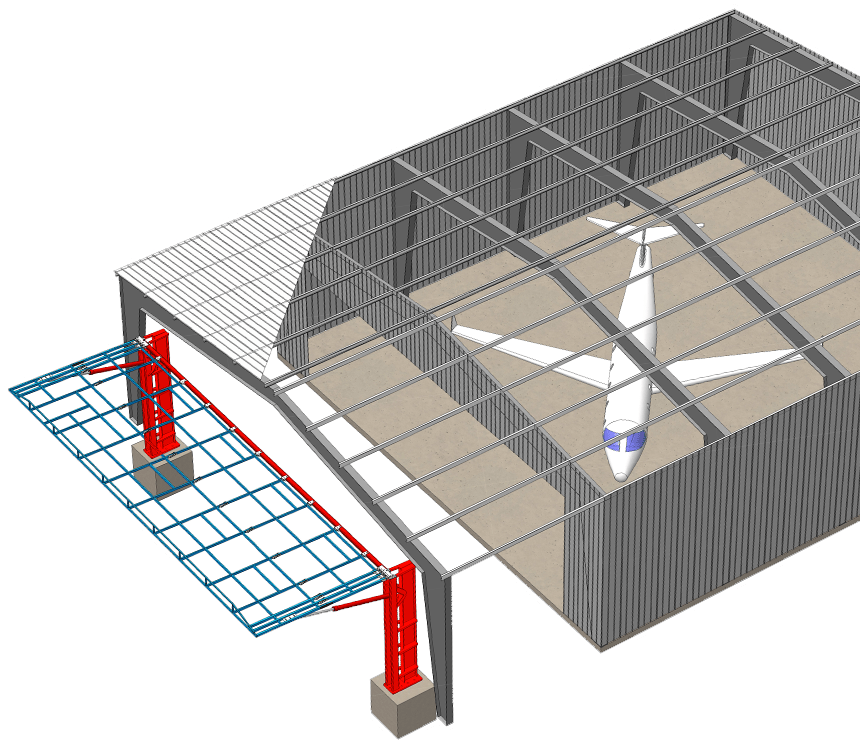

Its Own Self-Supporting Subframe!

Schweiss engineered a new robust hinge design that distributes the door loads evenly across the self-supporting subframe, greatly reducing stress on the building structure.

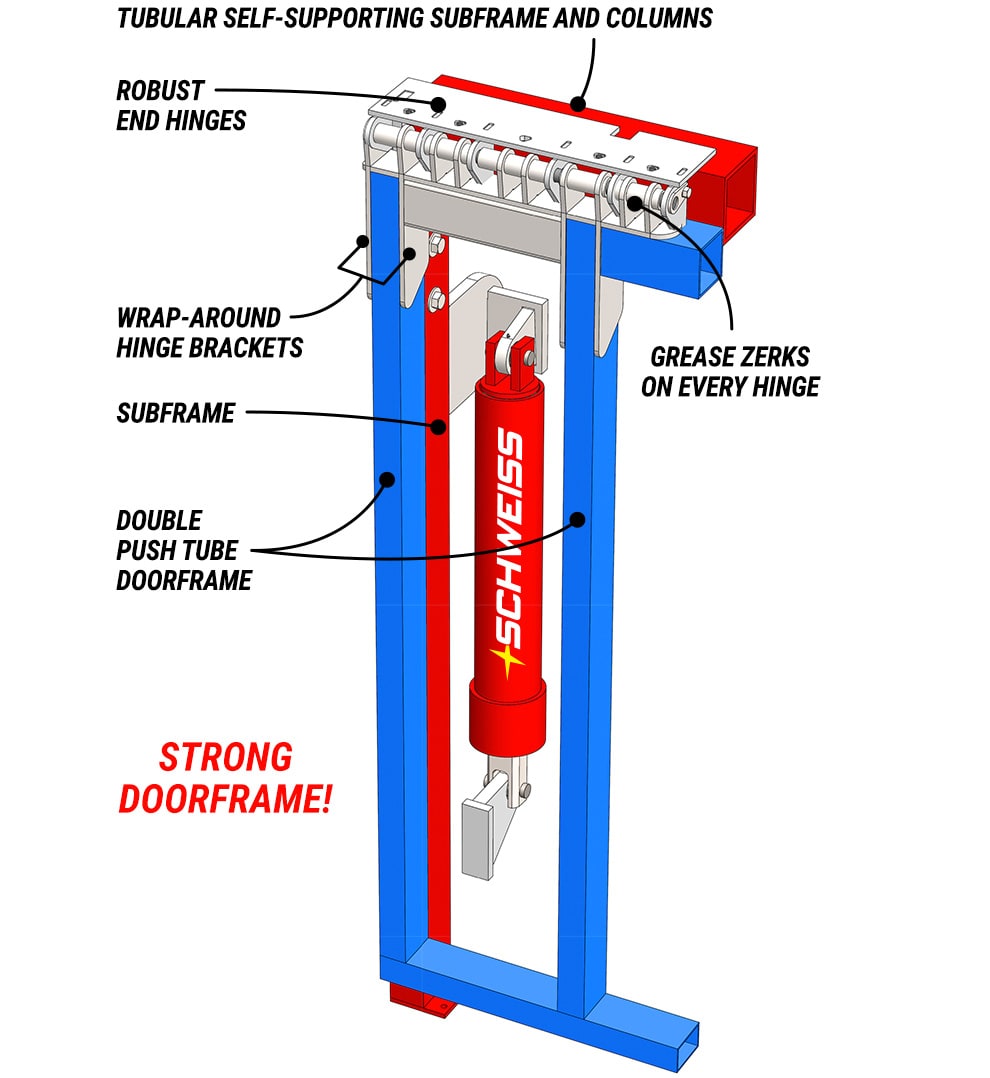

Tubular self-supporting subrame and columns means every door greatly reduces stress on the building structure

The Hinges Sell The Schweiss Door

The Schweiss robust hinges are designed to withstand the door weights and hydraulic forces of the cylinders as the door opens.

Your door is only as good as its hinges! Take one look at the Schweiss hinges and you will clearly see the workmanship, strength and functionality of each hinge. The Schweiss hinges are big... strong... heavy-duty.

Grease Zerks

  • •  Schweiss hinges can be easily greased for longer hinge life.
  • •  SCHWEISS is the only manufacturer to offer hinges that can
       be greased from underneath the door without removing the
       top weather seal.

Removable Hinge Pins...

  • •  It's important to have removable hinge pins...
  • •  Hinge pins are not welded in solid on a Schweiss door.
  • •  Designed for easy maintenance.
  • •  All hinge pins are removable.

The hinge makes the door...

Hinge has to be strong as the door is in motion

The weight of the door and hydraulic forces exert loads on the hinge while the door is operating.

So it had better be STRONG!

The unique hinge design incorporates heavy hinge plates that wrap around each vertical push tube for added rigidity. Without this wrap-around design, the doorframe members can be overstressed and begin to tear apart from door weight and hydraulic forces over time. This won't happen with a Schweiss Door!

Hydraulic doors operate with one set of top hinges. These hinges need to be strong enough to support the door weight and the hydraulic cylinder forces when opening; unlike a bifold door that shares the load between the top hinges and the center hinges.

What Door Customers Are Saying...

  • “The hinges sold me.”
  • “The Schweiss team hit a home run by putting grease zerks in their hinges”
  • “Now that's a Serious Hinge, You guys have it figured out!”
  • “Oh my, nothing comes close to it. Professionally done!”
  • “Nothing on the market will even come close to the Schweiss hinge design.”

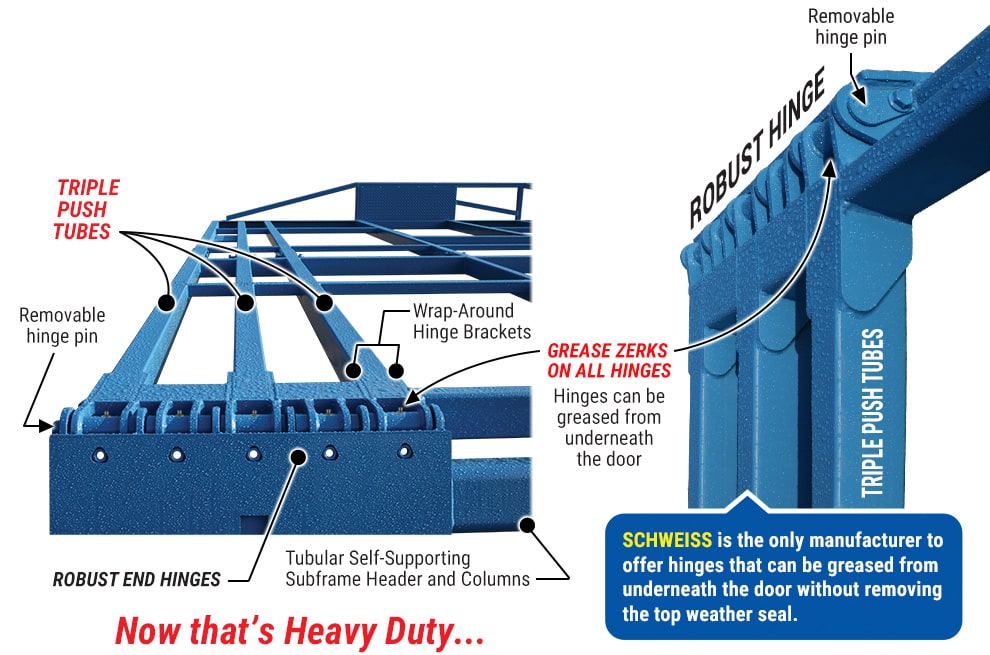

Strongest Hinges on the Market!
Strongest Doorframe on the Market!

Schweiss hinges are the strongest on the market, and are the only hinges that can be greased without removing the weather seal Letter from Creative Design Solutions discussing the superior Schweiss hinge design

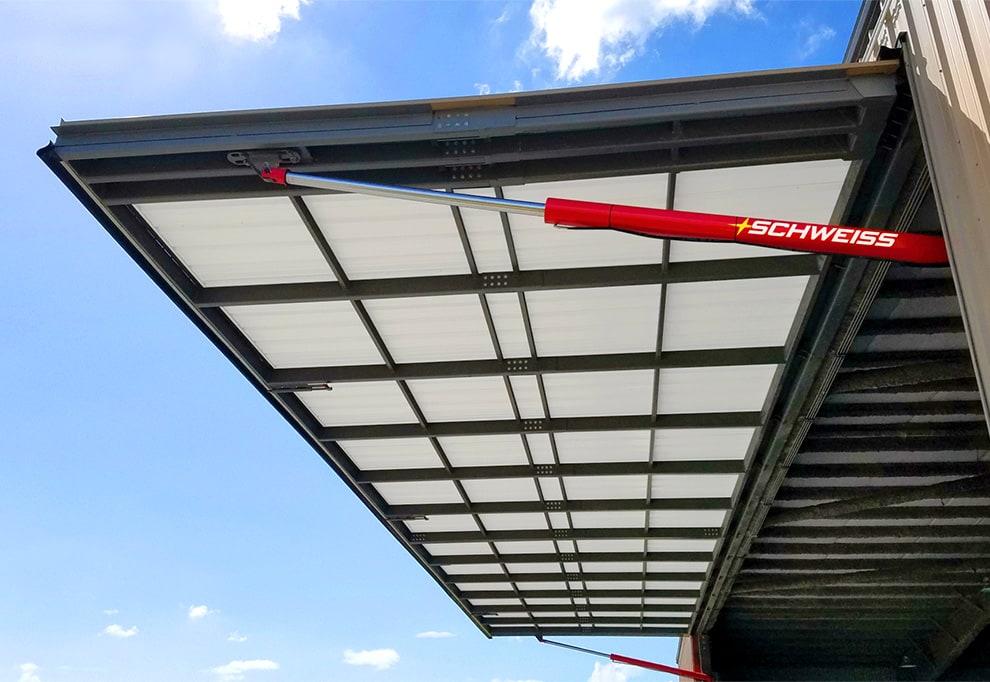

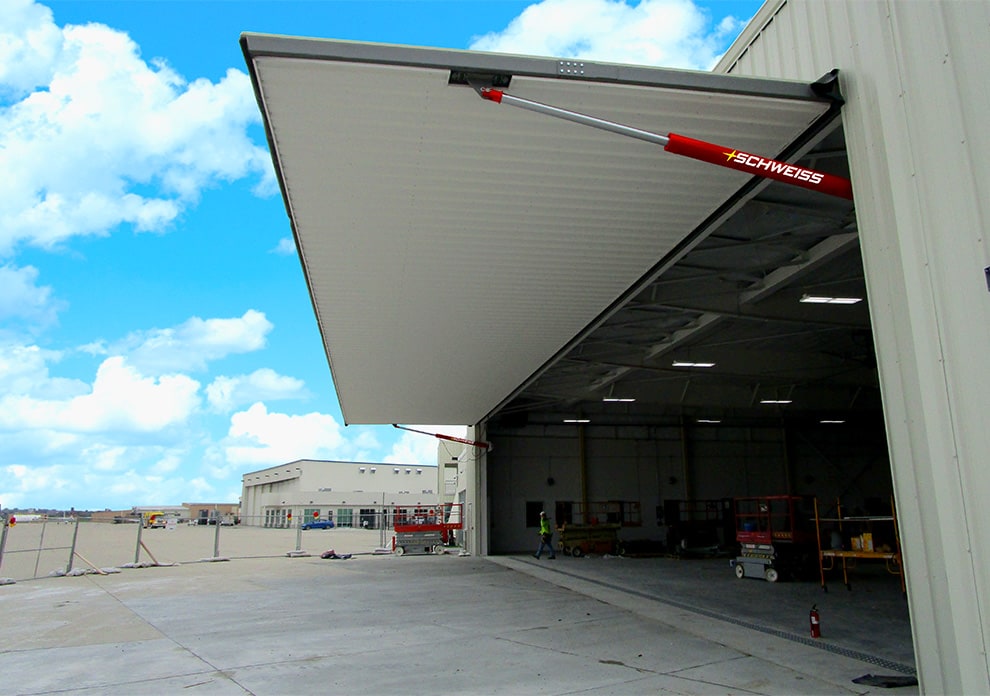

Opened Schweiss hydraulic door installed on hangar

Schweiss Hinge Advantage...Standard On Every Door!

While other doors may appear to be the same on the surface, there is really...No Comparison!

  • Greasable hinges on each and every hydraulic door
  • Ability to grease the top hinges without removing the top rubber seal

Schweiss White/Gold Logo Quality

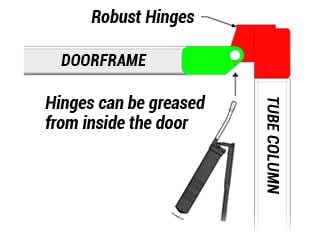

Greasable Schweiss Hinges from inside door

Customers Welcome Greasable Hinges

HINGE SURFACE AREA

Hinge surface area is critical on large moving doors. Over the years, we all have heard of hinge failures on others doors. Large hydraulic cylinders are putting extreme forces on each of the outer hinges of the doorframe. Schweiss has designed and patented a robust hinge with more surface area to evenly distribute the loads of a moving one-piece doorframe. Look at the hinge surface area. The stresses on the very outer hinges are immense. With that being said, take one look at the patented Schweiss hinges and you'll clearly see the workmanship, strength and functionality of each hinge.

GREASABLE HINGES

It's very important to be able to grease the door hinges with a heavy viscosity grease. When grease is used on the hinges of a large moving door it avoids unnecessary wear and adds longer life to the hinge and the doors operation. It's a common manufacturing practice to use grease on the critical wear points and load points to avoid unnecessary wear just like in the industrial equipment world with implements such as payloaders, skidloaders and other industrial equipment that are being operated around the clock.

The new hinge design with grease points on every hinge segment enables owners - whether they be private individuals or commercial customers - to periodically grease their hinges from inside the doorframe without having to go through the cumbersome process of first removing the top rubber weather seal.

Advantages of Grease

Using grease on the hinges is a better method of lubrication.

Using grease on the hinges is the industry standard.

Using grease on the hinges makes for a quiet door.

Using grease on the hinges makes for a smoother operating door.

Using grease on the hinges extends hinge life

Greasable hinges last forever.

Look at the Schweiss hinge, it has more lubricated surface area to give you longer life

Others rely on bushing FOR LUBRICATION

Doors move and flex as they open and close. The forces on each hinge vary during operation.

Not all bushings wear evenly.

Bushing wear thin over time.

Worn bushings offer less lubrication.

Less hinge surface area to distribute the door loads across the door header tube.

No way to inspect the bushings when the hinge pins are welded in - Not removeable.

Almost impossible to replace the bushings when the hinges pins are welded in solid.

Hinges That Are Easy To Grease

. . . Only From

Schweiss Logo

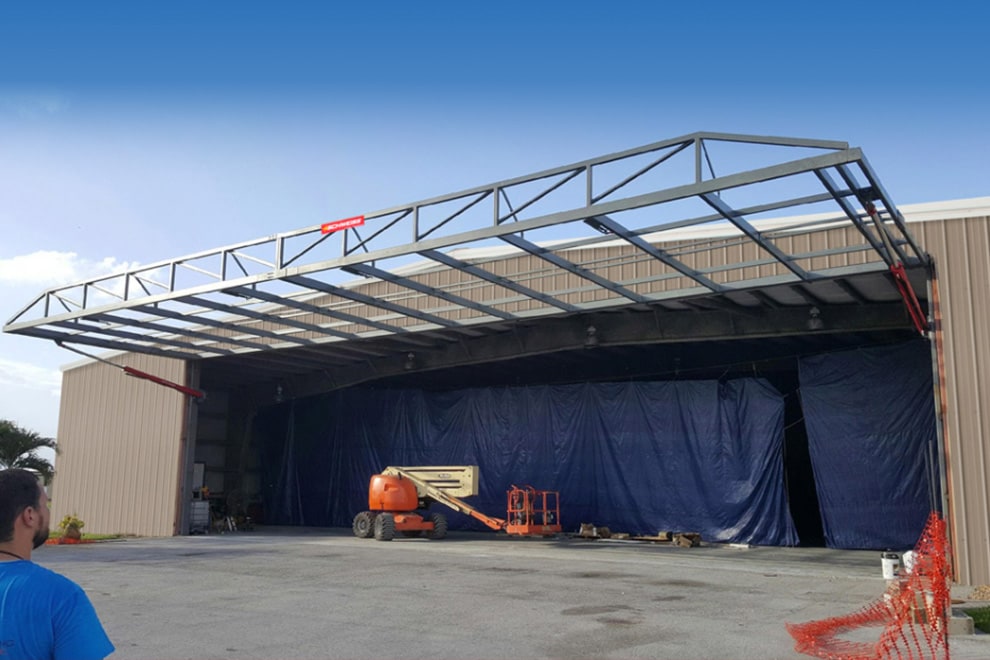

Other brand's failed door replaced by Schweiss

Strong, Beautiful, Functional

  • Double push tubes for added strength
  • Self-supporting subframe on every door
Fast Moving... Easy To Install... Gain Headroom...Large Cylinders Open Large Door

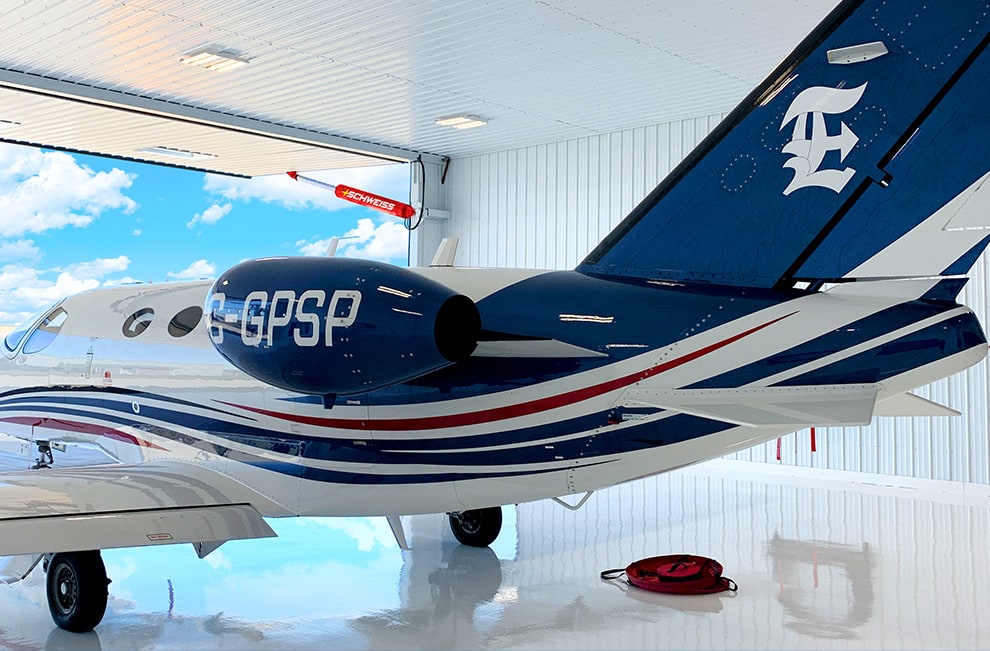

Large jet plane parked in commercial hangar fitted with Schweiss hydraulic door

Expect More With... Schweiss Black/Red Logo

All-Steel Doorframes

Schweiss uses all steel on their doorframes to avoid issues with wood cross members

Steel Horizontal Cross Members

Schweiss Manufactures All-Steel Hydraulic Door Frames

A 2x3-14 gauge steel member welded all around is good for about 120 PSF of wind. The steel is shop-welded, meaning no field labor is required. Every member of a Schweiss all-steel door is securely welded in place. Welds are strong and permanent and never need to be adjusted or tigthened.

Avoid Wood Horizontal Cross Members

As you open the door, it flexes due to the variable wind loads and its own weight. Tec screws or bolts in the end of a 2x4 are good for about 40 PSF of wind if the screws or bolts don't split the wod. Tec screws or bolts used to fasten horizontal wood cross members to the doorframe may work loose over time. Wood may shrink over time. The screws or bolts may shift in the horizontal wooded cross member, eventually working their way loose.

  • Canopy When Open
  • Lights Installed On The Door

What's Included With A Schweiss Hydraulic Door?

  1. Hydraulic Cylinders

    • Spherical bearings, an industry first!
    • Bigger cylinders
    • Adjustable teardrop plate to ensure
      a proper fit every time.

  2. Hydraulic Frame

    • Each door comes pre-hung with frame.
    • Pre-assembled, pre-welded and delivered pre-hung within its
      frame for ease of installation.
    • Bolted frame connections for shipping, no welding, easy to install.
Schweiss hydraulic doors include hydraulic cylinders, hydraulic frames, and plenty of advantages over other doors

Schweiss Hydraulic Advantages

  • Best hydraulic pump on the market
  • All-Steel doorframe! No wood!
  • Quieter, smoother operation
  • Multiple pump mounting options
  • Bigger, better hydraulic cylinders with spherical bearings
  • Built-in backup systems
  • Remote door control available
  • Easy to install

Schweiss Superstructure

Tri-Pod Leg Design transfers the door weights to
the footings that support the
hydraulic door, eliminating the
need for additional side columns
from the building manufacturer.

Lower Building Costs

Illustration of jet parked inside hangar fitted with Schweiss hydraulic stand alone door
Stand-Alone Door

Schweiss Doors The Leader in Hydraulic Door Design

Building costs are significantly reduced with our Tri-pod leg design self-supported hydraulic doorframe. Schweiss is the leader in manufacturing hangar doors for general aviation and commercial jet hangars. Our self-supported hydraulic door is desgiend with a purpose and a clear objective. The self-supported design willb enefit everybody from architects, engineers to building manufacturers, and more importantly will save money for the end-users of the doors.

Upgrade Equipment - SCHWEISS “One-Piece” HYDRAULIC DOOR

Powerful “One-Piece”
Hydraulic Doors

  • Each door comes pre-hung with its own frame.
  • Bolted frame connections for shipping.
  • No welding and easy to install.
  • Pre-assembled, pre-welded and delivered pre-hung with its frame.
  • Building does not have to be made taller.
  • Easy to install detailed pictorial instructions.
  • Heavy-duty hinges included.
  • Webbed external truss.
  • Internal truss available at no extra cost.
  • Self-contained power unit, easily placed anywhere in building.

Dead Man Control Station...
One Step Operation

The doors automatically stop when you take your finger off the control station.

Electrical Safety Disconnect

Allows you to disable the door, for service, maintenance, and emergency backup operations.

Installation Manuals Provided With
All Hydraulic Doors

  • The Hydraulic Install Manual has detailed instructions with each door.
  • Easy to install Safety Information and Operations Manual - The manual is designed to help you become familiar with the safe and proper operation procedures of your Schweiss Hydraulic Door and safety decals placement.
  • Included is a complete set of Safety Warning Decals to be placed on your building and door.

Fast Door Speed...Hydraulic Door Speeds When Opening and Closing

  • Cycle time approximately 30 seconds.
  • Each door has its standard speed preset from the factory.
  • We can vary the speed of the door, just ask for it.

Automatic Latching...Self-Latching and Holds the Door in Place

  • Hydraulic cylinders automatically pull the door in tight against your building and will keep the door in a locked position to provide a weather-tight seal.
  • Push a button to automatically lock and unlock the door in a closed position.
  • The hydraulic pump has a built-in positive-hold valve that maintains and keeps the door locked in the closed position, providing a constant weather tight seal.

Mounting Styles

- Includes Header Tube
- Its Own Framework

Flush Mount... (H Style)

  • Requires 5" Headroom
  • Each door comes pre-hung with subframe

Outside Mount... (M Style)

  • Lose No Headroom
  • Each door comes pre-hung with subframe
Closeup of Schweiss hydraulic cylinder attached to opened hydraulic door

Hydraulic Doors

  • Save Headroom
  • Lower Building Costs

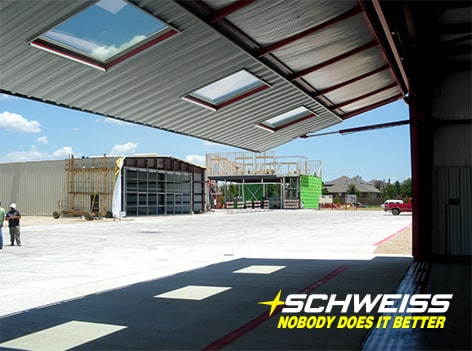

Schweiss hydraulic doors installed on a couple different buildings - nobody does it better than Schweiss Doors Diagram of multiple kinds of upgrades available with Schweiss hydraulic doors, including electric photo eye sensors, safety edges, warning lights and horns, lights, jiggle wtiches, etc.

Additional Wind Load/General Design Criteria

  • Wind-loaded doors (to meet standard local codes).
  • Engineer stamps available and approved in all 50 states.

Paint For Hydraulic Doors

Every Schweiss door is a properly prepared for painting. The doorframe members and parts are finished with gray primer. We offer matching touch up paint to take care of any slight nicks or scratches. Custom paint jobs upon request.
We will custom paint your door to match your building.

Aluminum/Galvanized On Hydraulic Doors

Schweiss is ready to shift gears at any point. This is the key to our success. Whether it be marketing, designing, or creating new products. With this attitude and flexibility we have introduced new Aluminum galvanized doors. Call for special pricing.

A Safety Device

Not a Safety Device

Ask yourself... “Am I Getting What I Need?”

VS

Schweiss Uses... Velocity Fuses In The Event Of A Hydraulic Hose Or Line Break

Designed to Lock & Hold The Door

The Door Must Stop Immediately! When A Hydraulic Hose/Line Break
On The Dead End of The Cylinder...

Velocity Fuses must lock the door in place to prevent it from coming down or falling on any machinery, airplanes, or worse yet, people.

Schweiss uses velocity fuses on their cylinders, which are designed to lock the door in place in the event of a failure for the best safety - shown in diagram

Some Others Use... Restrictors In The Event Of A Hydraulic Hose Or Line Break

Not Designed to Stop The Door

Restrictors Are Not A Safety Device When A Hydraulic Hose Or Line Breaks
On The Dead End Of The Cylinder...

Restrictors will not lock and hold the door open in any position. Hydraulic fluid will still shoot out of the damaged hose/line and the door will come down uncontrolled until it hits something or reaches the closed position.

Diagram demonistrating other door manufacturers utilizing restrictors on their doors, which do not stop the door in event of a failure - shown in diagram

Velocity Fuses Lock The Door In Place

Velocity Fuses... have a preset flow rate and automatically
lock if that flow rate is exceeded. This keeps the door from falling
in the event of a hose or line break!

  • Velocity Fuse . . .Keeps the door from falling in the
    event of a hose/line breaking!
  • Velocity Fuse . . . Stops the flow of oil and holds
    the door in place.
  • Velocity Fuse . . . Precisely sized for each door to lock up
    and stop the door     from falling.
  • Velocity Fuse . . . When used alone on the load side of the
    hydraulic cylinder, prevents the door
    from falling onto machinery, planes,
    vehicles or people below.
  • Velocity Fuse . . . Stops movement of the door in the event
    of a hose or line breaking on the dead
    end of the cylinder which prevents the
    door from coming down uncontrollably.
  • Velocity Fuse . . . When used alone on the dead end of the
    hydraulic cylinder, locks and holds the
    door in an open position     in the event of
    a hose or line breaking and prevents the
    door from falling.
  • Velocity Fuse . . . Are precisely sized and designed to lock
    and hold the door in any position     in the
    event of a hose or line breaking!
  • Velocity Fuse . . . Are designed to lock and hold the door
    load. An important locking safety
    feature. A Must Have!

No Hydraulic Door Should Be Without A Velocity Fuse

Restrictors Do Not Lock The Door In Place

Restrictors... are an orifice and are not a safety valve.
They will not keep the door from falling in the event of a hose
or line breaking!

  • Restrictors . . . Will not keep the door from falling
    in the event of a hose/line breaking!
  • Restrictors . . . Restrict or limit the flow of oil but
    will not stop the door from falling.
  • Restrictors . . . With a precisely sized hole that creates a
    pressure drop / restricts the flow but
    will not stop the door from falling.
  • Restrictors . . . When used alone on the load side of
    the hydraulic cylinder it is like a
    non-adjustable needle valve that
    restricts or limits the flow of oil but
    will not stop the door from falling.
  • Restrictors . . . Slow down movement of the door in
    the event of a hose or line breaking
    on the dead end of the cylinder but
    will not stop the door from falling.
  • Restrictors . . . When used alone on the dead end of
    the hydraulic cylinder will not hold
    the door in an open position     in the
    event of a hose or line breaking and
    will not stop the door from falling.
  • Restrictors . . . Are not designed to hold the door in
    an open position in the event of a
    hose or line breaking!
  • Restrictors . . . Does just that, restrict oil flow... but
    will not keep the door from falling
    uncontrollably     in the event of a hose
    or line breaking!

Restrictors Are Not A Safety Device

Ask yourself... “What's The Safest Option?”

Ask yourself... “Is There A Better Way?”

When Others Use Restrictors

When here is a hydraulic hose/line failure on the dead end of a cylinder...

Diagram demonstating what happens when a hydraulic hose or line fails on hydraulic door that uses restrictors instead of Schweiss velocity fuses - the door is coming down!

WARNING

When others are using restrictors in the
dead end of the cylinder as a safety device...

  • They may be setting you up for slow
    motion disaster, Your worst nightmare!

Worst Case Scenario...

To have a door come down on a million dollar plane
or even worse than that, have the door come down
on people and put lives at risk!

Be careful... when phrases like these are being used to explain what happens in the event of a hydraulic hose/line failure using restrictors.

  • “Gently coming all the way down...”
  • “Controlled rate of descent...”
  • “Coasting down...”
  • “Preventing the door from slamming down...”

Some Have Said:

“In the event of a hose or line breaking, it will not stop the door from falling.
It takes 7 seconds for a door to come down when a hose / line breaks.”

Fact Is... That's Not A Lot of Time!

The door is coming down with no safety built-in to stop the door. Better clear the area!

When manufacturers use Restrictors on their cylinders...

  • No safety built-in.
  • Restrictors are not load holding.
  • No way of stopping the door from coming down.
  • Slow motion distaster... Your worst nightmare!
  • The door won't stop if a hose/line fails (on the dead end).
  • Door will come down if there's a failure, no matter what.
  • The door is coming down on whatever is underneath it.
  • Slowing the door as it comes down isn't good enough.

Did You Know?

If the manufacturer uses restrictors on the dead end of the cylinders, neither the restrictors nor the photo eyes will stop the door. You can't rely on the photo eyes to stop the door if a hose/line breaks on the dead end of the cylinder.

The Door Is Coming Down...

How safe can it be when the door doesn't stop during failures? The truth is IT'S NOT!

Restrictors Are Not A Safety Device!

Find out what safety devices you're getting on the hydraulic cylinders when you order your hydraulic door.

Call Schweiss

Ask yourself...“Do I know what I'm getting?”

“Is Safety Important To Me?”

You should be asking if hydraulic doors have restrictors or velocity fuses, and ask how you go about getting velocity fuses installed on your door to make it safer!

The “Go-To” Manufacturer For Big Hydraulic Doors

Schweiss Doors has completely raised the bar in terms of hydraulic and bifold doors for aircraft hangars, commercial and industrial use. The stand-alone framework can be added to the client's new or existing building. It's all self-contained, so a retrofit is easy. The hangar doors are so strong, yet so simple, that it requires nothing more than a common framed opening.

Plane parked inside hangar fitted with 120ft wide by 27ft tall Schweiss hydraulic door

120' Wide x 27' Tall Hydraulic Door

Plane parked inside hangar fitted with 120ft wide by 27ft tall and 50ft wide by 27ft tall Schweiss hydraulic doors

120' Wide x 27' Tall Hydraulic Door

50' Wide x 27' Tall Hydraulic Door

Event taking place in hangar fitted with two Schweiss hydraulic doors and 120ft and 50ft Schweiss free standing headers

120' Free Standing Header

50' Free Standing Header

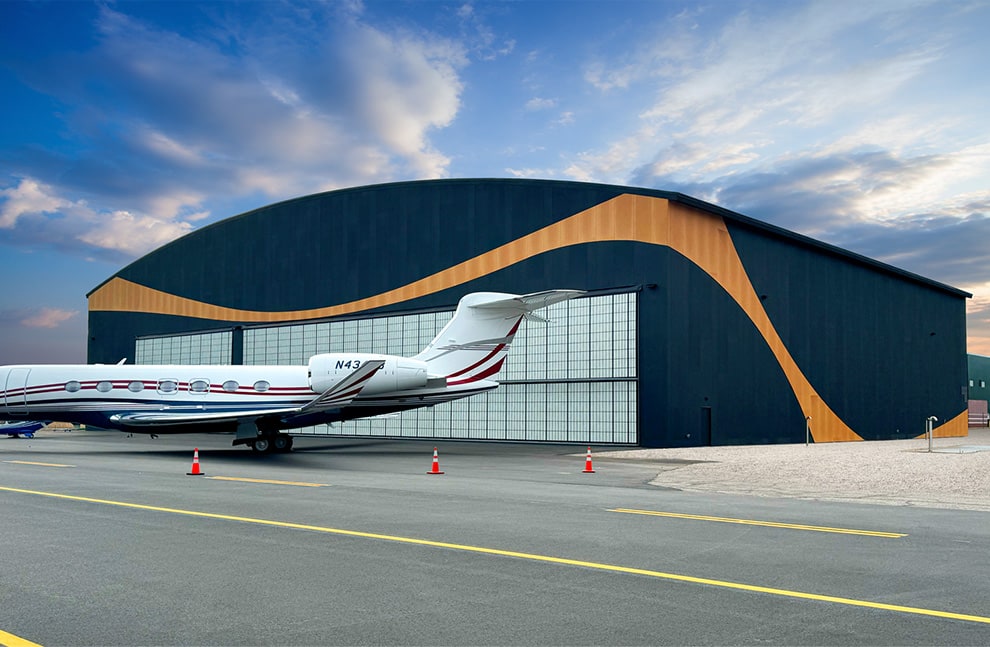

Jet plane parked in front of beautiful and cleanly designed hangar fitted with two large Schweiss hydraulic doors

Beautiful Hangar Building . . . Clean Design

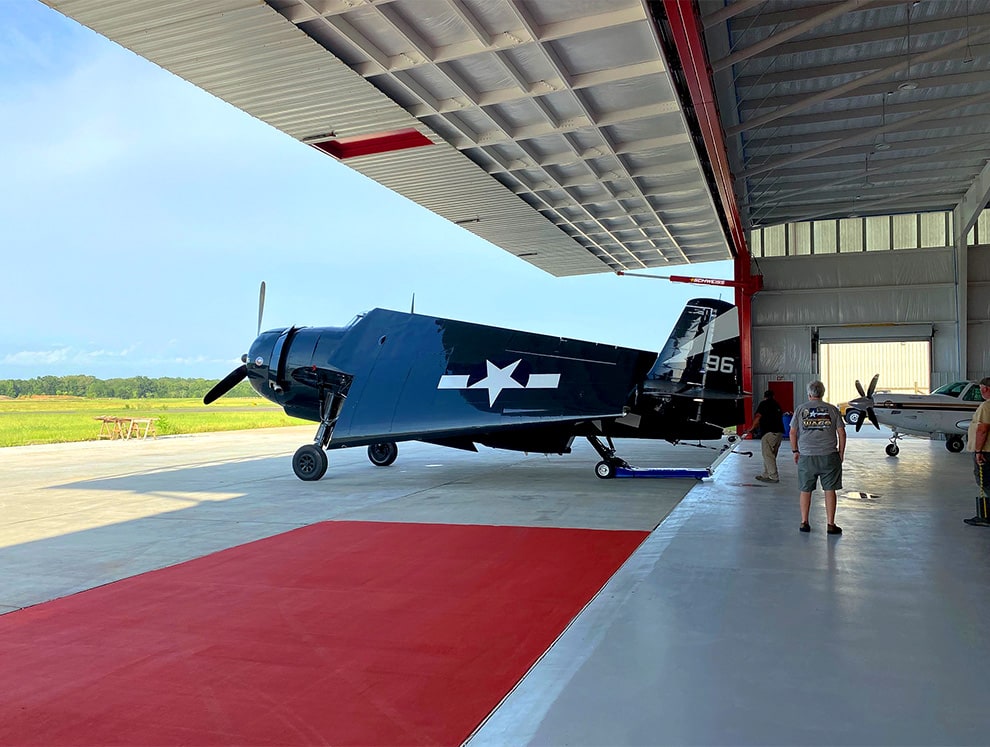

Exterior view of vintage military plane parked underneath an open Schweiss hydraulic door

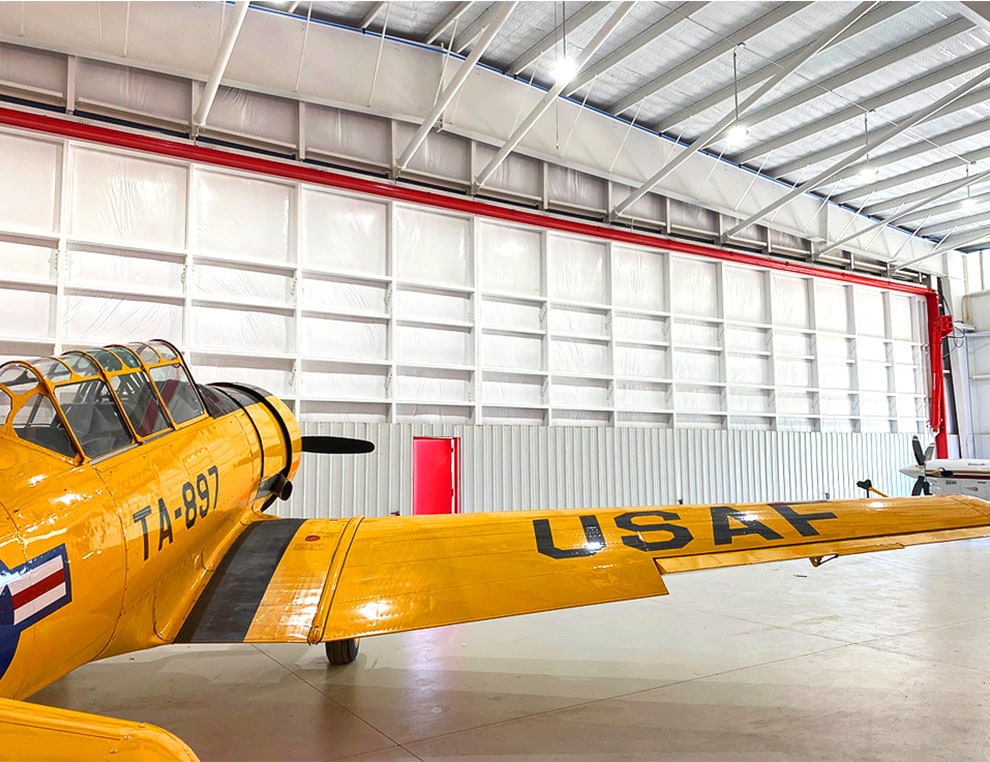

Interior view of vintage military plane parked inside of hangar that is fitted with a Schweiss hydraulic door shown closed

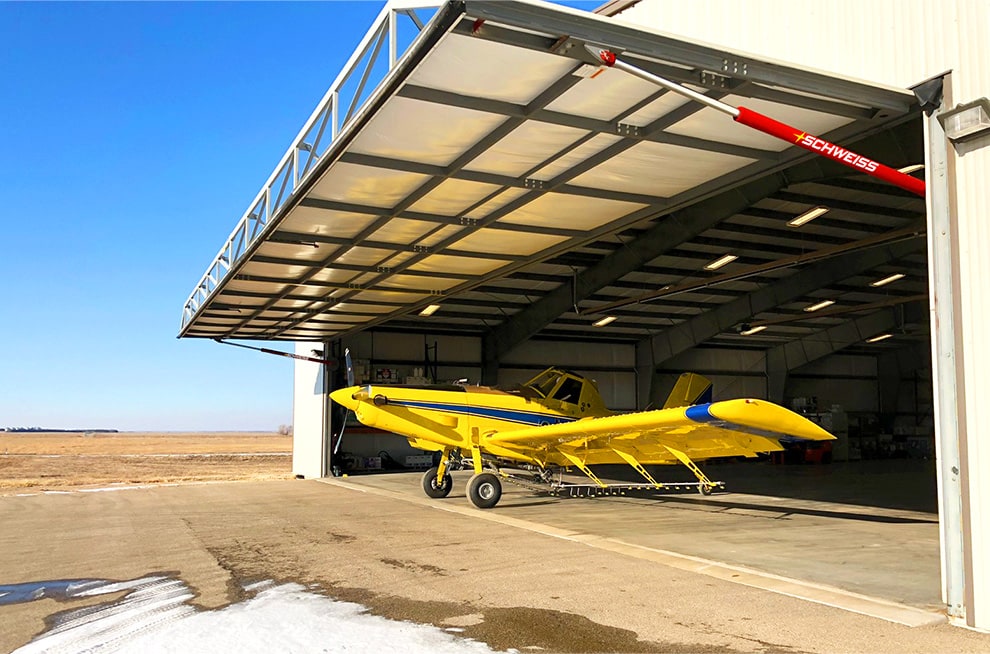

Yellow cropduster plane parked underneath opened Schweiss hydraulic door

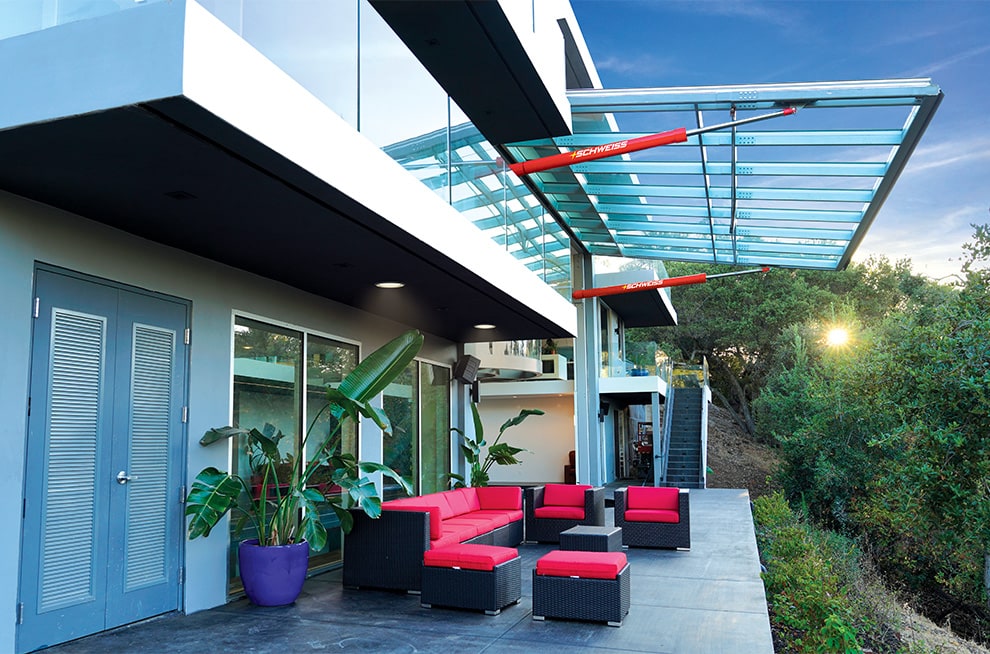

Schweiss hydraulic door made of glass utilized on luxury designer home as a moving wall shown open
Exterior view from side of Schweis hydraulic door fitted on a hangar shown open

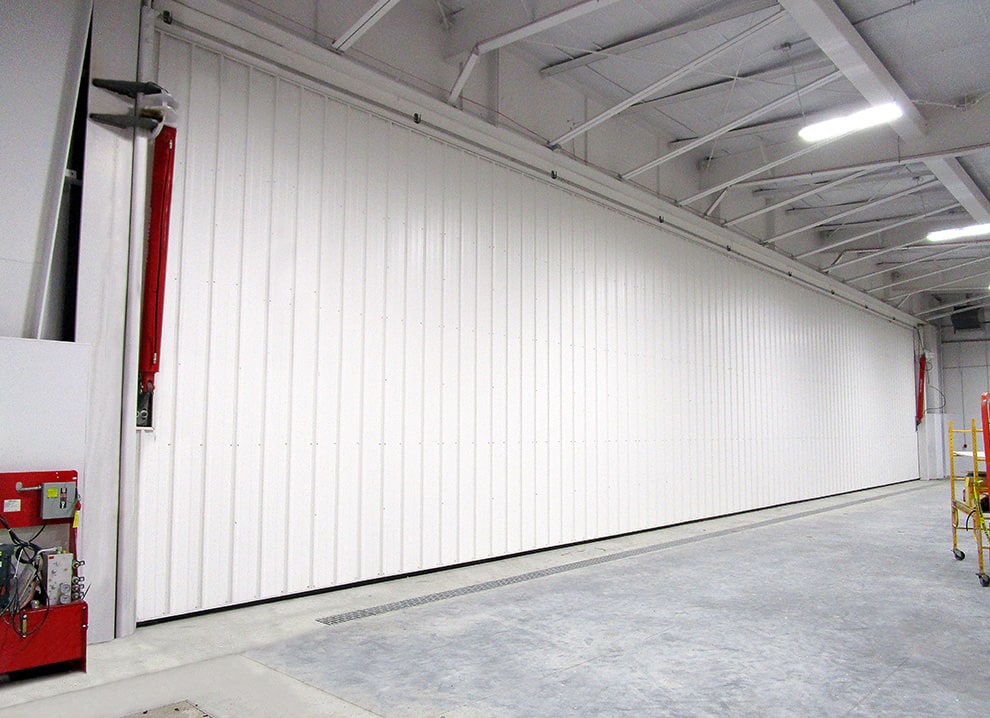

Interior view of a closed Schweiss hydraulic door fitted on a hangar

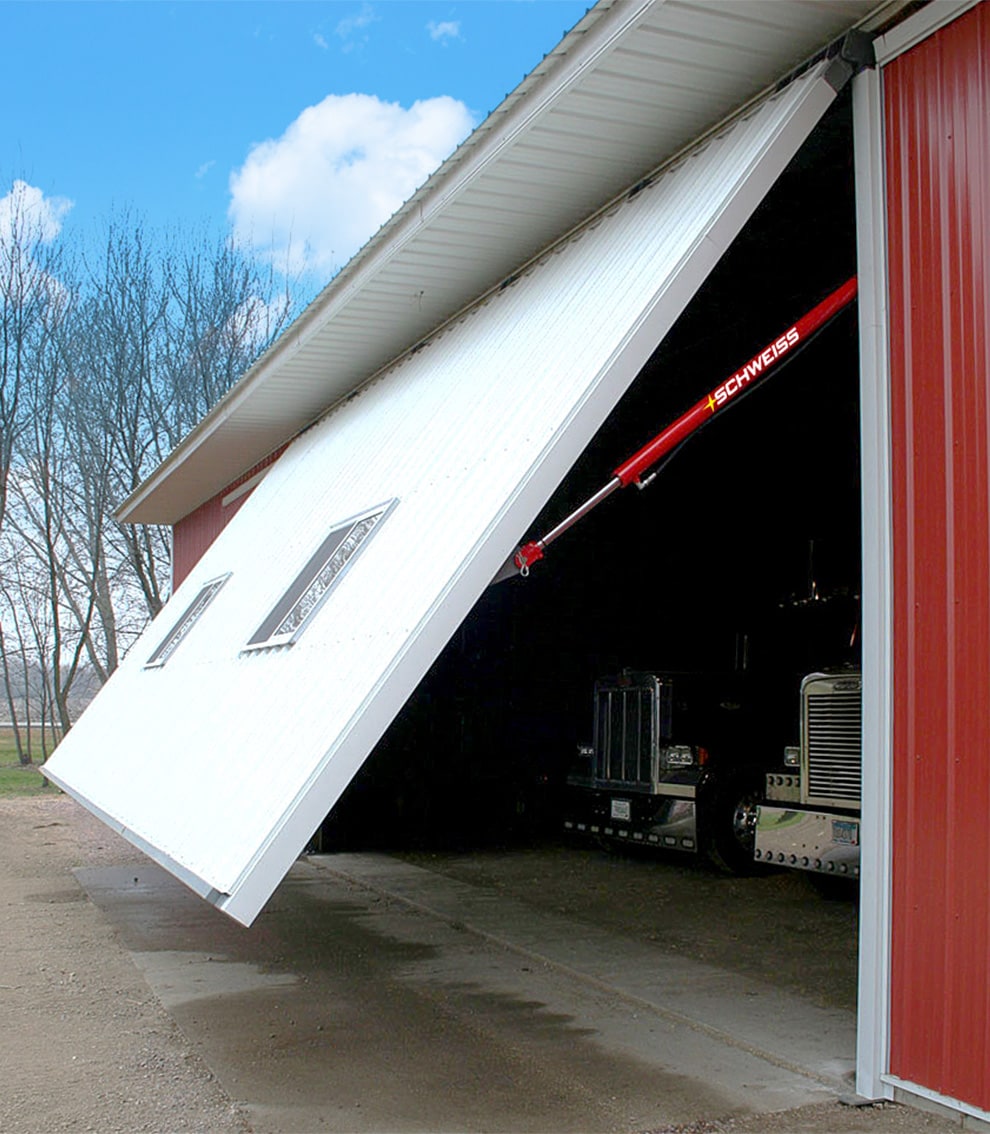

Exterior view of a Schweiss hydraulic door opening to reveal two semi trucks parked inside

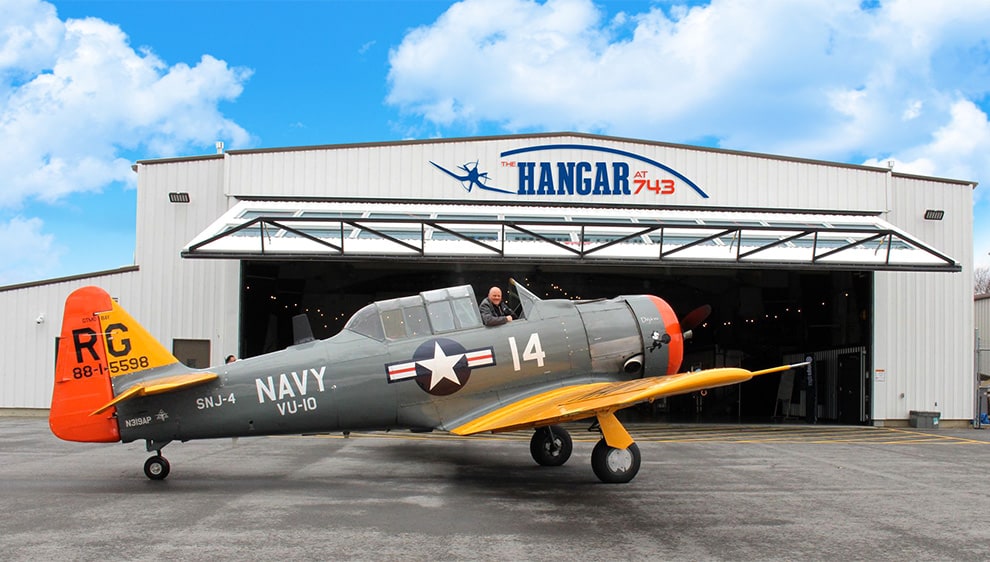

Vintage military planed parked outside of Hangar at 743 in front of Schweiss hydraulic door

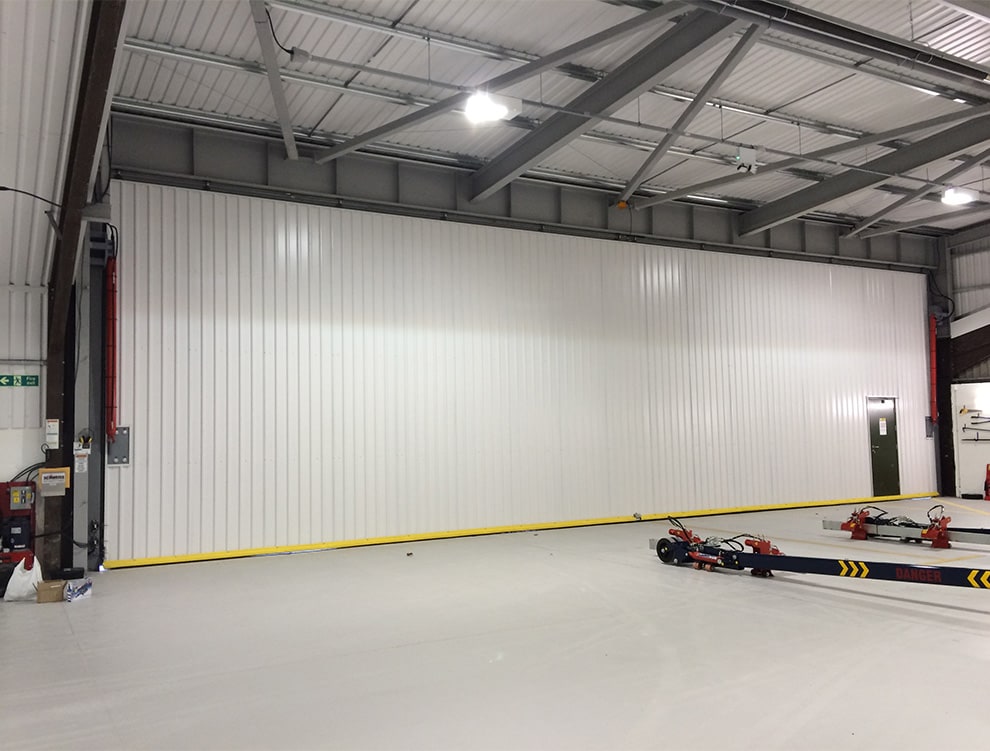

Interior view of a Schweiss hydraulic door fitted with a walkdoor fitted on a building shown closed

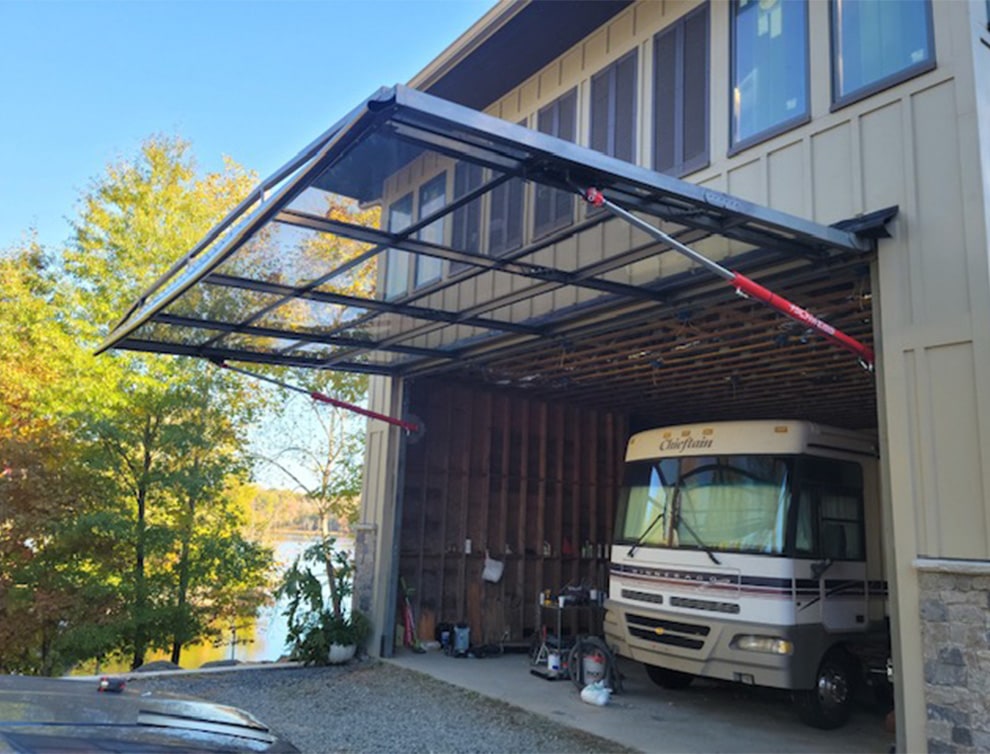

Exterior view of Schweiss hydraulic door made of glass used on RV garage shown open

Schweiss Doors Black and Red Logo Doors Does More Doors... and Better!

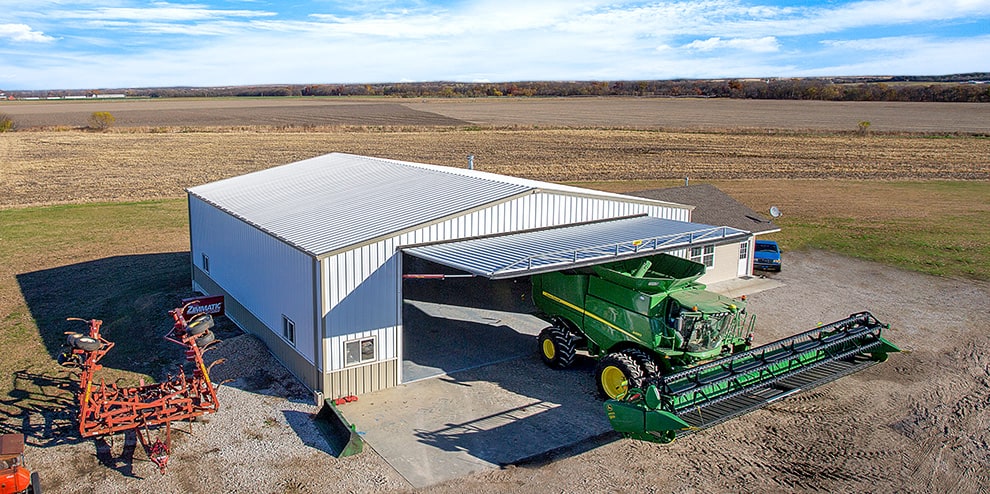

Farm combine parked underneath open Schweiss hydraulic door fitted on farm building

A Name You Can Trust Manufacturing Doors Since 1980

Did You Know...Some Folks Are Having Issues With Their Hydraulic Door Supplier

Such As:

  • Problems getting their door.
  • Problems getting their door components.
  • Door was received, less the major components, hydraulic pumps and/or cylinders.
  • Paid the door deposit required to start the order and have been waiting and waiting.
  • Stopped taking calls.

Do Your Own Research and Learn More!

  • Do they have a factory?
  • Do they even manufacture their own doors?
  • Do they seem too eager to take your deposit?
Some telltale signs - Examples
  • If you call and there's no salesperson available to talk to you.
  • If you call in and you are told “I'll have someone call you back.”
  • If you call in and you only get voicemail.
  • If there is a slow response to emails ... or no response at all.

Schweiss Wants To Earn Your Business!

  • Need a door quote?... Get one immediately!
  • Have additional door questions that need to be answered?... just call in!
  • Delivery time estimated at 4-6 weeks!
Call In And Speak With A Live Salesperson! Phone: 507-426-8273

Schweiss Will Manufacture, Install and Delivery Your Next Door!
