If architecture is your vocation, why not use your skills to revamp your own hangar? That's what Dennis Yates, AIA, of YCH Architects in Concord, North Carolina decided to do when time came for it to get a new door in place.
His dual purpose 40 x 60 ft hangar/storage building is big enough to house two planes with room to spare for a workshop and general-use storage for his practice. A strong Schweiss hydraulic 39 ft. x 11 ft. 4.75" custom made door is mounted to a reinforced door surround that is about 48 ft. wide at the front.
"My hangar/storage building sits on a little private 2,200 foot grass strip about a mile from my house, it was built in 1989. It was a little old wood-framed building clad in tin with an old wood homebuilt cantilevered door plan on it. Through the years it has been used for airplane storage and other things. As the building is now 25 years old, it had served its useful life and many components on it needed replacing," explained Yates.
Yates lives near Concord Regional Airport and over the years his architectural firm has done design work for them. He first started noticing Schweiss hydraulic and bifold doors there. A couple of years ago he ran into Mike Schweiss at the SUN 'n FUN airshow in Lakeland, Florida and one thing led to another with Dennis deciding to upgrade his personal storage building with a new Schweiss hydraulic door.
In order to get the new Schweiss hydraulic door on the hangar, he designed a structure to span the width of the door opening with a reinforced front portal about five feet deep to hold and receive the door and provide a new image for the building.

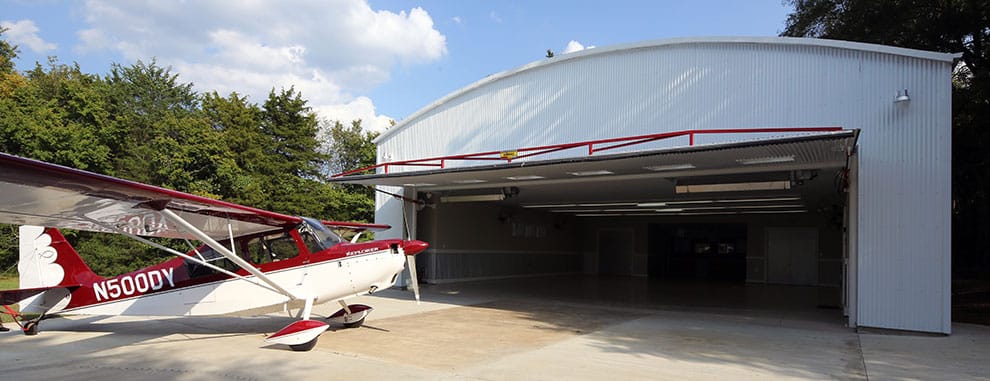

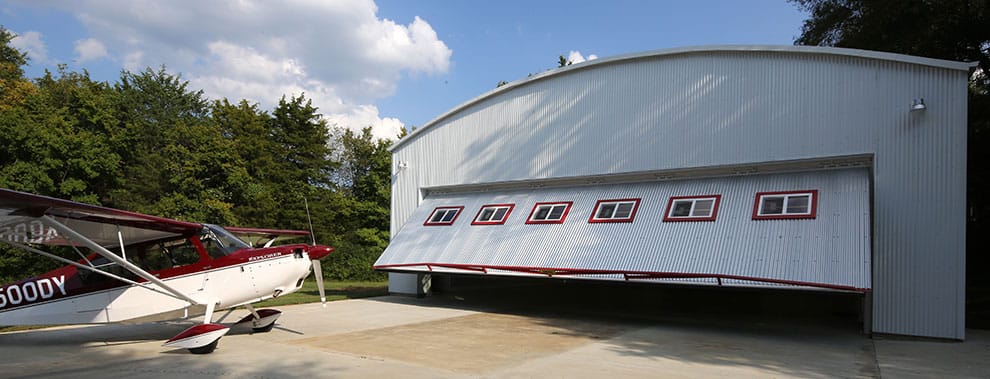

When fully open, the Schweiss Hydraulic Door provides a nice shaded canopy. The door has been well insulated and lined inside with 26 gauge prefinished steel.
"A couple of my friends laughed at me and said I was putting a million dollar door on a 10 cent building. The hangar has a retro expression with bowstring trusses up top. The reason for the curved shape is a result of putting structure inside," said Yates.
About 80 years ago, the bowstring truss roof became a popular construction element in the United States. Prior to 1960, it was reportedly one of the most common design types for commercial and industrial structures. The design worked particularly well for structures that had large, open spaces with no supporting columns in the middle. Although not used in construction as often today, bowstring trusses are still around, often to create an arched or rounded roof.
"I like the concept of Schweiss doors, I've investigated other doors. The door arrived to a gnats whisker of what it should have been. It's been a very pleasant experience. I like the hinges, heavy-duty cylinders, pump unit, and it was all prewired. Having never put up a door like this before, it was simple to install."
- Dennis Yates
Concord, North Carolina
"I really enjoy your door. I wanted a one-piece hydraulic door, with one of the reasons being I wanted to maximize my headroom," said Yates.
"I like the concept of Schweiss doors; I've investigated other doors. Brent (at Schweiss Doors) was an absolute joy to work with, he understood my questions and sketch drawings and has made this very painless for me. The door arrived to a gnats whisker of what it should have been. It's been a very pleasant experience."
Installing the door was easy enough for Yates with the help of Tony Barfield and a couple of friends who also assisted in the rebuilding process. The exterior cladding is 26-gauge prefinished steel. He put the same type cladding with insulation on the inside. When done he estimated it will have a pound and a half per square foot added to the weight of the door. Six sliding windows highlighted with red trim go across the front of the door to add to the look and give more than adequate light to the inside of the hangar. The hangar is also plumbed for infrared heating and the hydraulic door is equipped with a remote opener.
Yates especially likes the hydraulic door style for the large canopy it provides when open. He and his wife, Kay, often sit there in the evenings to watch the sun go down or to observe a variety of wildlife outside the building. The hangar has enough room to put his American Champion Explorer Citabria in the front. He also flies a Piper Mirage, but hangars it at Concord Regional. He uses the Piper Mirage for business and pleasure and the Champion for pleasure only. Now at age 62, he's been flying since the age of 16. In years gone by the hangar stored a Beechcraft Baron and a Piper J-3 Cub.
"The hydraulic door is relatively idiot proof, meaning it's simplistic in its design. I like the hinges, heavy-duty cylinders, pump unit, and it came all prewired. Having never put up a door like this before, it was simple to install," noted Yates.
The crowning piece and icon for the hangar will be immediately recognizable and appreciated by those who have a soft spot for old aircraft.
"I love war birds. I've actually recreated the nose section of a T-6 with a prop and cowling mounted on the wide top center of the hangar. It's a very versatile hangar, a kind of mancave place for me," added Yates.
Yates, has had his own architectural firm for 30 years and has been practicing for close to 40 years. He said his firm is a generalized practice doing work for schools, churches, police stations, universities, hospitals and others. Their firm is nationally known for design work on motor sports facilities, including design of the NASCAR Research & Development Center in Concord. YCH is also architects of record for the Texas, Atlanta and Dodge City, Kansas motor speedway and have provided significant design and facilities improvements to Charlotte, Bristol, Michigan and North Carolina speedways.
YCH Architects is dedicated to providing Design Excellence, Integrity, and Commitment to their clients with a goal to exceed the expectations of clients.
The firm was created in 1984 by Dennis E. Yates, AIA. In 1987, Michael Chreitzberg, AIA, joined the firm. In 2008, William T. Hughes, AIA, LEED, was promoted to Principal as the practice continues to look forward to advancing another generation of talented architects to lead YCH into the future.
The Senior Leadership is nationally certified by NCARB. The firm is licensed to practice in numerous states around the country and include: North Carolina, South Carolina, Virginia, Florida, Georgia, and Tennessee.
Building categories include: Automotive Repair, Auditoriums, Community Colleges, Dormitories, Elementary Schools, Junior High Schools, Pre Schools, Governmental Offices, Police Stations, Medical Offices, Offices, Churches, Religious Auditoriums, Bank Branches, Individual Stores, Recreation Centers, Athletic Fields, Parks and Landscaping.
Their services include: Architecture, Interior Architecture, Master Planning, Facilities Assessments & Feasibility Studies, Sustainable Design, Adaptive Reuse and BIM Technology. Specialties include: Healthcare, Corporate, Municipal & Government, Public Education Projects, Universities & Colleges, Motorsports & Automotive and Grocery Retail.
Yates Chreitzberg Hughes Architects is proud to announce their newest achievements in Green Building. Building 400 on the Rowan Cabarrus Community College North Campus, was awarded a LEED Gold Certification from the U.S. Green Building council. This 39,000 square foot building will house the medical science programs as well as police training for RCCC This prestigious rating is the second highest rating obtainable. LEED, which stands for Leadership in Energy and environmental Design, is the U.S. Green Building Council's (USGBC) rating system, created in 2001 to standardize sustainable building.
YCH Architects is located at 145 Union Street South, Concord, NC 28025. They can be reached by calling 704-788-2000 or visit their website at: www.ycharch.com

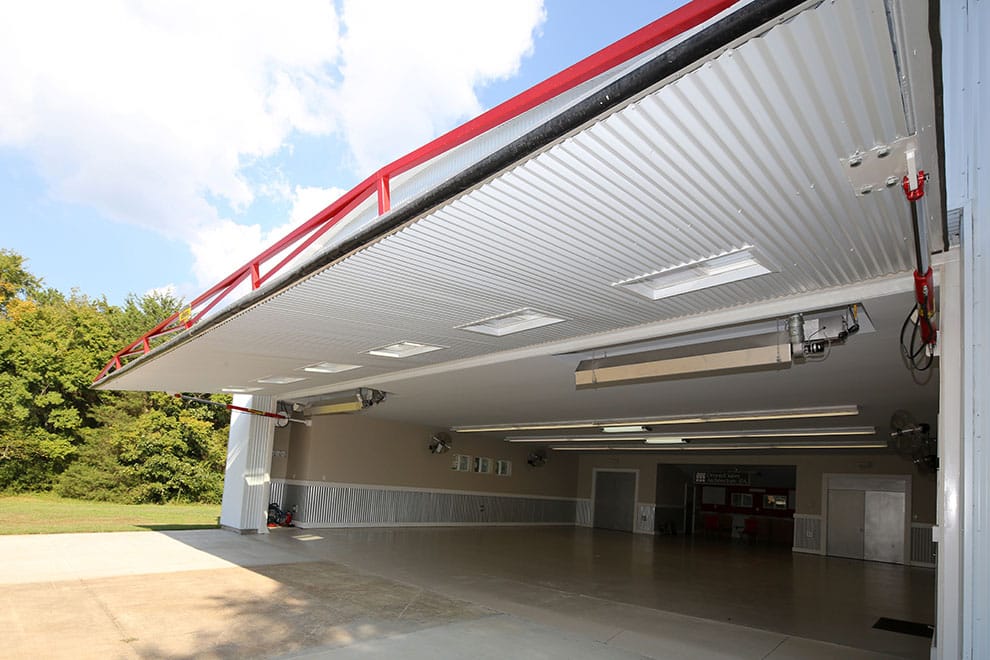

The hydraulic door was well insulated prior to placing of the inside liner panels. The well-lit hangar is also plumbed with new overhead infrared heaters.

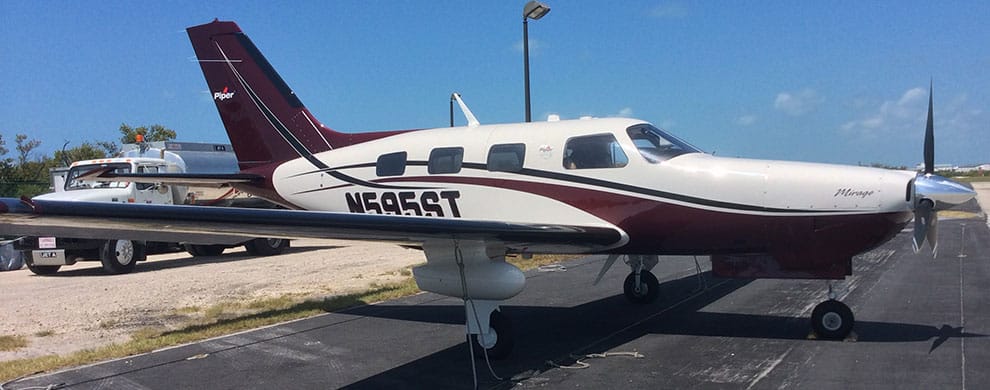

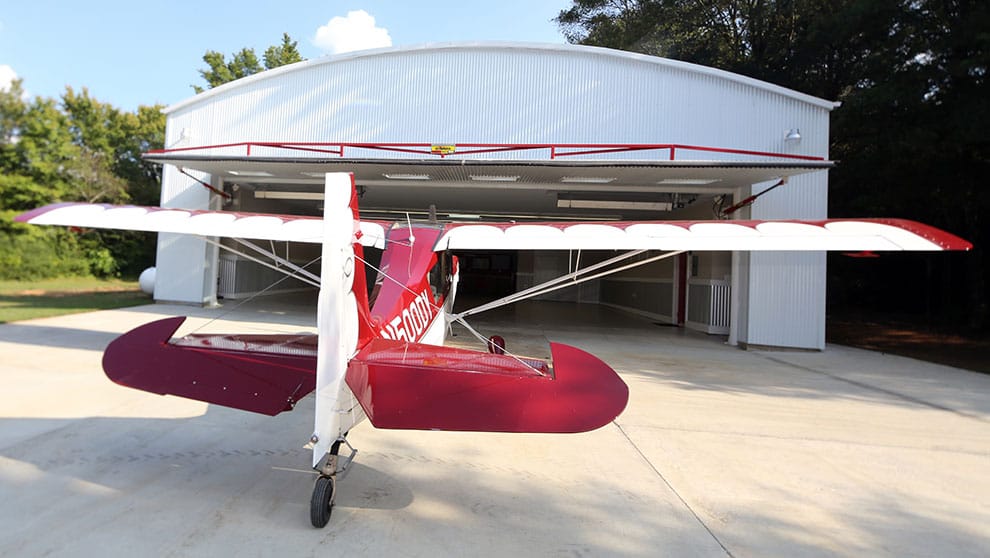

Dennis Yates also flies this Piper Mirage, which he uses for business and pleasure.

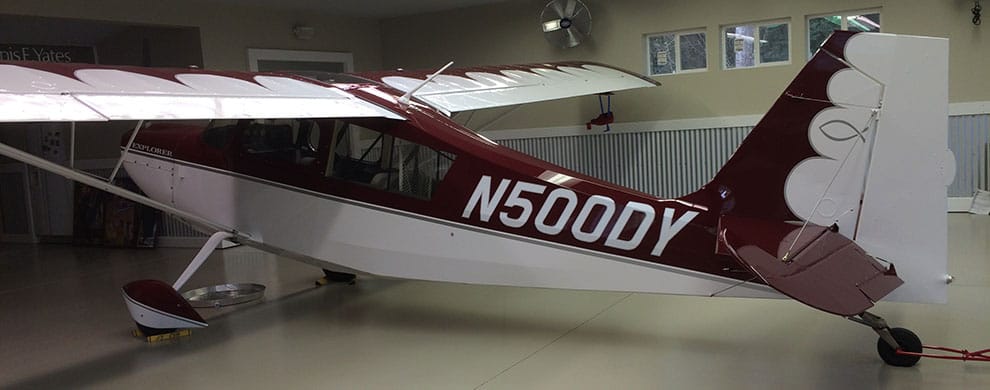

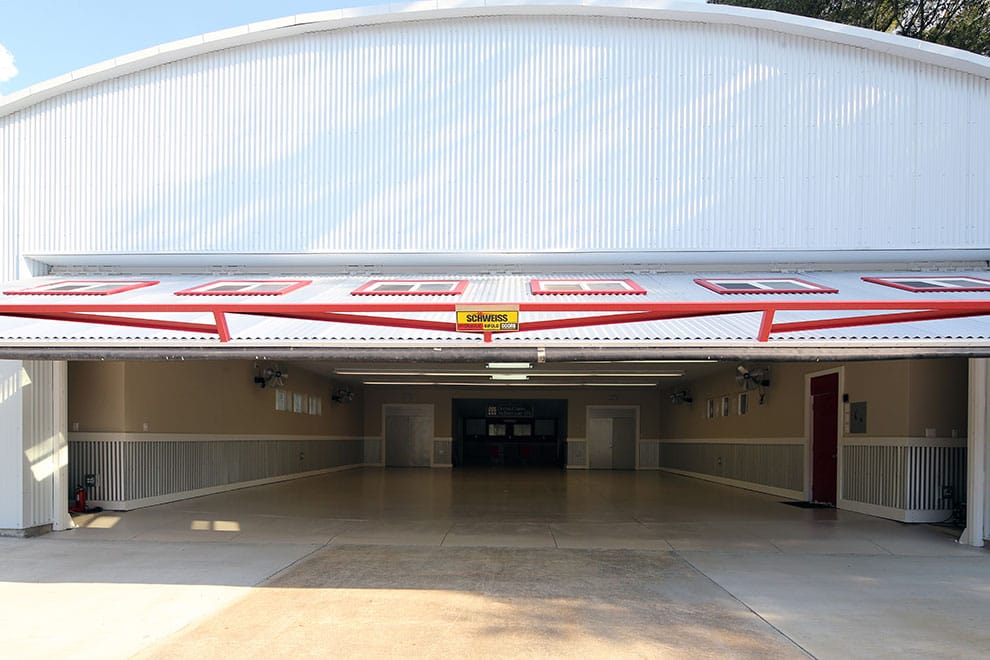

His hangar is large enough to house two planes and provide a mancave for other purposes.

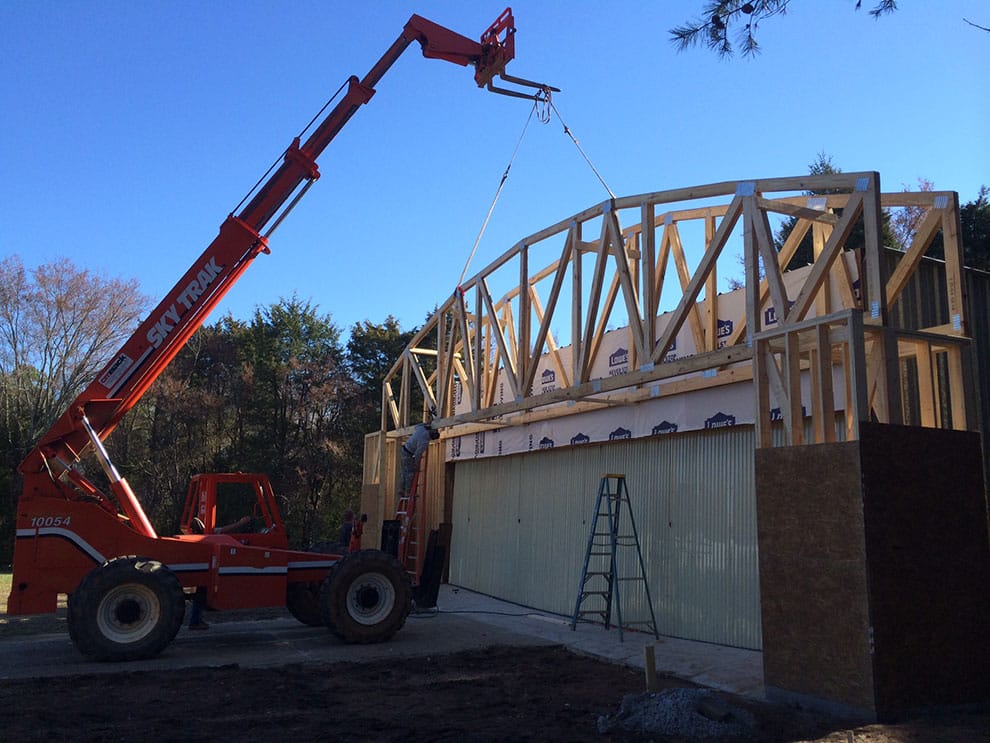

A Sky Trak was used to lift the bowstring trusses in place to give the hangar an arched look.

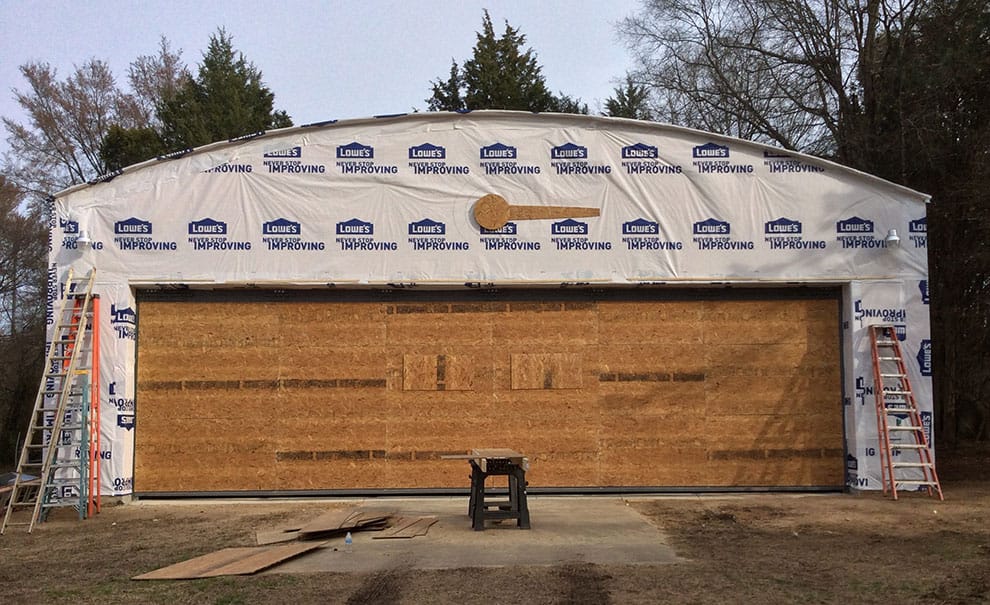

The front section sides of the building were expanded to about 48 ft. to accept the 39 ft. 11 inch hydraulic door. The building behind the door is 40 ft. wide and 60 ft. deep.
Tony Barfield and a couple of friends did construction work on the hangar. Here two of them are shown painting the exterior door truss red. The window trim was also painted in red.

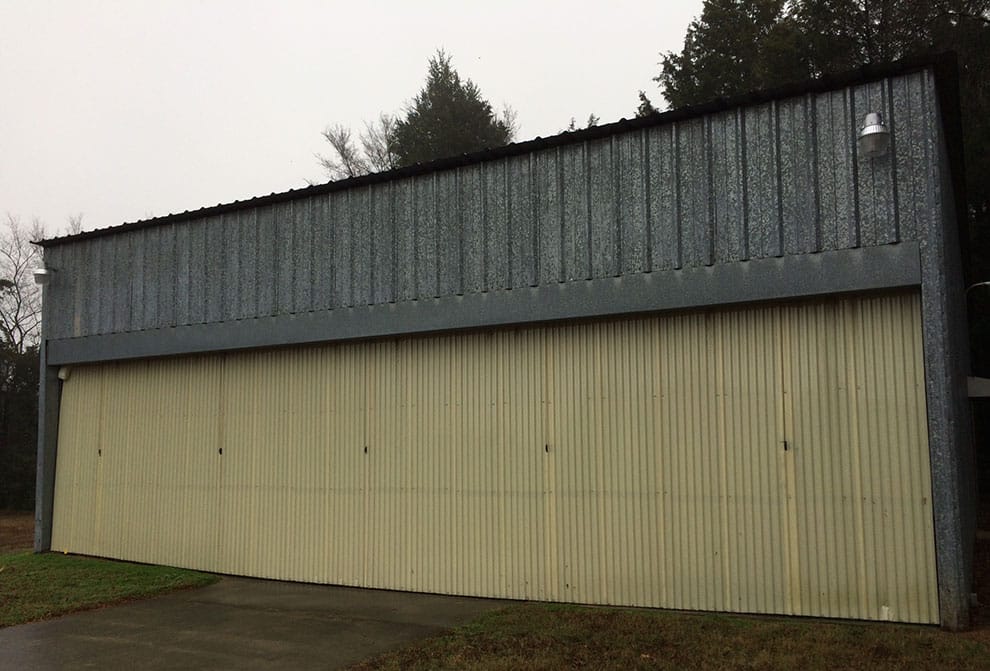

The 25-year-old wood building with a homebuilt cantilevered door on it served as a hangar for Yates for many years. It was in dire need of upgrading and a bowstring truss roof was added to create a round roof.

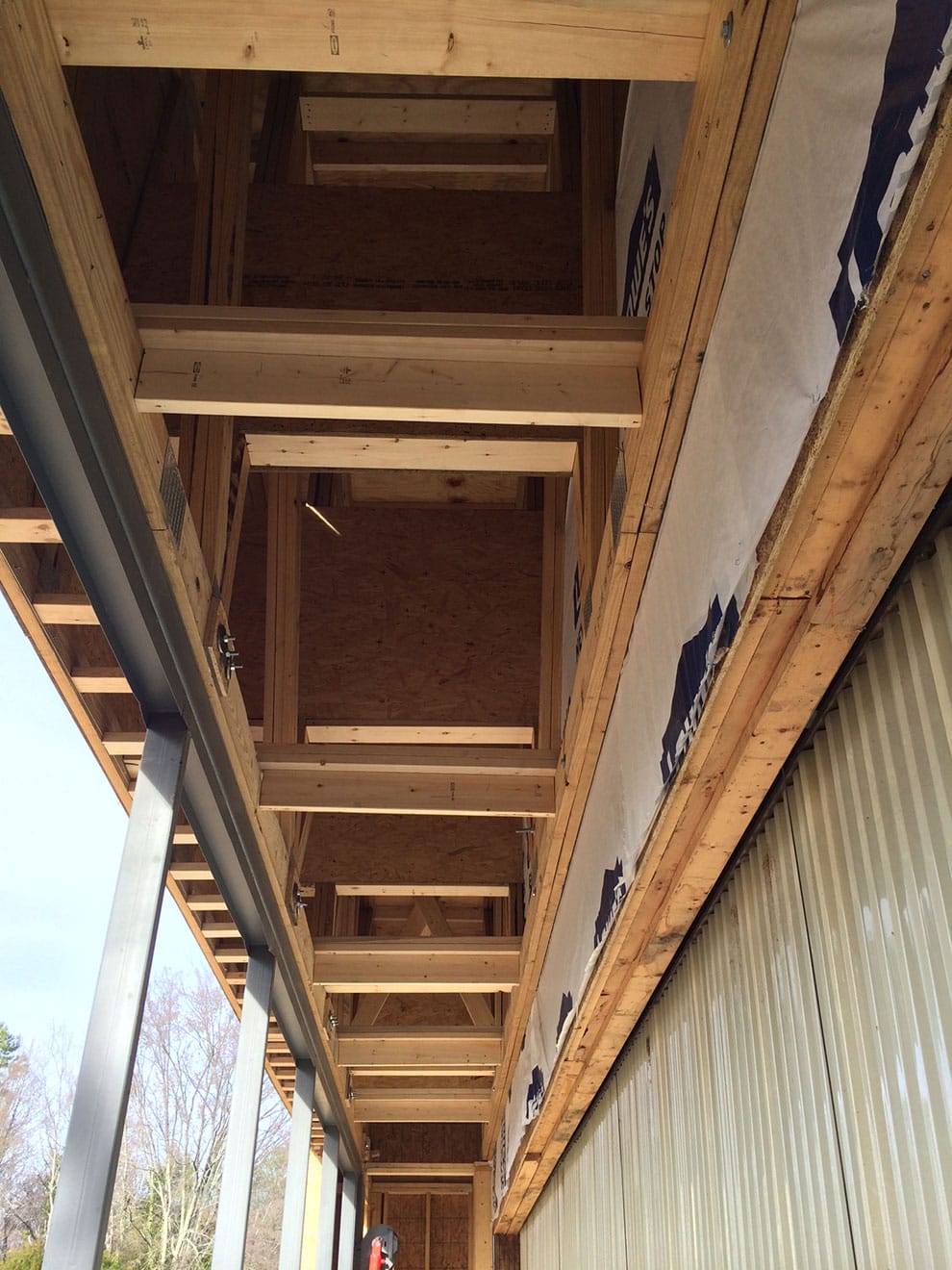

A reinforced front portal about five feet deep spans the width of the door opening to hold and receive the door and provides a new image for the building.

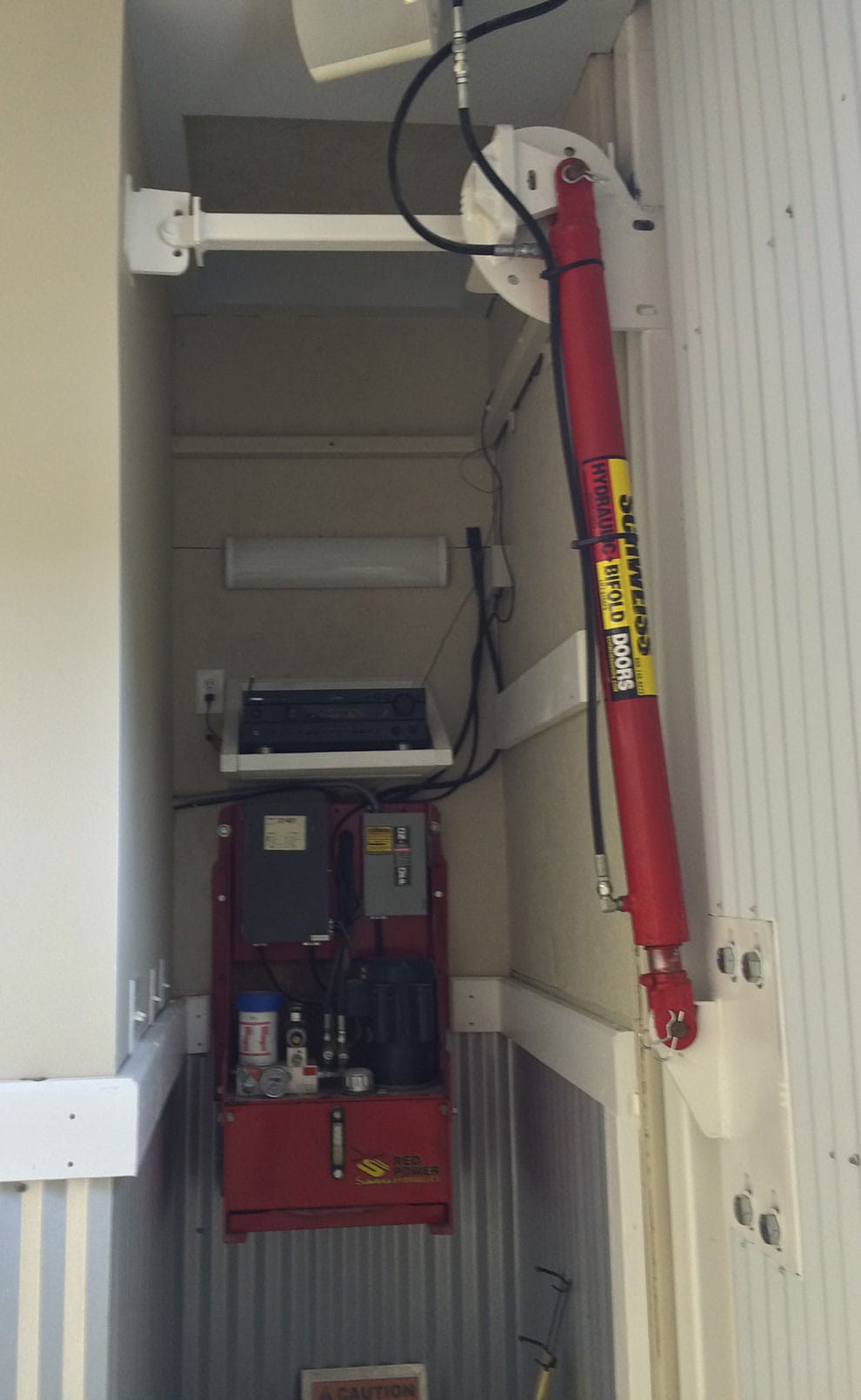

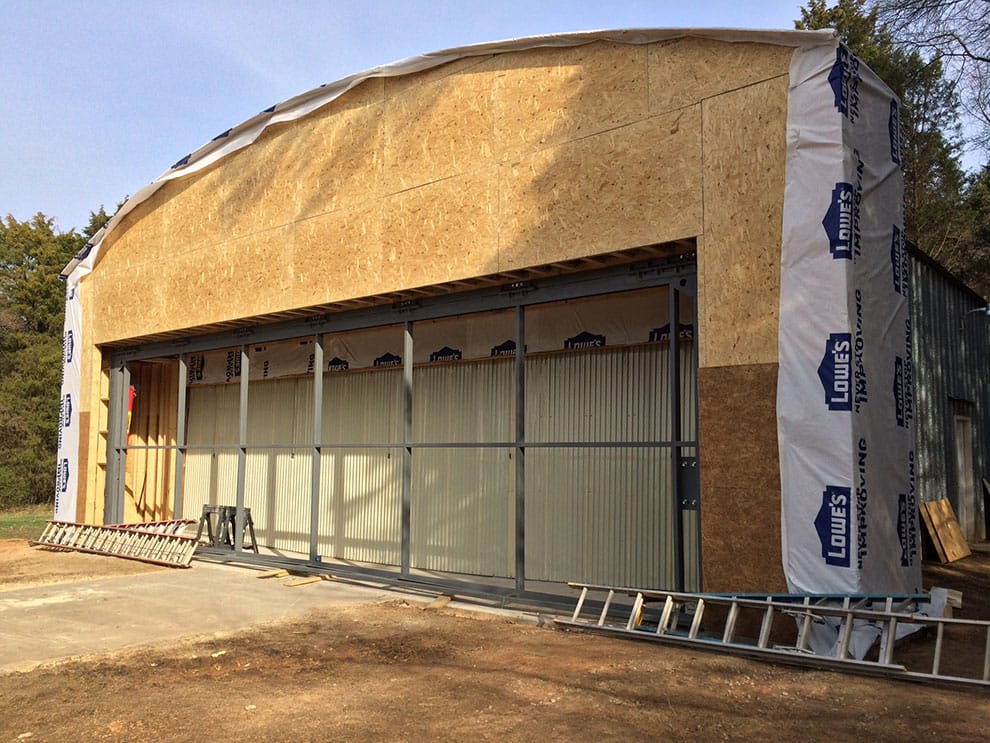

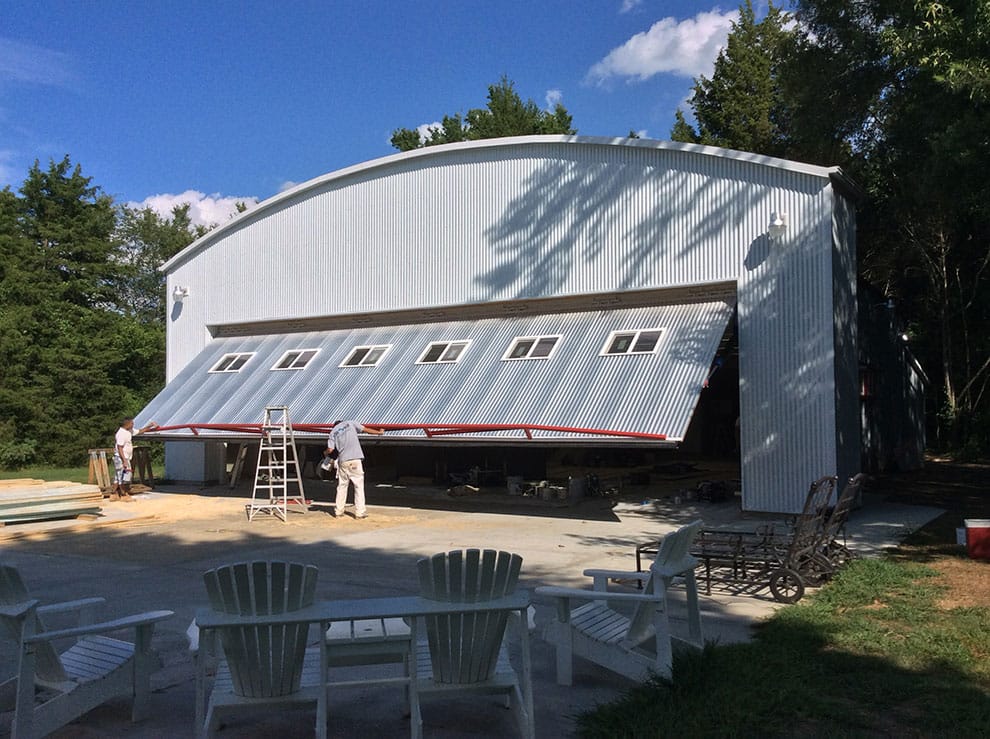

With the all-steel hydraulic doorframe, insulation and cylinders in place, the door is ready to be clad.

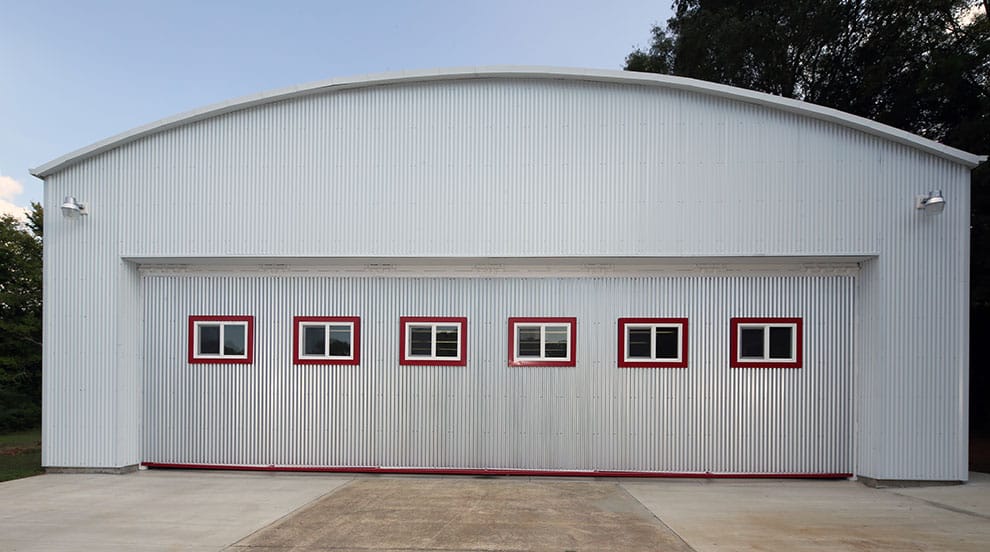

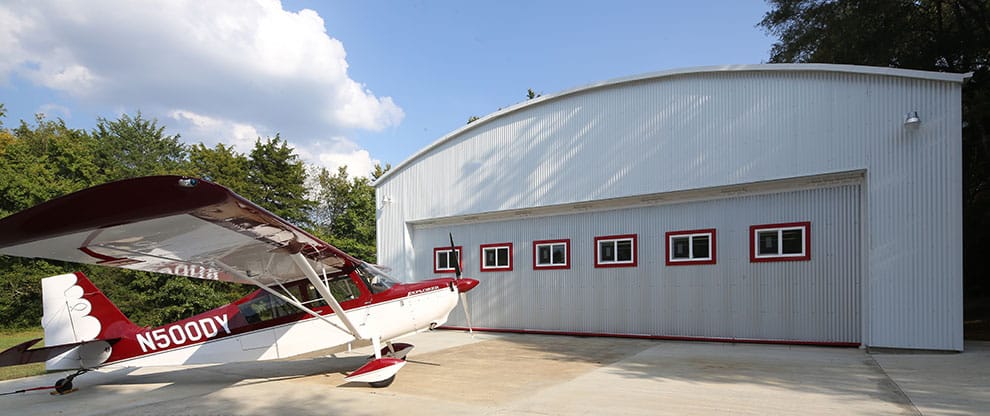

A set of six windows across the top third of the hangar can be slid open for ventilation and also provide more than adequate daylight to the inside that the hangar didn't have before. The exterior of the building and hydraulic door is clad in 26 gauge prefinished steel.
