These illustrations are to be used as an overview guide. Fully detailed instruction manuals are shipped with each hydraulic door with step-by-step instructions.

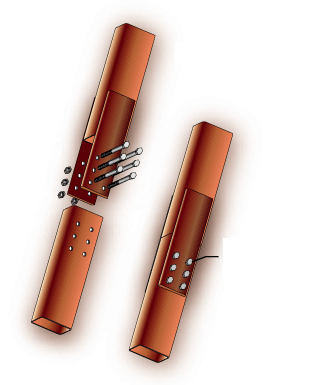

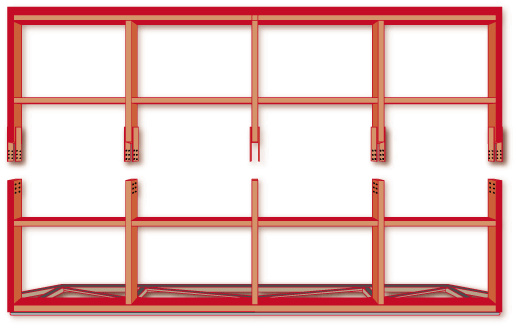

Slide top half and bottom half
Line up the pre-drilled holes in the splice plates
and the door members.
Install the (5/8" x 3 1/4") bolts through the splice
plates and door members
Make sure the top half and bottom half of the door
frame line up with each other and tighten the bolts
Bolting is now complete now verify the
alignment of the doorframe.

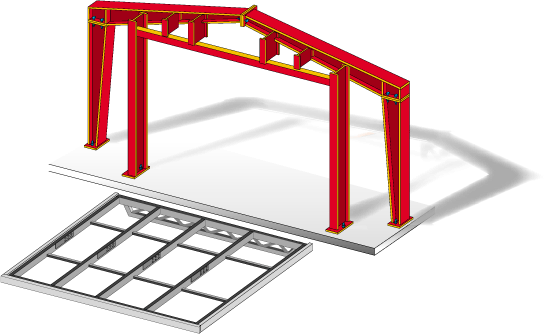

Position the door squarely in front of the rough opening on your building.
Your hard pipe, fittings, mounting brackets, and hoses will be sent in sections and must be assembled.
Included is a plumbing schematic for your hard pipe lengths and placement
The following parts are needed. (Refer to page 8)
The hard pipe and fittings will have to be mounted to the inside of the building, just above the opening of the door as shown on the plumbing schematic. The T's will be placed in the center of the opening.

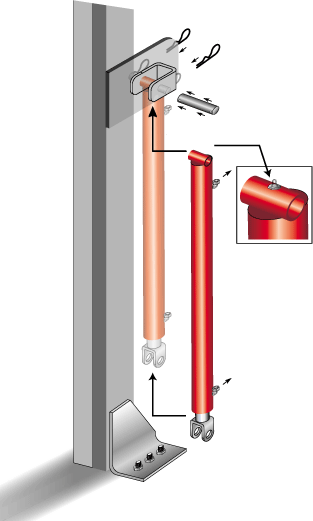

Positioning of the Cylinders. Position the cylinders with the clevis end at the bottom of the door.
Ports must face away from the doorframe.
Start by pinning the top of each cylinder to the framework. Insert the clip pin in each hole on the cylinder pin.
When do you hook up fittings and hoses?
Plumbing the hydraulic cylinders.
Starting on the cylinder furthest from the pump. Temporarily secure loose end to the door until final pump hook-up.
Temporarily secure all hoses in such a way that they will not be pinched or crushed during the install of the door into the rough opening. If you have an outside mount door, cylinder hoses #'s 1,2,3 & 4 will not be able to be attached to the hard pipe until the door is secured into the rough opening.
Special Note: Building Sheeting
New Construction: Leave the building sheeting off around the doors opening, until the door has
been completely installed.
Existing Structure: Remove the building sheeting off around the doors opening, until the door
has been completely installed.

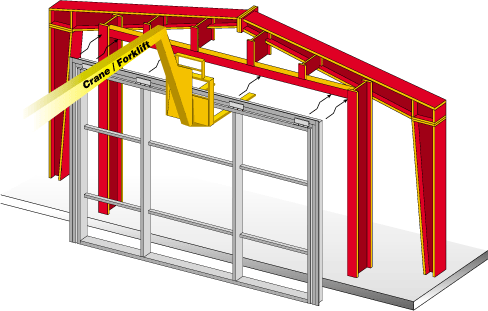

Use the proper sized forklift to elevate your door into position.
The door will weigh roughly 5 lbs. per square foot plus any options added to the door.
Be sure that your forklift is rated to lift the full weight of the door.
Always carry the loads within the forklifts manufacturer recommended capacity.
Secure the door to the forklift with chains to make sure the door will not fall.
Keep the door secure to the forklift with chains until the door has been securely fastened to the building structure.
Lift and move the door forward into the opening until the doorframe is in the door opening.
Lower the door onto the concrete floor, door jambs should be resting on the floor.
Do not lift the door header tight against the building header.
Maintain a 3" space between the finished floor and the bottom of your doorframe.
Square both sides of the door and flush within the face of the building opening.
Maintain a 1-??" spacing between the door and the door jamb.
The door jamb footer should be sitting on the floor. Do not lift the door header tight against the building header.
Securing the top of the door.
Header must be level, then secure the attachment angles (Hinges) to the building structure
Fasten the door jambs into the concrete by drilling and placing the anchors
Securing side jambs of the door
Secure the door jamb to the building - Use the Pre-drilled holes

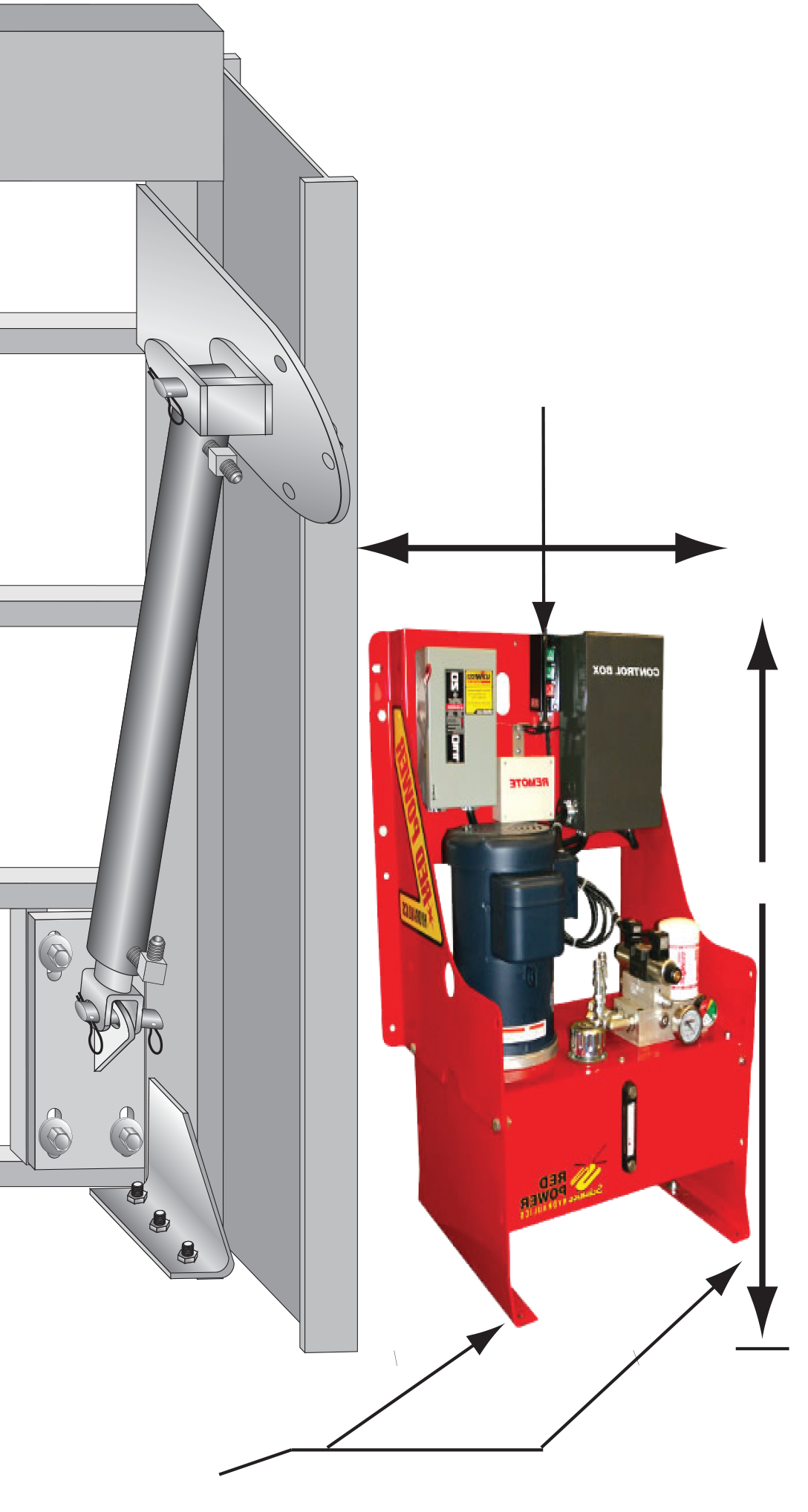

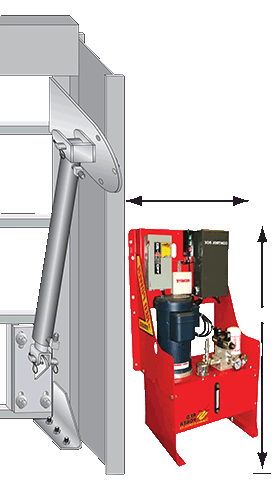

Pump may be located in a storage room
Keep pump clear of the door opening
Floor Mount Has its own pedestal, sets on its own
- no fastening needed.
Legs both will secure it to the wall
Fill the reservoir - with automatic transmission
fluid or lightweight hydraulic fluid
Install the hydraulic lines
Power can now be supplied to the pump.
There is a wiring schematic located on the pump
Check to make sure that there is fluid in the reservoir
(we suggest the use of automatic transmission fluid or
a lightweight hydraulic fluid for optimal door operation).
Before hooking up the clevis end of the cylinder, turn the pump
on and cycle the cylinders up and down several times to fill the
lines with fluid.
More fluid may need to be added to fill the lines and cylinders.
Once the cylinders have been cycled several times, the clevis
end of the cylinder can be pinned to the lower pinpoint of the
Do not forget to insert the other keys into the pins.
Also remember to bend the ends of the cotter keys over after
they have been inserted into the pins.
NOTE: Use the pump to run cylinder ram up or down as needed
to line up the clevis end of the cylinder to the pinpoint.
*After cycling the cylinders, the fluid level in the reservoir
should be at 3/4 full while the cylinders are in the retracted
Take time to check the door over. Make sure all installation welds are complete, bolts, through bolts and cotter
keys are all in place.

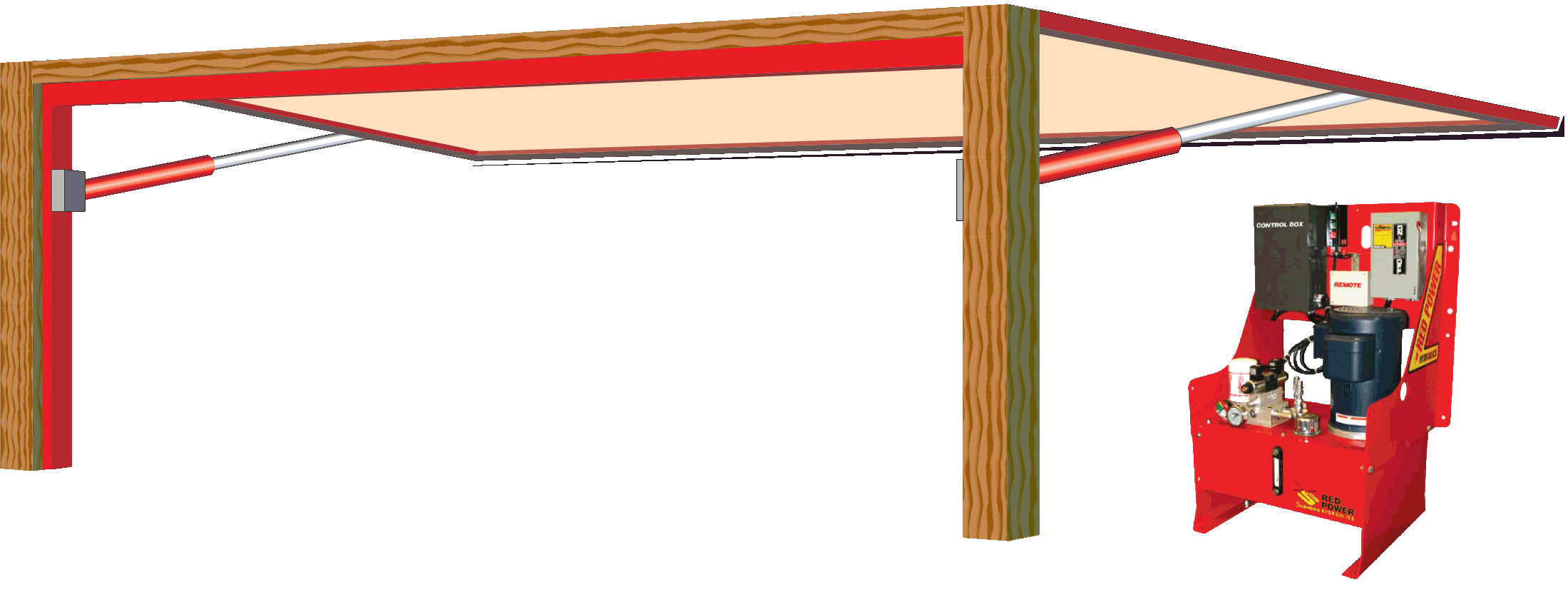

It is time to cycle the door.
The door will operate, open and close by pressing the buttons on the 2 button control station. If you have a remote
unit the pump will power and cycle the door at the same time by depressing the buttons on either the receiver box
or the handheld unit.
Open the door far enough so that the top seal is away from the header.
Apply the self adhesive foam weather stripping to the side and top seals of the door.
These instructions are to be used as an overview guide. Fully detailed instruction manuals are shipped with each
door with step-by-step instructions.
