WALKDOORS

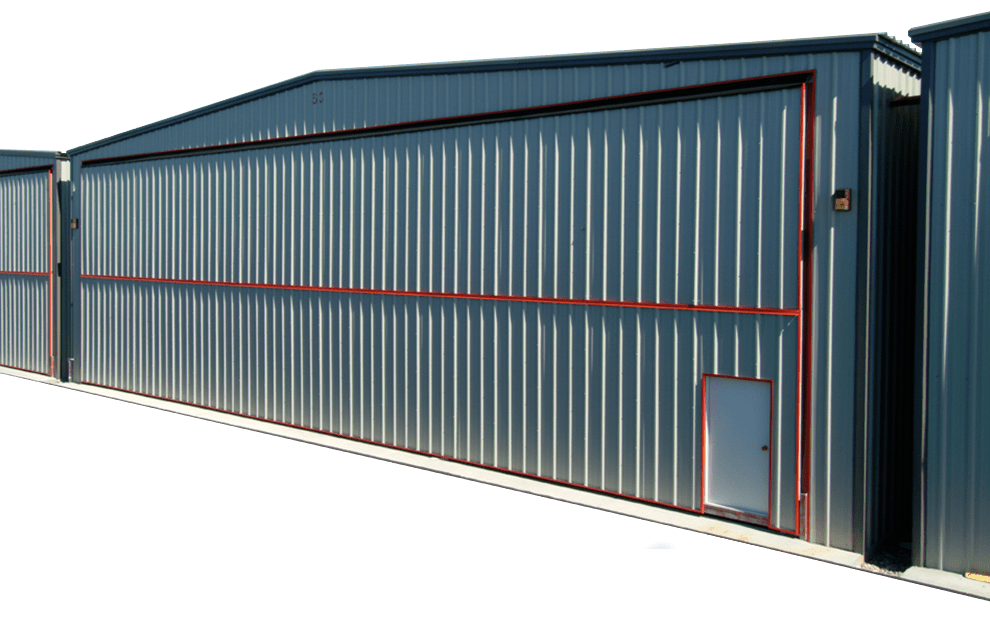

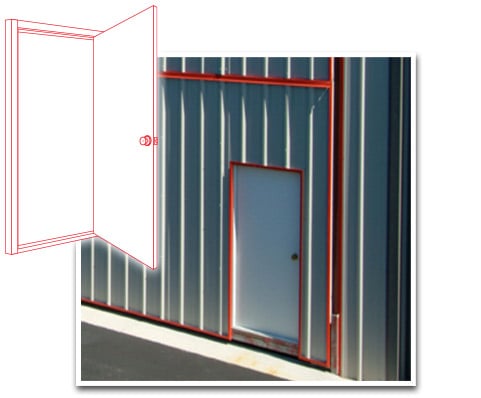

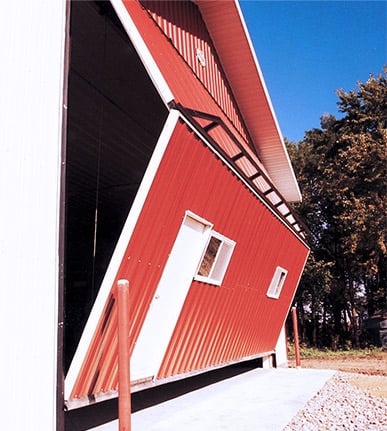

Walkdoors In the Door Frame

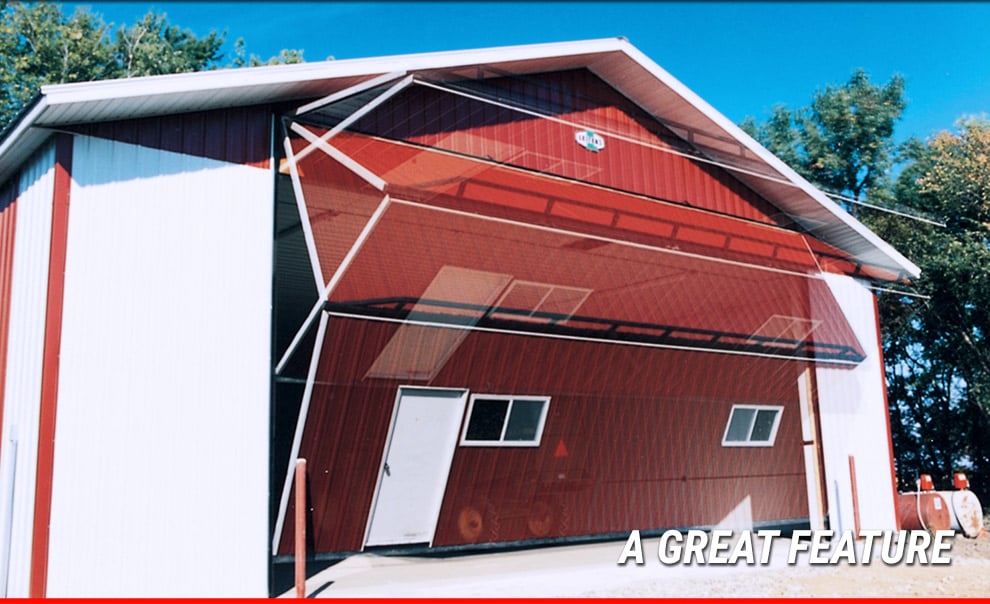

•The walk door feature saves indoor building space and keeps
all openings in one location. We build the walk door framework
into the Door. We use factory aluminum or steel walk doors of
your choice. All walk doors have a keyed cylinder lock. Also
available is keying multiple doors with a master key. We offer a
16" x 16" window within the walk door. Also we can paint the
walk door to match the building.
• Walk door - Quantity / Placement - Your Choice

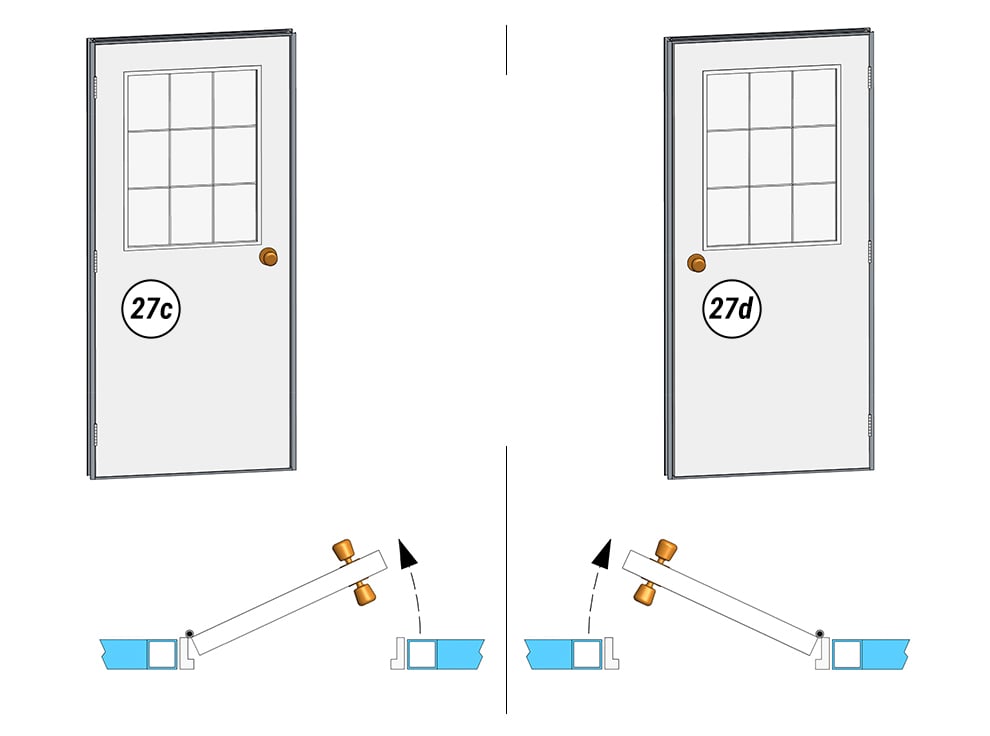

• Walk door - Insulated / With Windows
• Walk door - Keyed Lockset / Master Keyed
• Walk door - Frames Only
Walk Doors - Optional
The walk doors feature saves indoor building space and keeps all openings in one area. We build the walk door
framework into the Bi-Fold Door. We use factory aluminum or steel walk doors of your choice. All walk doors have
a keyed cylinder lock. Also available is keying multiple doors with a master key. We offer a 16 x 16 window within
the walk door. Also we can paint the walk door to match the building.

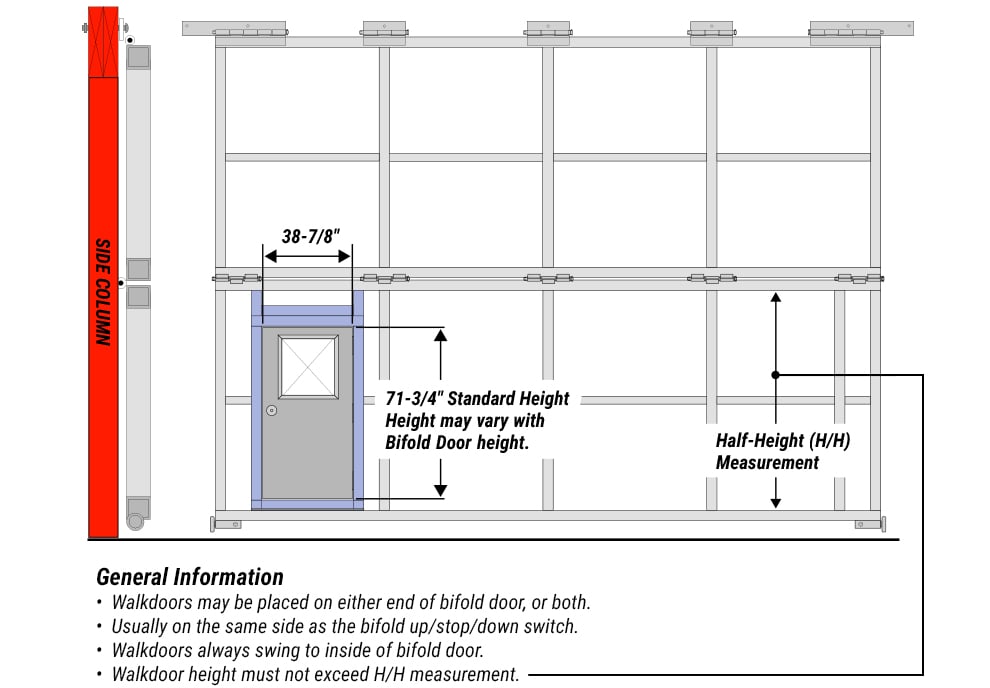

38-7/8"
71-3/4" Standard Height
Height may vary with
Bi-Fold Door height
Height Half (H/H)
Measurement
General Information
• Walk doors may be placed on either end of Bi-Fold Door, or both.
• Usually on the same side as the Bi-Fold up/stop/down switch.
• Walk doors always swing to inside of Bi-Fold Door.
• Walk door Height must not exceed H/H measurement.
Options
• Master Keyed Locksets / keyed alike
• Door closure
• Spring on walk door to prevent door from opening to far.

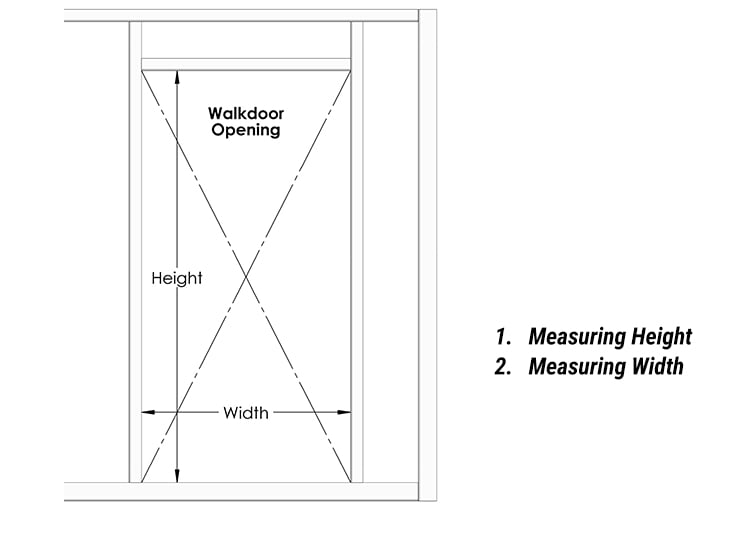

• Frame Only (Customer Provides Door) Need exact measurements
• Step for walk door / Over Truss

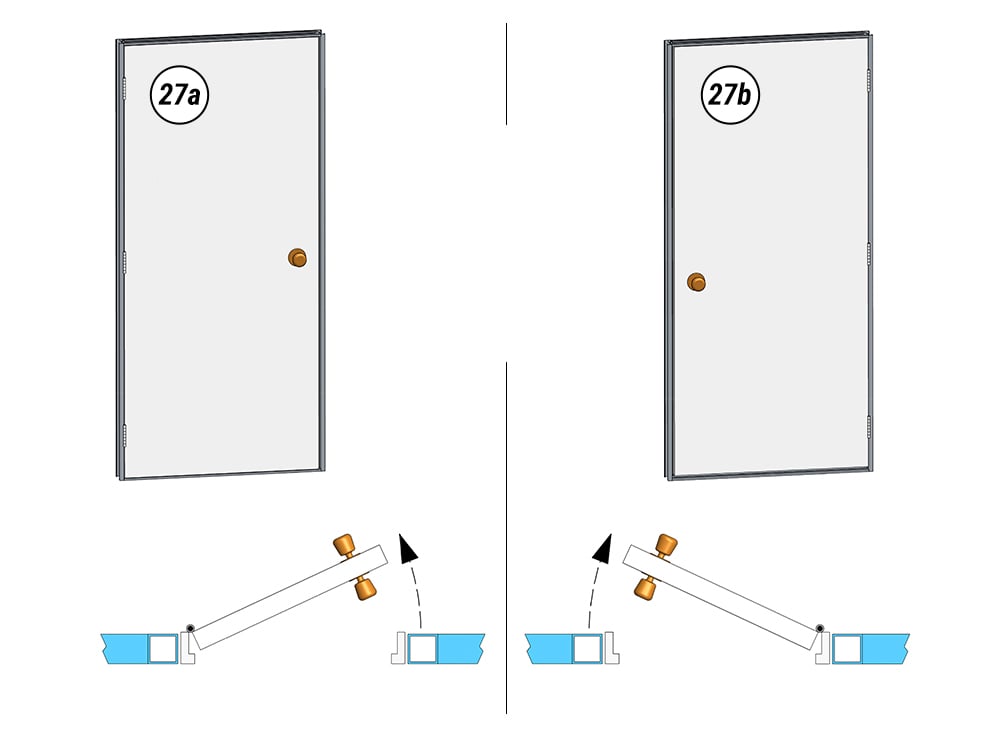

Caution! Walk Doors Must Swing Inside (Side Views)
Side Views - Caution! Walk Doors Must Swing Inside

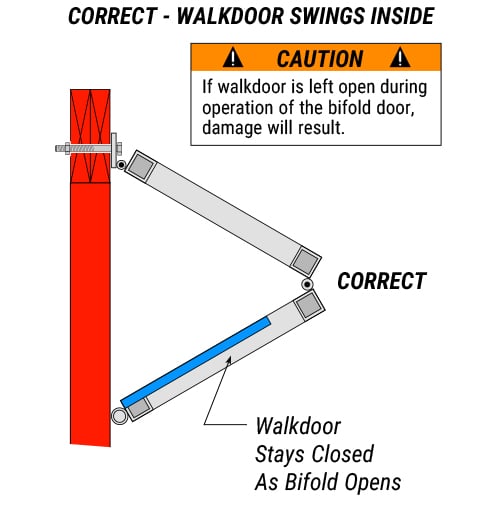

Correct - Walk Door Swings Inside

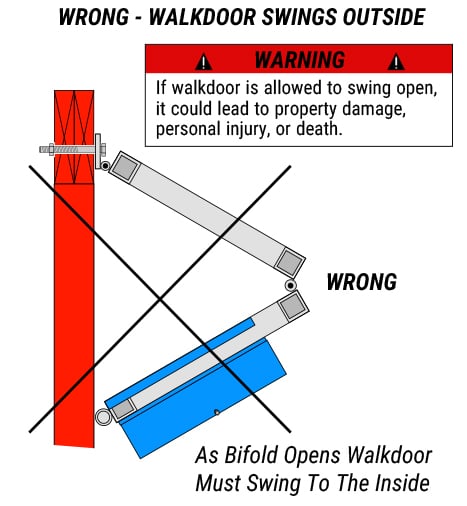

Wrong - Walk Door Swings Outside
CORRECT
WRONG
If walkdoor is left open during
operation of the Bi-fold Door,
damage will result
If walkdoor is allowed to swing open,
it could lead to property damage,
personal injury or death
Walk Door
Stays Closed
As Bi-fold Opens
As Bi-fold Opens Walk Door Must Swing To
The Inside
