Sheeting for the Door's Exterior (Not Included)
Metal Siding For The Door's Exterior (Not Included)
Metal Sliding For The Door's Exterior (Not Included)
• When installing a door on an existing building, try to match the door sheeting with the building sheeting
or substitute other materials.

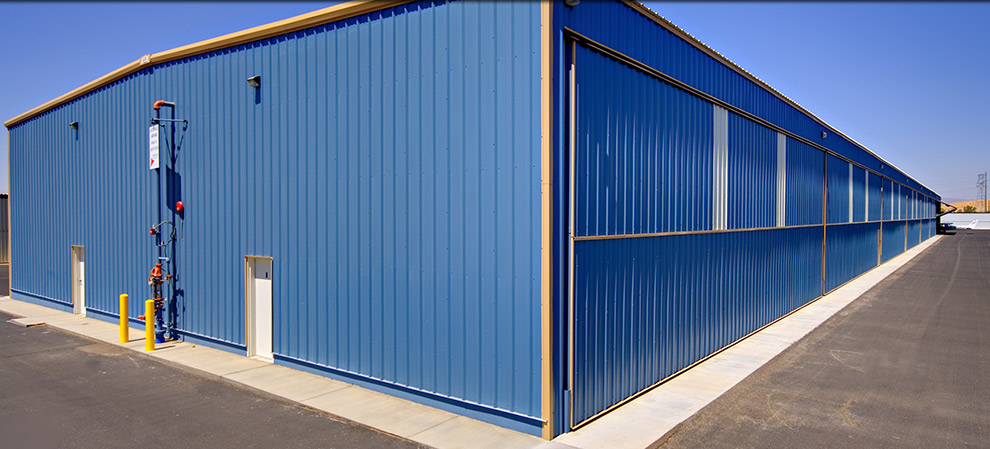

• The same sheeting used on the exterior of your building can be applied vertically to the Bi-Fold Door.
• We can provide a self-drilling tek screw with a neoprene washer to apply any type of sheeting to your door
frame. We offer special color screws to match your sheeting.
• External Door Sheeting & Trims.
• Wainscot & Trims.
• Color: Many Colors to Pick From... Your Choice.

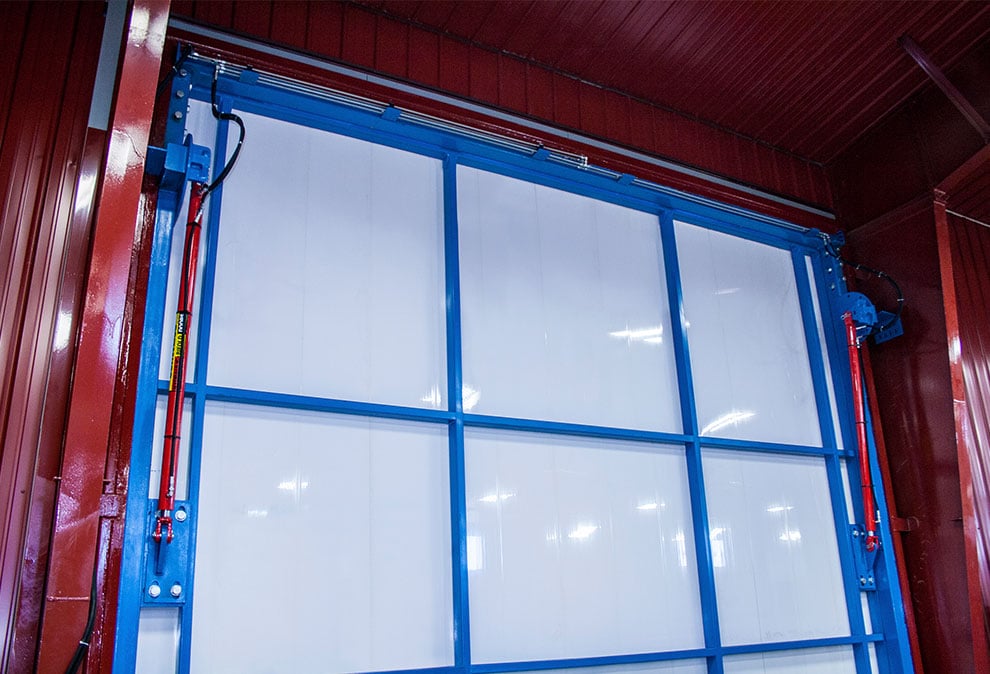

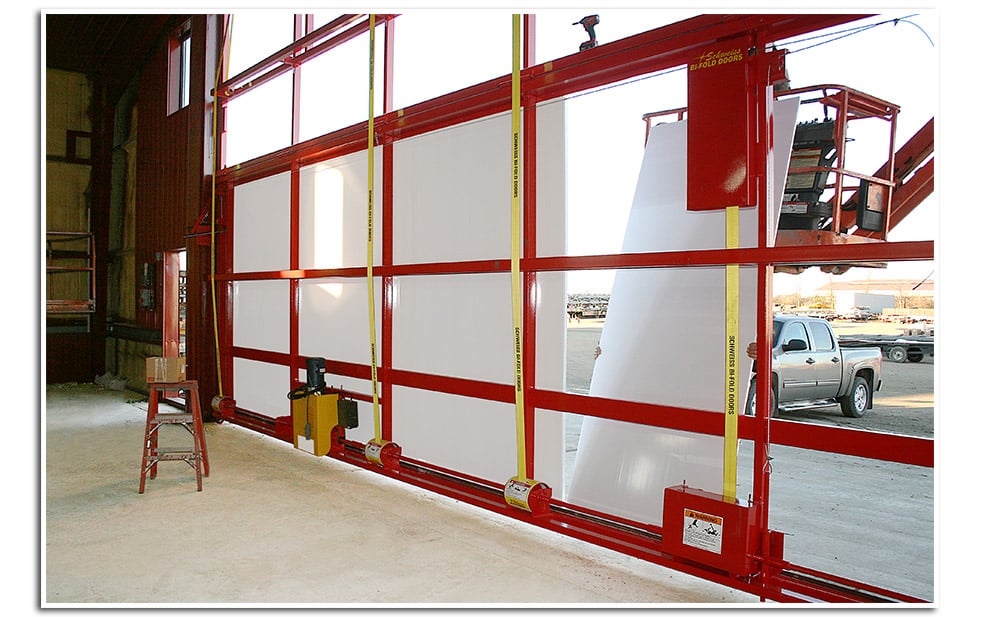

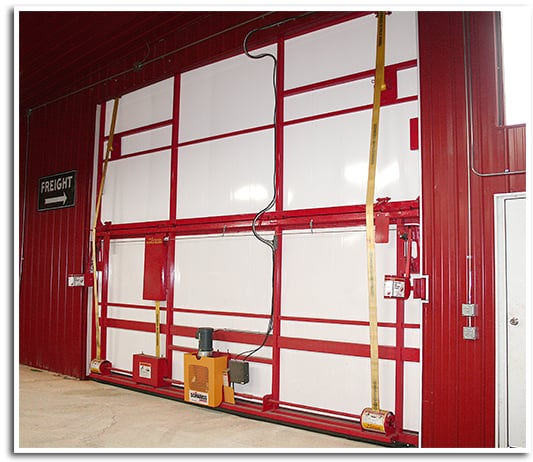

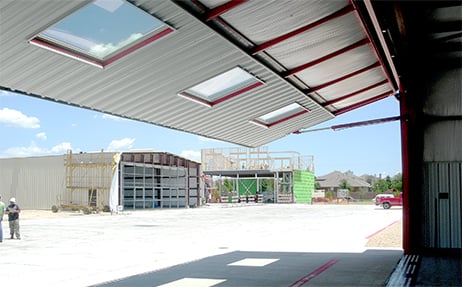

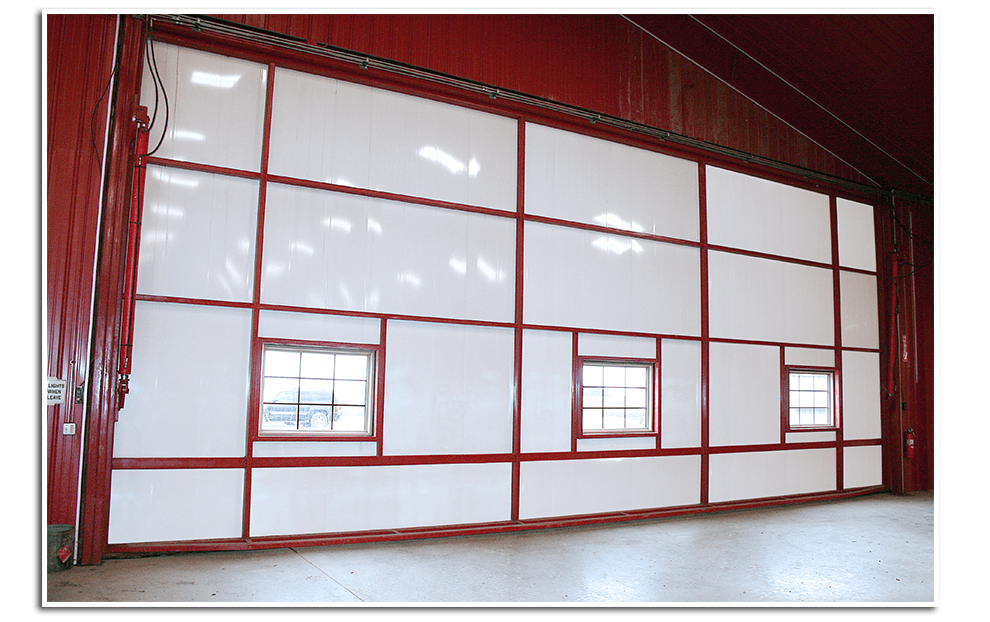

• Inside Liner Sheeting Doors may be finished off in the inside --Lined with sheeting.
• Alternate Exterior Siding / Skins

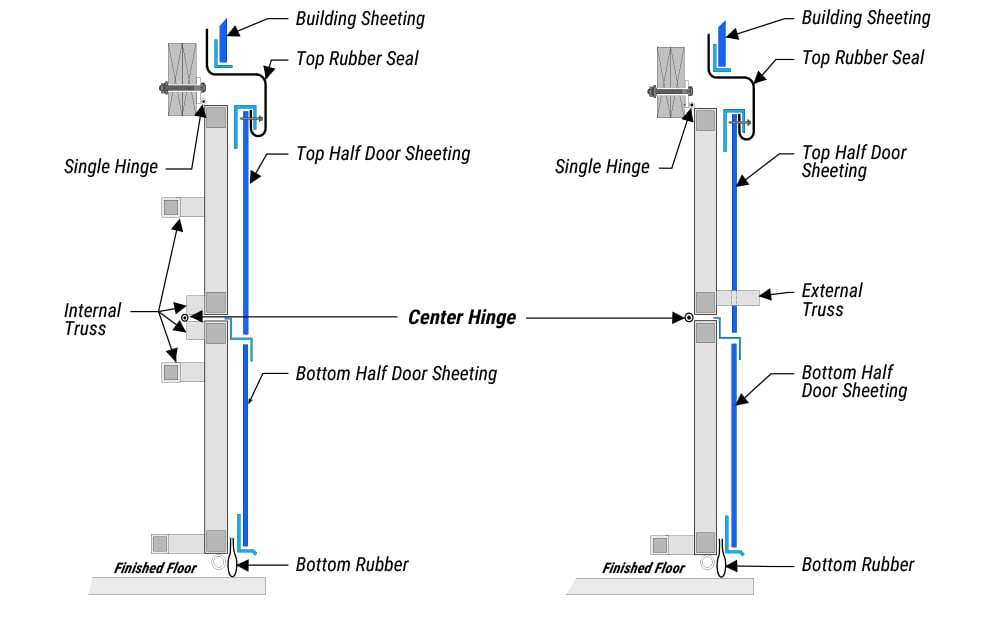

Building Floor
Building Floor
12" Top Rubber
Seal (optional)
12" Top Rubber
Seal (optional)
Single Hinge
Single Hinge
Top Half Door
Sheeting
Top Half Door
Sheeting
Internal
Truss
External
Truss
Bottom Half
Door Sheeting
Bottom Half
Door Sheeting
Bottom Rubber
Bottom Rubber
Custom Sheeting Options
Decorative Door Covering: Many Choices to Pick From - By contractor or Customer.
• Stucco
• Cedar Siding
• Total Glass

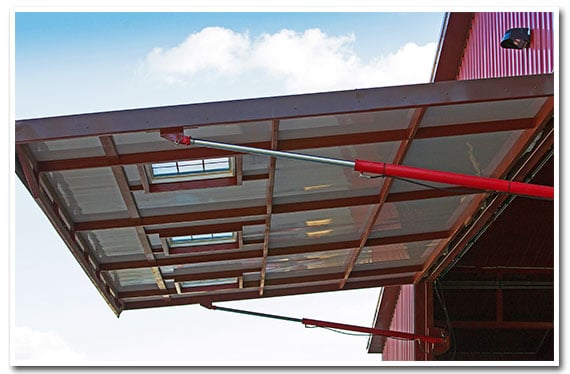

• Translucent Panels
• Decorative windows
• Custom Windows
• Decorative Siding
• Decorative Wood
• Home Siding
• Vinyl Siding
• Rock Face Material

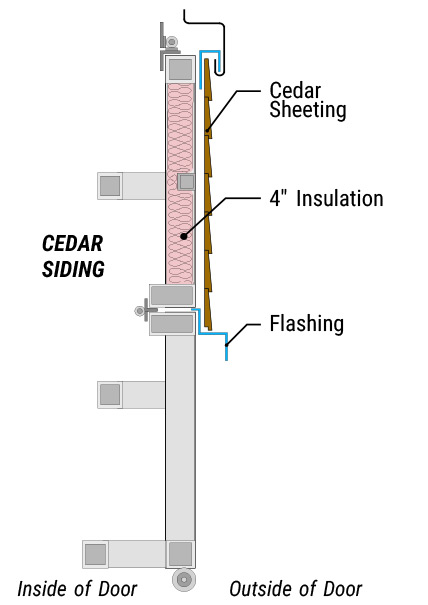

Cedar
Stucco
Cedar
Sheeting

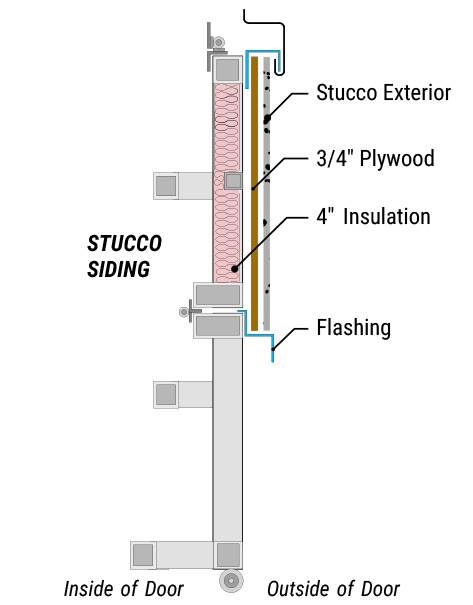

Stucco Exterior

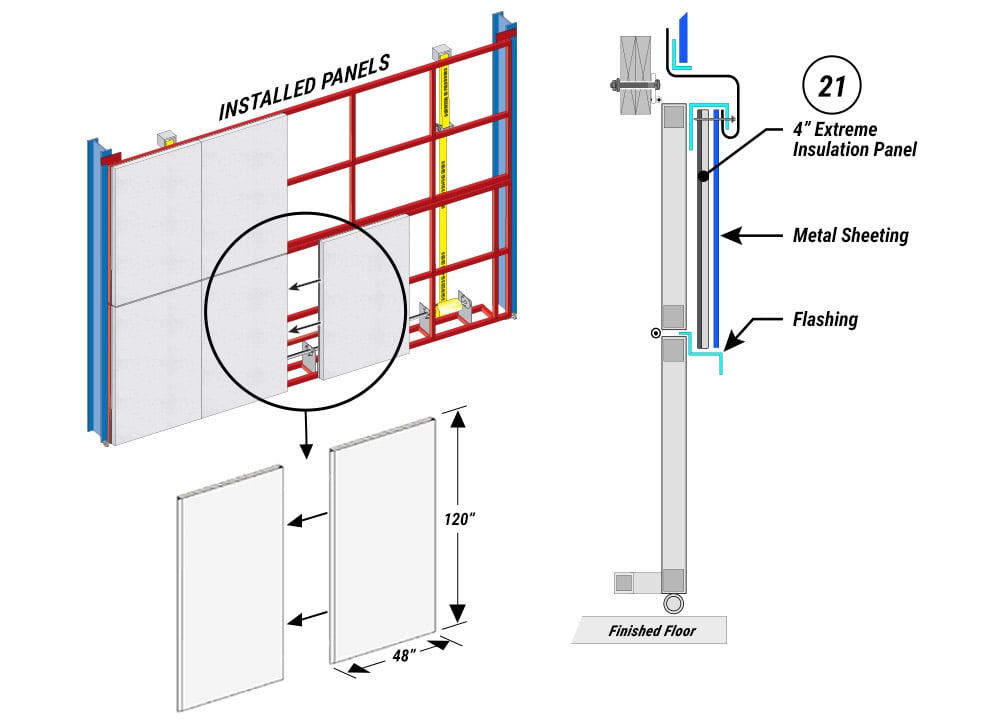

4" Insulation
3/4" Plywood
4" Insulation
CEDAR
SIDING
STUCCO
SIDING
Flashing
Flashing

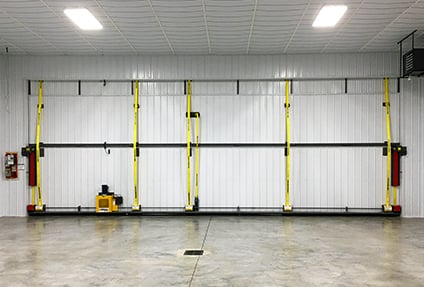

Inside Liner Panel - (Optional)

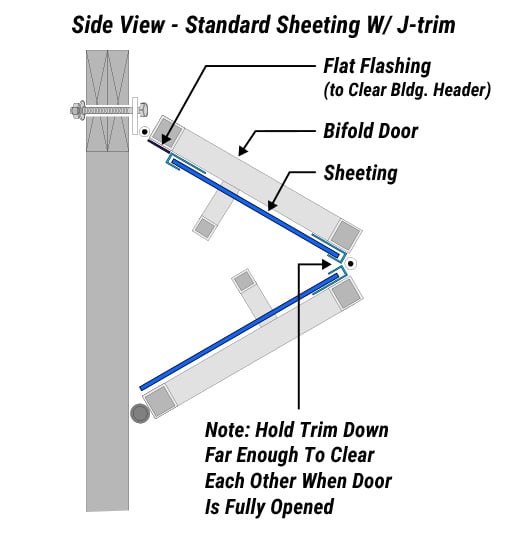

Side View - Standard Sheeting W/ J-trim

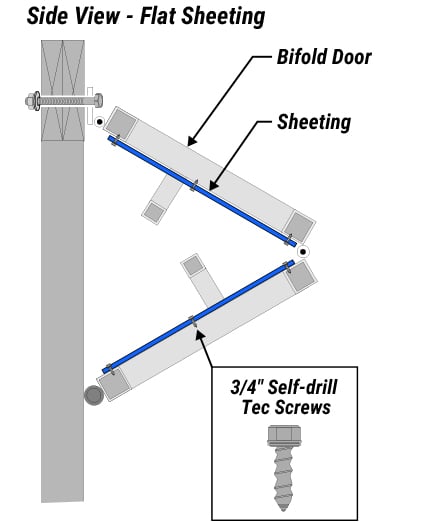

Side View - Flat Sheeting
Flat Flash [to Clear
Bldg. Header]
Bi-fold Door
Bi-fold Door
Sheeting
Sheeting
Note: Hold Trim Down
Far Enough To Clear
Each Other When Door
Is Fully Opened

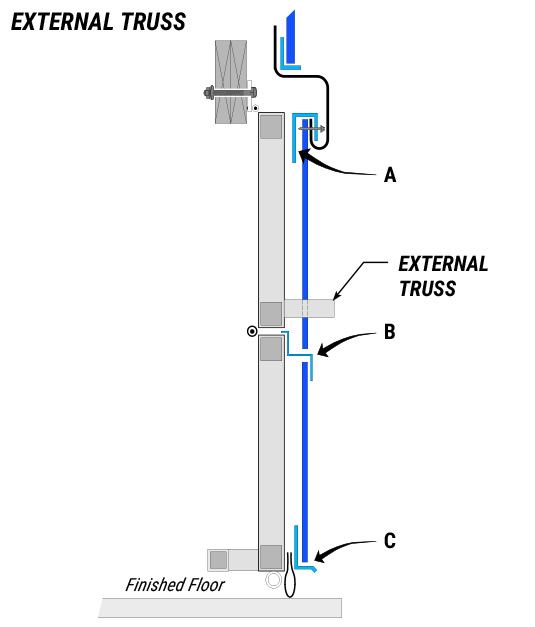

Internal / External Sheeting Details

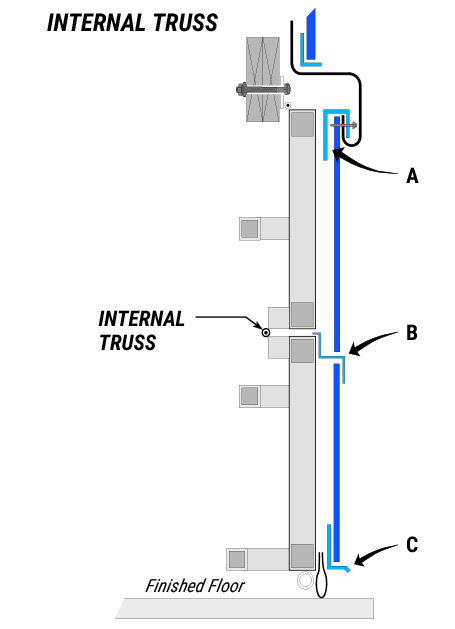

INTERNAL TRUSS
EXTERNAL TRUSS
INTERNAL
TRUSS
EXTERNAL
TRUSS
THESE MEASUREEMNTS MAY VARY DEPENDING ON YOUR BUILDING SUPPLIER

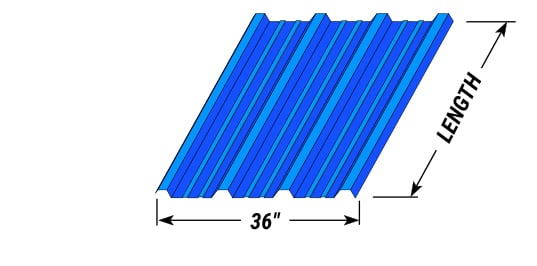

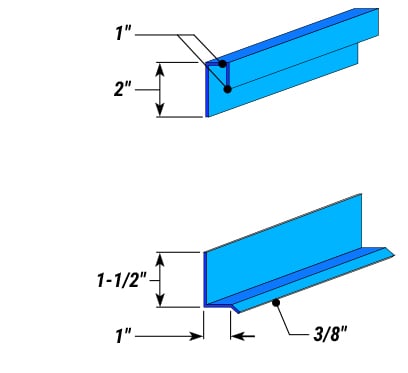

SHEETING
FLASHING
LENGTH
QTY.

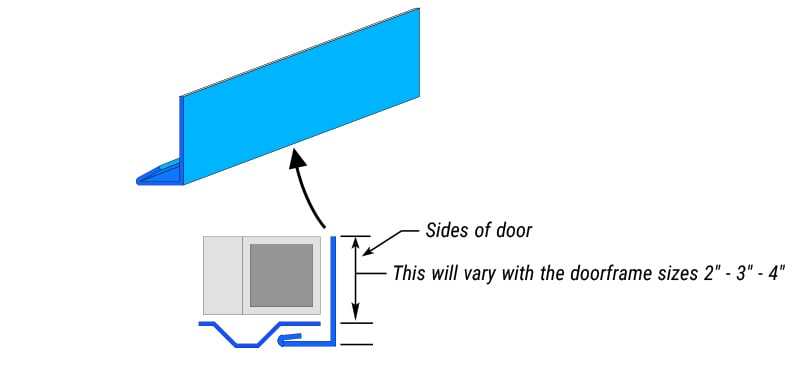

SPECIAL SIDE FLASHING - Customer's choice on side trim
LENGTH
QTY.
