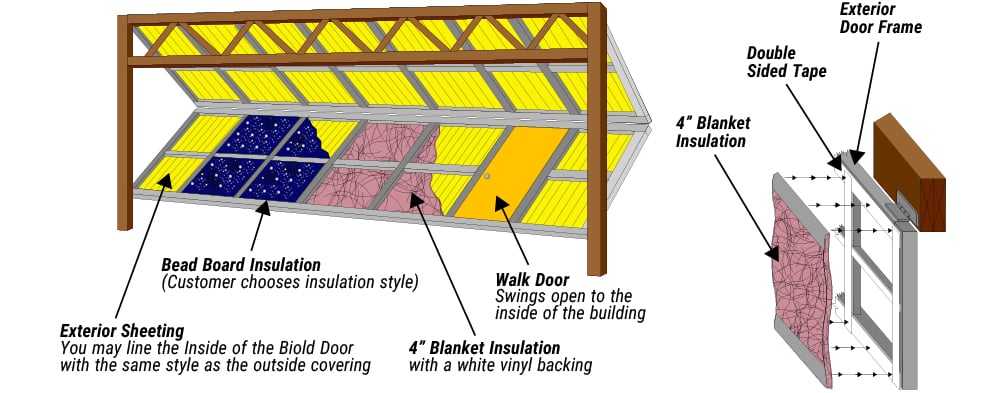

Cold Weather Package - Easy to Insulate
All of our automatic Bi-Fold Doors are easy to insulate with blanket, foil or hard board fitted between the door frame
members. The thicker the door frames, the more insulation you can apply. You can also place the insulation between
the door frame and the outside sheeting.
Exterior Door Frame
Double Sided Tape
4" Blanket Insulation
Insulation
Bead Board Insulation
(Customer chooses
insulation style)
Walk Door
Exterior Sheeting
You may line the inside of the Bi-Fold Door
with the same style as the outside covering
4" Blanket Insulation with a white vinyl backing
-Swings open to the inside of
the building
Types of Insulation Options
• We design our door to accept the insulation of your choice.
• 3" or 4" Blanket with white vinyl backing.
• Solid - R-board 1-1/2" thick or more
• Spray on Urethane.

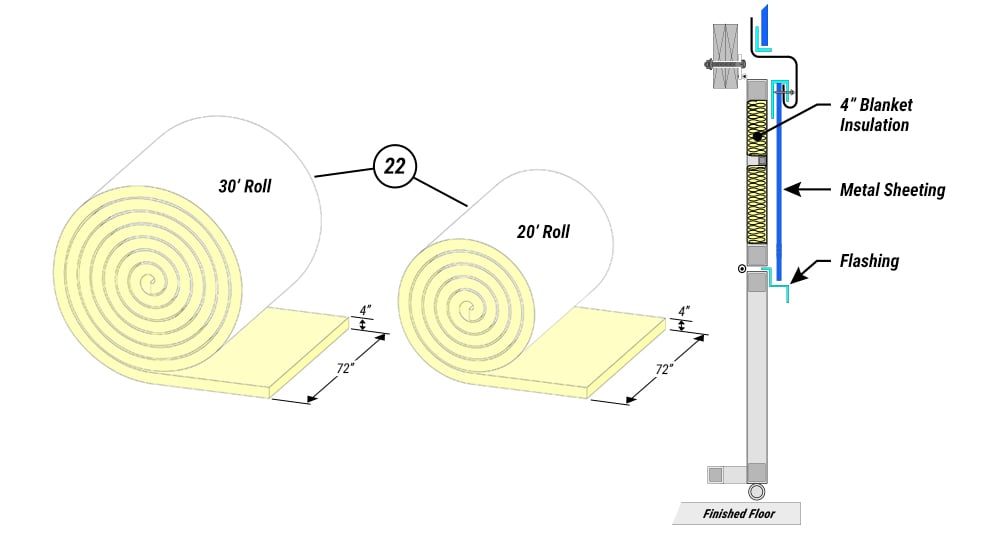

1st - Insulating your door before sheeting the
door with metal sheeting.
2nd - Insulating your door with 1" hard board
insulation and metal sheeting
4" Insulation
Metal
Sheeting
Blanket
Insulation
1" Hard Board
Insulation
Metal
Sheeting
Hard Board
Insulation
Flashing
Flashing
Inside of Door
Inside of Door
Outside of Door
Outside of Door

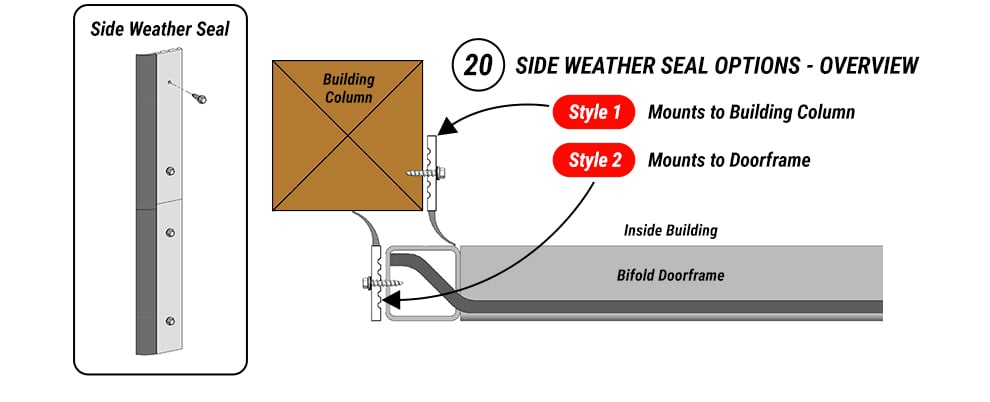

Weather Seal Kits (Optional)
The Bi-Fold Door can be made very weather tight. The sides, and center of each bi-fold can be sealed off with a
special weather stripping. The entire door perimeter can be made weather tight.
White Weather Board -
Attaches to the side columns and when the door closes it butts up against it.

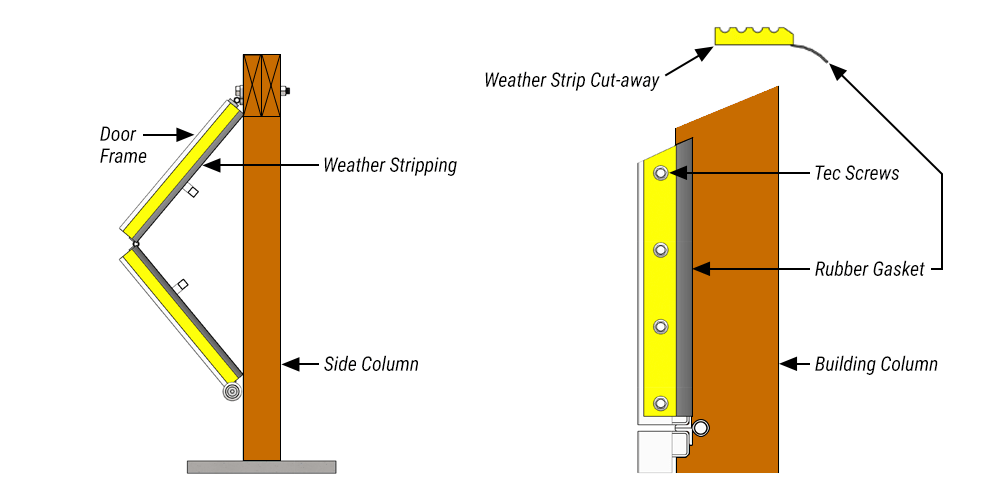

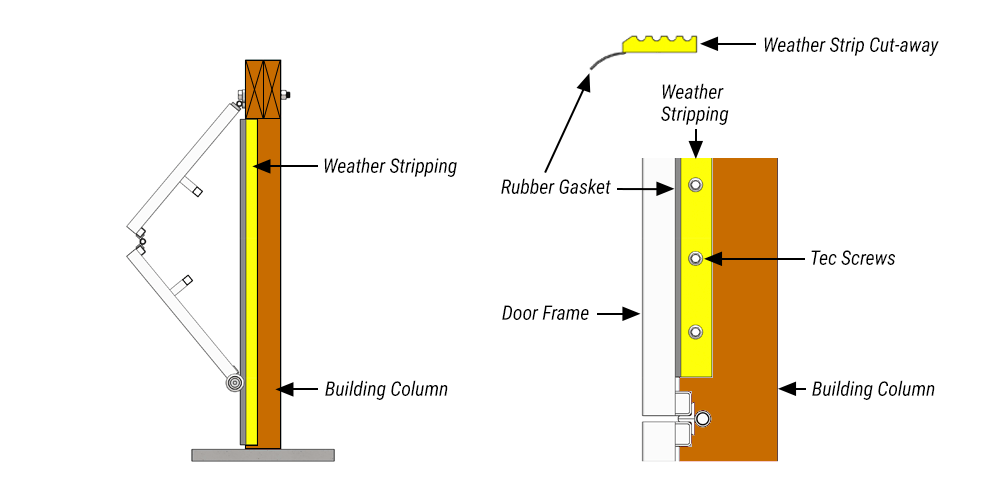

Style One- Mounting Weather Stripping to Side Column
Door Frame seals against the side column with the rubber gaskets
Weather Strip
Cut-Away
Weather Stripping
Side
Column
Rubber
Gasket
Weather
Stripping
Side Column
Tek
Screws
Door
Frame
Side Board - Weather Stripping
Style Two - Mounting Weather Stripping to Door
Door Frame seals against the side column
with the rubber gaskets
Weather Strip
Cut-Away
Door
Frame
Side
Column
Weather
Stripping
Weather
Stripping
Door
Frame
Side Column
Tek
Screws
Rubber
Gasket
Side Board - Weather Stripping

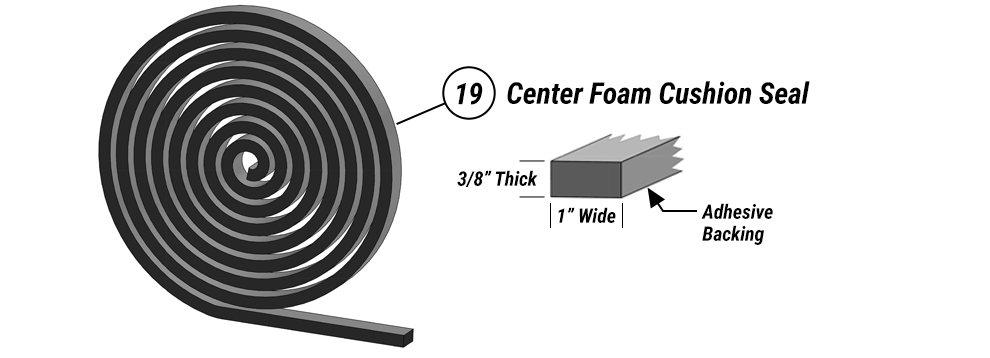

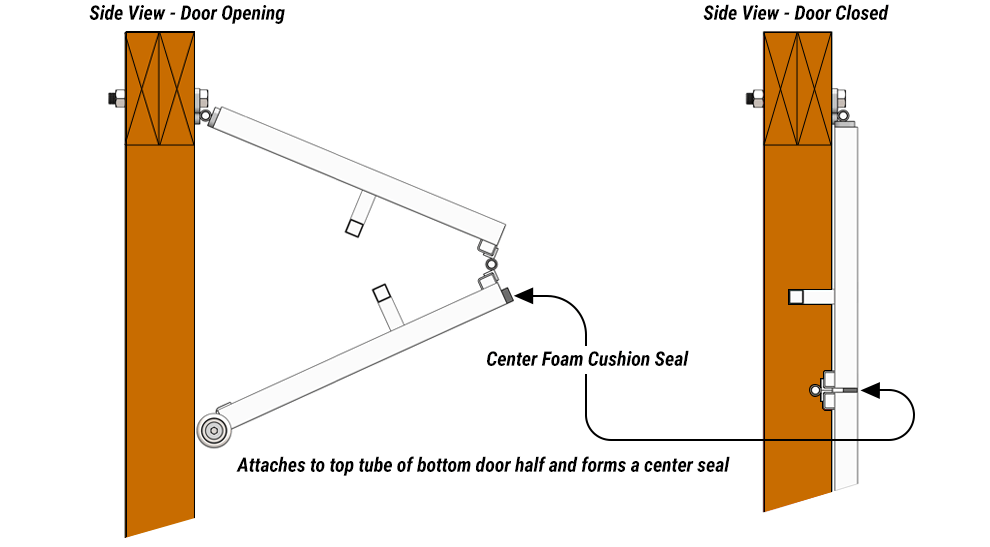

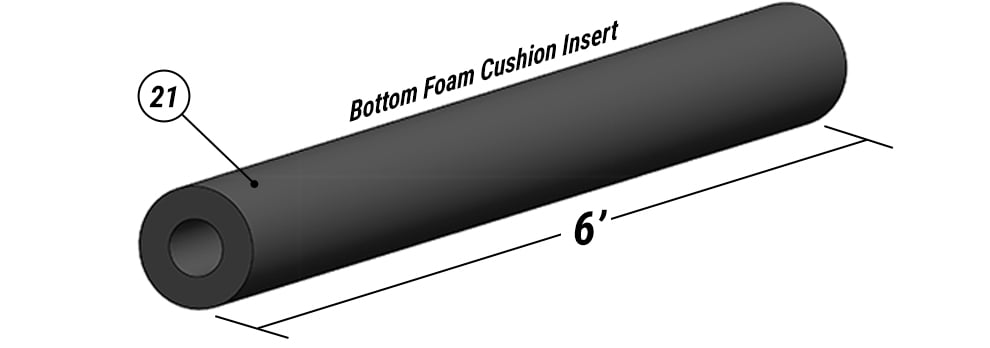

Foam Cushioning -
Attaches to top tube of bottom door half and forms a center seal

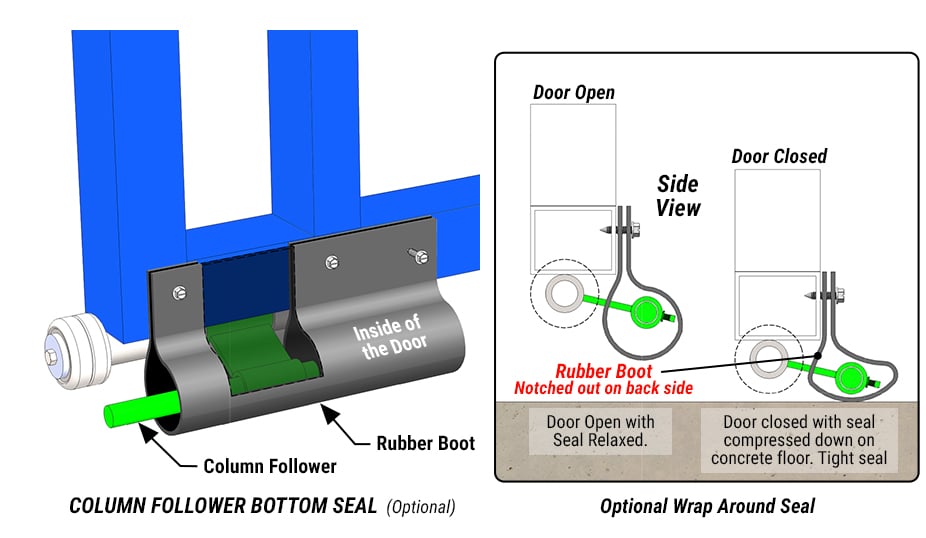

Side View - Door Opening
Side View - Door Closed
3/8" Thick
1" Wide
Adhesive
Backing
Foam Cushion
Foam Cushion
Center Seal
Center Foam - Weather Stripping

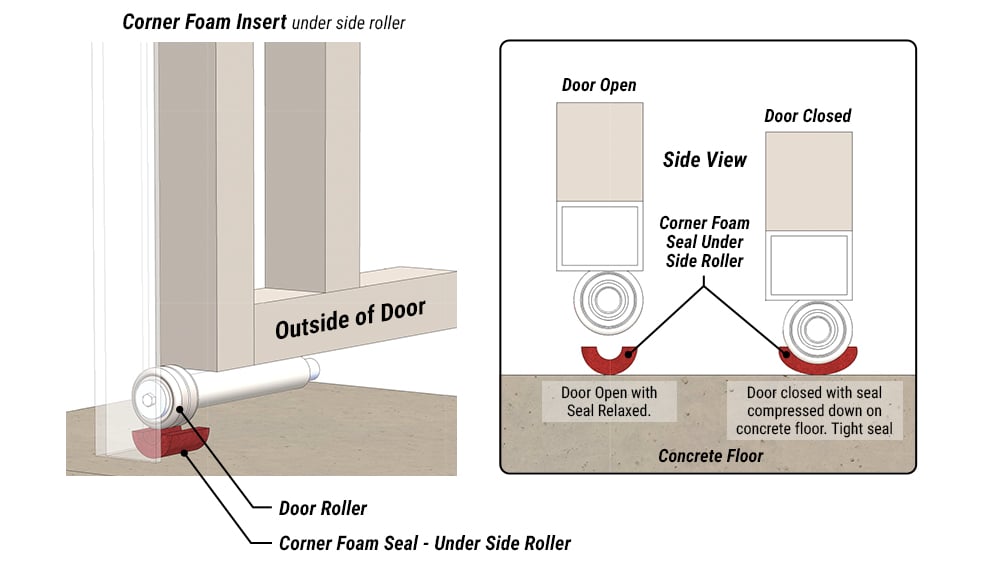

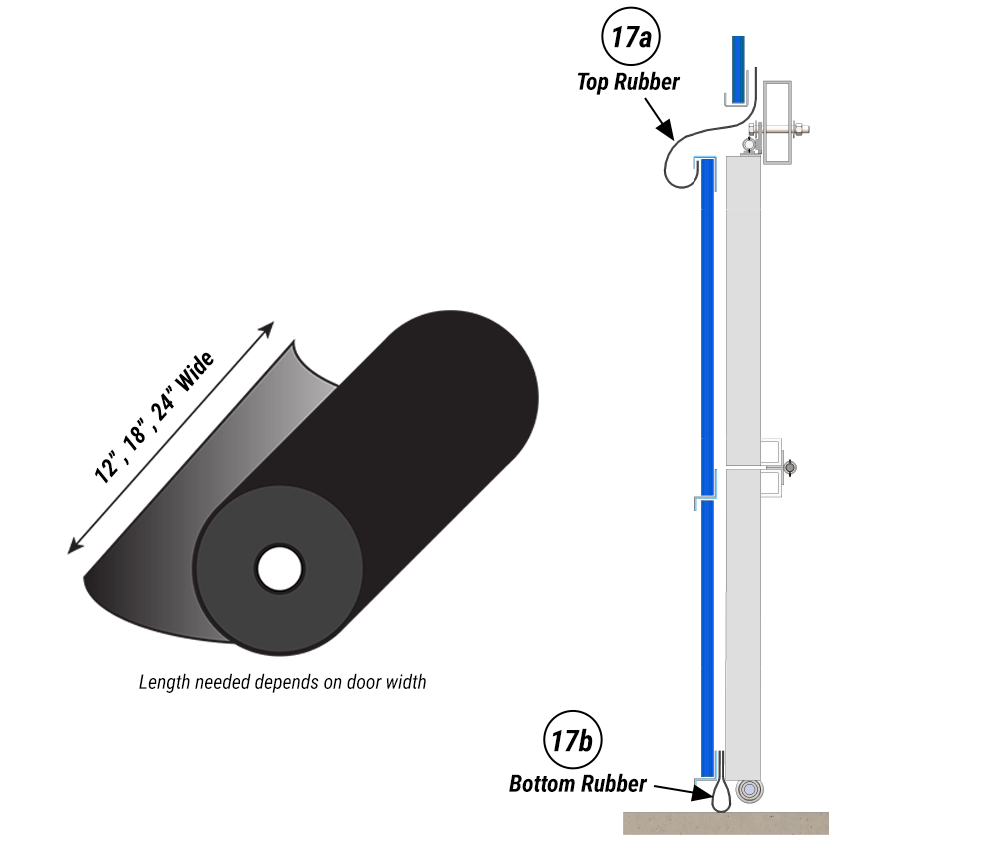

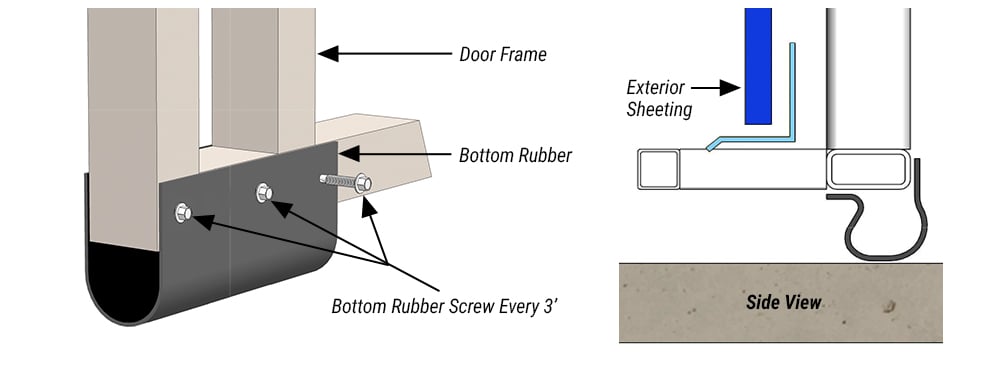

Bottom Rubber Seals
Bottom Rubber Seals

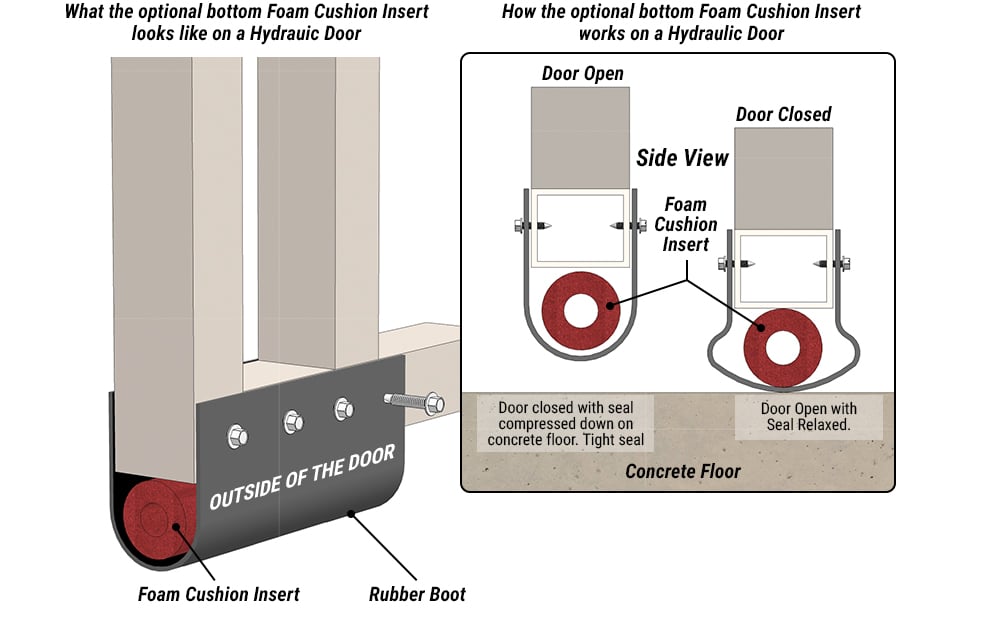

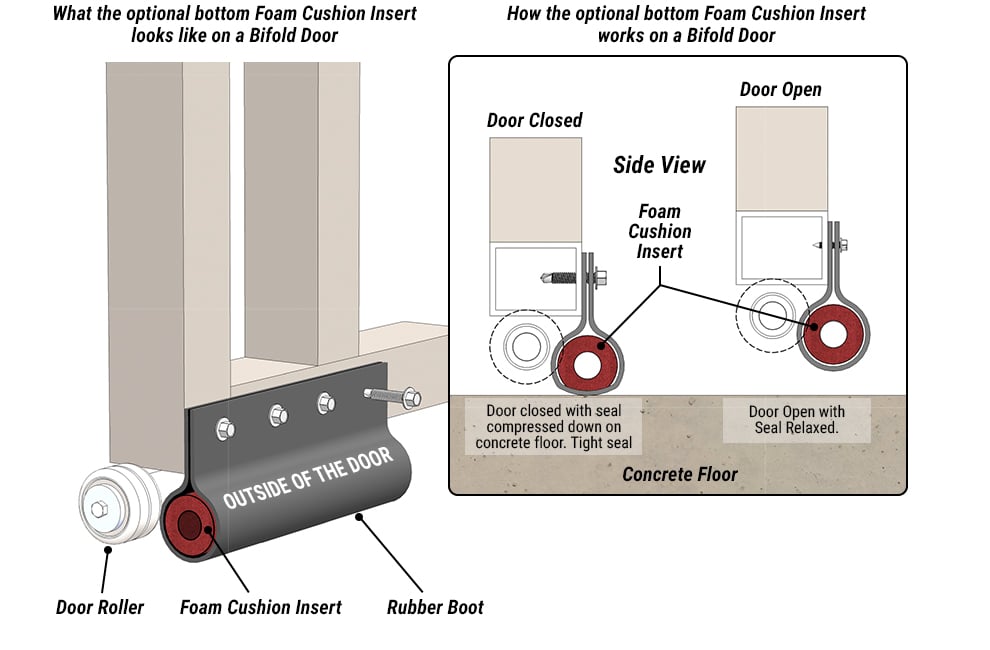

Bottom Rubber Seals: We furnish 12" or 17" rubber boot that seals the bottom of your Bi-Fold Door. The heavy 2-ply,
cloth-inserted rubber seal provides excellent weather proofing.
Note: That existing bituminous surface / concrete varies and seals shall be placed accordingly

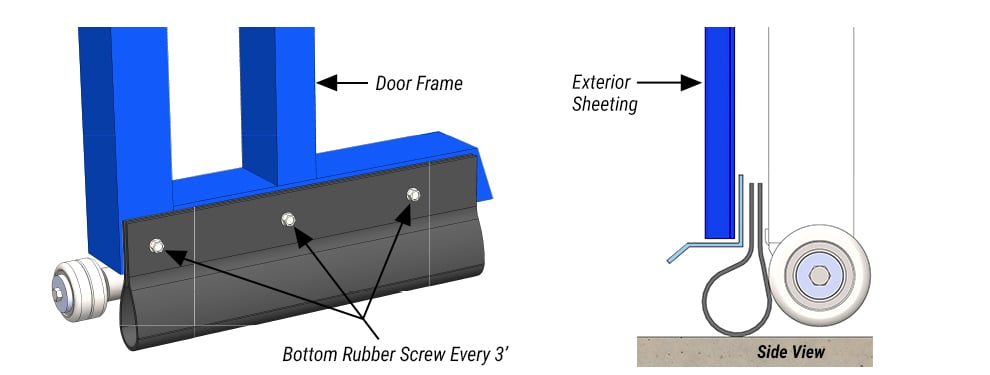

Proper Bottom Seal Placement
Distance Will Vary Depending On How High The Door Was Installed Above The Floor
Door Frame
Door Roller
Outside of Building
Bottom Rubber Screw Every 3 Feet

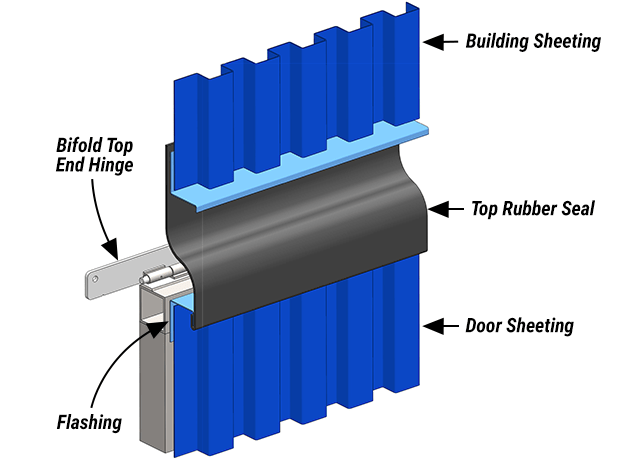

Top Rubber Seals
This same continuous seal can be used at the top of the door/heads to prevent flow of moisture into the door.
Top Rubber Seals
Single Hinge
Top Seal
Insert Screw At
Each Tin Rib
J-trim
12" Wide Top
Seal (optional)
Door Frame
"J" Trim
Door Sheeting
Side View
