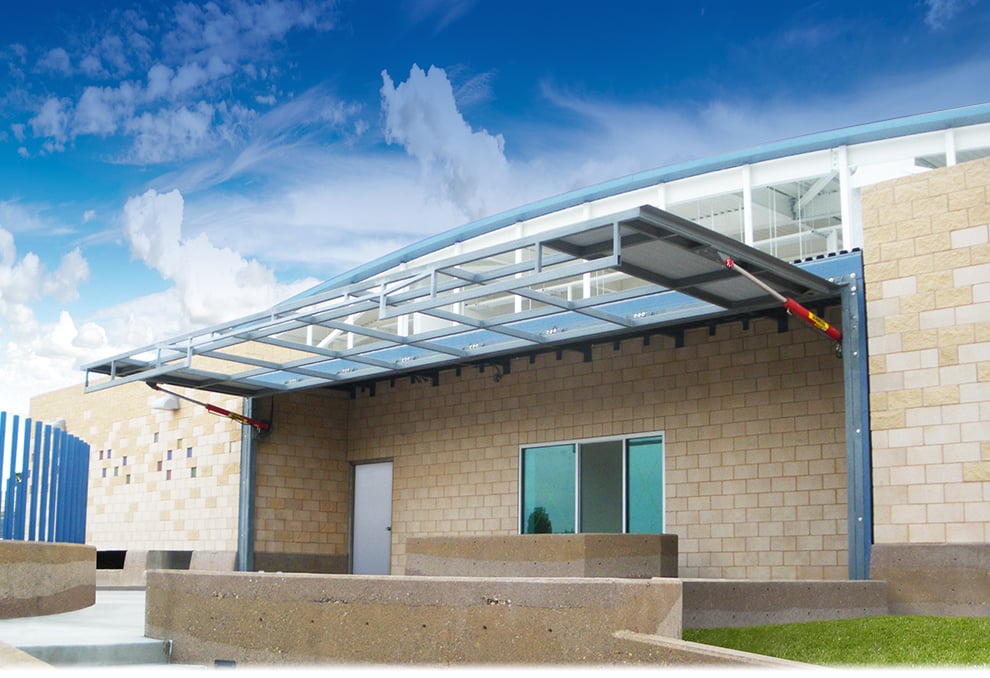

Hydraulic door mounting styles

Each hydraulic door comes with it's own frame work:

When you recieve the door, the one piece door frame comes premounted on it's own frame work - no welding
necessary The frame work consists of the continious header thats factory welded to the cylinder legs -- Complete
frame work has the door frame attached at the factory making instalation easy -- The Frame work also adds extra
building support. Schweiss Self contained frame work simplifies installation.

MOUNTING STYLES FOR HYDRAULIC DOORS - PICK ONE

Look at the examples to get a better idea of how we can mount your hydraulic door to best fit your needs.

Flush Mount

Angle Iron support to building

Door hinge

Continuous door header tube

Door Frame

Door Jamb to finished floor

clear

Outside Mount

Angle Iron support to building

Door hinge

Continuous door header tube

Door Frame

Door Jamb to finished floor

clear

Door Hinge

Door Frame

Door Jamb to Finished Floor

Clear

Flush Mount with Continuous Header

L Style

Outside Mount with Continuous Header

M Style

Direct Mount

N Style

LOSE ZERO HEADROOM, GET HIGH CLEARANCE

Many industrial buildings, manufacturing facilities, and aircraft hangars require wide doors and a high inside
clearance. Schweiss Doors are ideal for any type of building that requires a high clearance inside the building.
A Schweiss bifold or hydraulic door provides you maximum access to your building's available storage space,
allowing you to get full value from your facility. Start utilizing your building to it's fullest potential with a High Tech
door.
