Retrofitting Your Building

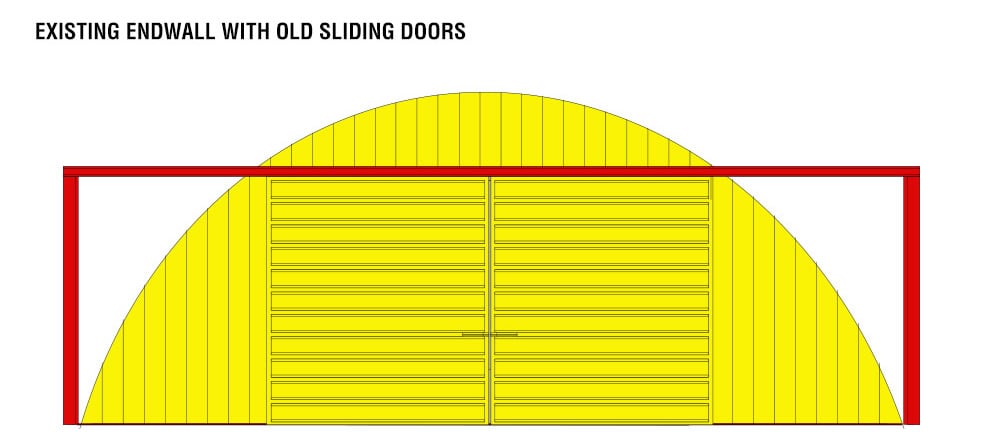

Existing Endwall with Old Sliding Doors
Multiple uses
• Aviation
• Automotive
• Farm
• Commercial
• Welding
• Industrial
• Equipment Repair

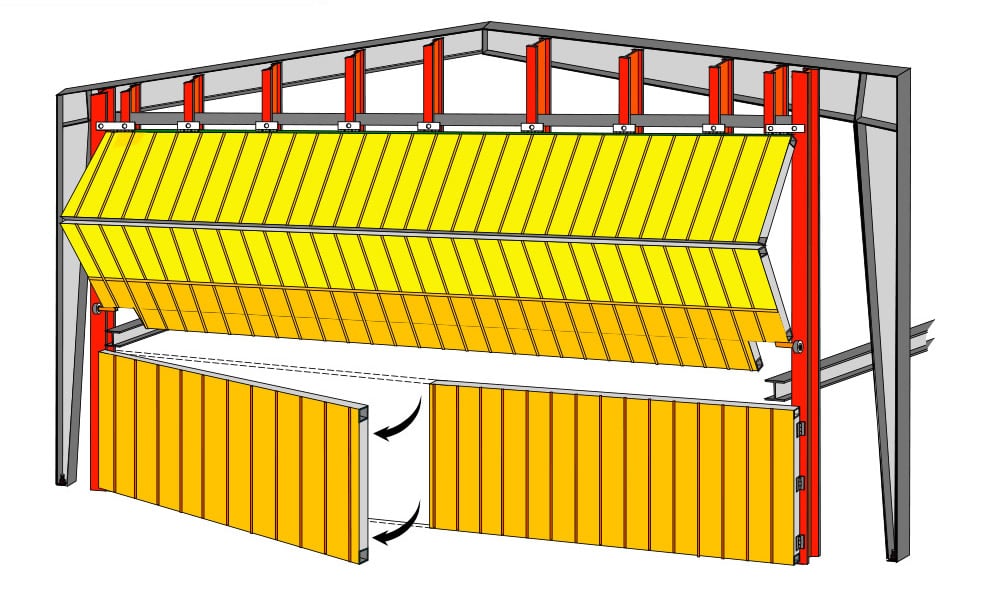

An "Automatic Bi-Fold" door gives you the flexibility to make your door opening a practical width for today's large equipment, truck or airplanes without worrying every time you enter your building with large equipment. Are you going to clear the side columns? Width is no problem with a bi-fold! An older building- with too small of a door opening is almost useless, but you can put your building back to work for you again by going bi-fold. It really sharpens up the appearance of older buildings.
Retrofitting Your Building
Regular Free Standing

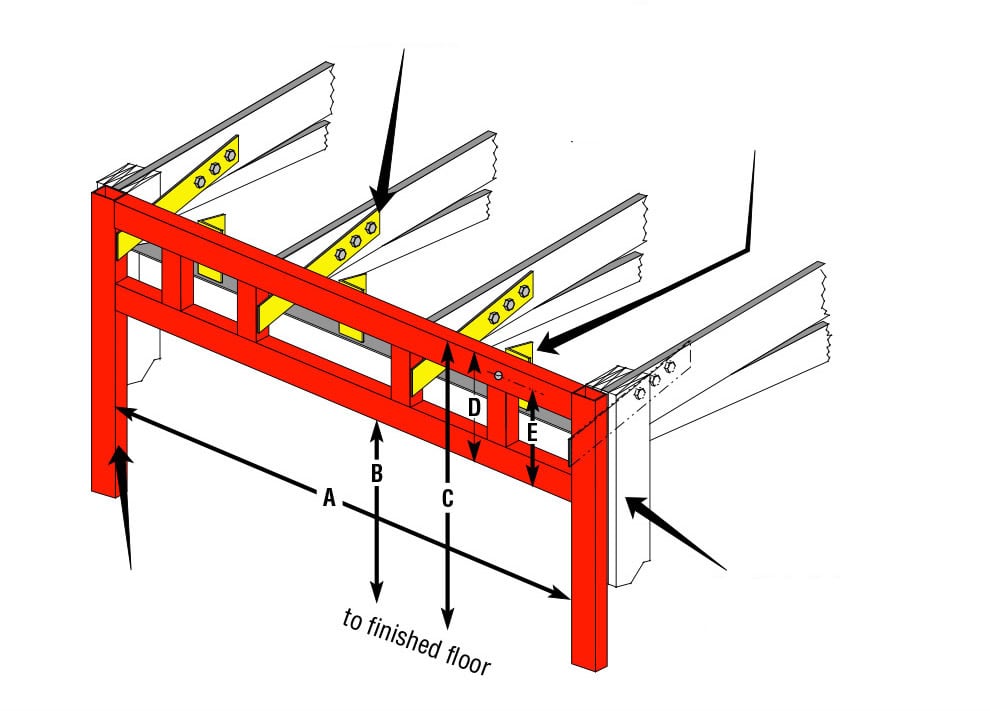

Header Setup

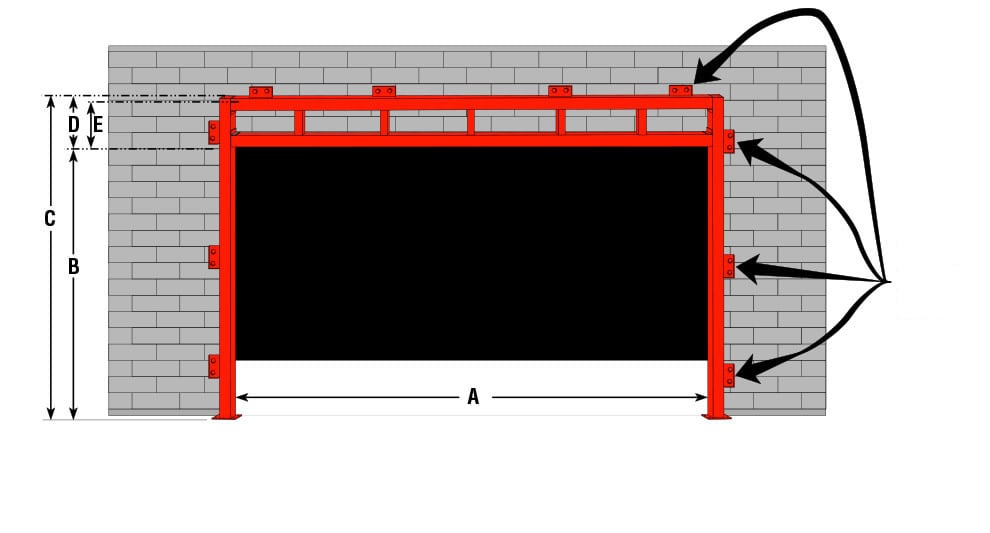

Free Standing Header
Is Above The Endwall
Free Standing Header
Is To The Very Top Of
The Building

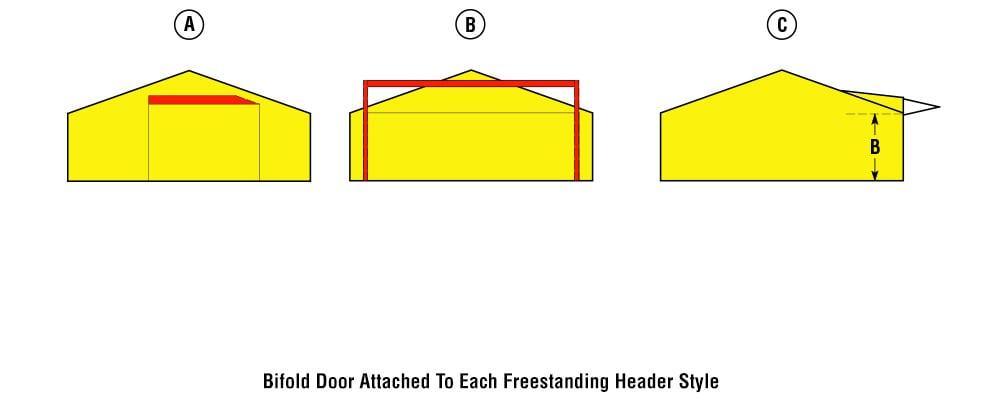

Bi-fold Door Attached To Each Free Standing Header Style
Retrofitting Your Building

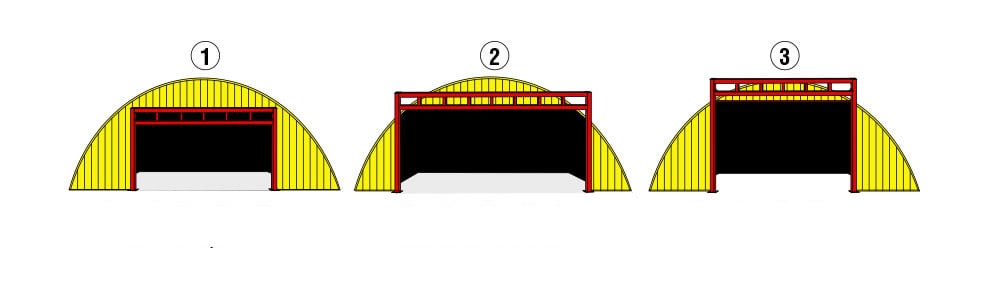

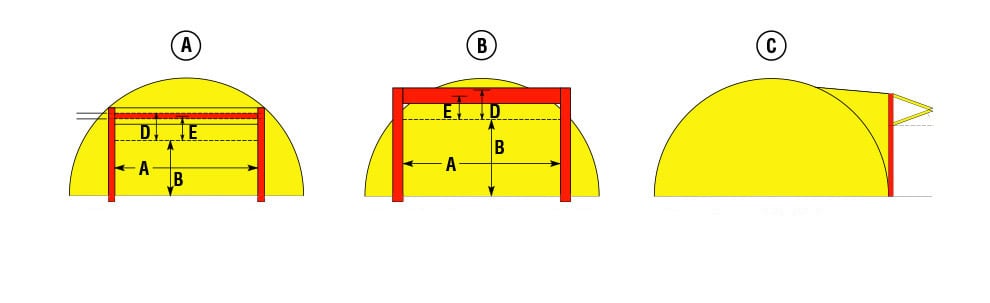

How a quonset can be
modified to hold a bi-fold
door. Stay within the roof
line
Opening the entire endwall
of your quonset to gain width
and height.
Mounting a bi-fold door on
the side wall of your quonset
Retrofitting Your Building
If the door would stick
out beyond the roof line,
we can
custom cut the
corners of the
door to keep
your building
looking nice!
If you want to open the
whole end wall of your
building up, we can run
posts
up and above or
add on to your existing
posts to make sure you
won't lose any headroom!
If we are short headroom on
older buildings, we can also
extend your wood or steel
posts and put your header
up and above.
Bi-fold Door Attached To Each Free Standing Header Style
Before... Retrofitting Your Building
Roof Sheeting
Rain Trough
Sliding Door Track
Sliding Door
Sliding Door
Finished Floor
Side Wall / Removing Sliding Door

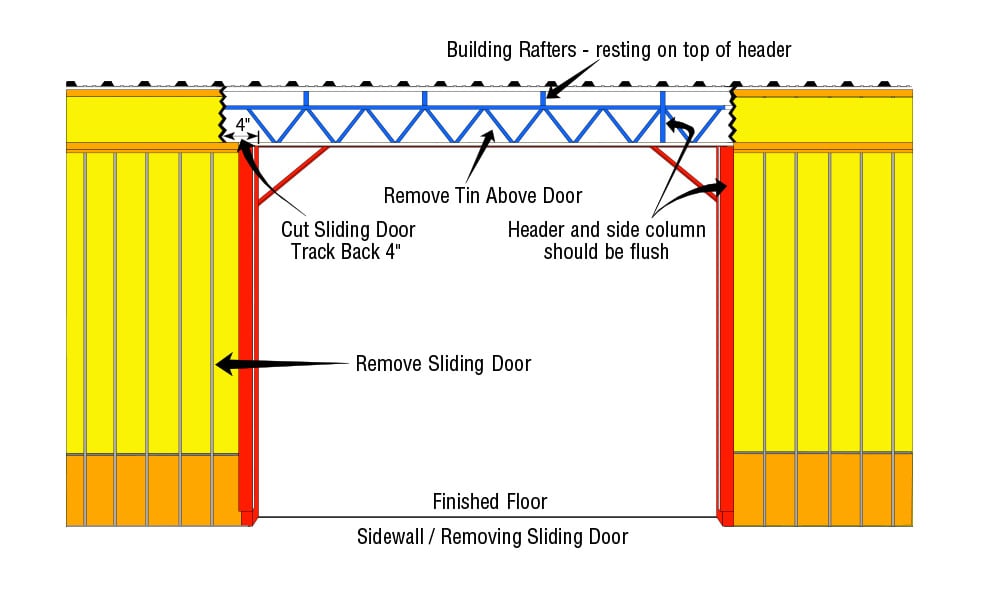

After... Retrofitting Your Building
Building Rafter - resting on top of header
Remove Tin Above Door
Header and side column
should be flush
Cut Siding Door
Track Back 4"
Remove Siding Door
Finished Floor
Side Wall / Removing Siding Door
Retrofitting Your Concrete Building - Before
Plate bolted to bldg.

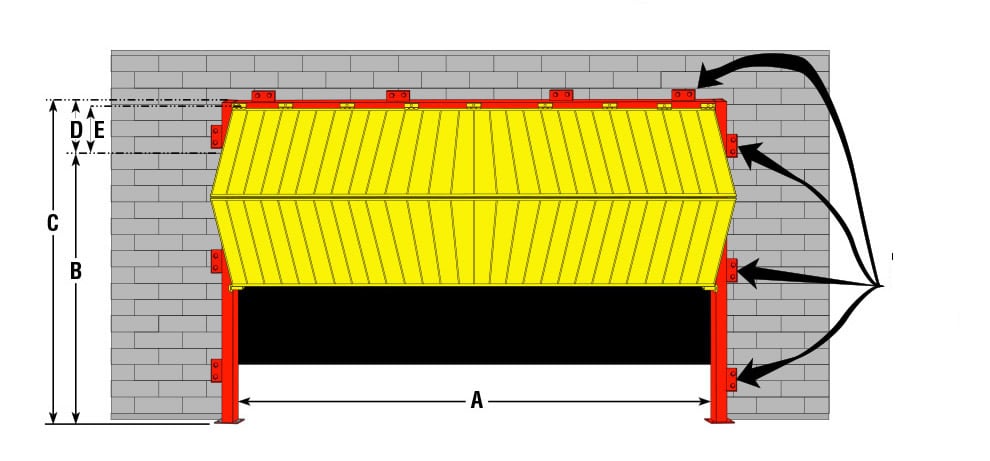

Free Standing Header Is Mounted To The Front Of The Building Shown With A Bi-fold Door
Retrofitting Your Concrete Building - After
Plate bolted to bldg.
Steel Plates for added strength

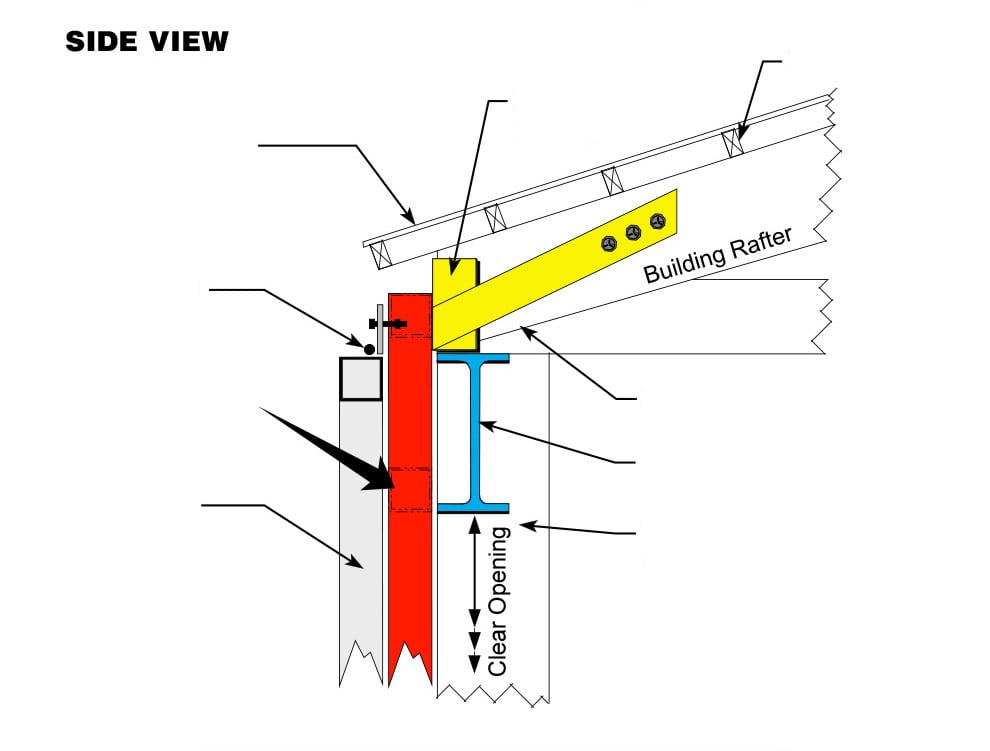

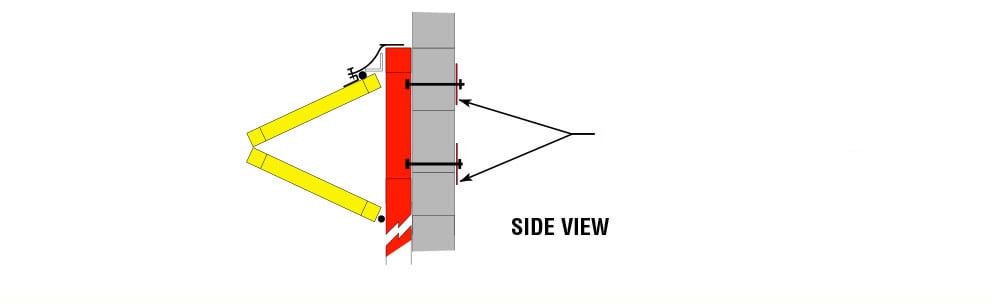

SIDE VIEW

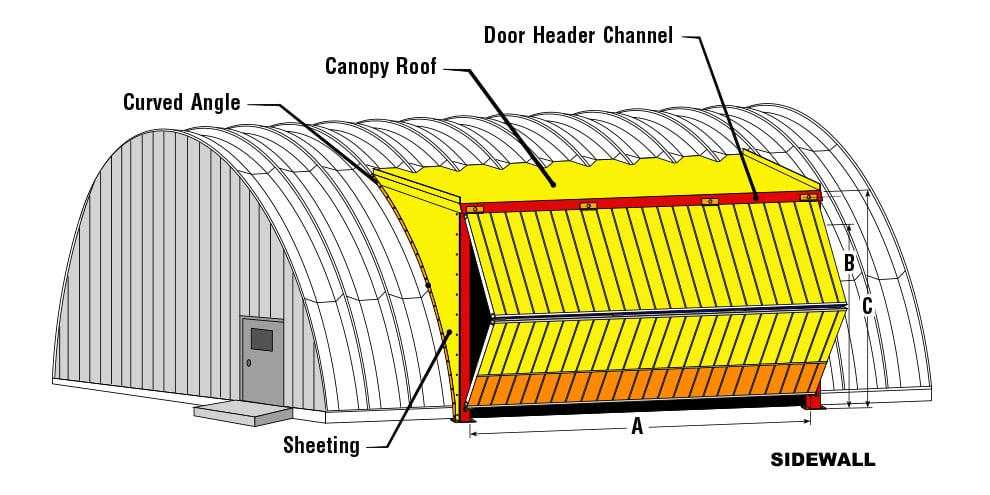

Retrofitting Your Round Roof Building - Side Wall
Curved Angle
Canopy Roof
Door Header Channel
SIDE WALL
Sheeting
Retrofitting Your Wood Building - Side Wall
Lateral Bracing
Substitute Hangar Bracket
3" x 4" x 1/4" Angle Extension Bracket
(Sized per door / place by each hinge)
Free Standing
Header
Building Side Column
wood or steel
Retrofitting Your Wood / Steel Building / Side Wall

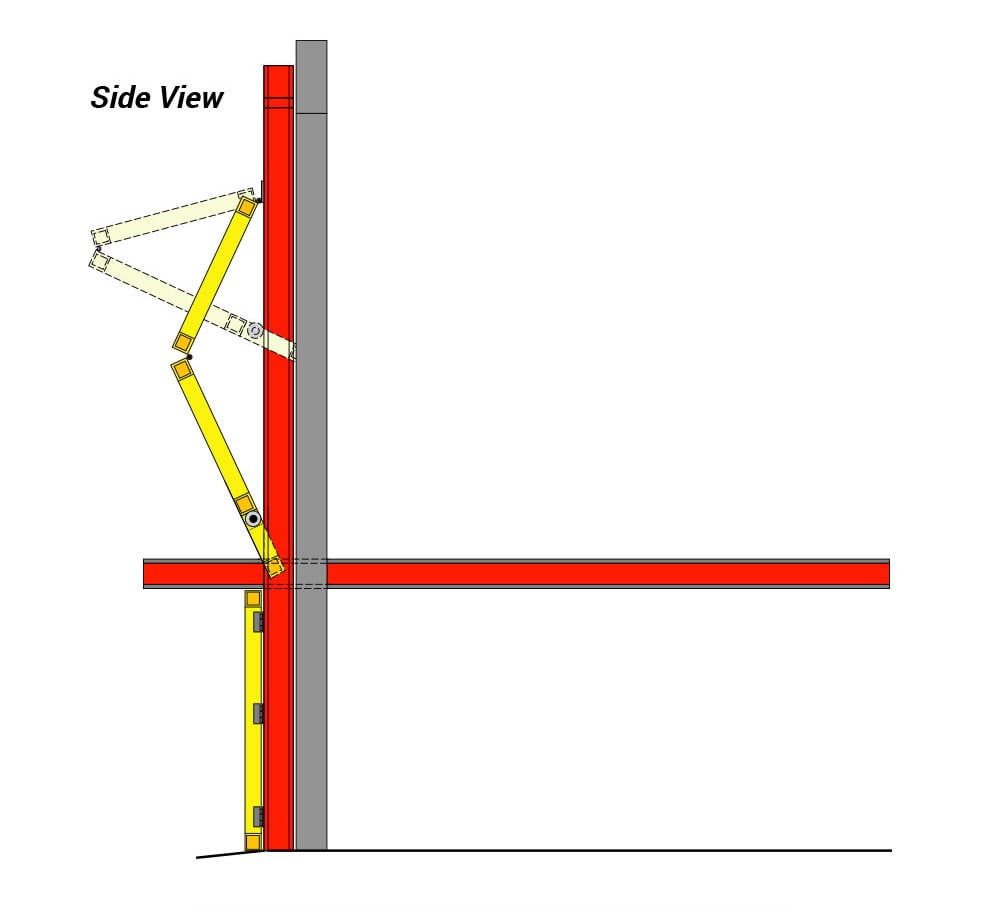

Side View
Building Sheeting
Single Hinge
Free Standing Header
Door Frame
Extension Header
Bracket
Roof Purlin
Lateral Bracing
I-beam bolted to column
Building side column
wood or steel
