Hydraulic Doors Among Energy-Saving Features Of Minnesota Farm Shop Building
Just as farm operations have become more sophisticated through the years, so
too have the shop buildings that keep expensive machinery and equipment in
tip-top condition. A prime example can be found in rural St. James, Minnesota
where the new shop of LeRoy and Dave Leinenweber is a model of efficiency,
both operationally and in terms of energy consumption.
The metal-skinned shop is large-80' wide x 120' long x 38' at the peak-and

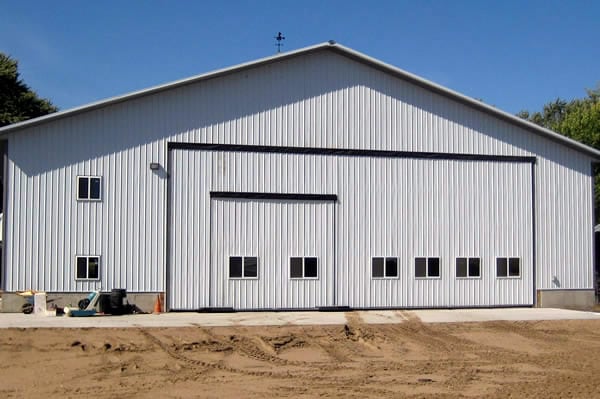

features hydraulic doors from Schweiss Bifold Doors of Fairfax, MN. One of the
three is a 20' x 50' unit. Located at the east end of the shop, it has a smaller
14' x 16' door built right into it. At the west end is another hydraulic door,
this one measuring 20' x 32', which makes it possible to drive equipment in one
end of the building and out the other. The building also utilizes a geothermal

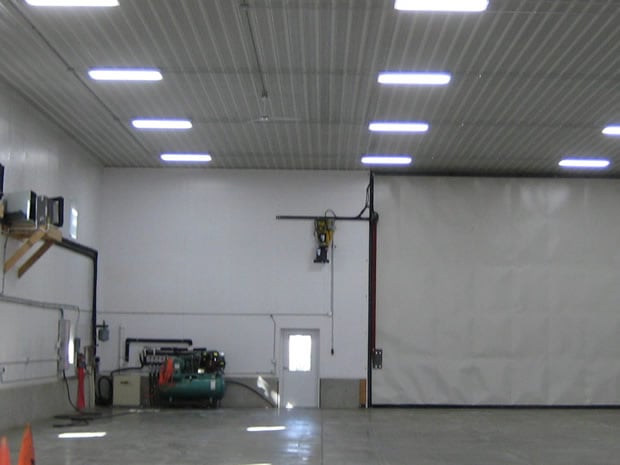

heat system, has hot and cold running water, fluorescent lighting equivalent to a
basketball arena, and thermo-pane windows.
The building provides 'shirt sleeve' comfort regardless of outdoor conditions, thanks
to the use of solid-core structural insulated panels from Energy Panel Structures Inc.
of Graettinger, Iowa, for the shop's R-44 roof and R-33 wall construction.
The energy-saving features are not only environmentally friendly, they are owner-
friendly as well. It is estimated the shop will cost the Leinenwebers about $800
annually to heat and cool versus $4,000 if Lp gas was used, and $5,000 if electricity
(at 5 cents/kw) was the energy source. But there were additional up-front costs that
more conventional approaches wouldn't have incurred. The investment for the geothermal
system-including some 9,600 sq. ft. of polyethylene lines buried 7' to 8' deep in the
earth, plus 7,000' line feet of 5/8" oxygen-bearing pex tubing stapled to the board
insulation beneath the seven-inch-thick concrete floor-was about $35,000.
So with the added upfront cost, why go with geothermal? Dave Leinenweber responded,
"It was a difficult choice because of the additional initial investment. But the
pencil pushing shows a payback in five to seven years."
It was to make the geothermal system even more cost efficient that the solid-core
structural insulated panels were chosen for the building's roof and walls. The
panels are made by sandwiching a core of rigid foam insulation between two skins
of wood. "This system is 15 times more airtight and two times more energy
efficient than stick buildings, plus it's much quicker construction," Leinenweber
indicated.
The roof panels are 44' long x 3' wide panels x 10" thick. The wall panels are
18'-tall x 3' wide and 7 3/4" thick. The wall panels sit on a 3' concrete sill. The
concrete foundation, dug 48" into the earth, is faced with Dow Styrofoam-brand
insulation on both sides.

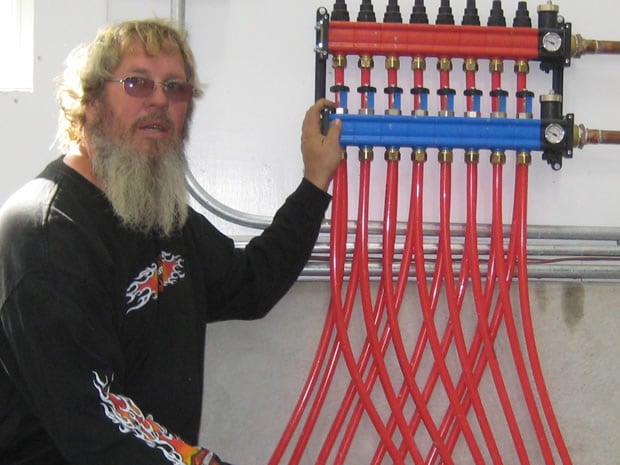

The geothermal system has three separate distribution points to more efficiently
provide three zones for the heating/cooling system. Also two air-handler systems
mounted 18' high on the south wall use the chilled water from the geothermal unit
to air condition the building during the summer.
The concrete floor got 'surfaced' with a 'hardener/densifier' product that causes a
chemical reaction ostensibly to provide longer life. "It interacts with limestone in
the concrete and hardens the top surface immensely," explained Leinenweber. Also two
Nussbaum jumbo-lift scissor hoists will be positioned into the floor.
Why hydraulic doors? "I've seen hydraulic doors in other shops and farm buildings.
I like the 'awning affect'. You open up this 20' door and you have a 20' awning over
the concrete approach ramp." And why the smaller door within the bigger door? "That's
a matter of 'energy savings'. We just need the big door for a combine and bigger
equipment. The smaller door opens quicker and will save heat in colder winter conditions,"
explained Leinenweber.

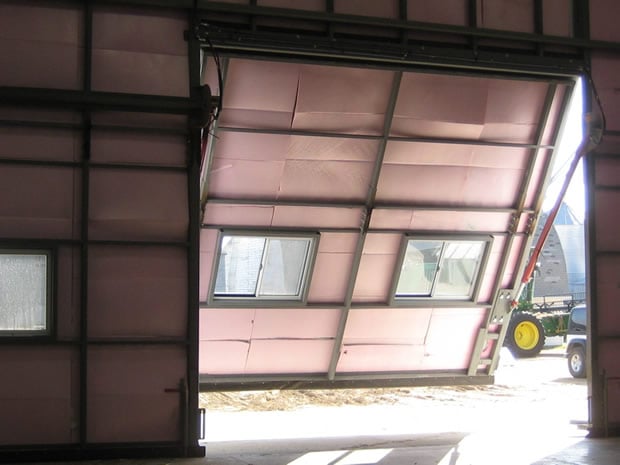

A 5-hp electric motor powers the big hydraulic door with 2-hp motors handling the other
two doors. Additional bracing was welded into the frame of the bigger door to support
the extra weight of the second door built within the framework of the 20' x 50' unit. Also
special latch pins provide stability to both doors when closed. Foam insulation provides
R-20 values for all three doors.
Going with Schweiss hydraulic doors was basically because this Minnesota manufacturer
could deliver exactly what the builder needed to meet the engineering safety specs of
this door-within-a-door configuration. "They've got a proven reputation. Any questions
were quickly answered either by phone or direct visits to our farm," related Leinenweber.
The contractor for the geothermal system was St. James Electric. The general contractor
for the building was Tedd Grunzke, Shed and Shinola, LLC, Cleveland, MN.
